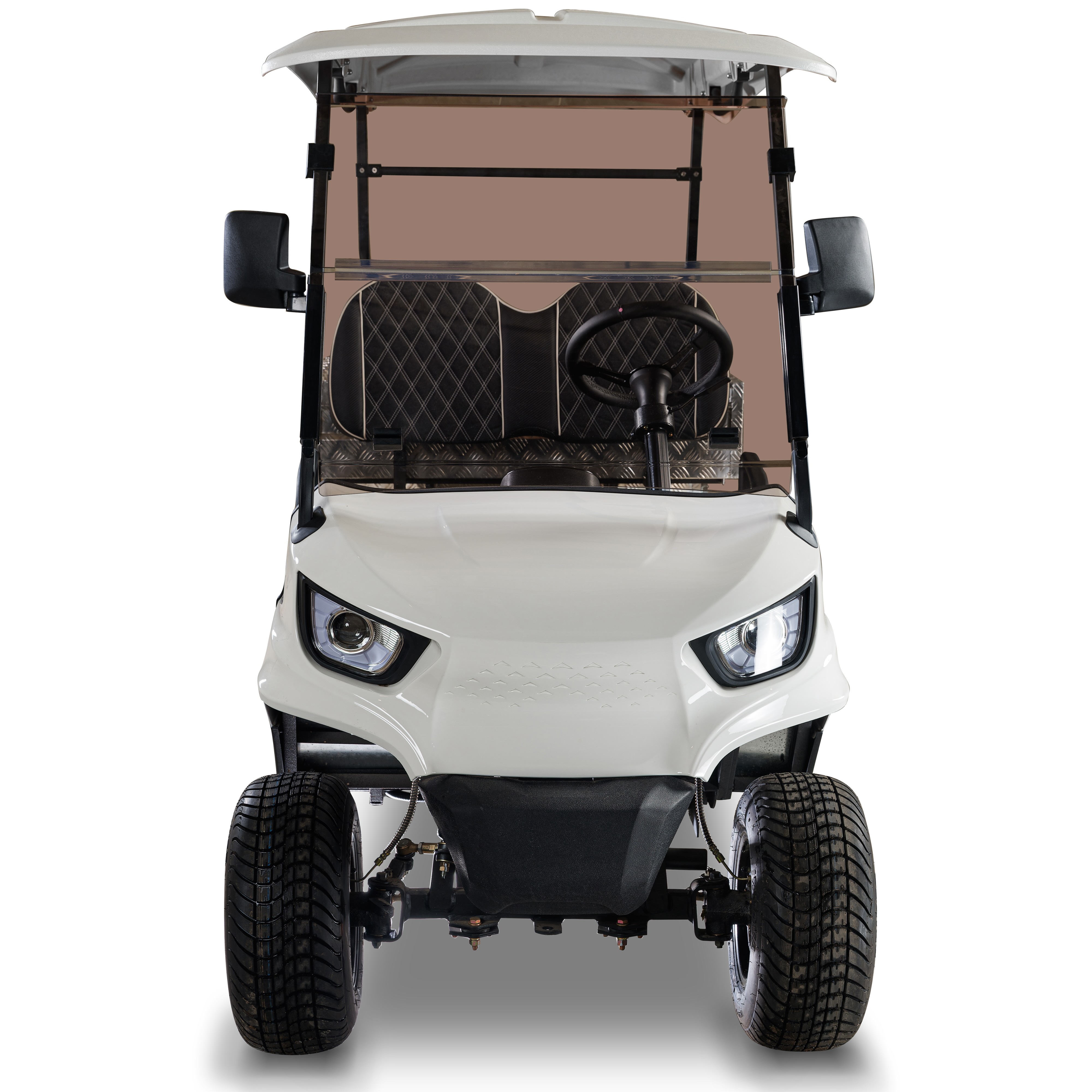

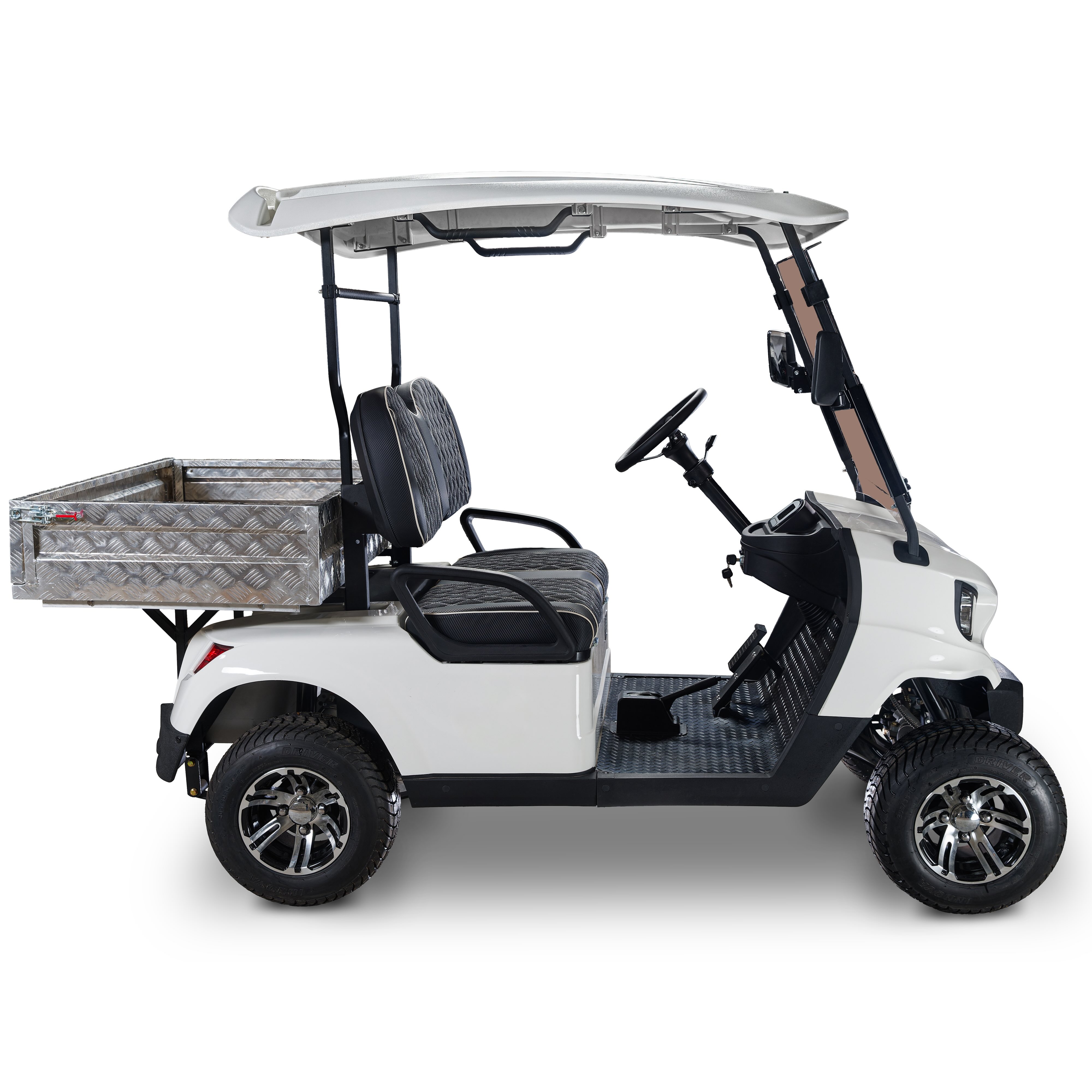

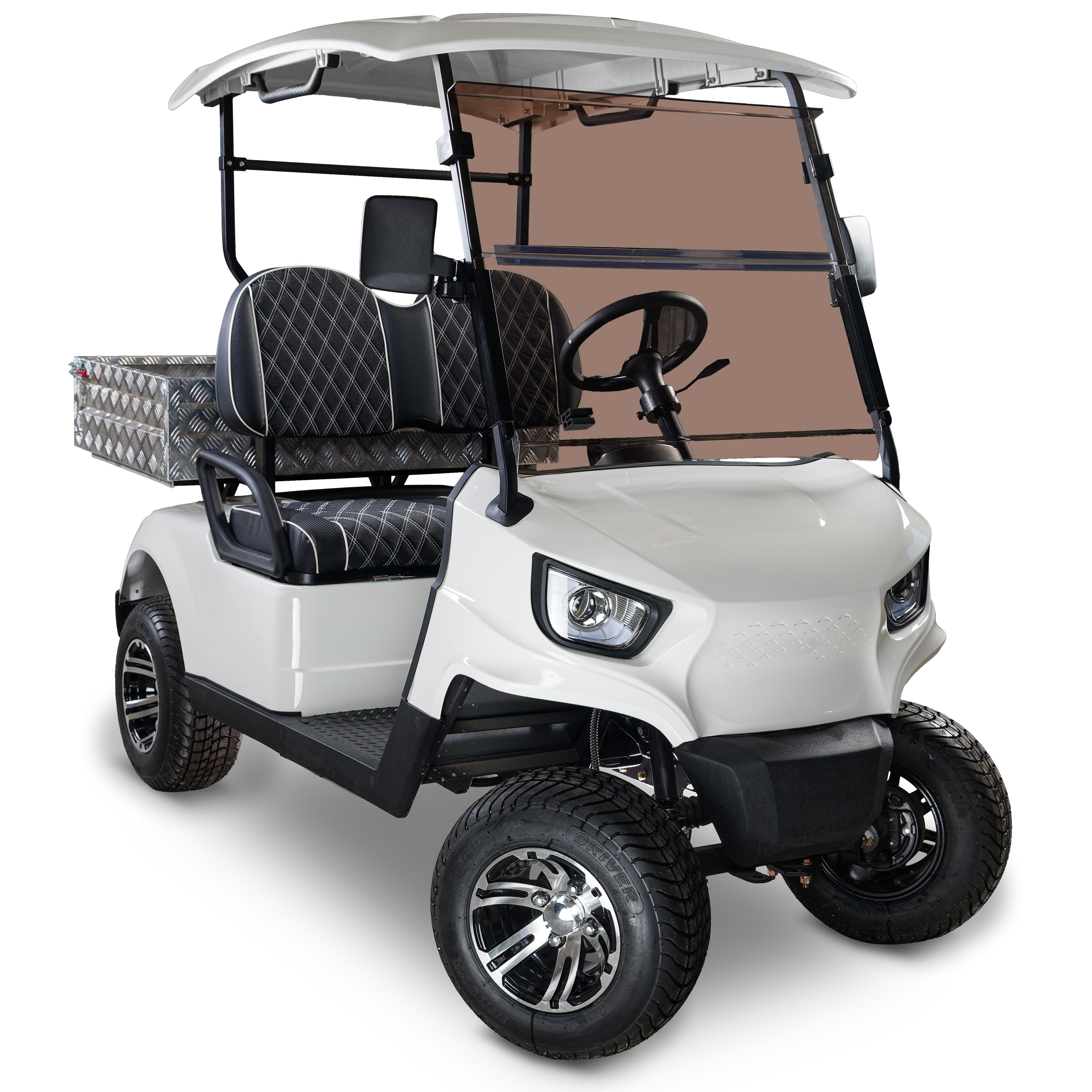

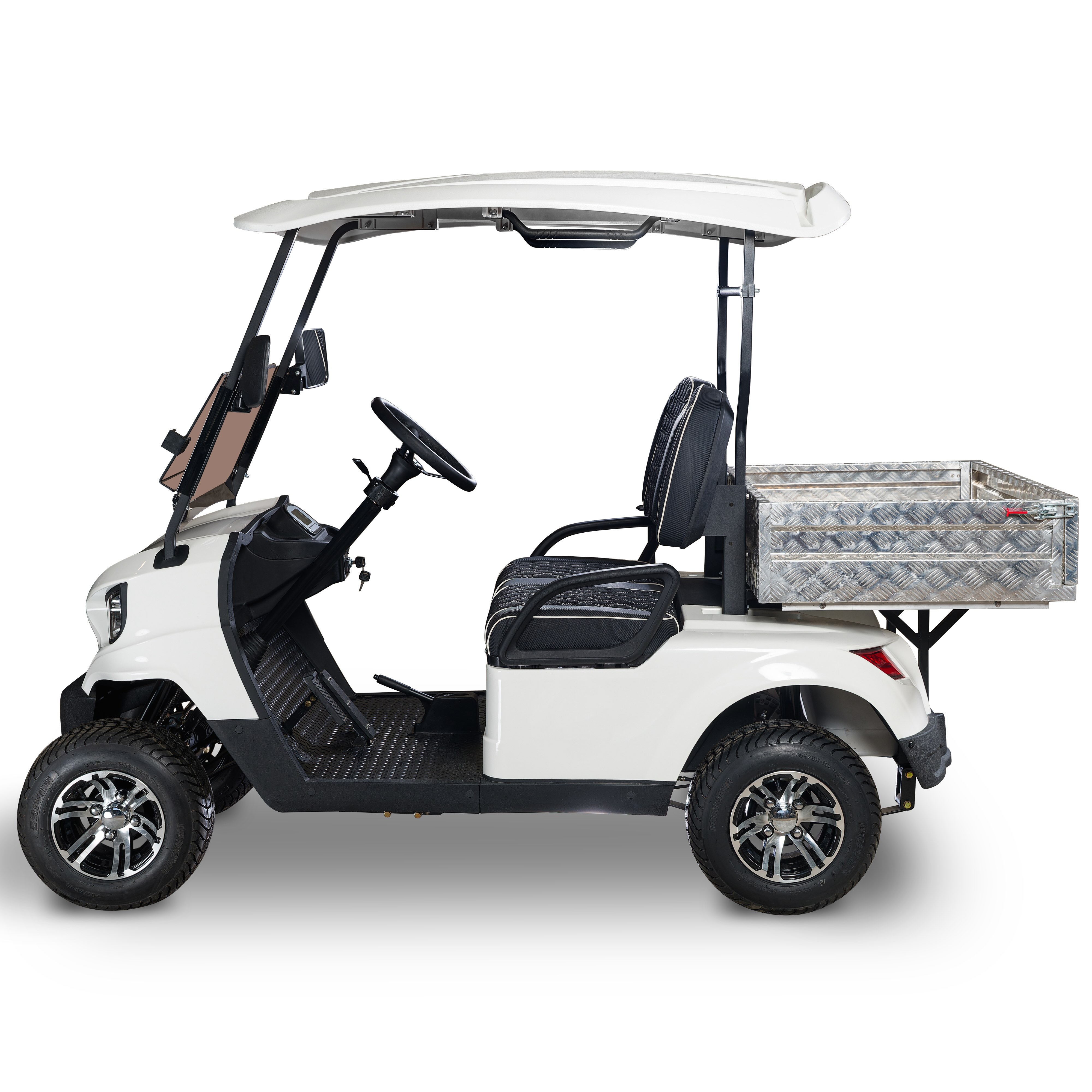

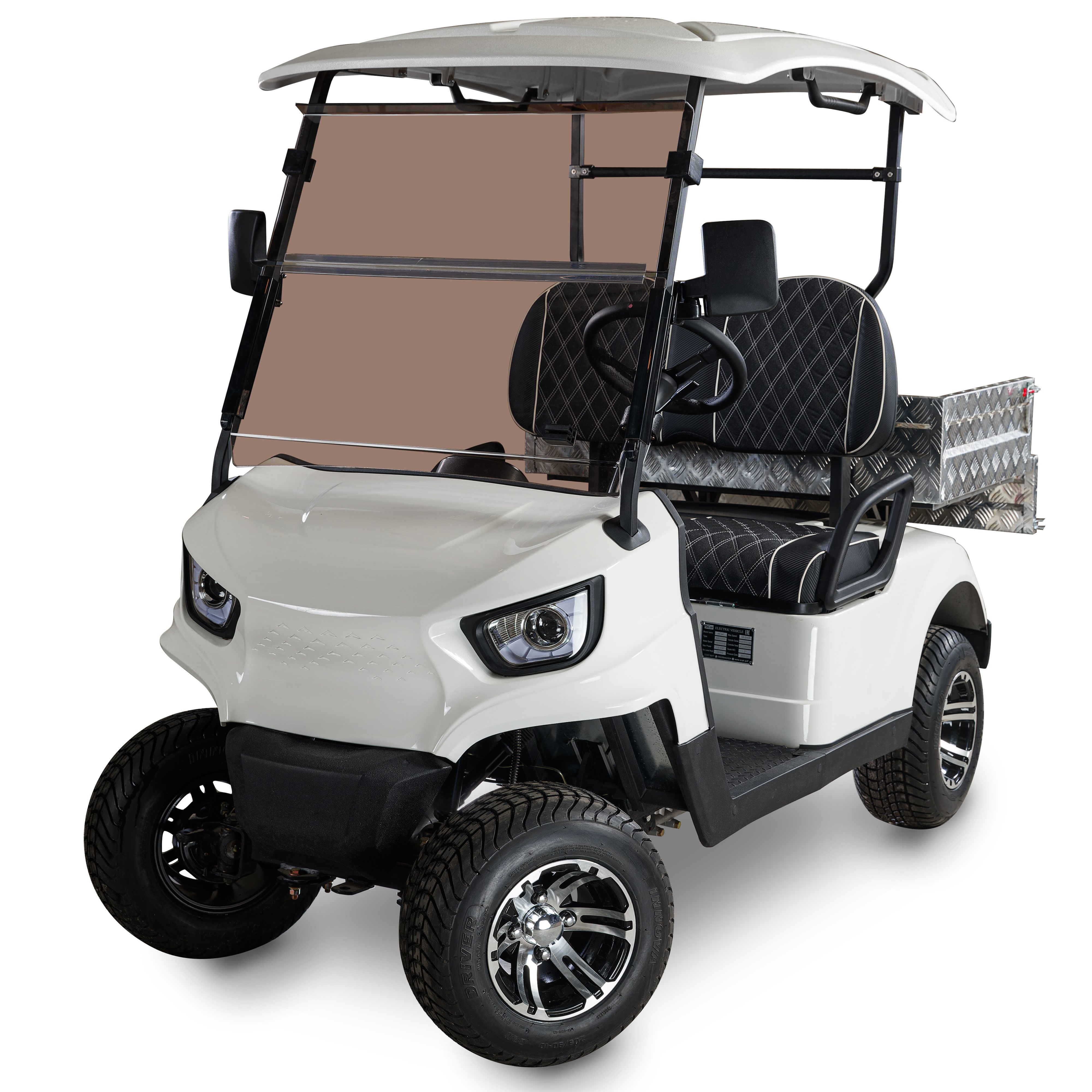

Model AW2024H is 2 seater small electric golf cart with rear cargo bed at good price, it cannot just be used in golf courses as traditional fleet golf cart, but also can be used in many other places for different applications, such as in hotel, resort, residential community, airport, port, stations, museum, theme park, factory, campus, garden and any places where need a quite and clean vehicles, for people moving, security patrol, etc. Below are some pictures of our electric golf carts on site for some applications.
| SPECIFICATIONS of 2 seater small electric golf cart with rear cargo bed AW2024H | |||
| Key Components | |||
| Key Components | Controller | PMSM controller | |
| Motor | 5KW | ||
| Battery | Top Brand of lead acid battery | ||
| Range | 60km per charge | ||
| Performance | |||
| Performance | Passenger Capacity | 2 | |
| Max.speed | 40km/h (adjustable) | ||
| Min. Turning Radius | 3.5m | ||
| Max. Gradeability | 25% | ||
| Max. Loading Weight | 320kgs | ||
| Net Weight | 520kgs | ||
| Overall Dimensions | 2670X1180X1890mm | ||
| Body and Frame | |||
| Body and Frame | Frame (Chassis) | Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating | |
| Body and Roof | PP plastic front body and rear body; FRP or plastic roof | ||
| Windshield | Organic plastic windshield, split | ||
| Roof supports | Carbon Steel, powder coated | ||
| Backrest and Seat | Reborn Sponge, artificial leather + plastic armrest | ||
| Floor | Galvanized Steel plate and anti-slip rubber floor mat | ||
| Dashboard | Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key | ||
| Side trim | Aluminum alloy | ||
| Side mirror | 2pcs, foldable standard configuration | ||
| Electric System | |||
| Electric System | Lighting system and horn | 2 headlights, 2 front turn signals, 2 LED taillights (each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 48V to 12V), electric horn. | |
| Reversing alarm | 12V backup buzzer | ||
| Charger | Non-onboard charger, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A | ||
| Steering, Brake, Transmission and Suspension | |||
| Steering, Brake, Trans. & Susp. | Steering System | Single-stage rack and pinion steering system, automatic rocker compensating function | |
| Brake system | Rear wheel mechanical brake, foot activated parking brake | ||
| Accelerator | Stepless speed change | ||
| Driving mode | Rear axle two stage deceleration, motor direct driving | ||
| Rear axle | Integrated, Gear ratio 12.49:1 | ||
| Suspension system | Front and rear plate leaf spring + cylinder hydraulic shock absorber | ||
| Wheel & Tyre | 10x6 Aluminum rim & 205/50-10 4PR | ||
| Body Color | |||
| Body Color | Standard Body Color | Pure White, Navy Blue, Coca Cola Red, Champagne, Metallic Green (customized colors may be available at extra cost) | |

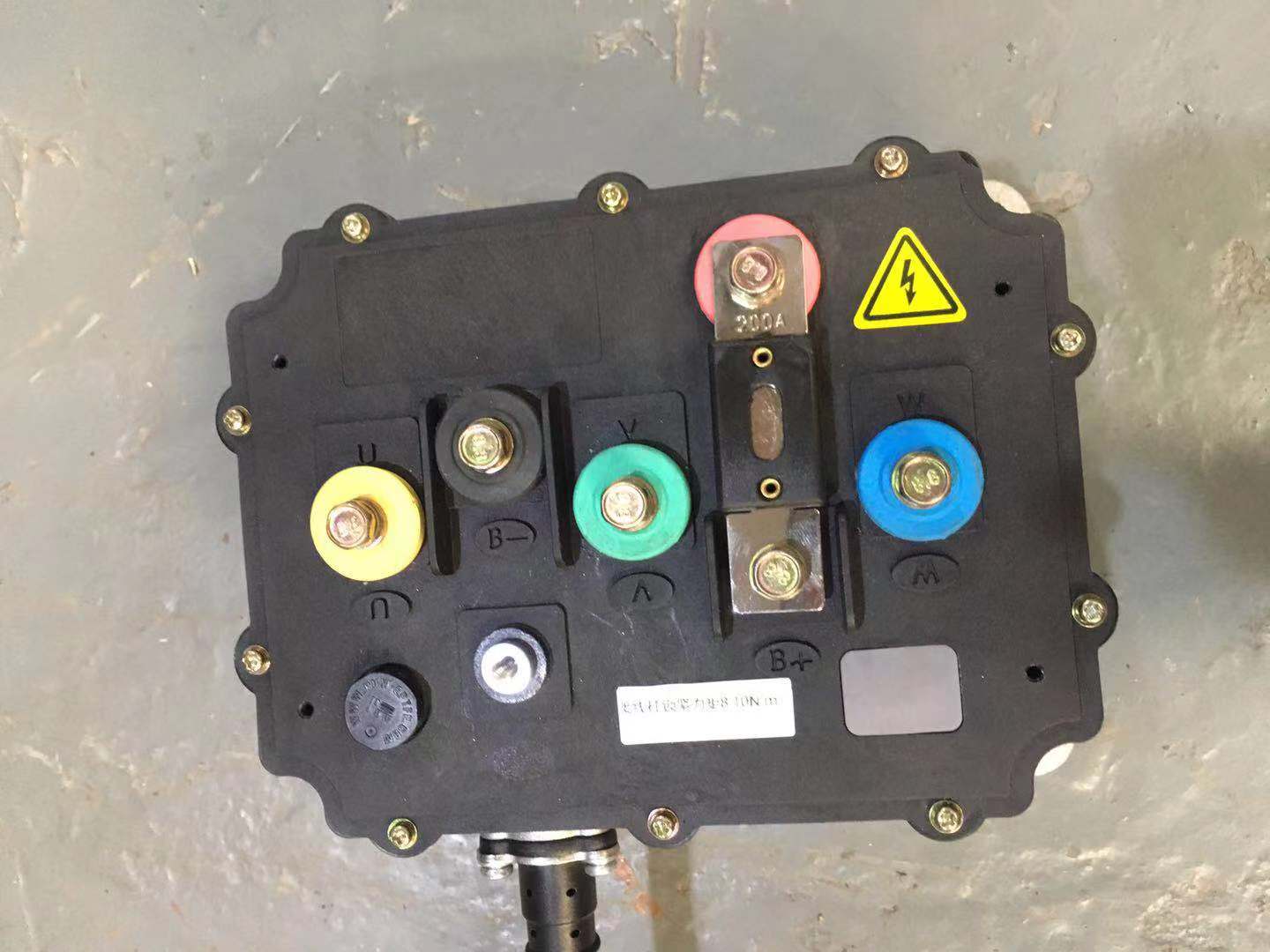

We use PMSM controller.

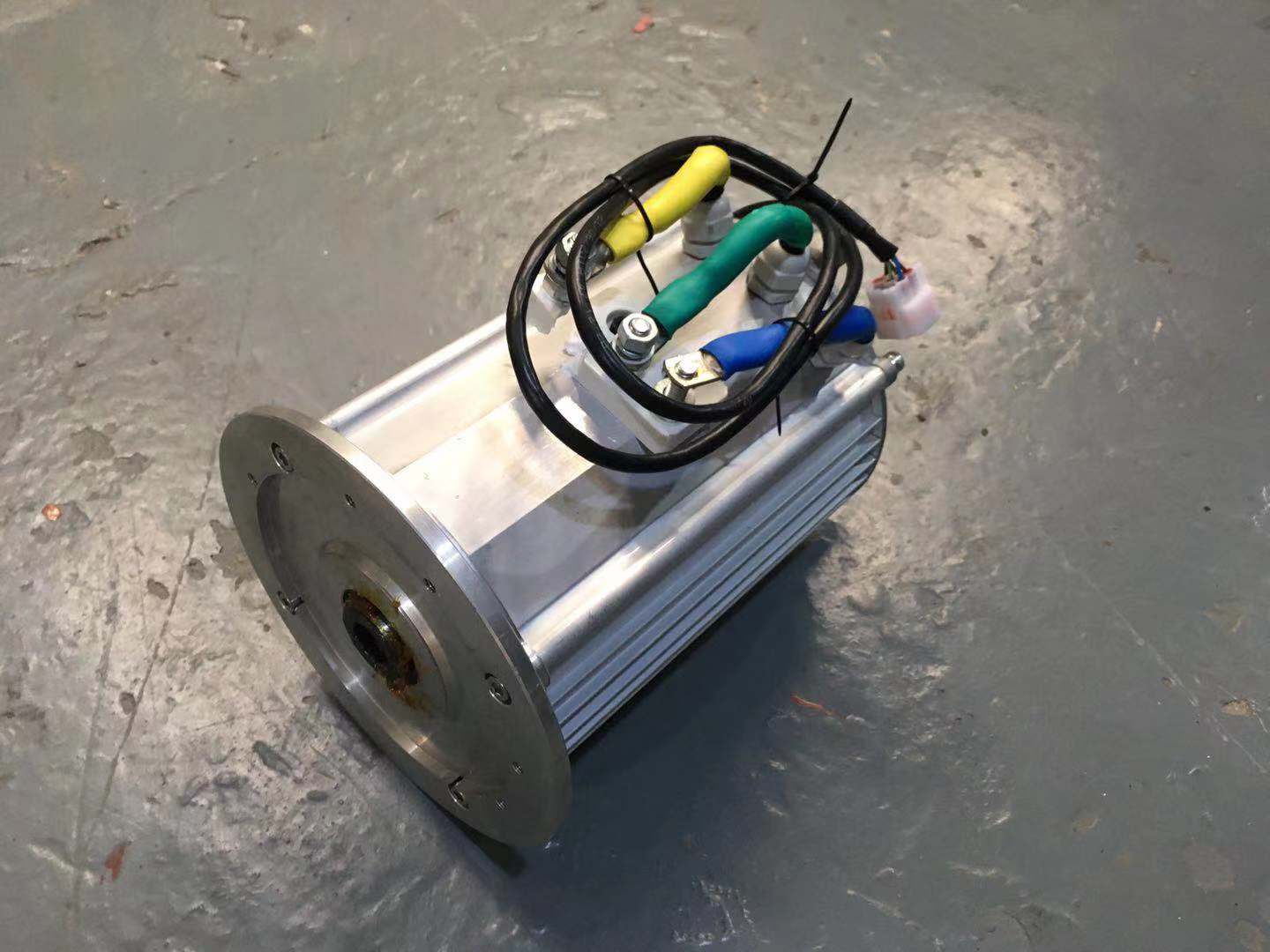

We use 5KW PMSM motor which is designed to work with above controller. Compared to AC controller and motor, the advantage of our PMSM controller and motor includes High efficiency (means longer range), High Speed, Big torque, Low temperature rise.

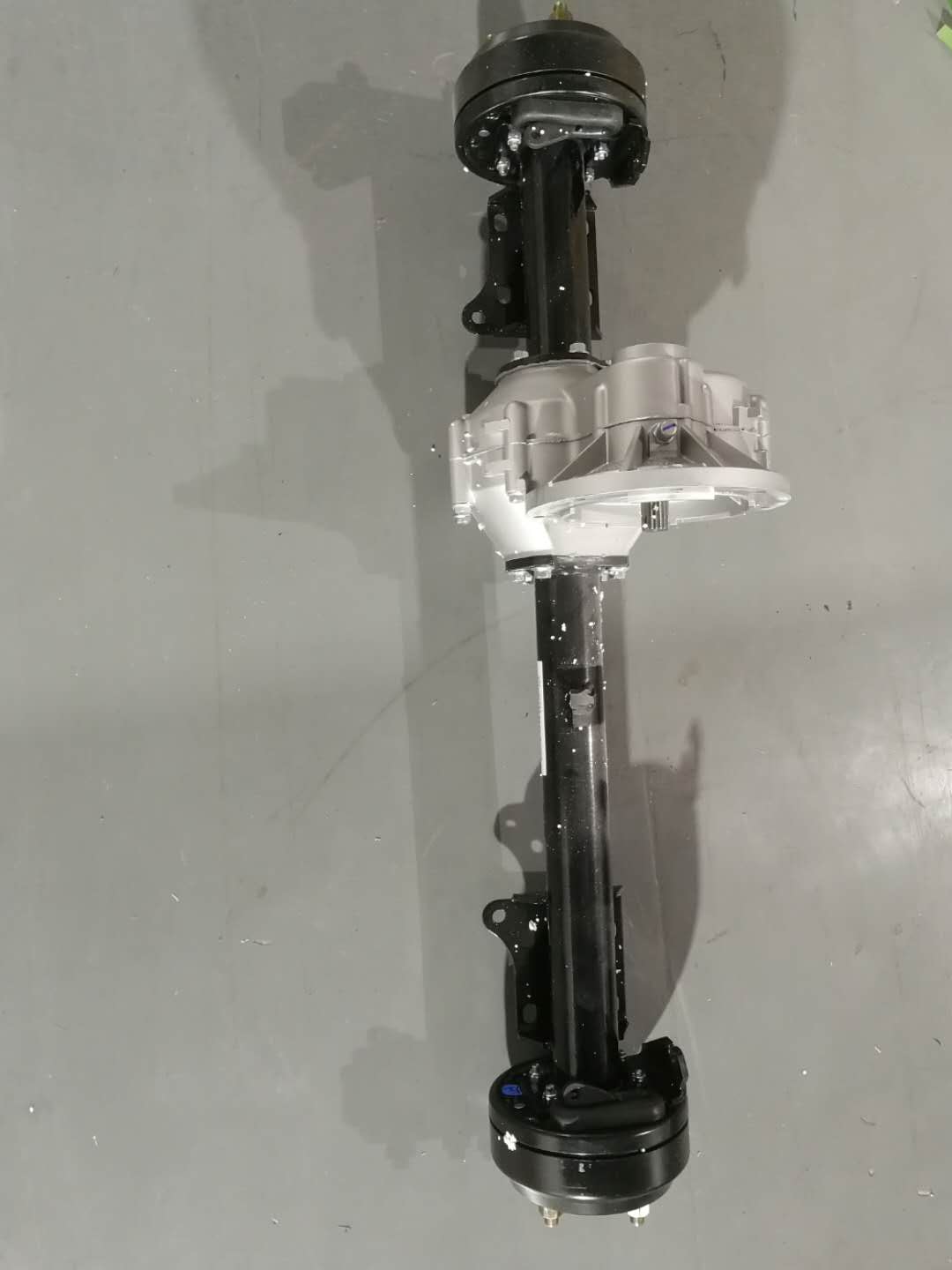

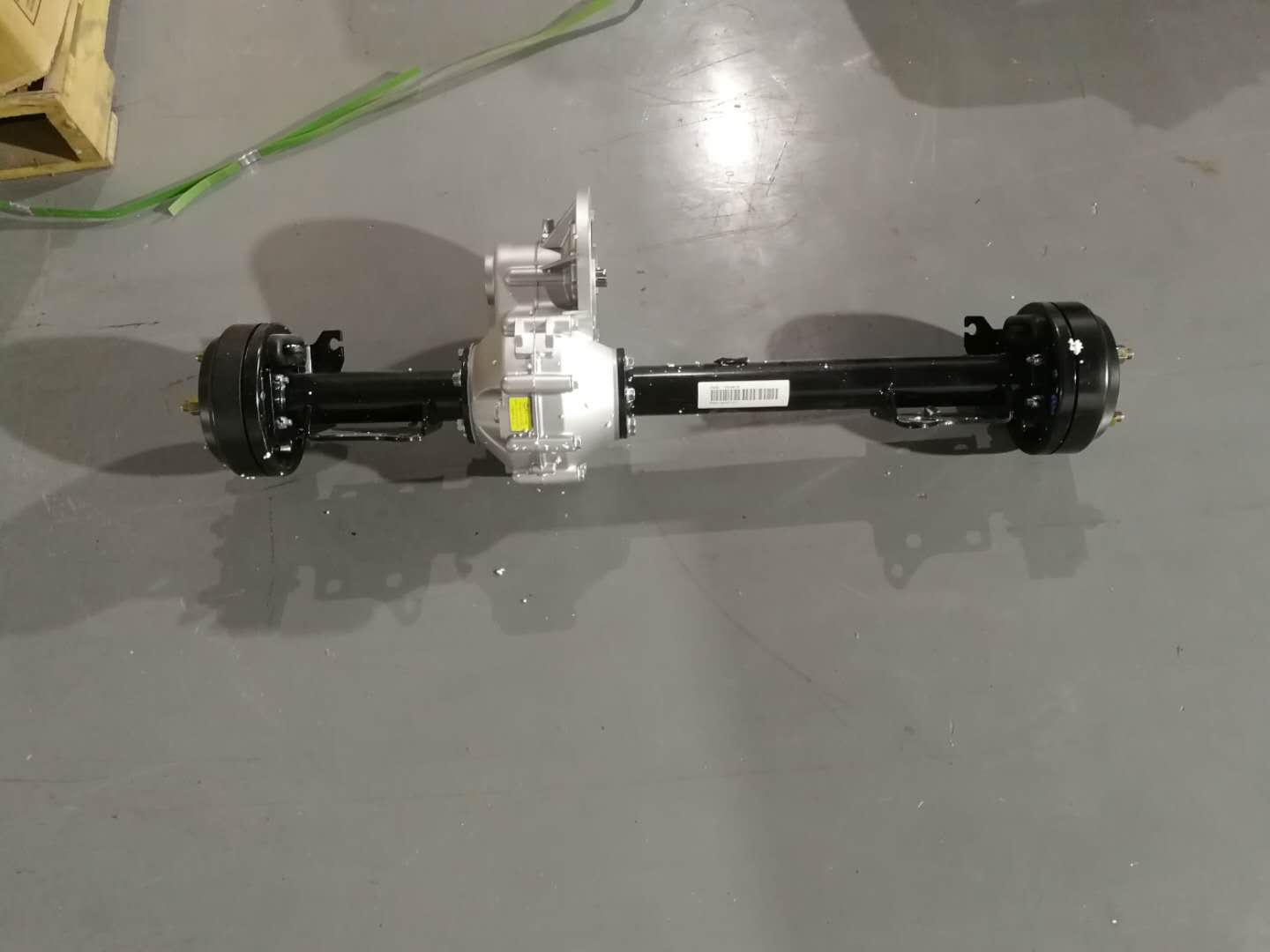

We use the best rear axle in the market which has been accepted by many American golf cart companies.

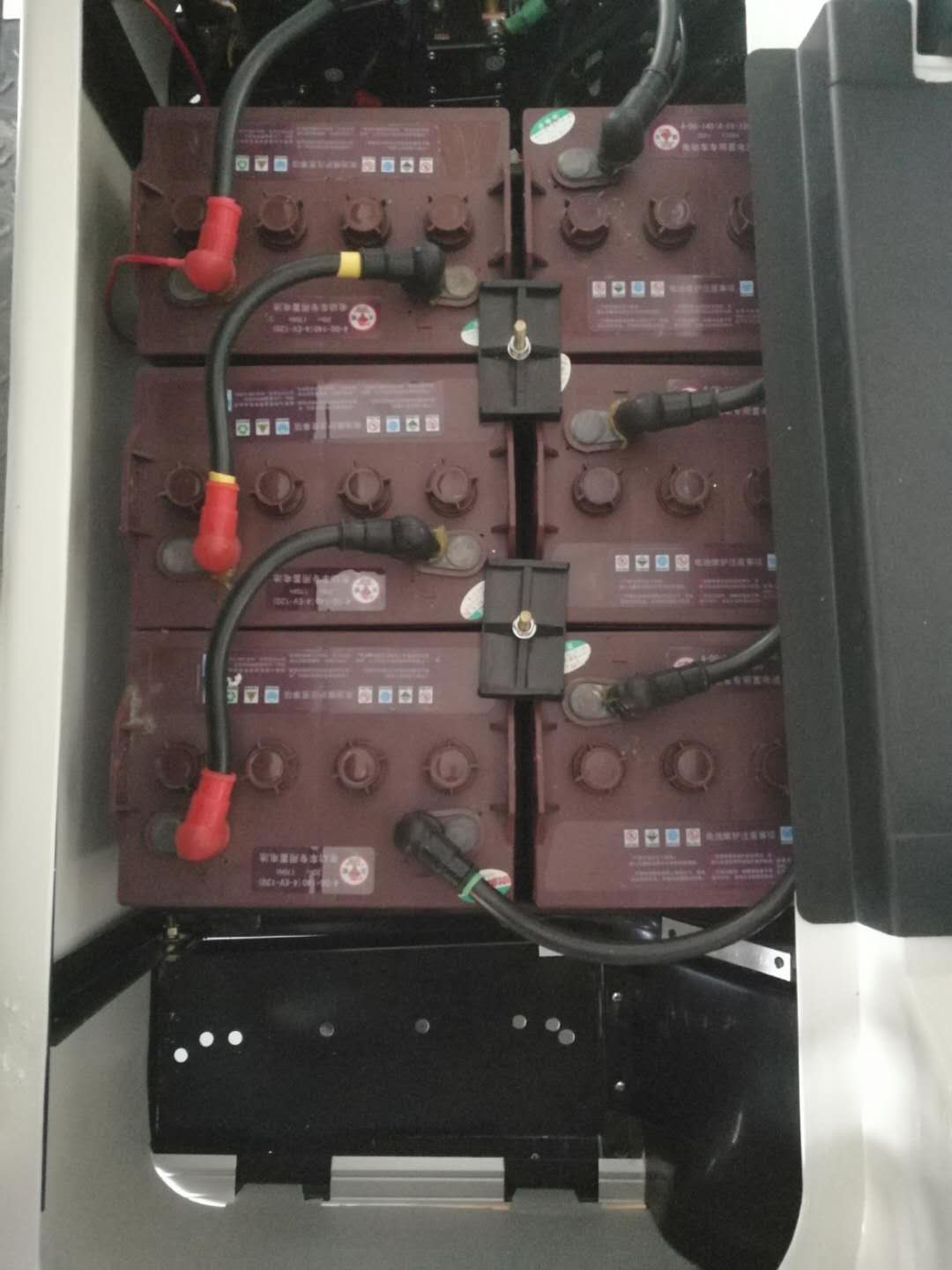

We use the best battery in China which makes the battery for the military.

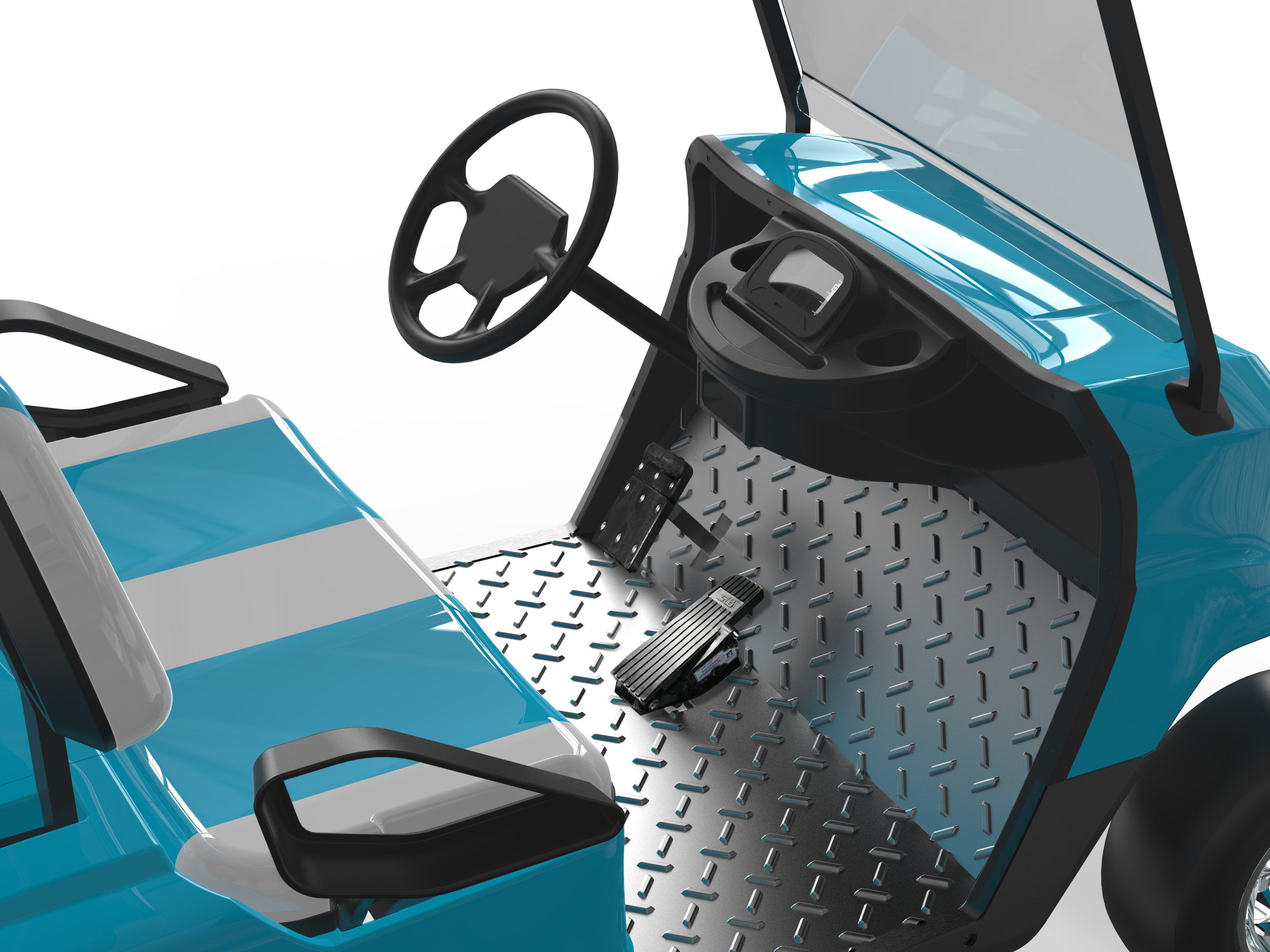

Dashboard of new designing
Our president has been in this business more than 15 years experience. We had a better understanding of the market, and know how to help you expand your business well.
We provide 13 months warranty to the electric vehicles from the shipping date. We will cover the labor cost for any warranty issue.
In the life-time of the vehicles or maximum within 7 years we stop the production of any model, we still supply the spare parts for after service.

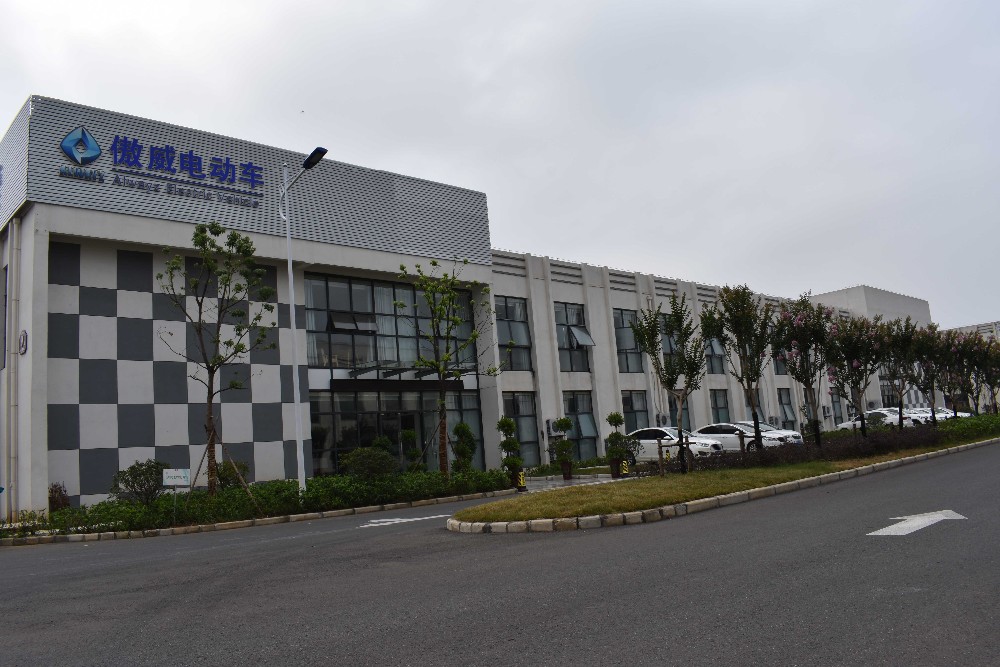

We are a leading company focus on R&D and Manufacturing of Low-speed electric vehicles which include Golf Car, Sightseeing Bus, Passengers Bus, Fire engine Car, Utility Car and various customized electric Vehicles, etc. Starting Electric Vehicle business in 2008, we had accumulated rich experience and a strong R&D team to offer the most popular Vehicle for both domestic and international market.
