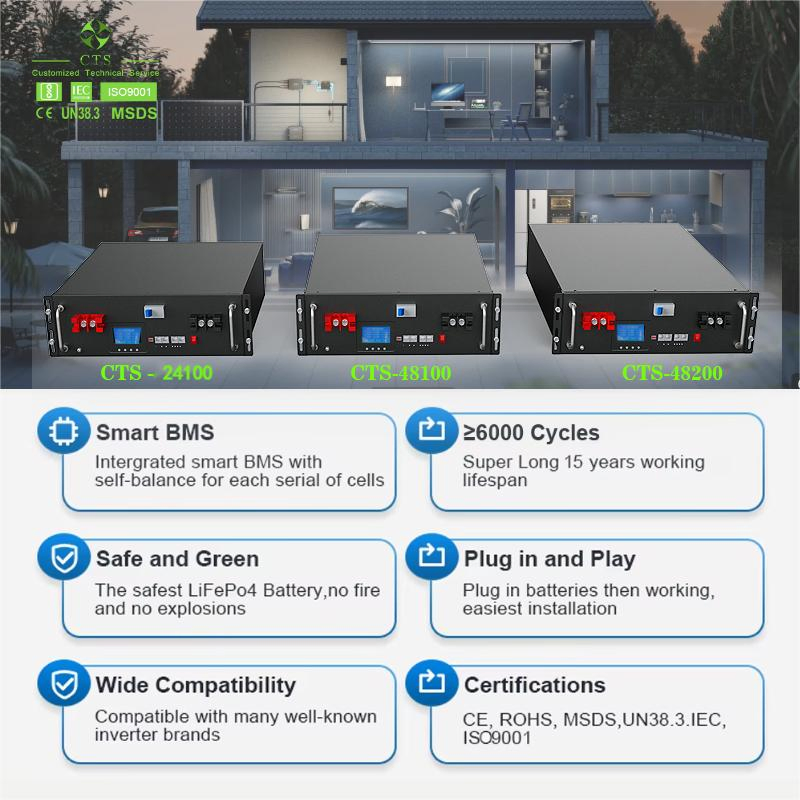

Compatible with various inverter brands, Victron, Goodwe, Pylon, Growatt, Solis, Lux, Solax, Sofar, Sacolar.

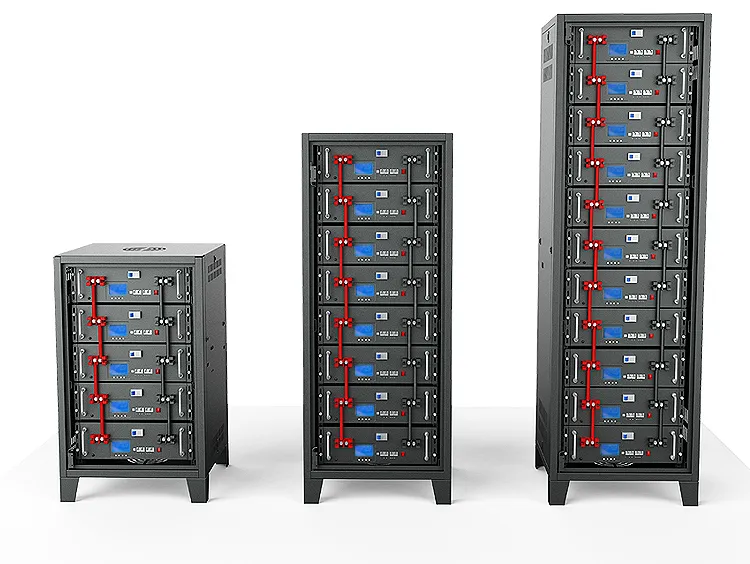

Support max 64pcs in parallel, which is equals to 48v 6400ah, meet all different house demands.
Features 99% Operating Efficiency vs 80% for AGM batteries. An equivalence of adding 20% additional solar panels to your current system.
A+++ Cells with 6000cycles 80%DOD, 15 years of use even if you deep discharge it every day.
Samples ready in a week.

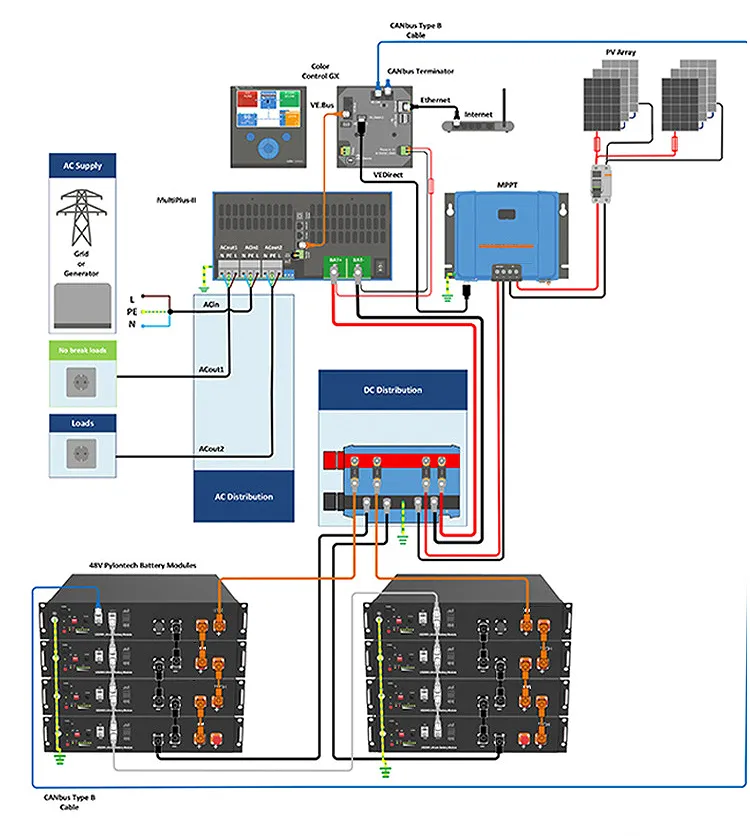

Plug and play, all installing material for free, easy and quick.

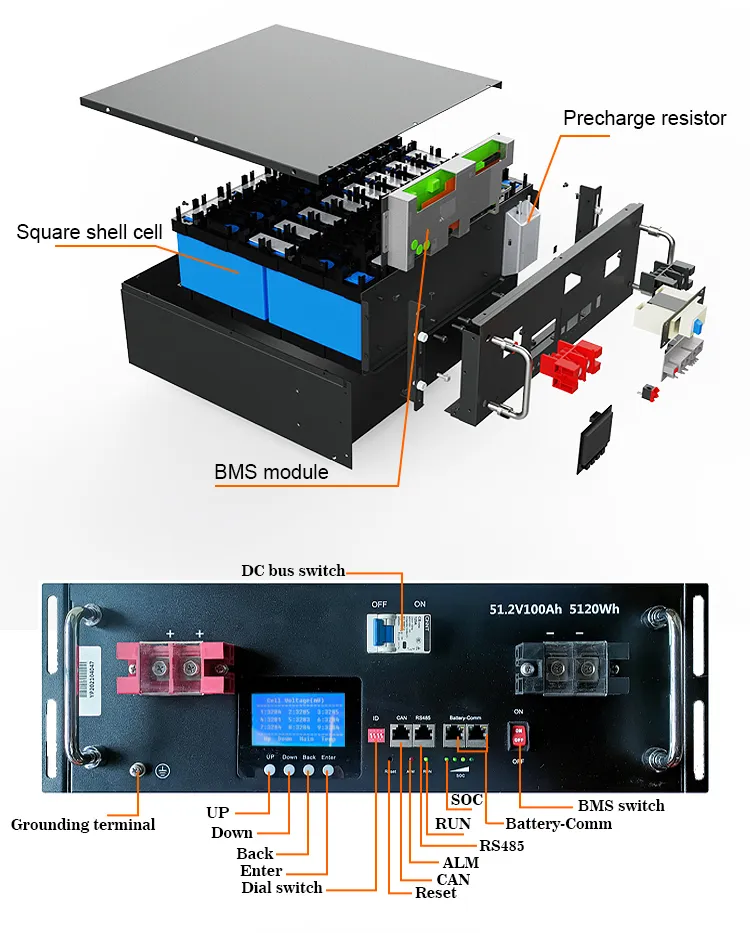

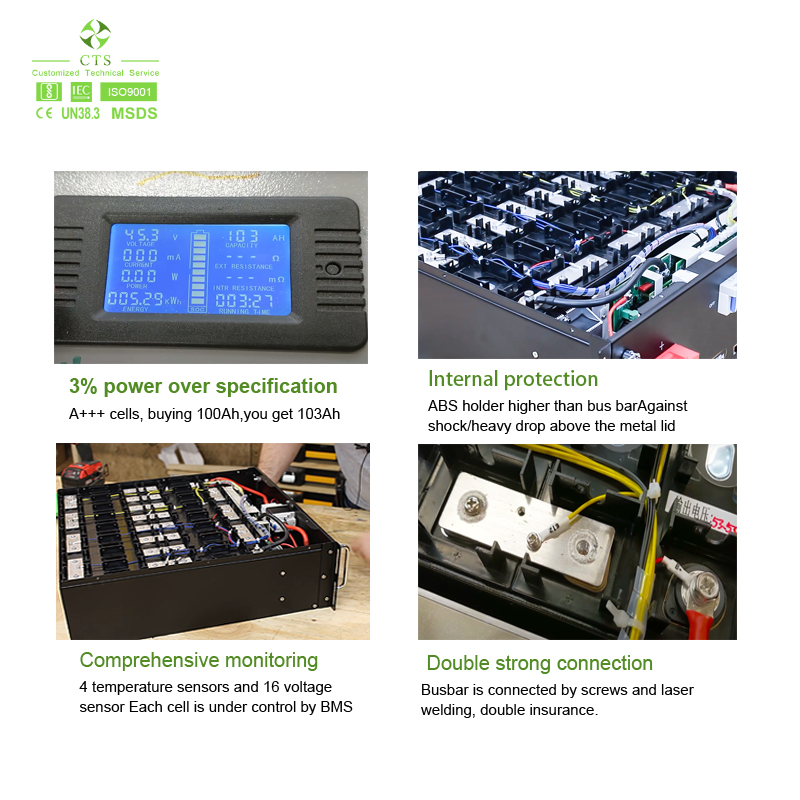

All Cells are bolted together with heavy plates and ABS holder for very reliable connections internally.

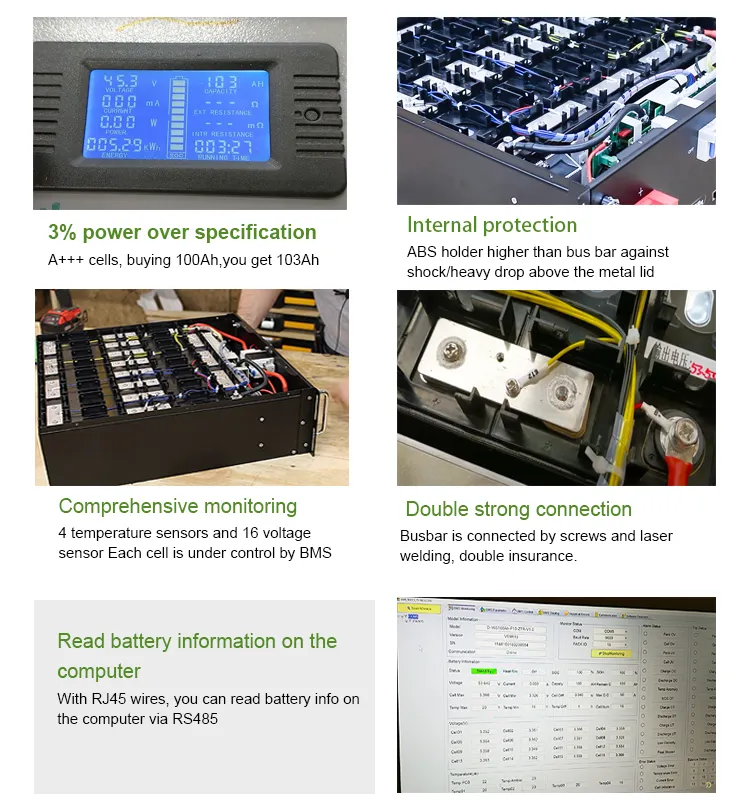

RS485 and CAN on from panel with RJ45 port, plug and play.

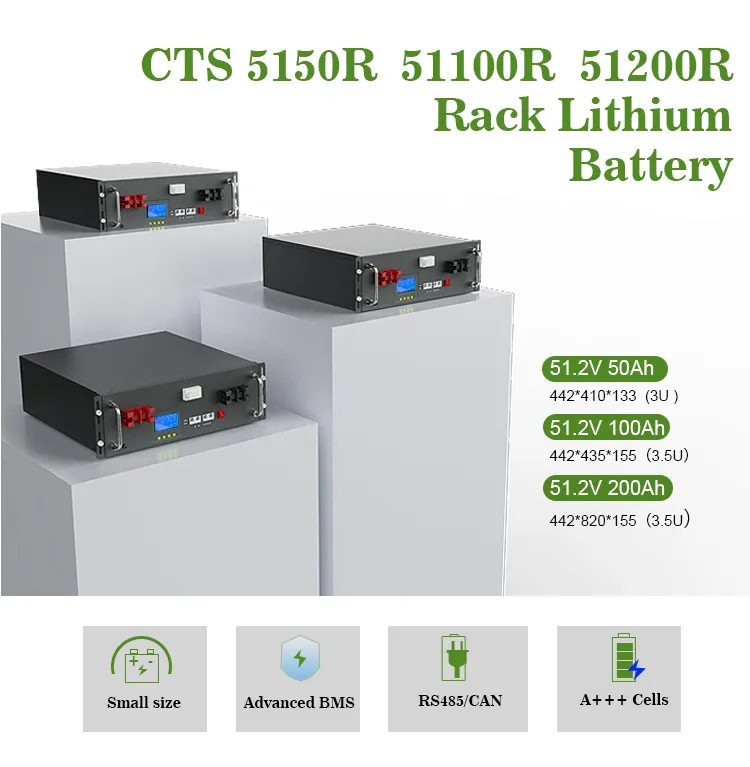

| MODEL | CTS5150R | CTS51100R | CTS51200R |
|---|---|---|---|
| ELECTRICAL SPECIFICATIONS | |||
| Cell Type - Chemistry | LiFePO4 | LiFePO4 | LiFePO4 |
| Rated Capacity | 50Ah | 100Ah | 200Ah |
| Rated Voltage | 51.2V | 51.2V | 51.2V |
| Energy | 2.56kWh | 5.12kWh | 10.24kWh |
| MECHANICAL SPECIFICATIONS | |||

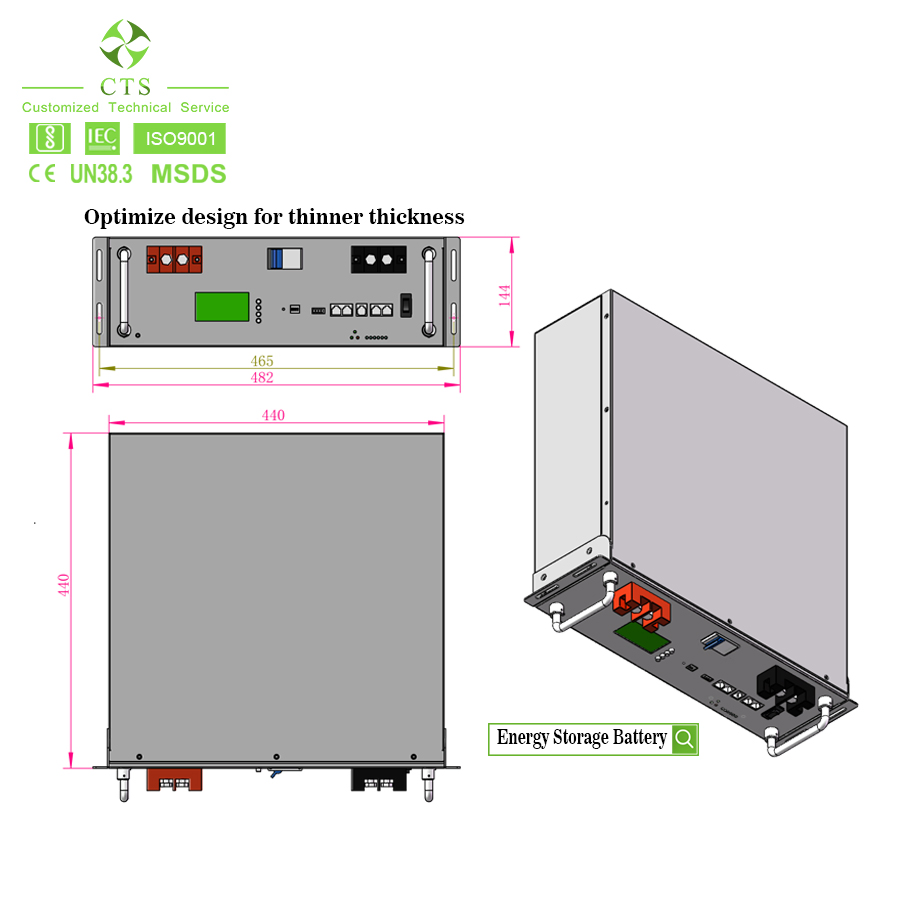

| Dimensions (L x W x H) | 442*410*133mm | 442*435*155mm | 442*820*155mm |
| Weight | 28Kg | 48Kg | 82Kg |
| DISCHARGE SPECIFICATIONS | |||
| Discharge Cut-off Voltage | 40V | 40V | 40V |
| Max Continuous Discharging Current | 50A | 100A | 150A |
| Recommended Discharge Current | 25A | 50A | 100A |
| CHARGE SPECIFICATIONS | |||
| Charging Limited Voltage | 57.6V | 57.6V | 57.6V |
| Max Charging Current | 50A | 100A | 150A |
| Recommended Charge Current | 25A | 50A | 100A |
| Working Temperature Range | Charge: 0~45ºC discharge : -20~60ºC |
||
| Recommended Operating Temperature | 15~35ºC | ||
| Recommended Storage Temp & Humidity | 15~35ºC, 45~75%RH | ||

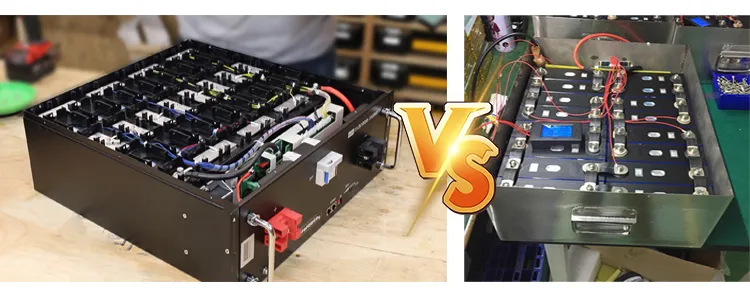

| Design Feature | Our Product Structure | Other Structures |
|---|---|---|
| Plastic holder | Customized plastic holder between each cells for better insulation, preventing operator danger during battery installation. | No holder between cell, insulation concerns remain. |
| Top extension | An extension at the top of the bracket acts as shock absorption, protecting the battery cells from direct impact. | Metal top extension on some designs, or none at all on others. |
| Unblocked explosion-proof valve | Unblocked valve ensures the physical structural safety of the cell. | Blocked explosion-proof valves, failing cell safety requirements. |
| BMS with cover | BMS is fully protected by a metal cover, preventing damage from shock. | No cover on the BMS unit. |
| Laser welding + Screws | Laser welding around the screw reinforces connection, eliminating loose screw risks, reducing internal resistance and contact surface loss. | Untidy welding with cable risks, or only basic screw structures. |
| Orderly cable arrangement | Standardized routing reduces poor contact, short circuit, and wire break risks. | Lack of standardization, disordered cables going through busbars. |
