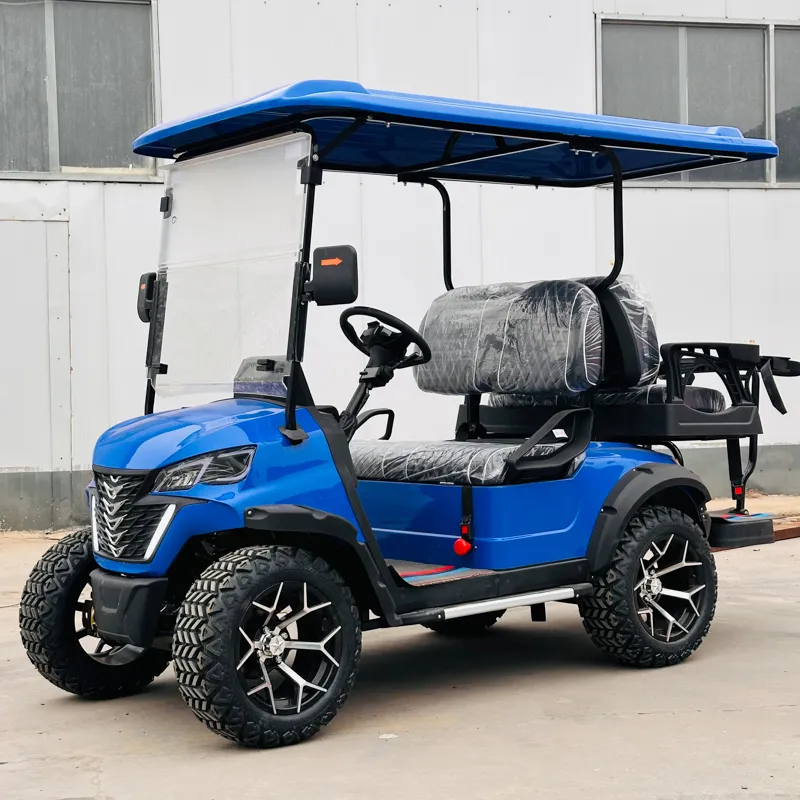

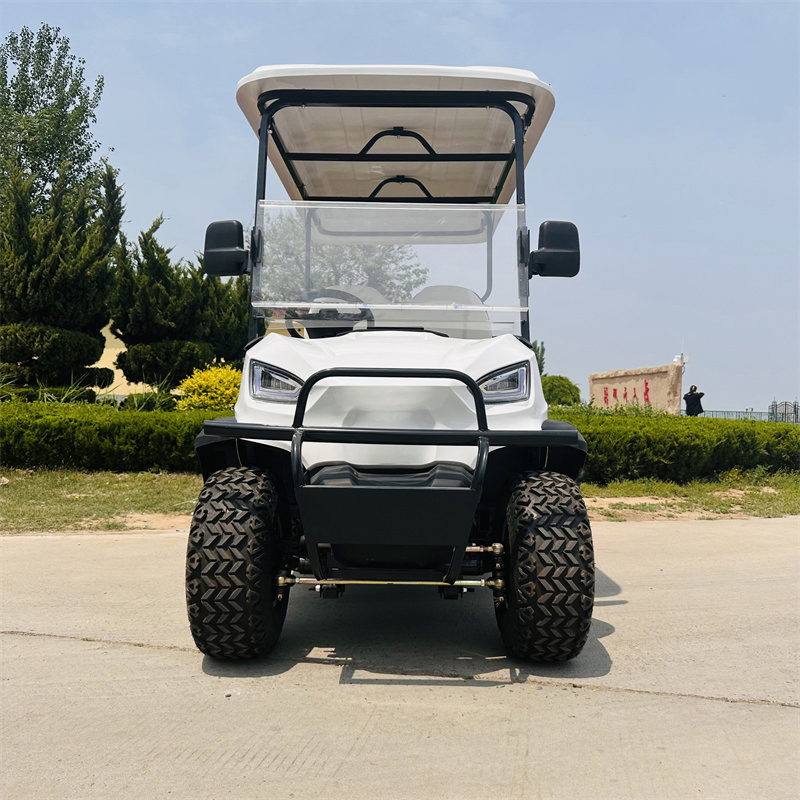

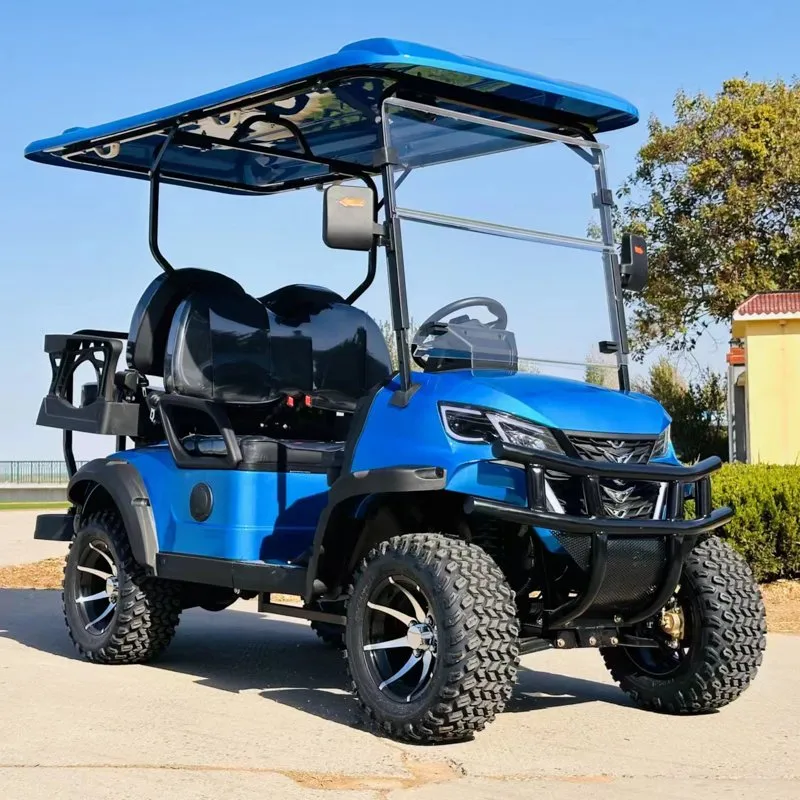

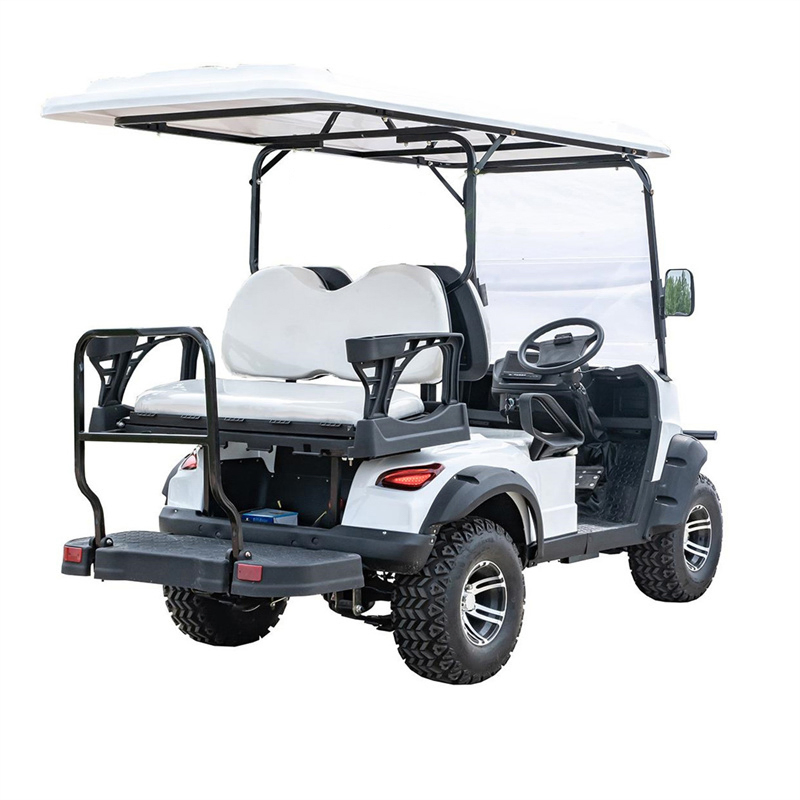

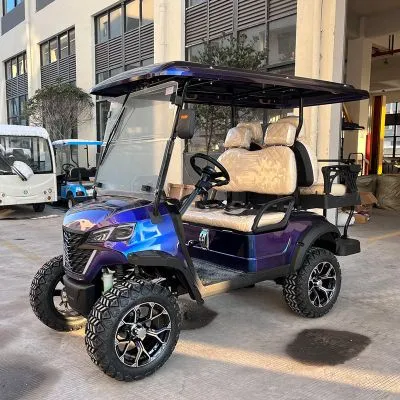

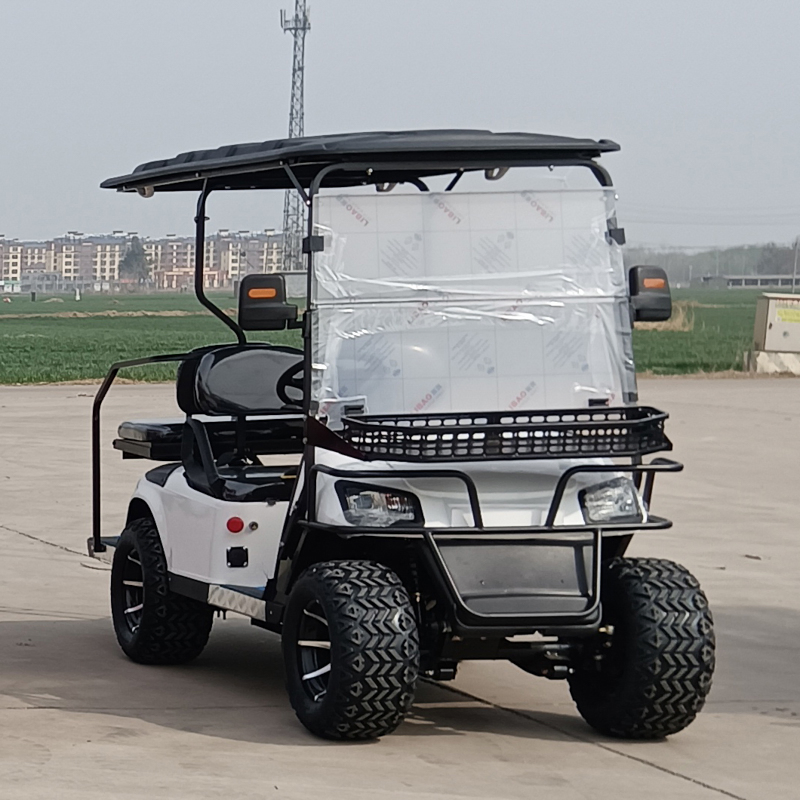

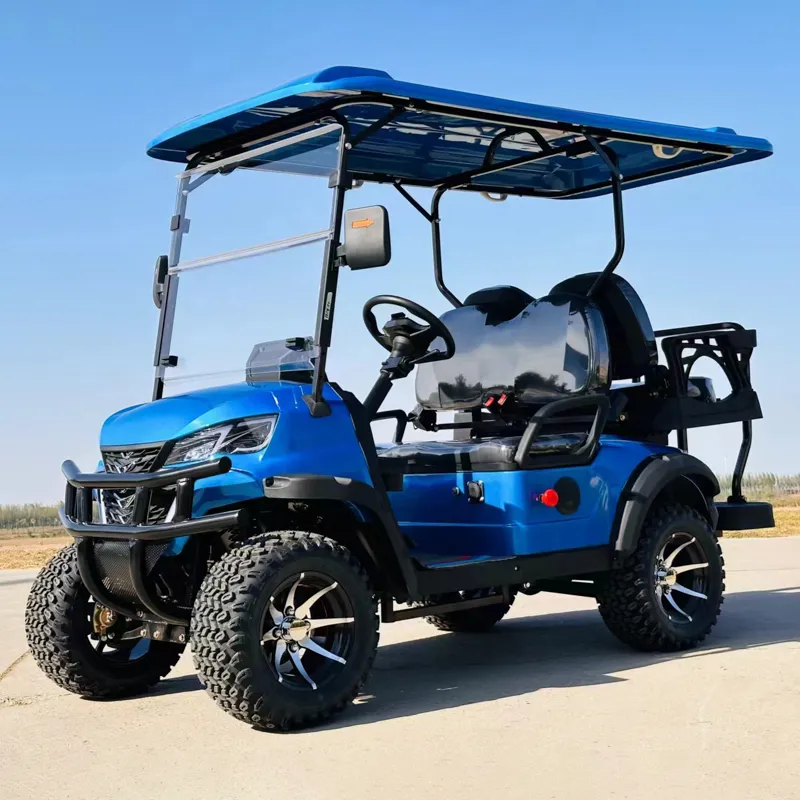

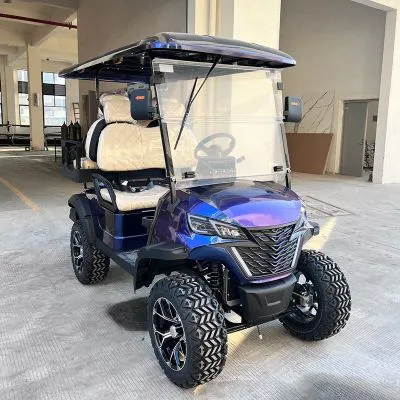

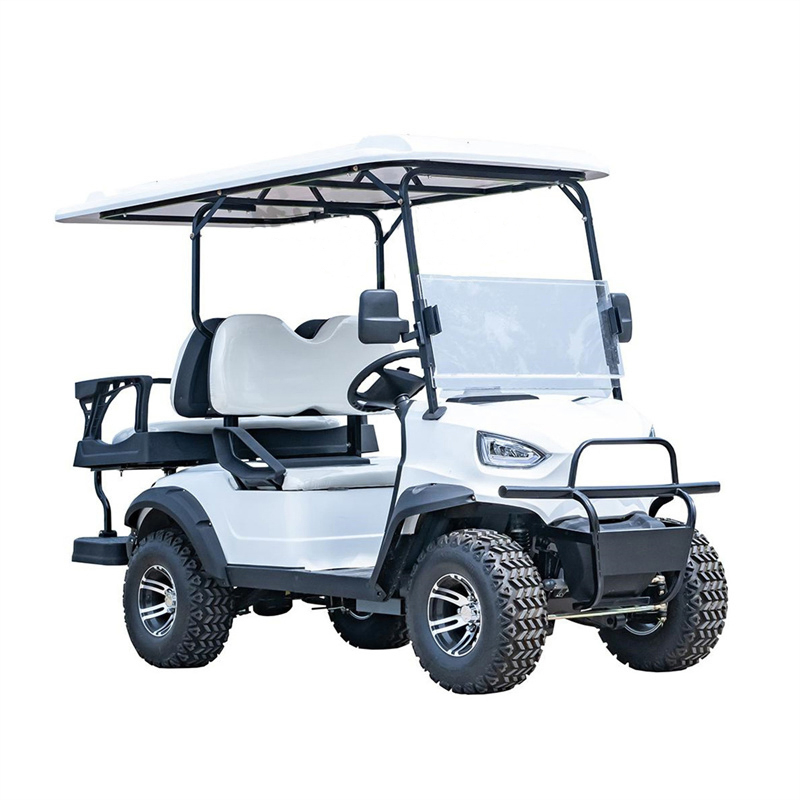

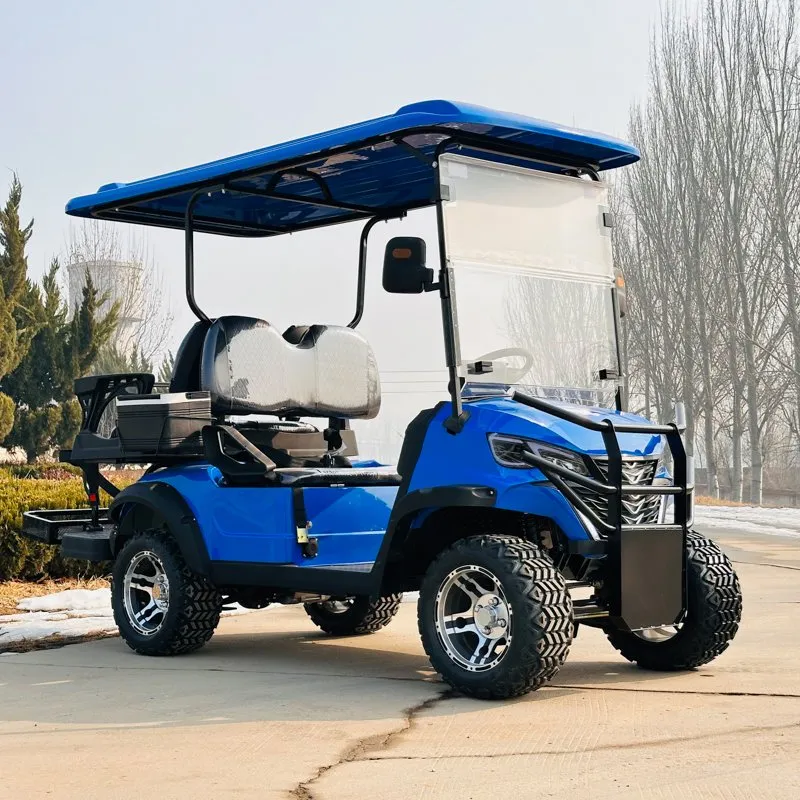

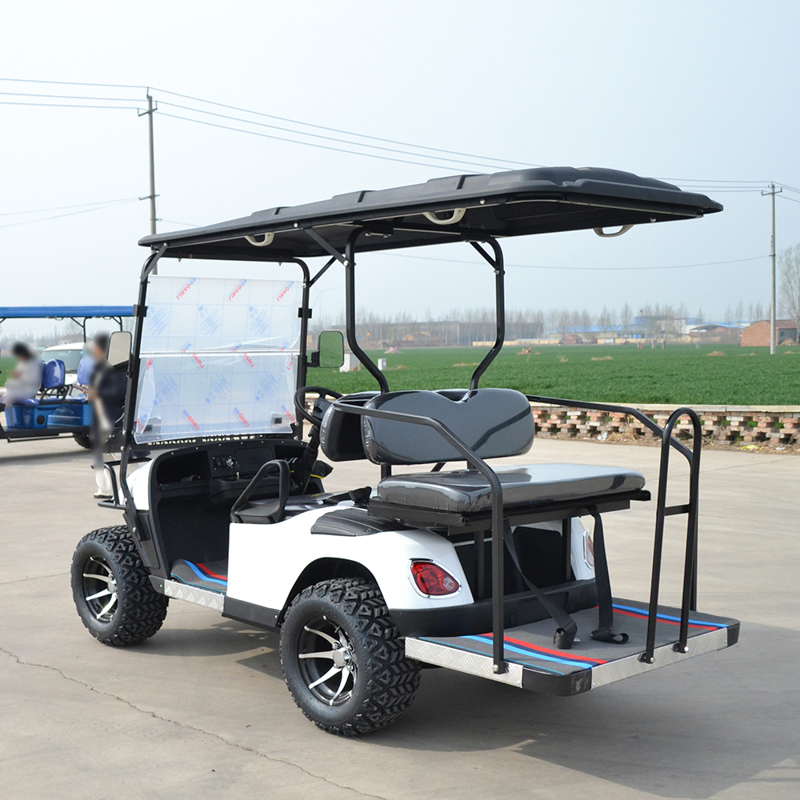

| 4 Seaters Off Road Electric Street Legal Golf Cart Buggy | |||
| Key Components | Controller | SME Brand, SME or China Local Brand or Curtis | |
| Motor | 5KW/7.5KW AC motor | ||
| Battery | 72V115AH Lithium Battery | ||

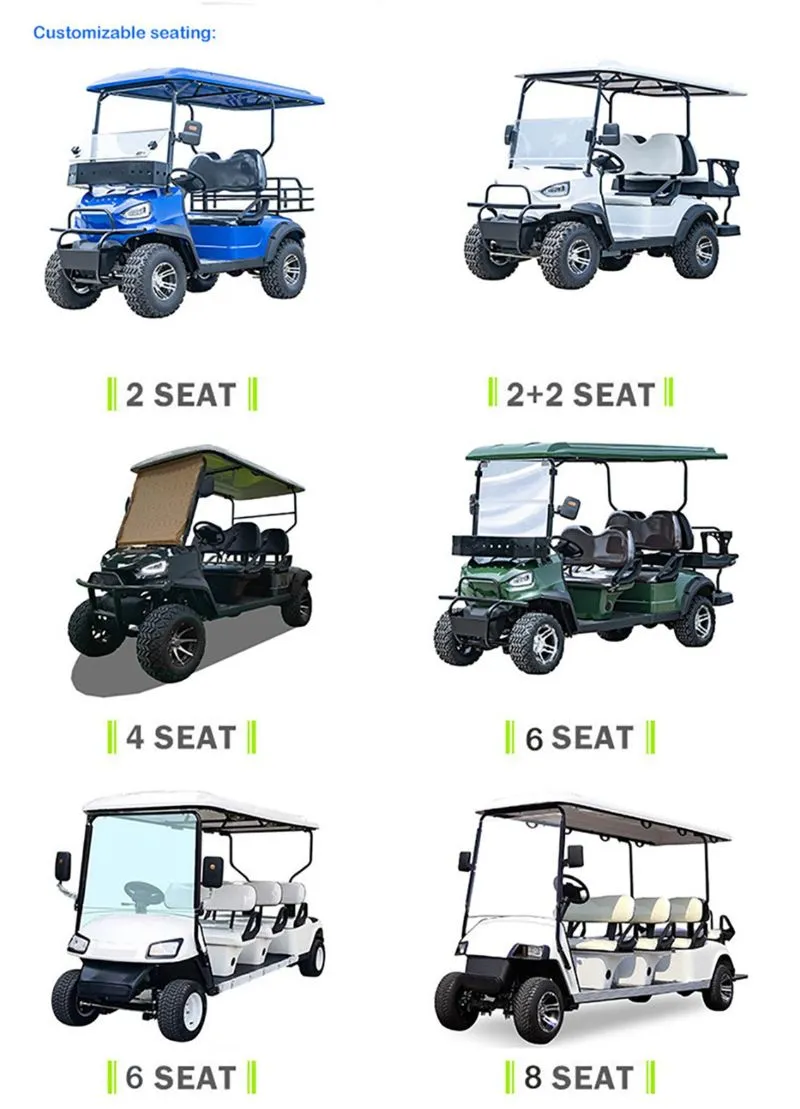

| Performance and Dimensions | Passenger Capacity | (2+2) | |
| Range (Loaded) * | 90-100kms | ||
| Max. speed | 32-40km/h | ||
| Min. Turning Radius | 3.5m | ||
| Max. Gradeability | 20%-30% | ||
| Max. Loading Weight | 320kgs | ||
| Net Weight | 510kgs | ||
| Overall Dimensions | 2980x1350x1950mm | ||
| Body and Frame | |||
| Frame (Chassis) | Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating | ||
| Body and Roof | PP plastic front body and rear body; PP vacuum form roof | ||
| Windshield | Organic plastic windshield, split tinted | ||
| Roof supports | Carbon Steel, powder coated | ||
| Backrest and Seat | Reborn Sponge, artificial leather + plastic armrest | ||
| Floor | Galvanized Steel plate and anti-slip rubber floor mat | ||
| Dashboard | Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key | ||
| Side trim | Plastic | ||
| Side mirror | 2pcs, foldable | ||
| Electric System | |||
| Lighting and Horn | All LED lights, 2 headlights, 2 front turn signals, 2 taillights (combined brake & turn signals), 20A voltage reducer (72V to 12V), electric horn | ||
| Backup Buzzer | 12V | ||
| Digital Meter | LCD screen with speedometer, odometer, battery power meter, and indicators | ||
| Charger | Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 20A | ||
| Steering, Brake, Transmission and Suspension | |||
| Steering System | Single-stage rack and pinion steering system, automatic rocker compensating function | ||

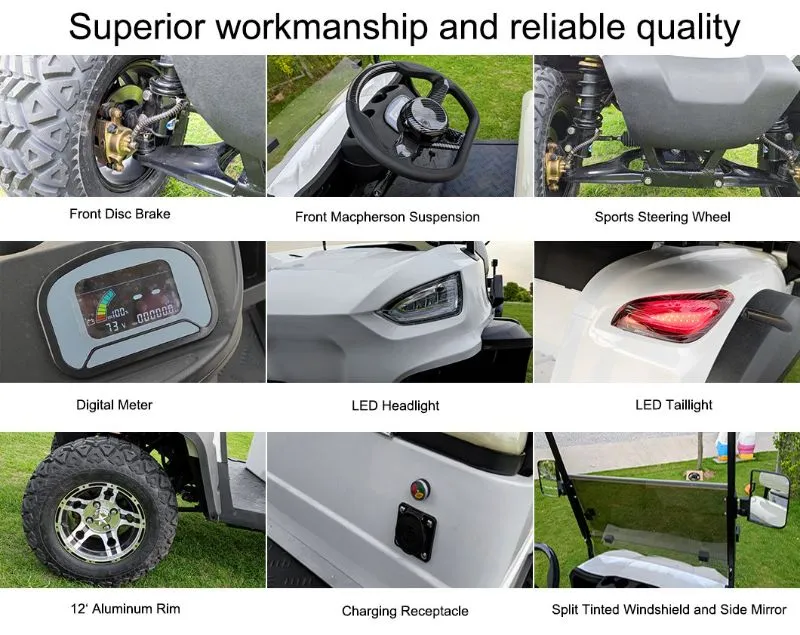

| Brake system | 4 Wheels hydraulic front disc rear drum brake, regen brake | ||
| Accelerator | Stepless speed change | ||
| Driving mode | Rear axle two stage deceleration, motor direct driving | ||
| Rear axle | Integrated, Gear ratio 12.49:1 | ||
| Suspension system | Front MacPherson Independent and rear plate leaf spring + cylinder hydraulic shock absorber | ||
| Wheel & Tyre | 12x7 aluminum rim & 23*10.5-12 Tire | ||
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
A: FOB, CIF, EXW, CFR, DDP.
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
A: We do not have an MOQ request. You can order just 1 sample vehicle. However, additional packing and operating costs will be charged if delivered in LCL way.
A: Yes, we perform 100% testing on all products before delivery.
A: 1. We keep good quality and competitive prices to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
