GLHF Golf
1 / 5
| Category | Specification Key | Description / Value |
|---|---|---|
| Model | Series Name | Premium Golf Carts Series |
| Power System | Motor/Engine | 5KW(AC) motor |
| Horsepower | 6.67hp | |
| Batteries | Six, 8V150AH | |
| Charger | 48V/25A | |
| Max. Speed | 15.5mph (25khp) | |
| Steering & Suspension | Steering | Bidirectional rack and pinion steering system |
| Front Suspension | Double-Arm independent suspension + suspension spring | |
| Braking System | Brakes | Four-wheel hydraulic disc brake |
| Park Brake | Electromagnetic parking | |
| Body & Chassis | Body & Finish | Front & Rear: Painted Injection moulding |
| Tires | 12 inches off road tire with all-aluminum rim | |
| Dimensions (L*W*H) | 3000 × 1300 × 2150 (mm) | |
| Wheelbase | 1700mm | |
| Ground Clearance | 7.9in (200mm) | |
| Tread (Front/Rear) | Front 990mm / Rear 1030mm | |
| Total Vehicle Weight | 685kg (including batteries) | |
| Frame Type | High strength carbon steel integral frame |

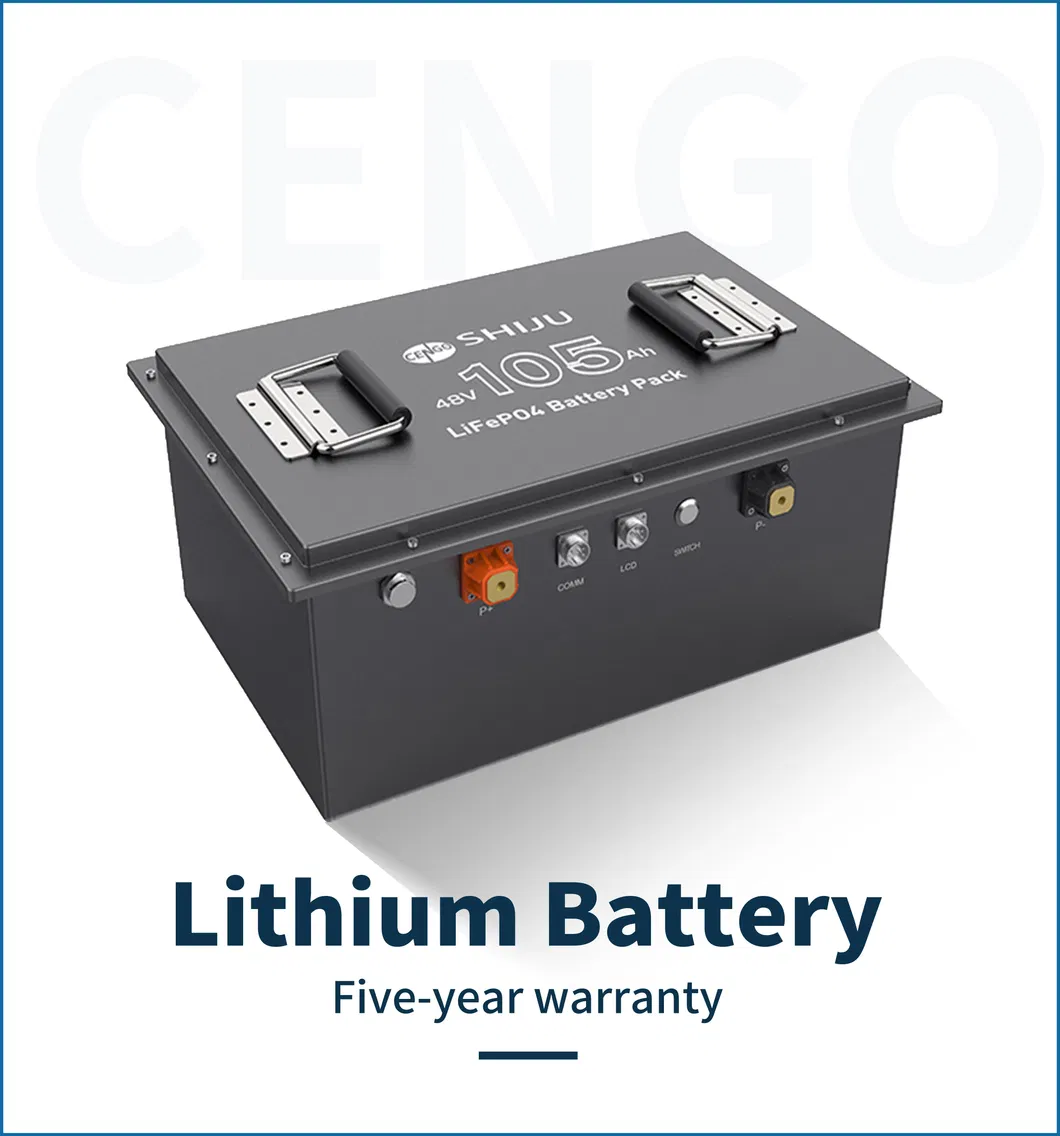

Boasting 105-150 amp hours every single charge, the 48 volt lithium battery promises to spend more time on the road and offer enough horsepower. Designed to offer a longer lifespan, a higher safety rating, and higher power compared to standard options.

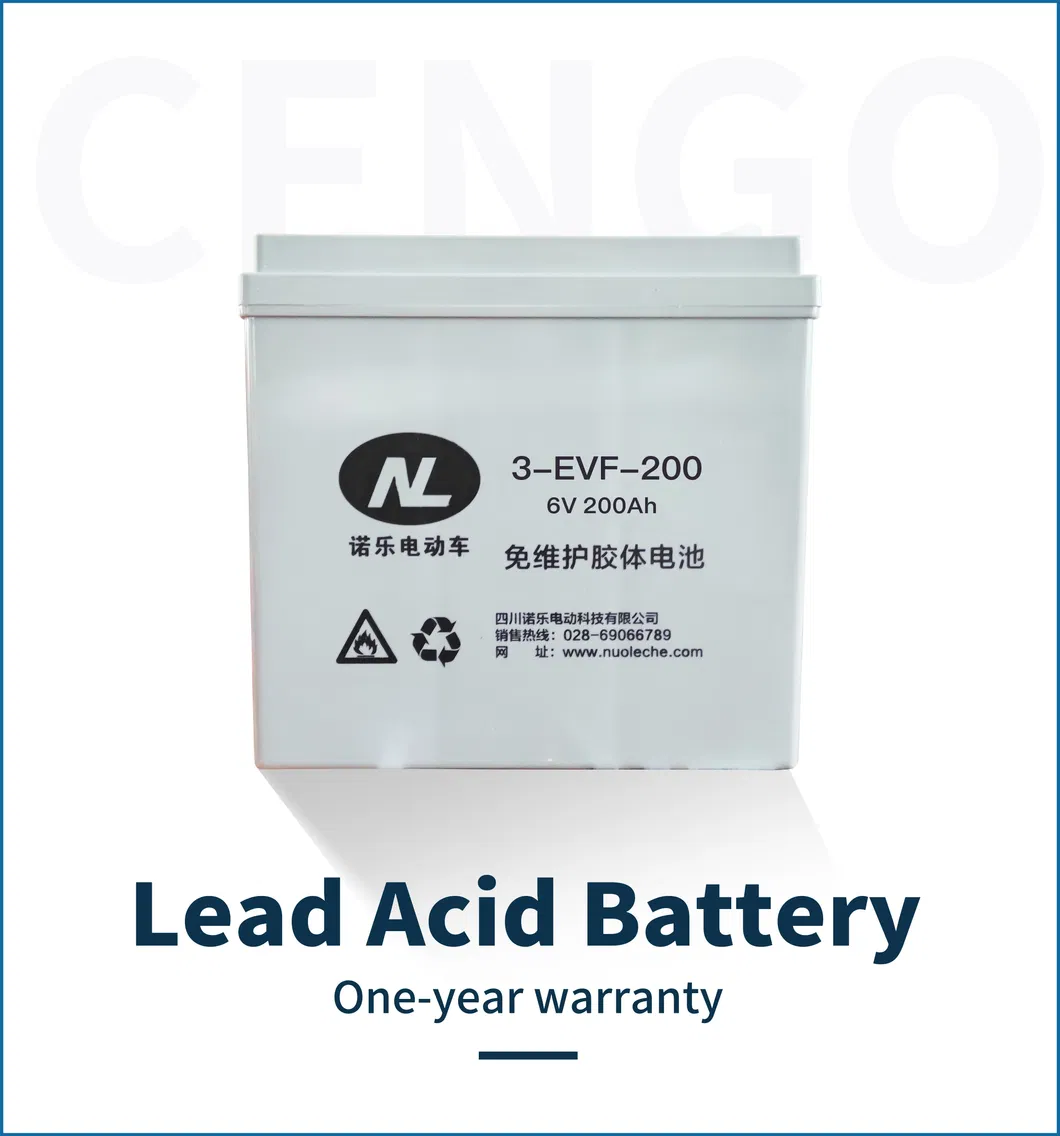

Our maintenance-free lead-acid batteries are designed for effortless upkeep and are exceptionally cost-effective to service or replace over time, providing balanced performance and budget-friendly dependability.

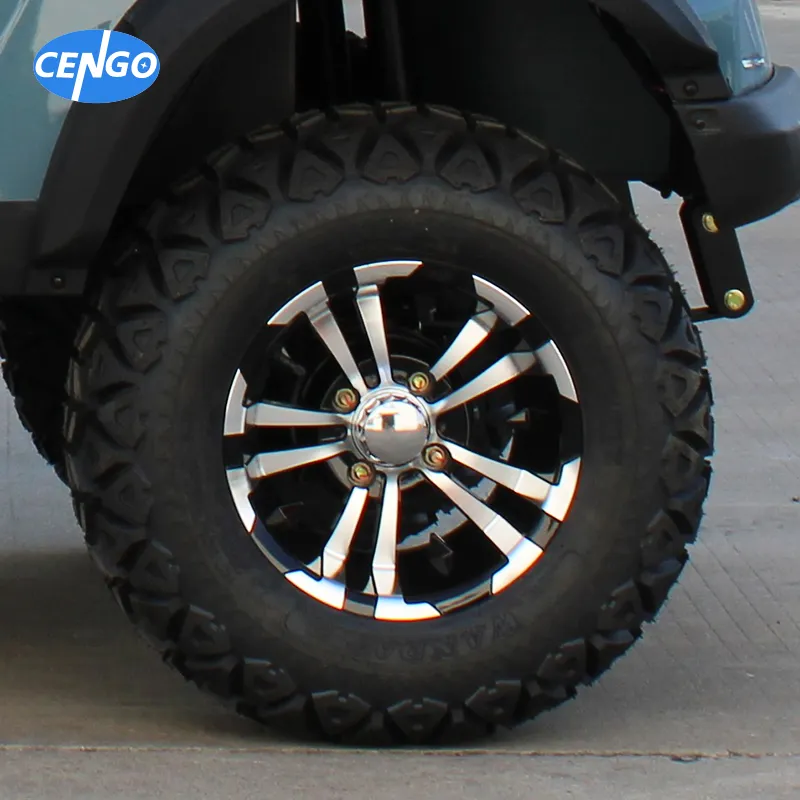

Equipped with premium 10/12/14 inch tires featuring customized aluminum hubs in various designs and tread patterns. Key advantages include low ground pressure, high flexibility, energy efficiency, exceptional grip, and stable operation across different terrains.

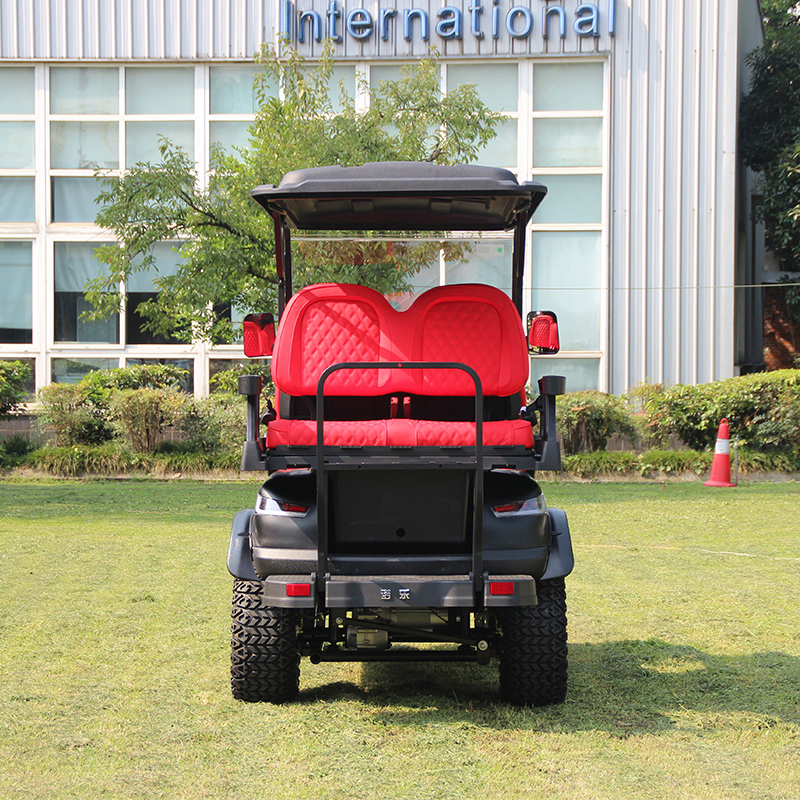

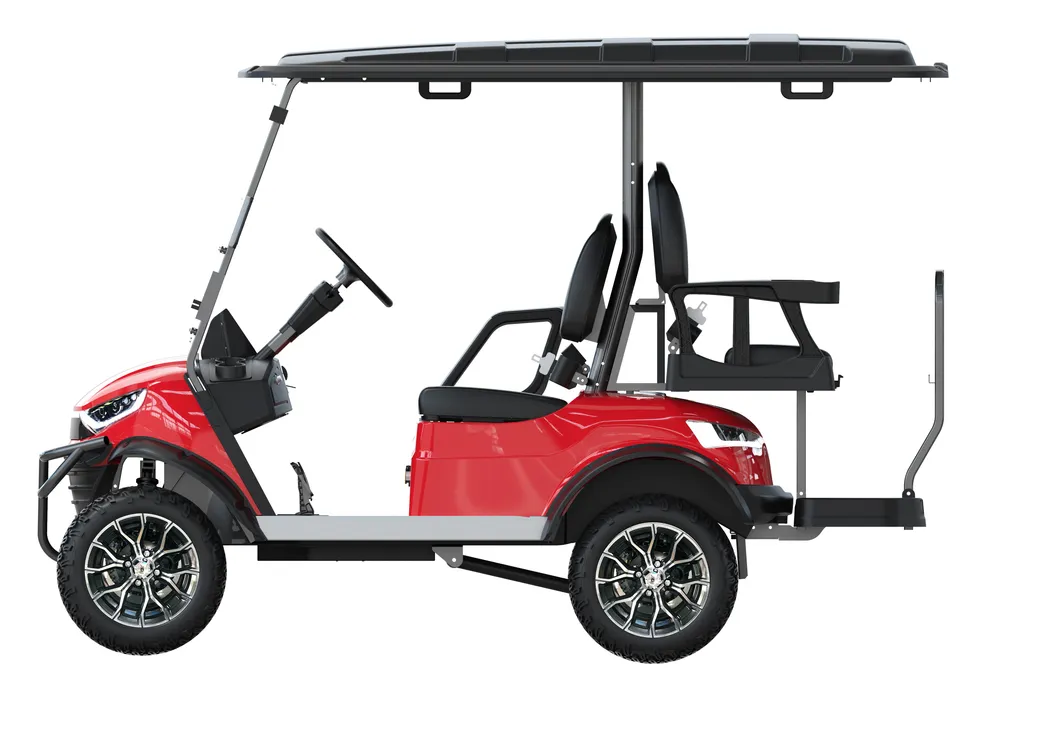

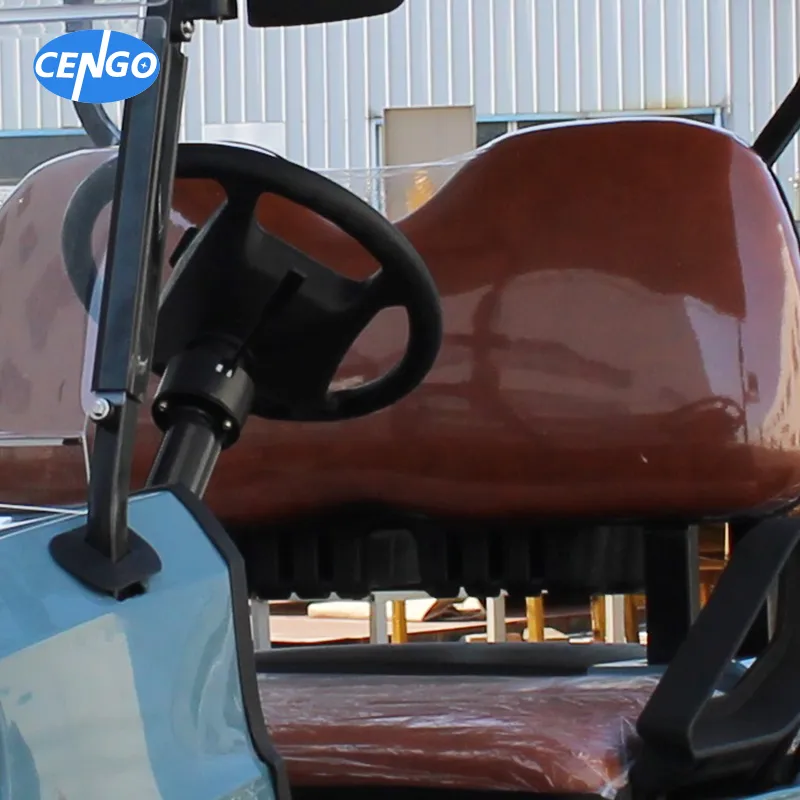

High-grade rebound PU leather seats with customizable colors and designs. Experience supreme comfort and refined style. Additionally, each seat is equipped with DOT-standard seat belts to ensure your journey is safe and stylish.

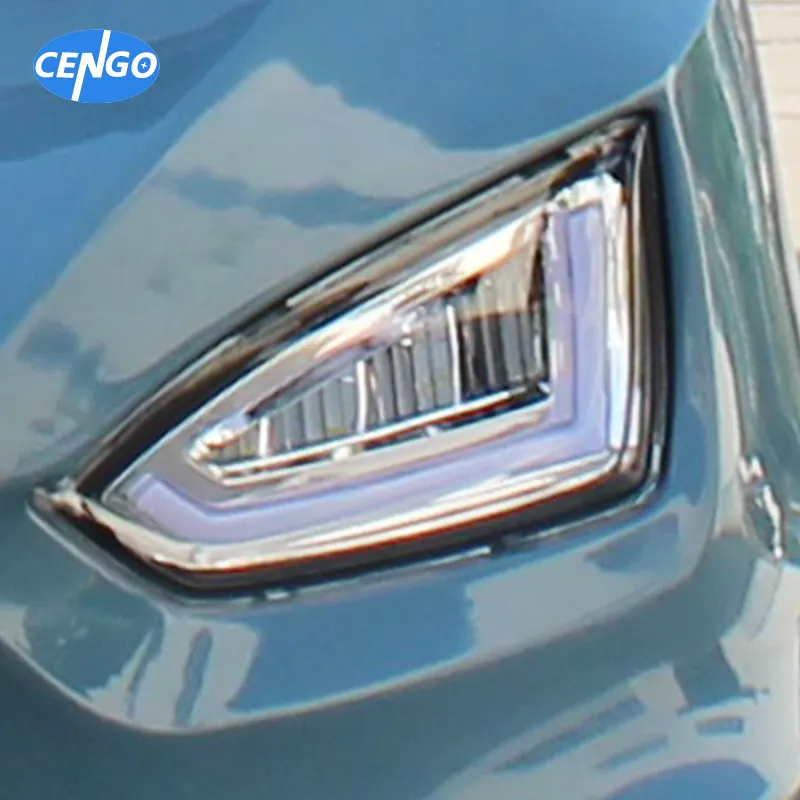

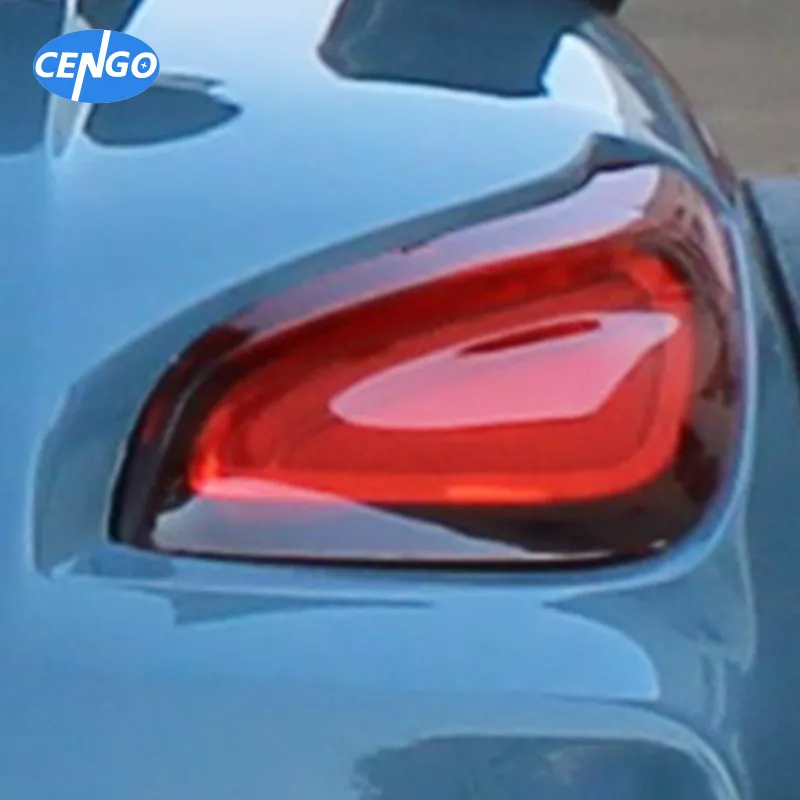

The lights define the aesthetic profile and overall styling of the golf buggy. Choose from a selection of models certified to DOT standards to personalize your vehicle's appearance.

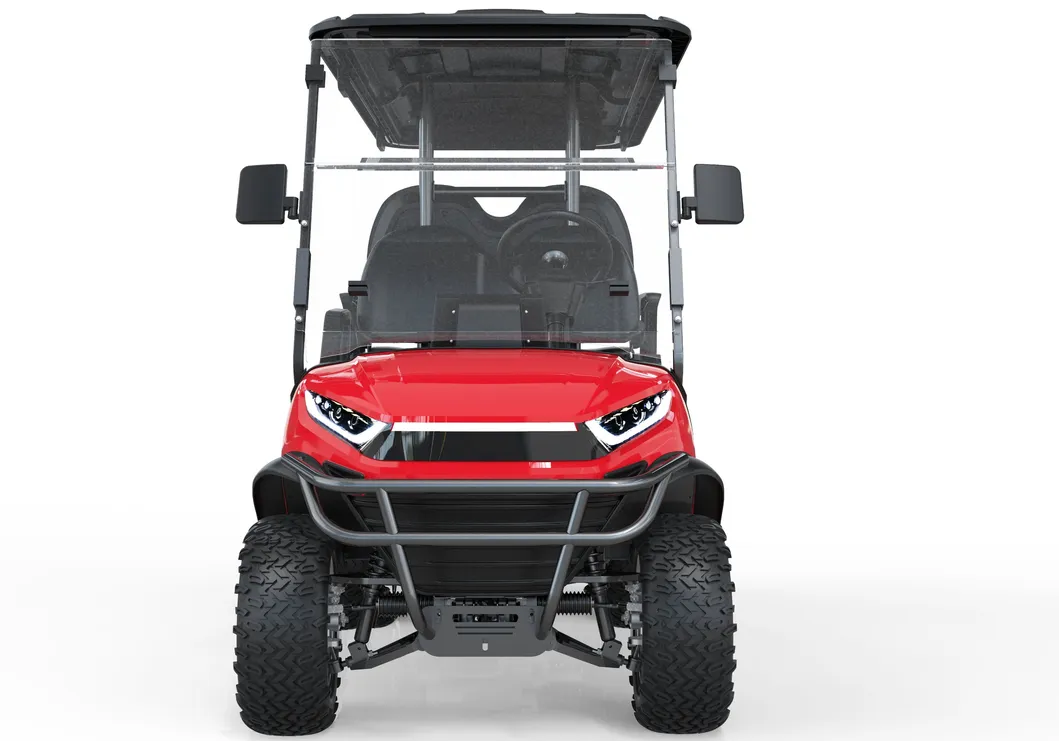

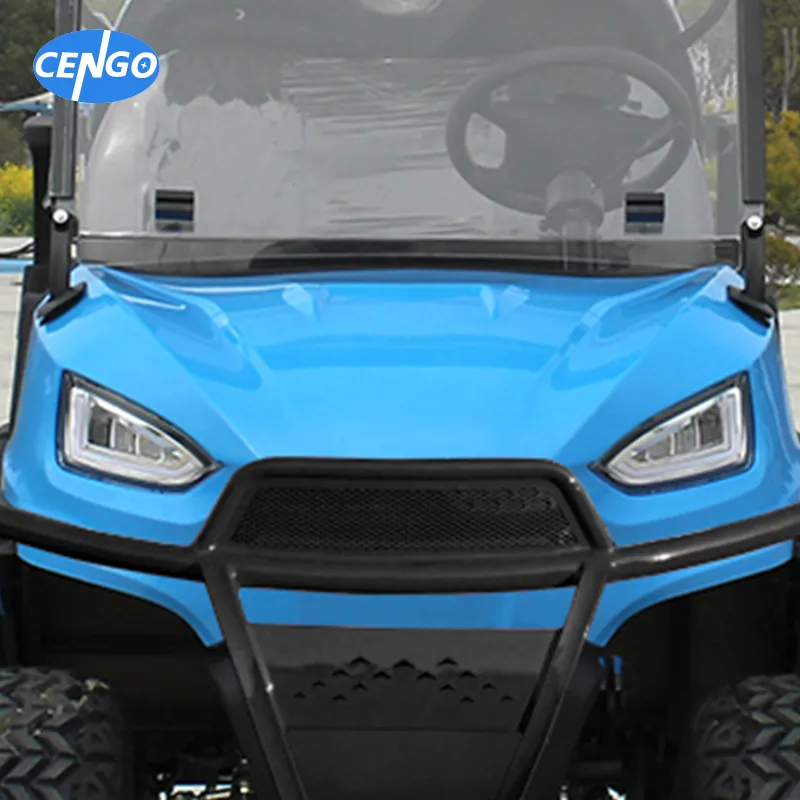

Advanced lighting systems integrated into the front body design ensure high visibility while accentuating the vehicle's modern look during evening operations.

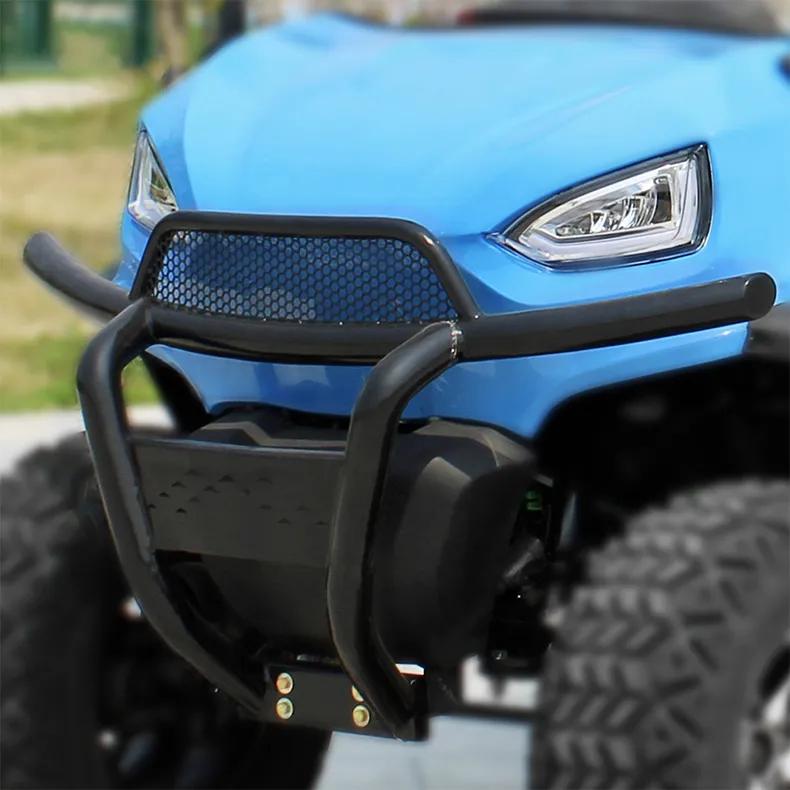

Constructed from high-strength steel to provide robust protection and complete the dynamic aesthetic of the front chassis.
Engineered steel bumper components safeguard critical components against front-end impacts on challenging trails.
Each model has a specific quantity limit. Please state the exact model you require, and we will provide detailed order configurations. We also accommodate custom OEM and ODM requirements.
For container-load orders, the shipping turnaround is generally 15 to 30 days after the receipt of the initial deposit payment. Get in touch with us directly for custom schedule confirmations.
Yes, absolutely. Please share your project needs and model preferences, and we will arrange for one of our authorized local distributors in your area to reach out to you directly.
The high-durability LFP (Lithium Iron Phosphate) battery is backed by a 5-year replacement warranty, while the structural cart elements are covered by an 18-month warranty.
This electric model supports travel speeds exceeding 30 km/h and can easily handle slope gradients (gradeability) ranging between 20% and 30% depending on the surface terrain.
The cart incorporates a responsive four-wheel hydraulic disc brake assembly alongside an automatic electromagnetic parking brake, ensuring safe stopping distances under 3 meters.
