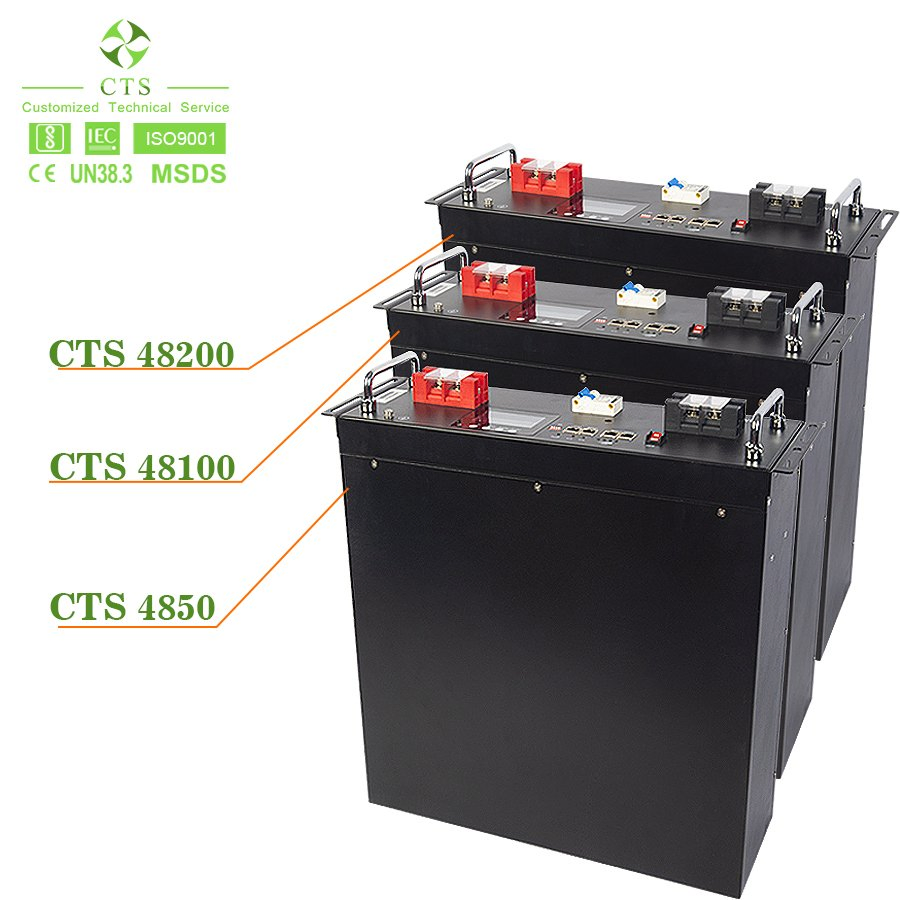

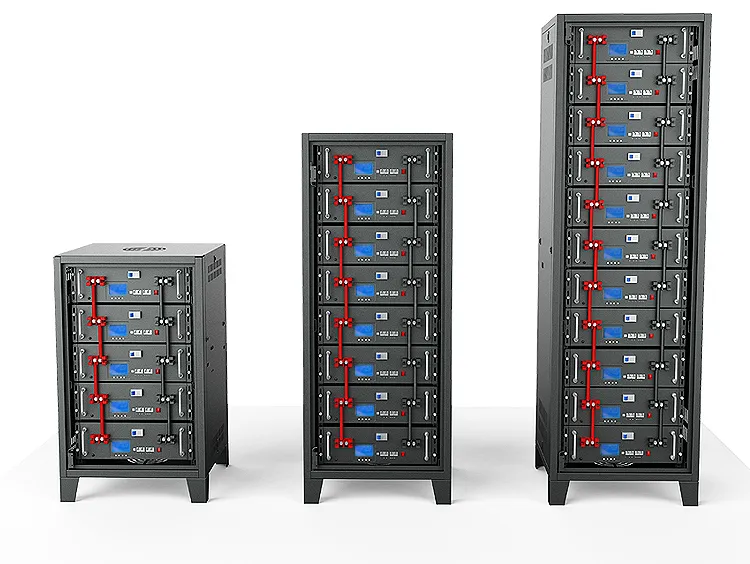

Modules support parallel connection from 48v 50ah to 48v 3200ah, meeting the power consumption demands of different households.
Eight Unique Advantages
Compatible with various inverter brands, including Victron, Goodwe, Pylon, Growatt, Solis, Lux, Solax, Sofar, and Sacolar.
Supports up to 64 units in parallel (equivalent to 48v 6400ah) to meet all household demands.
Features 99% Operating Efficiency compared to 80% for AGM batteries. Equivalent to adding 20% additional solar panels to your current system.
A+++ Cells with 6000 cycles at 80% DOD, offering 15 years of daily deep discharge use.
Samples ready within one week.
Plug and play design with all installation materials included for easy setup.

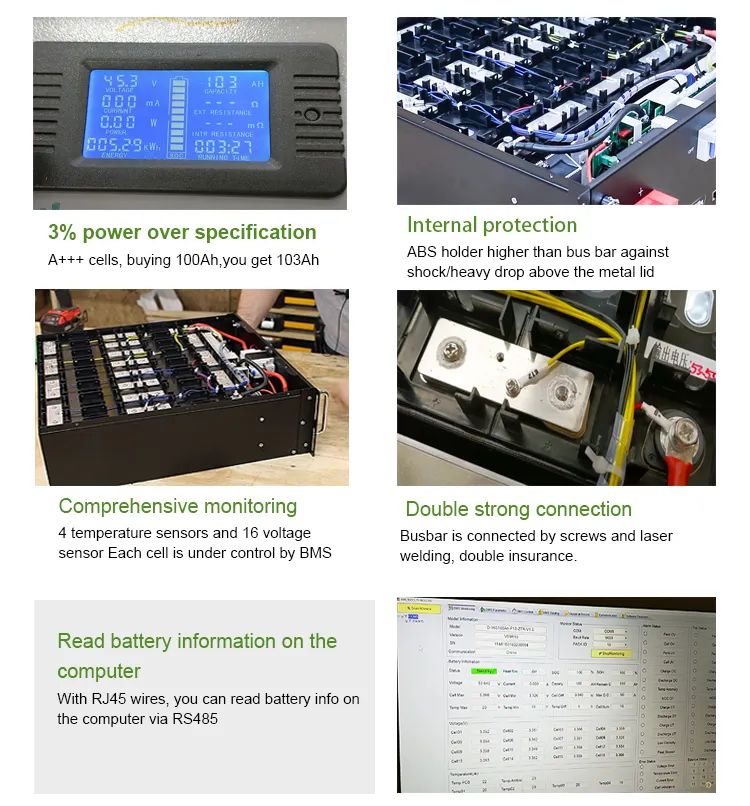

Cells are bolted together with heavy plates and ABS holders for highly reliable internal connections.

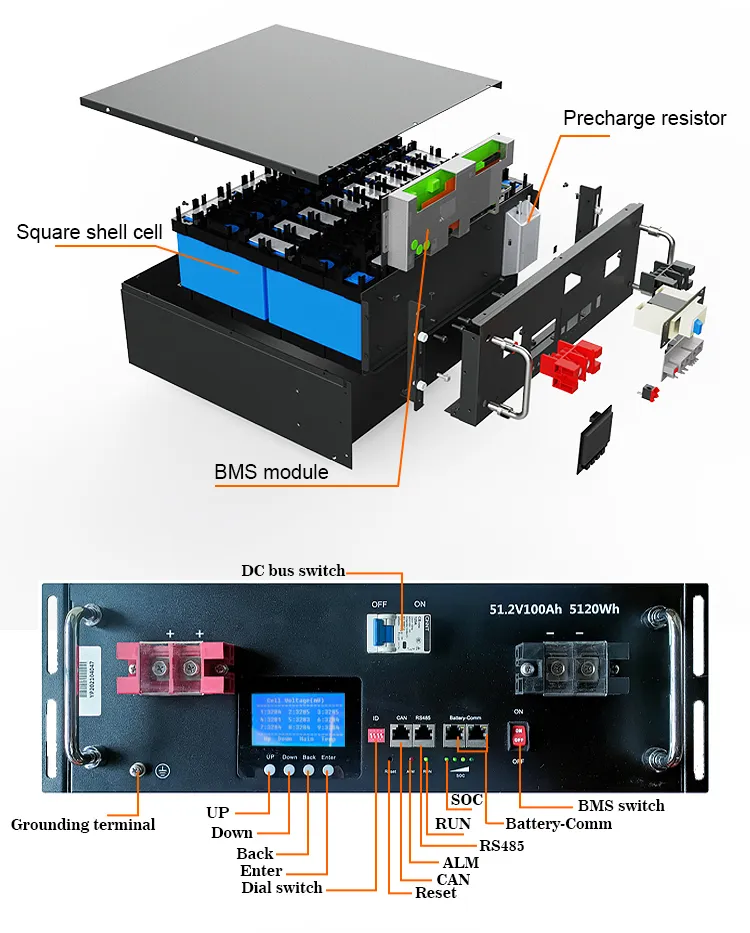

Equipped with RS485 and CAN ports on the front panel with RJ45 connection interface.

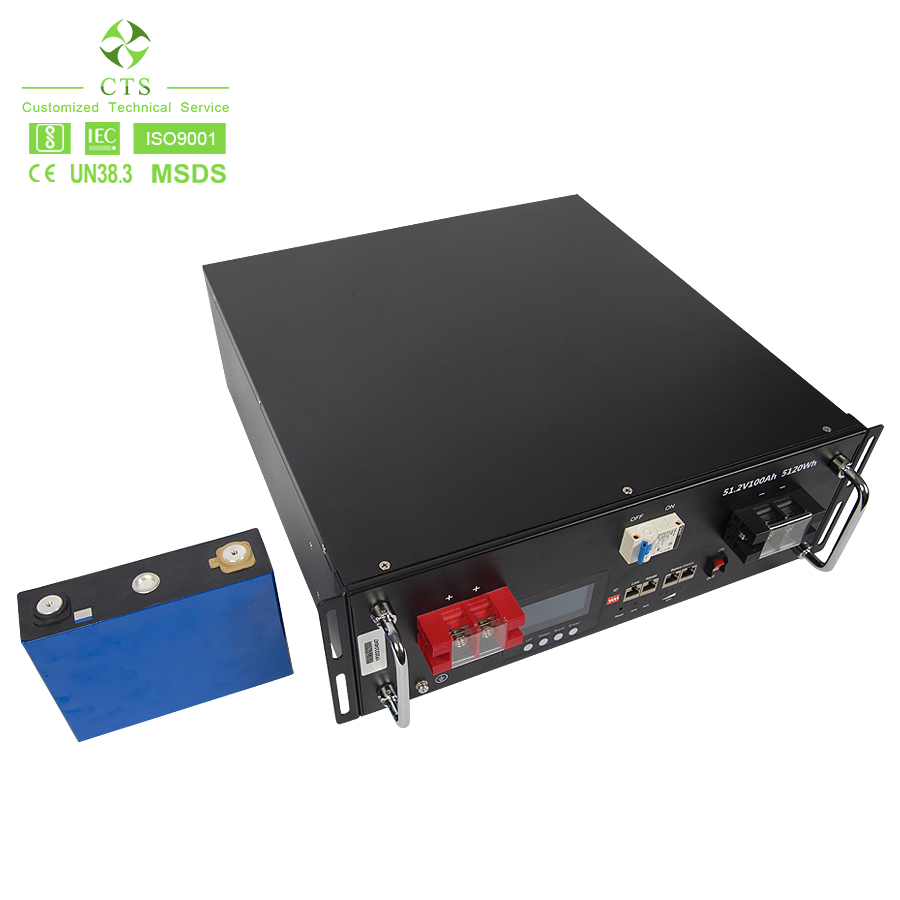

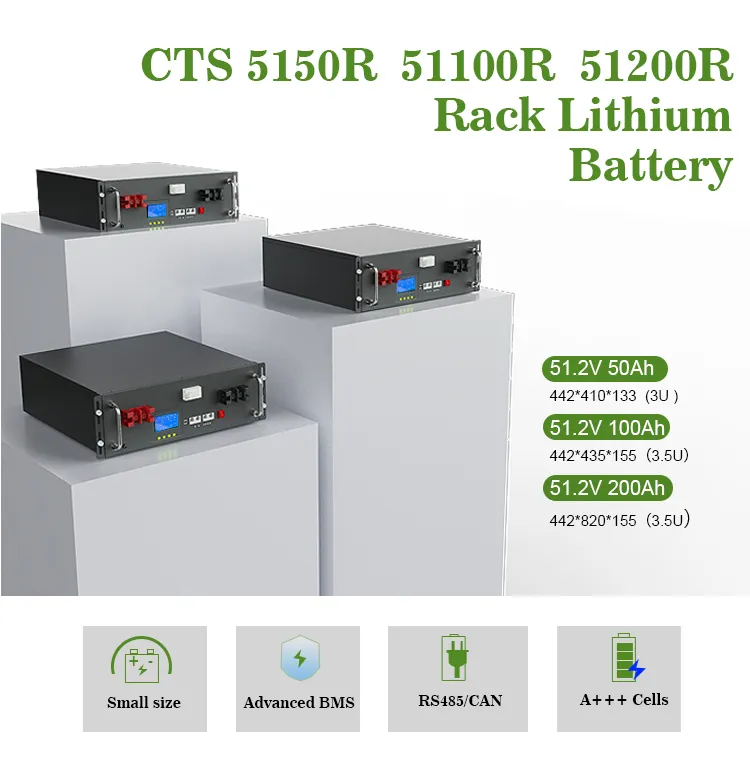

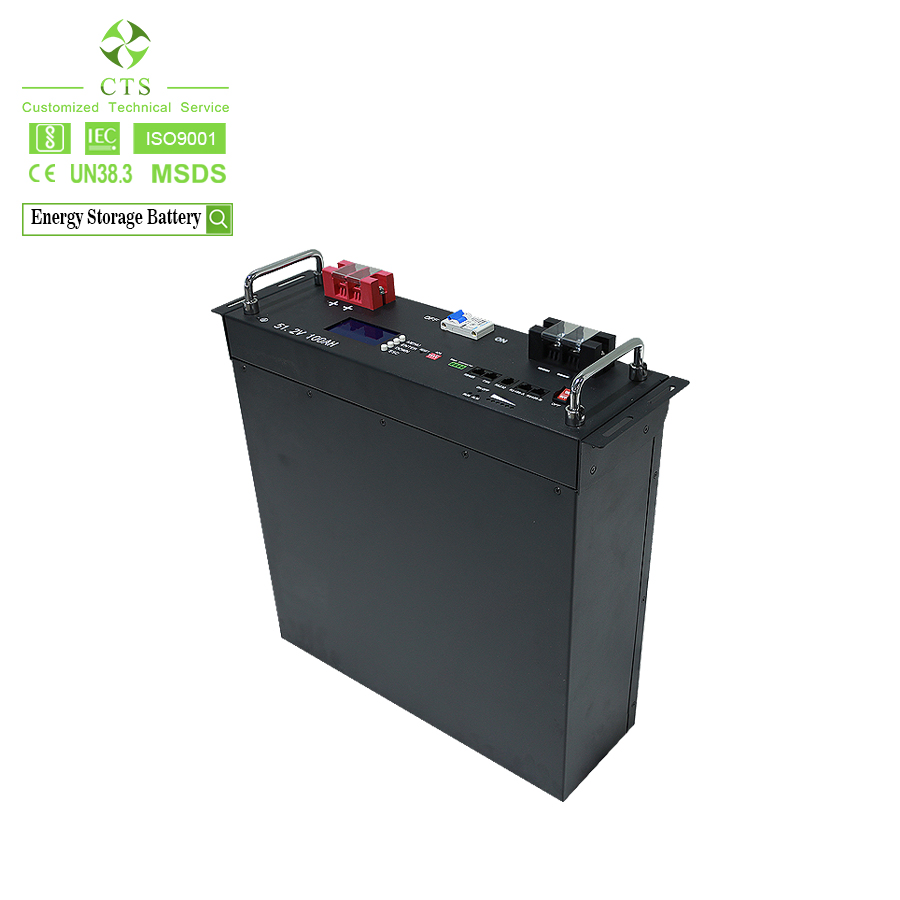

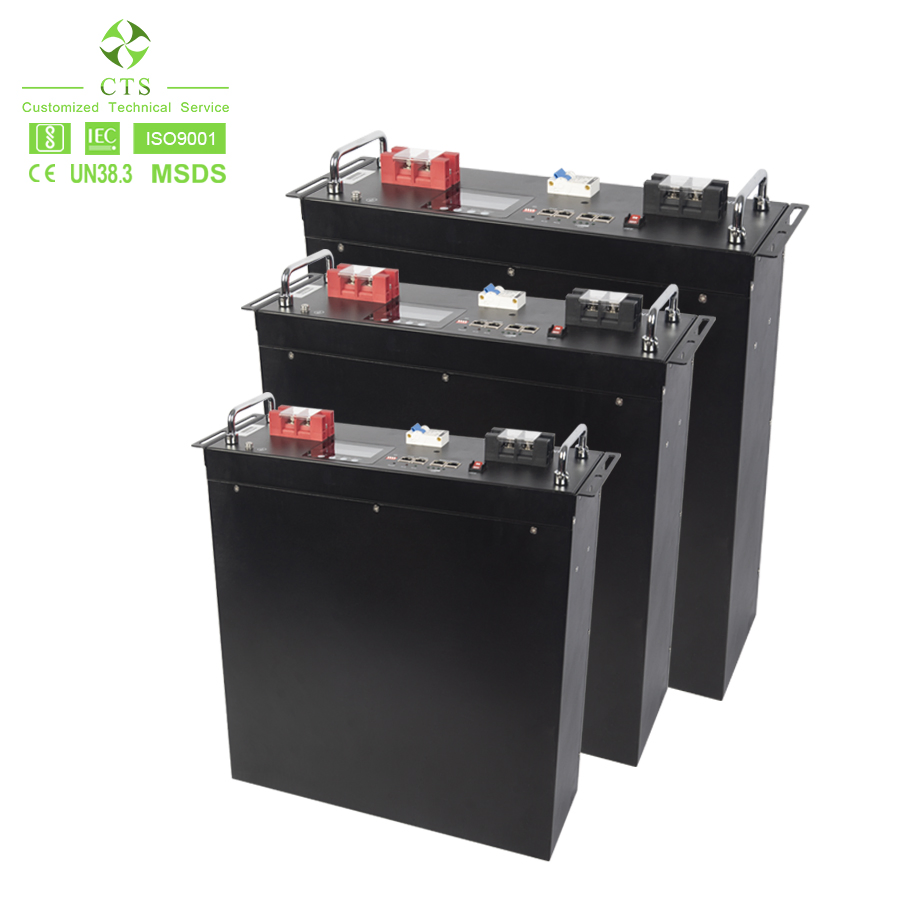

| MODEL | 5150R | 51100R | 51200R |
|---|---|---|---|
| ELECTRICAL SPECIFICATIONS | |||
| Cell Type - Chemistry | LiFePO4 | LiFePO4 | LiFePO4 |
| Rated Capacity | 50Ah | 100Ah | 200Ah |
| Rated Voltage | 51.2V | 51.2V | 51.2V |
| Energy | 2.56kWh | 5.12kWh | 10.24kWh |
| MECHANICAL SPECIFICATIONS | |||
| Dimensions (L x W x H) | 442*410*133mm | 442*435*155mm | 442*820*155mm |
| Weight | 28Kg | 48Kg | 82Kg |
| DISCHARGE SPECIFICATIONS | |||
| Discharge Cut-off Voltage | 40V | 40V | 40V |
| Max Continuous Discharging Current | 50A | 100A | 150A |
| Recommended Discharge Current | 25A | 50A | 100A |
| CHARGE SPECIFICATIONS | |||
| Charging Limited Voltage | 57.6V | 57.6V | 57.6V |
| Max Charging Current | 50A | 100A | 150A |
| Recommended Charge Current | 25A | 50A | 100A |
| Working Temperature Range | Charge: 0~45ºC | Discharge: -20~60ºC | ||
| Recommended Operating Temperature | 15~35ºC | ||
| Recommended Storage Temp & Humidity | 15~35ºC, 45~75%RH | ||

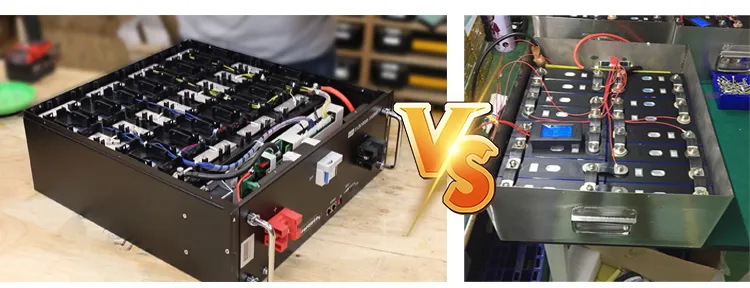

| Feature Comparison | Our Standard | Common Market Standard |
|---|---|---|
| Plastic Holder | Customized plastic holder between each cell for optimized insulation and installation safety. | No holders between cells, posing potential insulation risks. |
| Top Extension | Bracket extension at the top absorbs impacts, drops, or vibrations to protect the battery body. | No top extension, offering limited structural protection. |
| Explosion-proof Valve | Unblocked explosion-proof valve ensures physical cell structural safety. | Blocked valves that do not satisfy safety standards. |
| BMS Protection | BMS is fully enclosed with a metal cover to prevent mechanical shock damage. | Exposed BMS boards without protective covers. |
| Laser Welding + Screws | Laser welding around screws eliminates detachment risks, lowers contact resistance, and increases current capacity for maximum power delivery. | Untidy manual welding or simple screw connections with risk of connection failure. |
| Cable Arrangement | Standardized, orderly routing to prevent short circuits, open circuits, and contact degradation. | Disorganized cable management passing directly over active areas. |

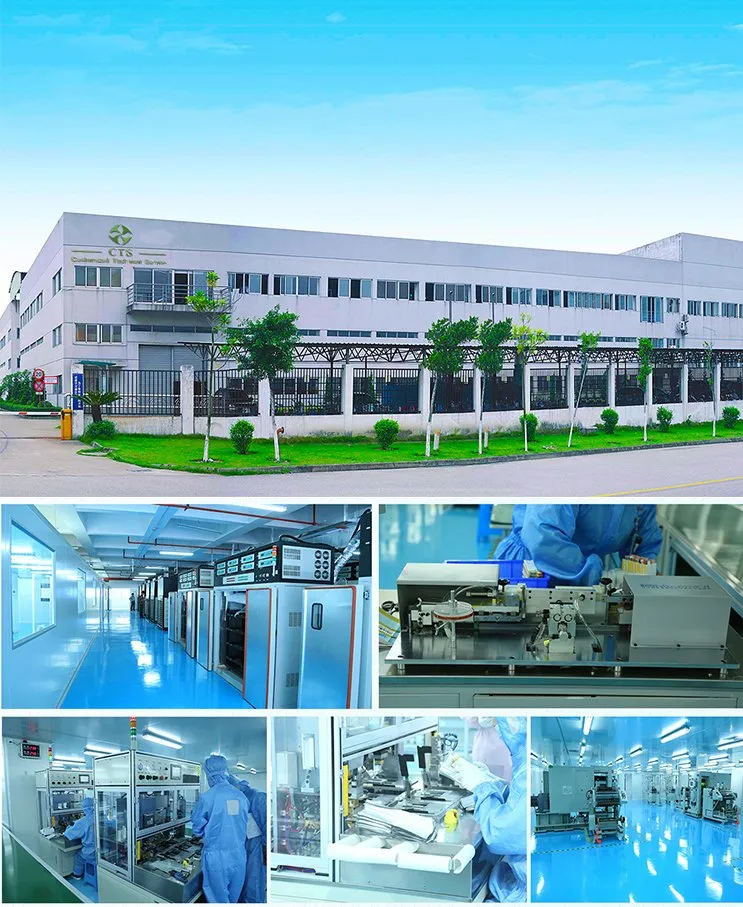

Since 2011, we have focused on one-stop customization of lithium battery products, including electric vehicle batteries, large energy storage batteries, smart home storage batteries, and specialized application packs.
With more than 30 configurations of high-quality cells, we manufacture OEM battery systems from 12v to 800v, ranging from 10Ah to 200Ah. These products are widely deployed in electric vehicles, E-bikes, UPS, energy storage systems, telecommunication base stations, E-scooters, golf carts, forklifts, and industrial machinery.
Our quality policy drives continuous system innovation. To achieve full automation, we utilize advanced packaging equipment and manufacturing lines. The production system is certified under quality standards ISO 9001, ISO 14001, and OHSAS 18001.

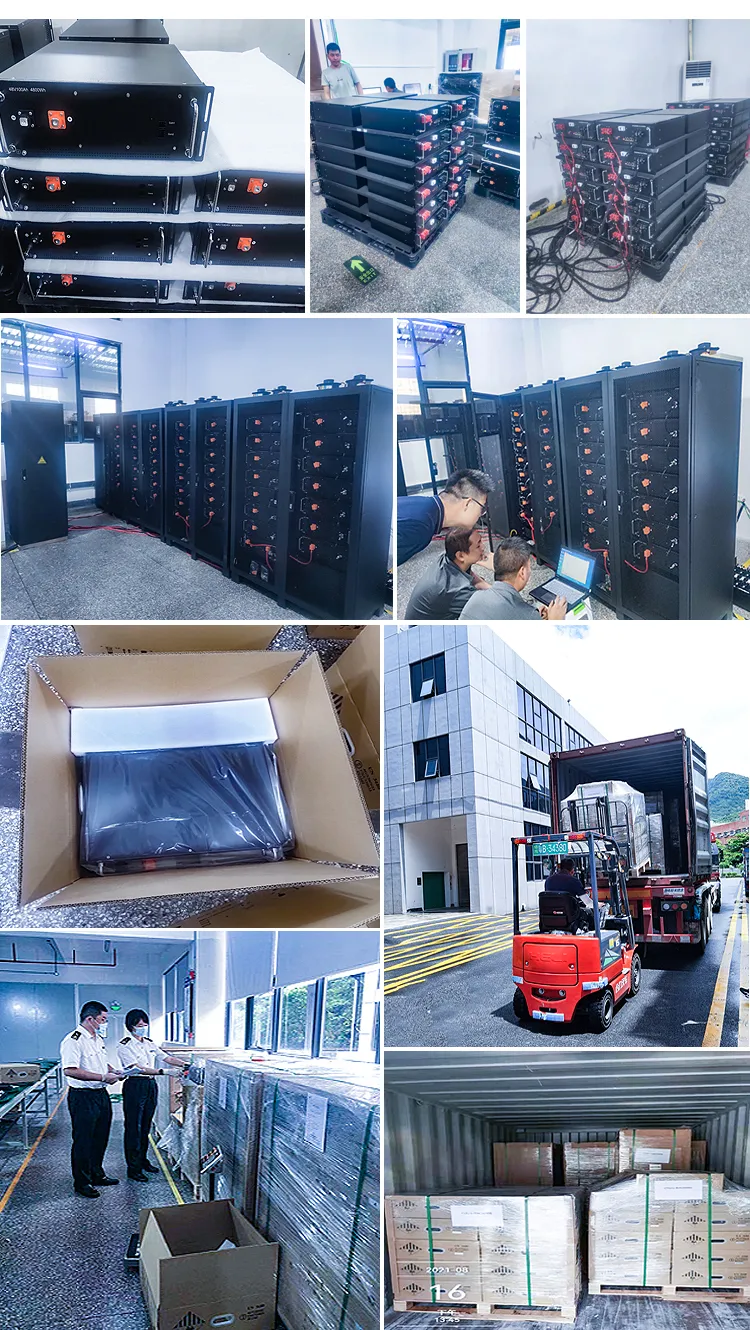

Product Testing and Shipping Protocols
Hard cardboard cartons and custom-fit foam shielding keep the batteries secure throughout international transport routes.

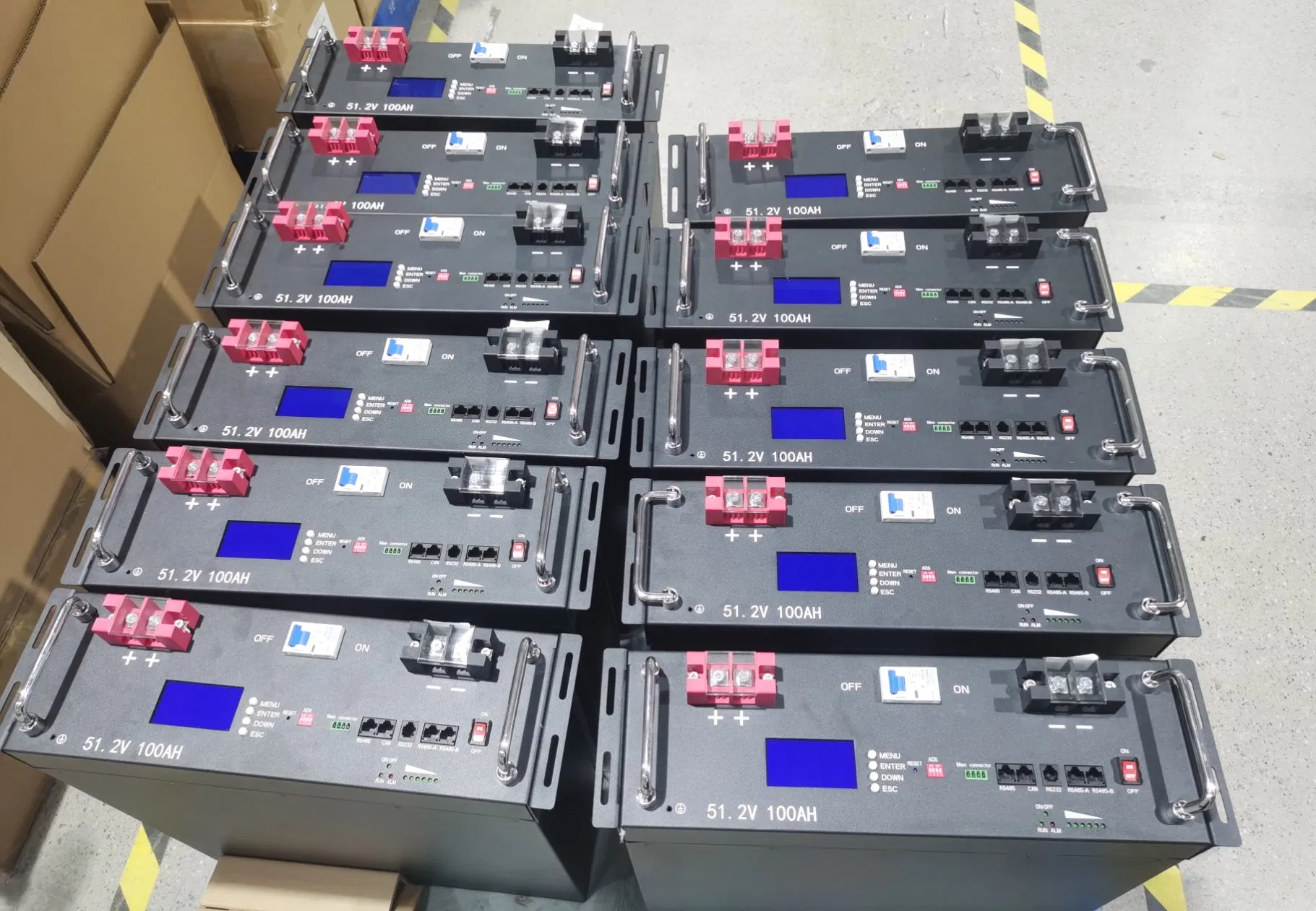

Full testing procedures are executed prior to dispatch to ensure cells are balanced and capacity parameters are verified.
Supplied with complete MSDS and UN38.3 regulatory certificates to support customs declarations and logistics safety clearance.
Standardized on-site checks guarantee compliance with international logistics standards for lithium batteries.

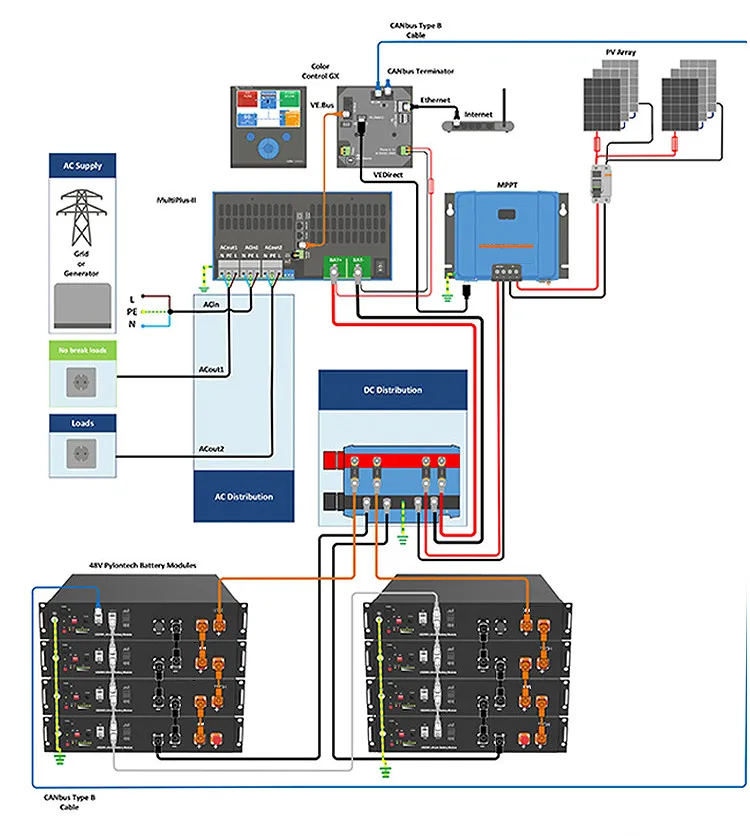

Easy Plug and Play System
Compatible with a wide range of popular solar inverters.
Adhering to the principle of reliable service.
The battery utilizes A+++ cells providing up to 6000 cycles at 80% DOD, translating to approximately 15 years of daily deep discharge use.
The system features high compatibility with major inverter brands, including Victron, Goodwe, Pylon, Growatt, Solis, Lux, Solax, Sofar, and Sacolar.
Yes, these modules support parallel expansion up to a maximum of 64 units, allowing configurations from 48V 50Ah up to 48V 3200Ah to meet various energy demands.
The integrated Battery Management System (BMS) protects the battery from overcharging, over-discharging, over-current, short circuits, and extreme temperatures. It is also enclosed in a metal cover to prevent mechanical damage.
The recommended charging temperature is between 0~45ºC, and the discharge temperature range is from -20~60ºC. For optimal storage, keep the battery between 15~35ºC with 45~75% relative humidity.
