100% After-Sales Guarantee | 100% Free Technical Support | Fast Delivery
| Specification Parameter | Details |
|---|---|
| MODEL | 96300 Series |
| Cell Type - Chemistry | Prismatic - LiFePO4 |
| Rated Capacity | 304Ah |
| Rated Voltage | 96V |
| Energy | 29.18KWh |
| Resistance | ≤ 30mΩ |
| Self Discharge | < 3% per month |
| PDU | BMS, 400A relays, fuses, COM socket |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | L1300 * W500 * H380mm (Can be customized smaller) |
| Weight | 2540Kg |

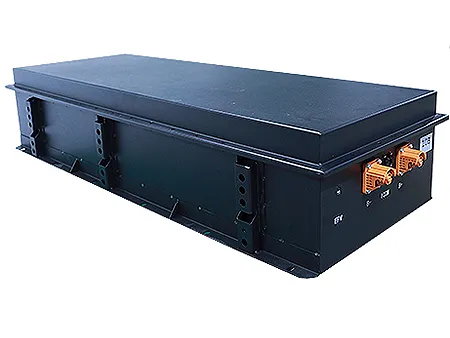

| Enclosure Protection | IP67 stainless steel case |
| DISCHARGE / CHARGE SPECIFICATIONS | |
| Discharge Cut-off Voltage | 75V |
| Max Continuous Discharging Current | 300A |
| Peak Discharge Current | 400A for 60 seconds |
| Recommended Discharge Current | 300A |
| CHARGE SPECIFICATIONS | |
| Charging Limited Voltage | 109.5V |
| Max Charging Current | 200A |
| Recommended Charge Current | 100A |
| TEMPERATURE SPECIFICATIONS | |
| Charge Temperature Range | 0 ~ 50 ºC |
| Discharge Temperature Range | -20 ~ 60 ºC |
| Recommended Operating Temperature | 15 ~ 35 ºC |
| Storage Temp & Humidity (< 1 month) | -20 ~ 35 ºC, 45 ~ 75% RH |
| Storage Temp & Humidity (< 3 months) | -10 ~ 35 ºC, 45 ~ 75% RH |
| Rec. Storage Temp & Humidity | 15 ~ 35 ºC, 45 ~ 75% RH |
| OEM OPTIONS | |
| Available on request | Size, C rate, Communication protocol |

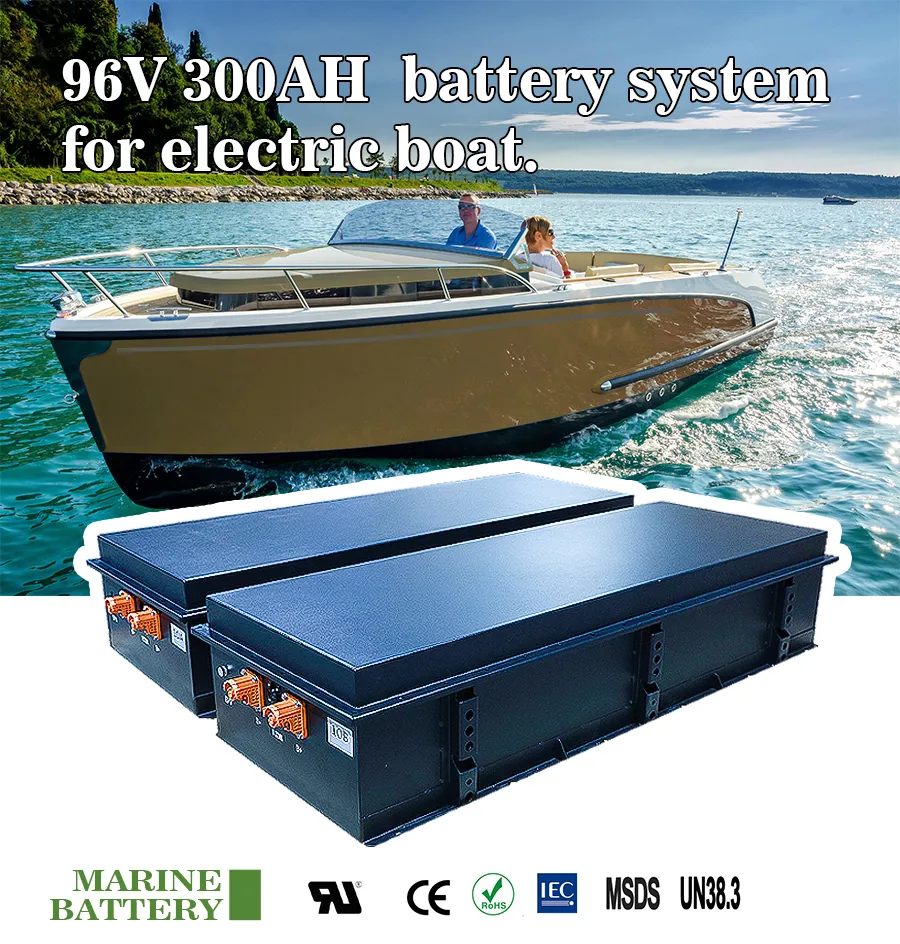

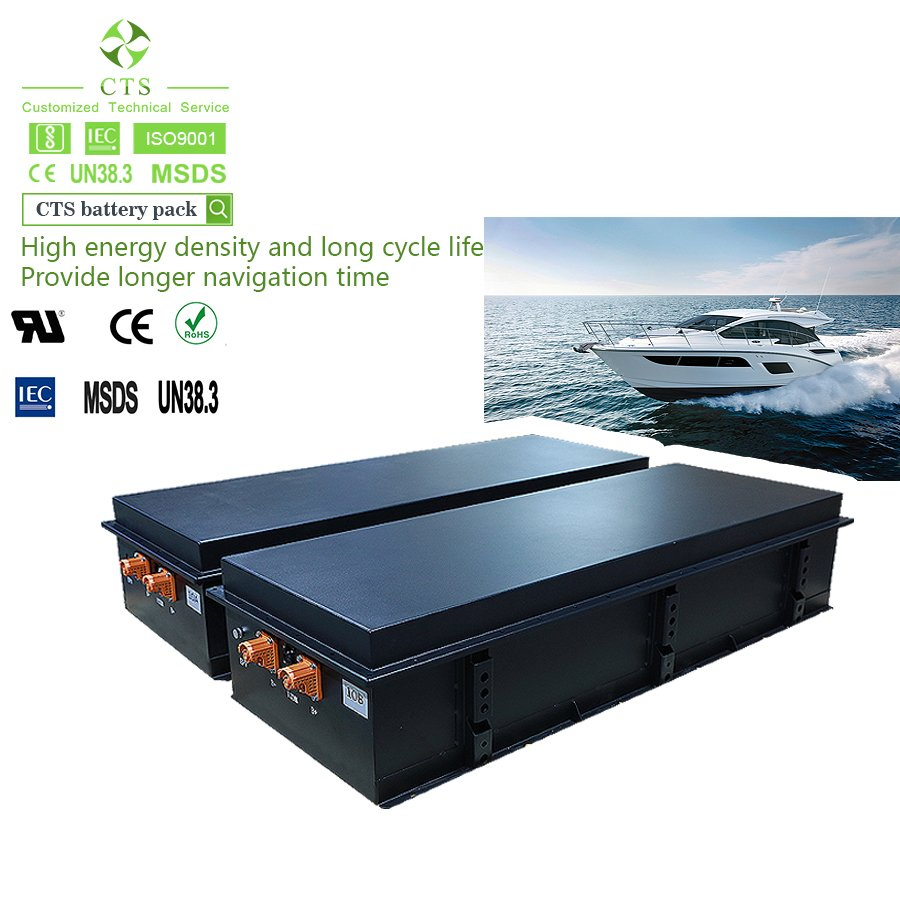

Our solutions provide lithium batteries with high energy density and small size for ships with limited space. Its long cycle life feature is suitable for long-term ocean navigation. A 316 stainless steel case with IP67 protection is selectable to prevent seawater corrosion.

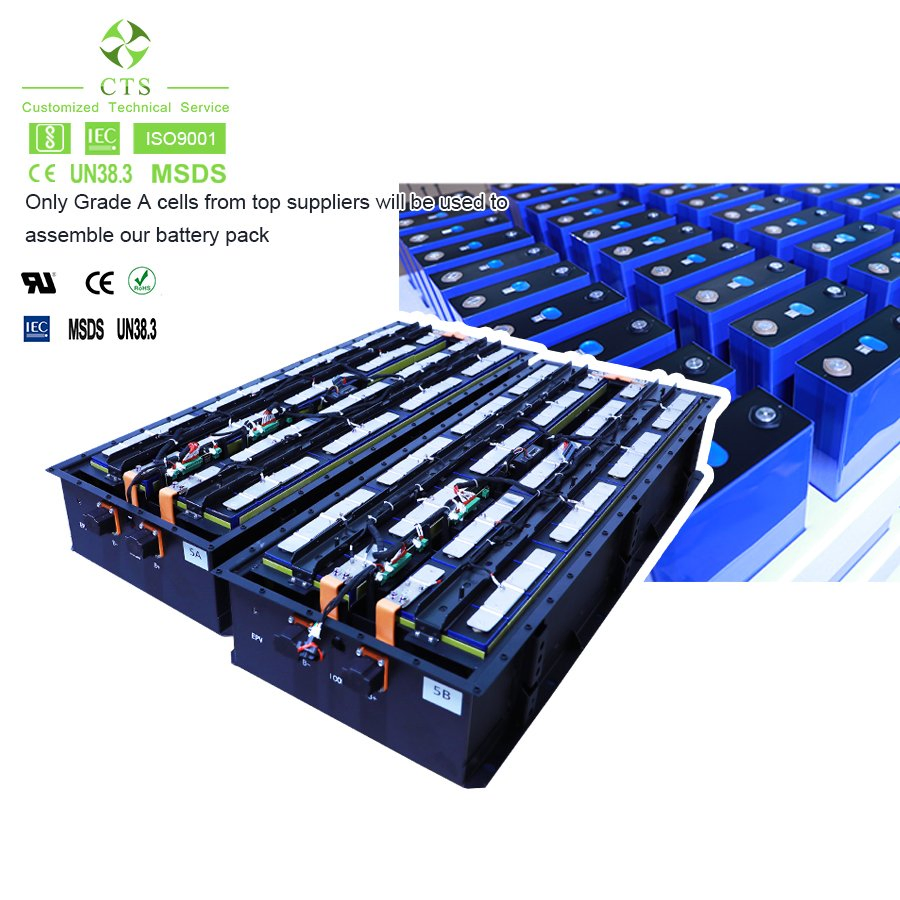

Lifepo4 batteries are the optimal choice for marine vessels. Featuring a 10-year long design life, these batteries adopt Grade A cells. With reliable lifepo4 cells, cycle life exceeds 6000 cycles.

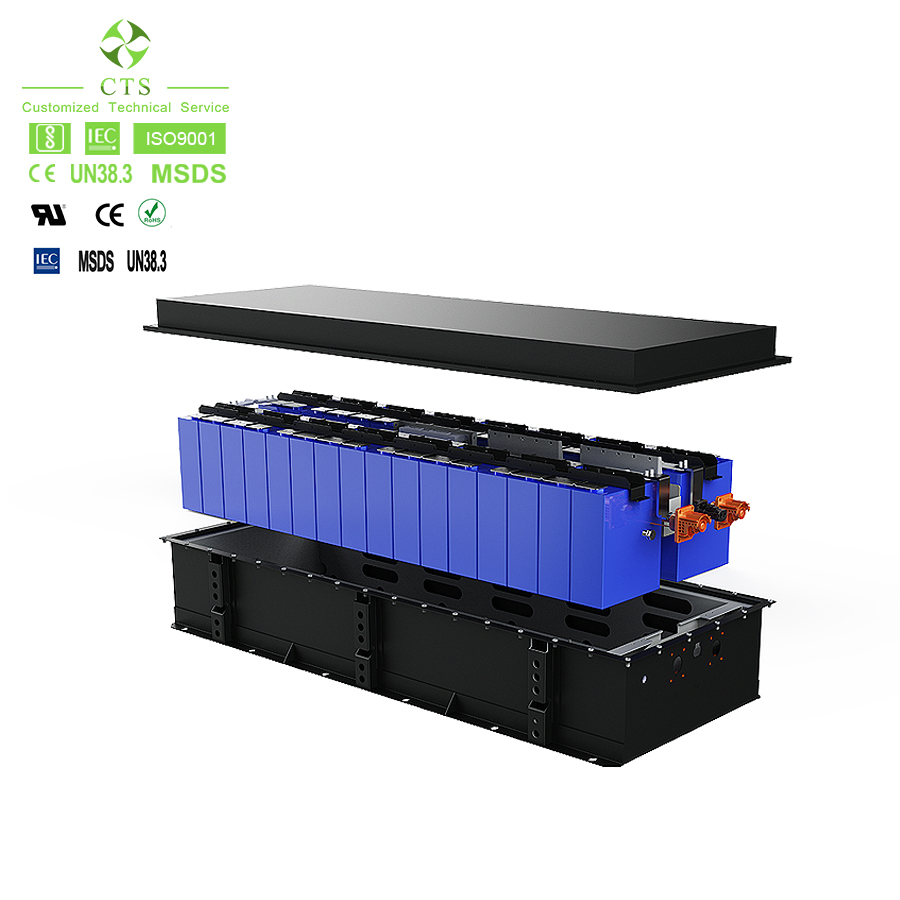

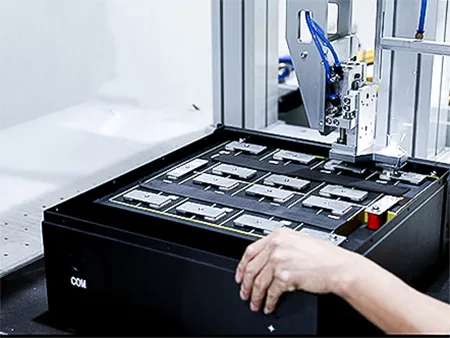

Laser welding strengthens connections and eliminates the risk of loosening screws. The contact surface area between screws and bus bars is optimized to enhance high-current handling capability, lower internal resistance, and decrease overall power consumption.

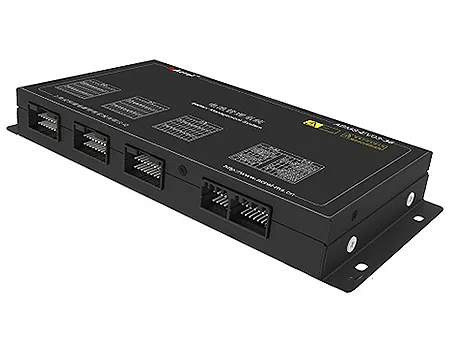

Includes intelligent data monitoring, overcharge, over-discharge, overcurrent, over-temperature, and real-time online alarm protection. CAN/RS485 communication protocols are optional.
Available in 304 or 316 stainless steel options. The 316 stainless steel casing is highly resistant to seawater corrosion, making it suitable for harsh marine and industrial environments.

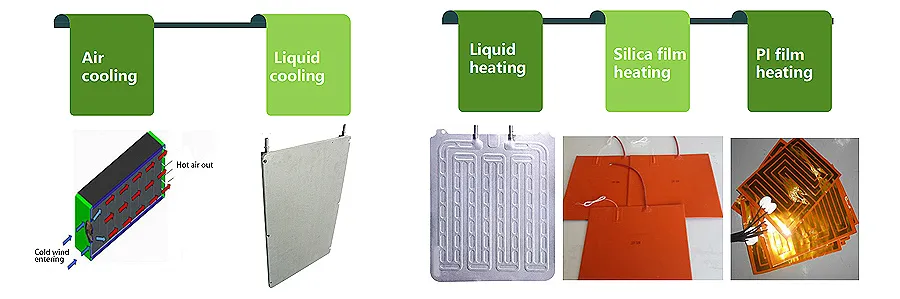

Liquid cooling and heating systems can adapt the battery pack to function optimally in diverse environmental working temperatures.
We design and customize matching lithium battery systems according to space specifications of your vessel. We provide comprehensive, one-stop battery services, with options for integrated OBC (onboard chargers) and charging piles.

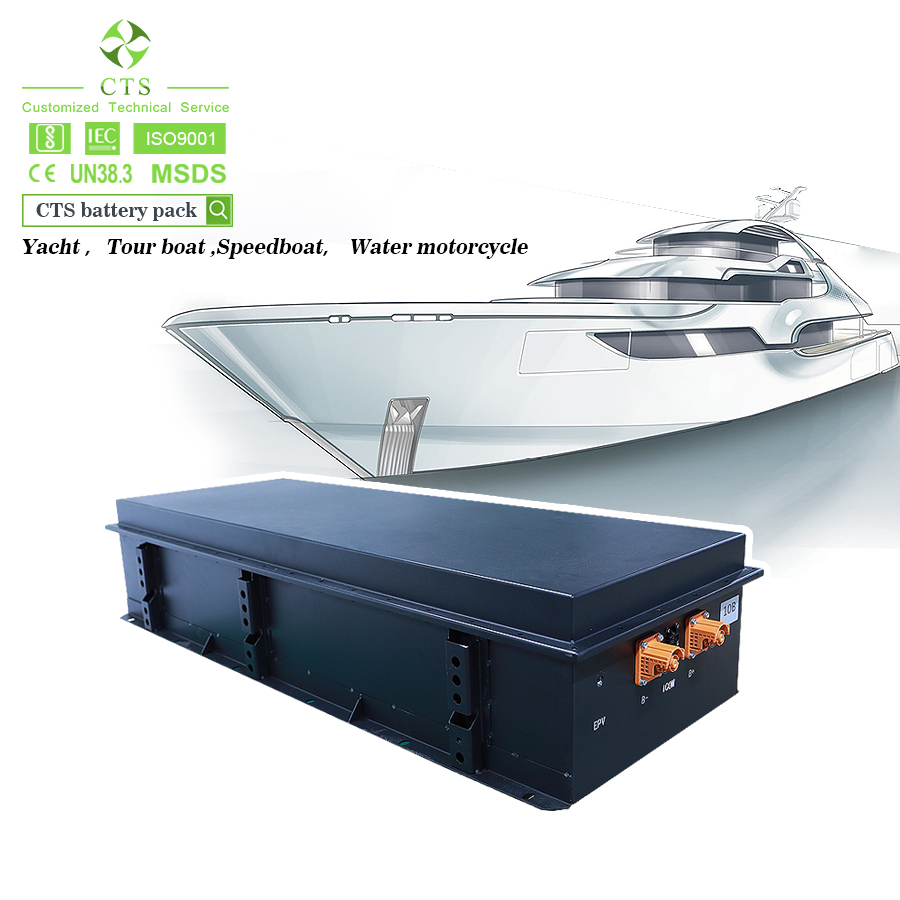

Our lithium batteries feature a versatile range of applications, meeting the power requirements of 90% of yachts, sightseeing boats, speedboats, and electric utility vehicles on the market.

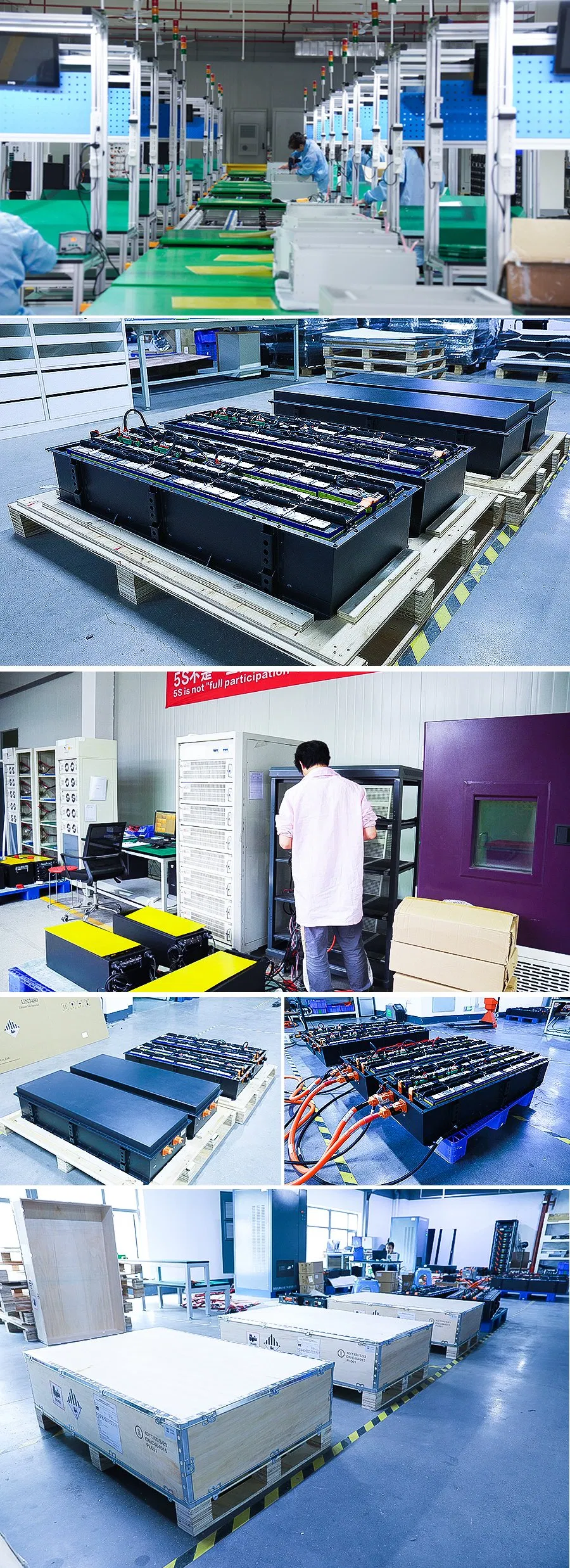

From component cells to the finalized battery pack, every production process is strictly executed in compliance with ISO9001 standards. Dedicated quality control inspections guarantee the build safety and reliability of the final product delivered to our customers.
