4seats Cart, Golf Cart, Bus, Electric Car, Golf Buggy, Electric Utility Vehicle, Golf Car, Tool Cart, Hunting Vehicle, Small Transport Vehicle,

1 / 5

4seats Cart, Golf Cart, Bus, Electric Car, Golf Buggy, Electric Utility Vehicle, Golf Car, Tool Cart, Hunting Vehicle, Small Transport Vehicle,

Send Inquiry

Product Description

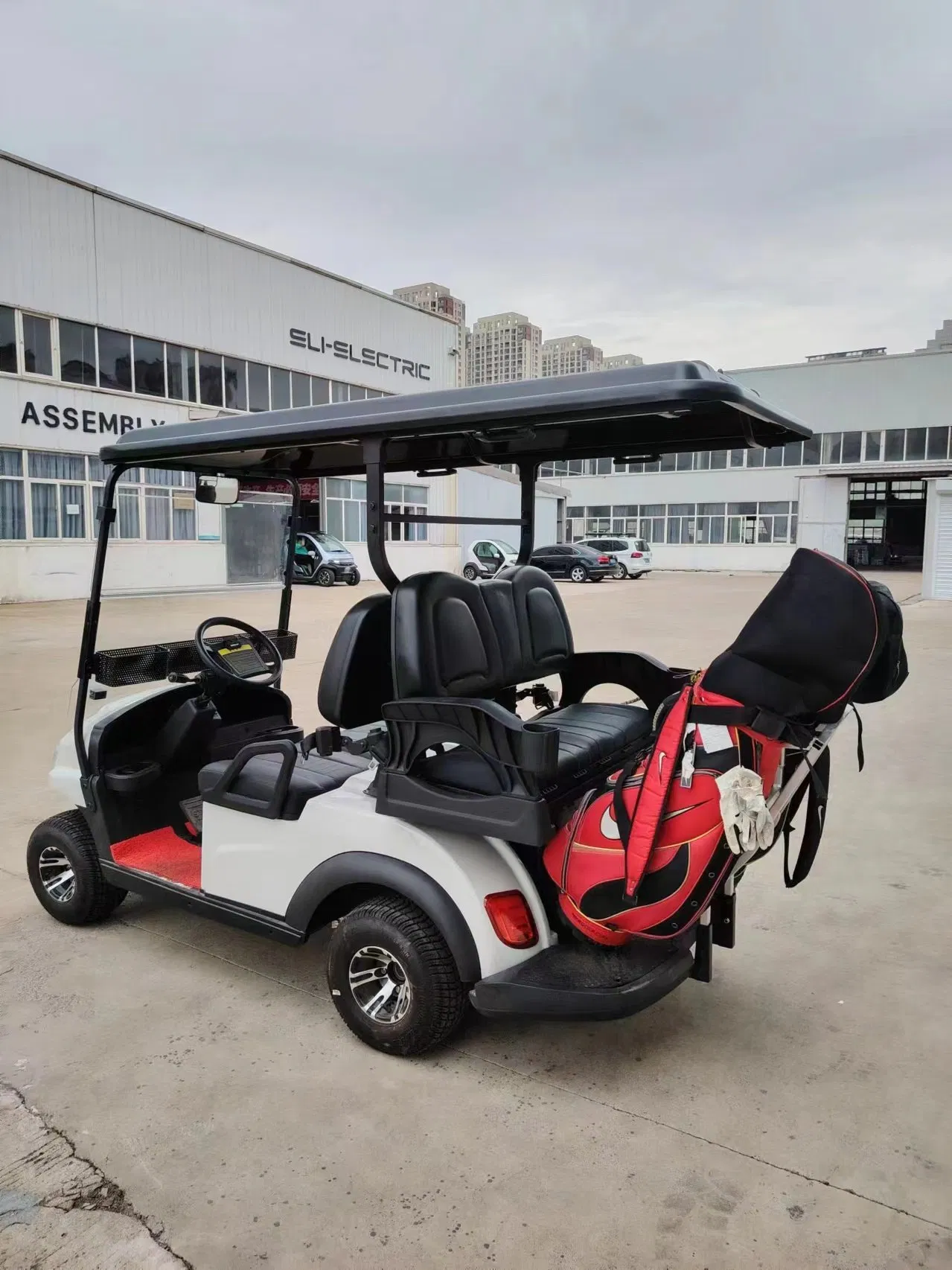

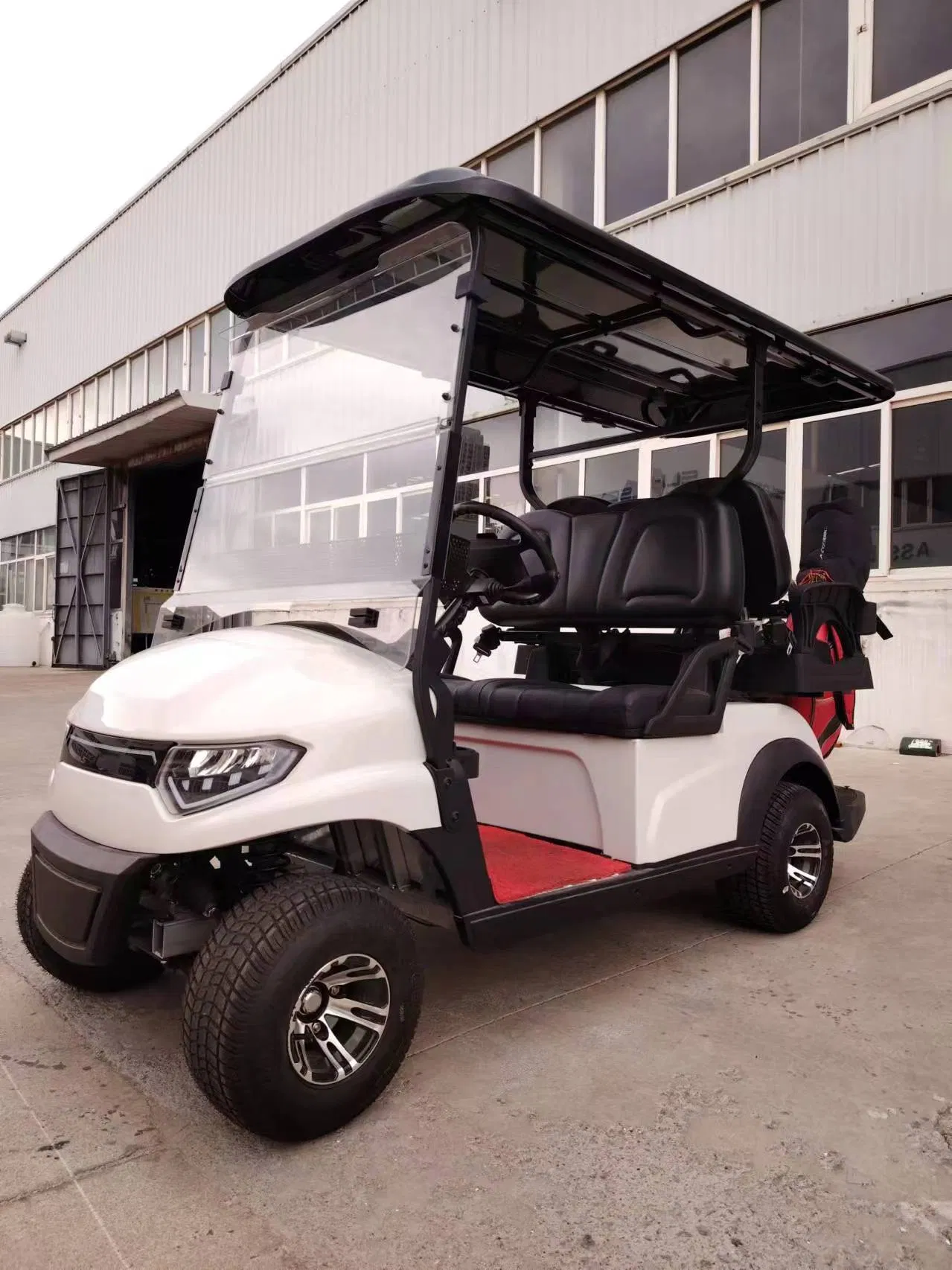

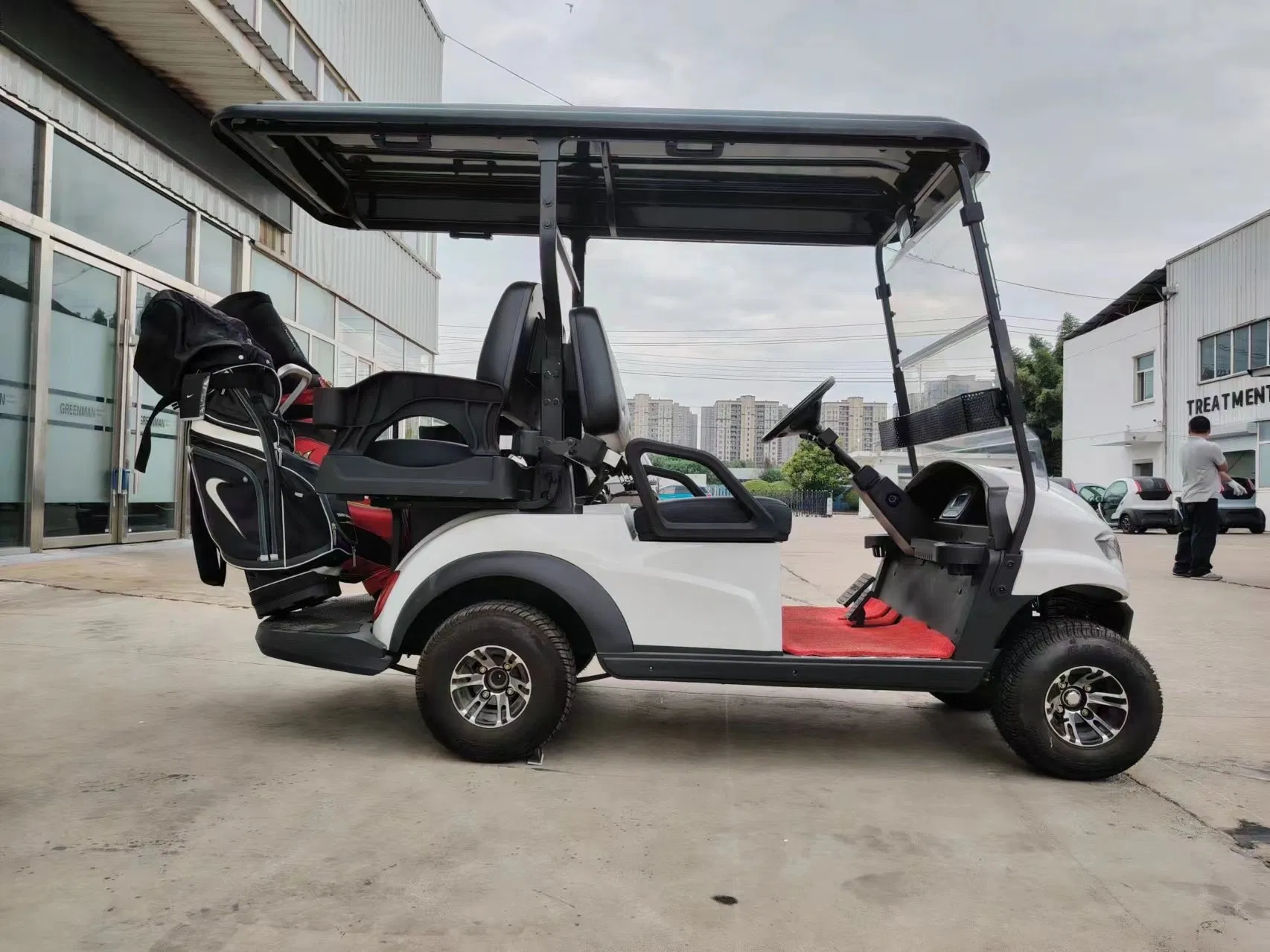

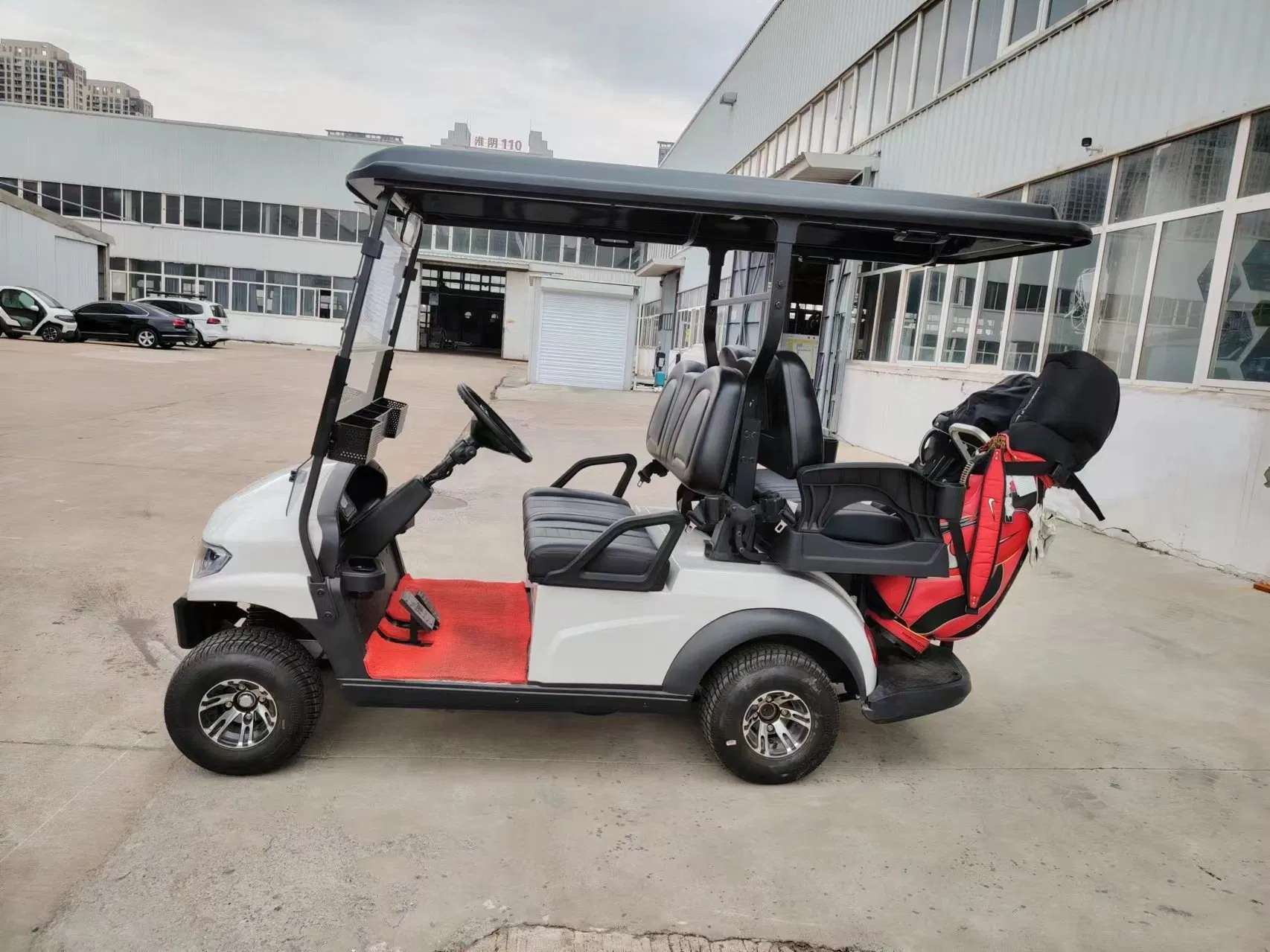

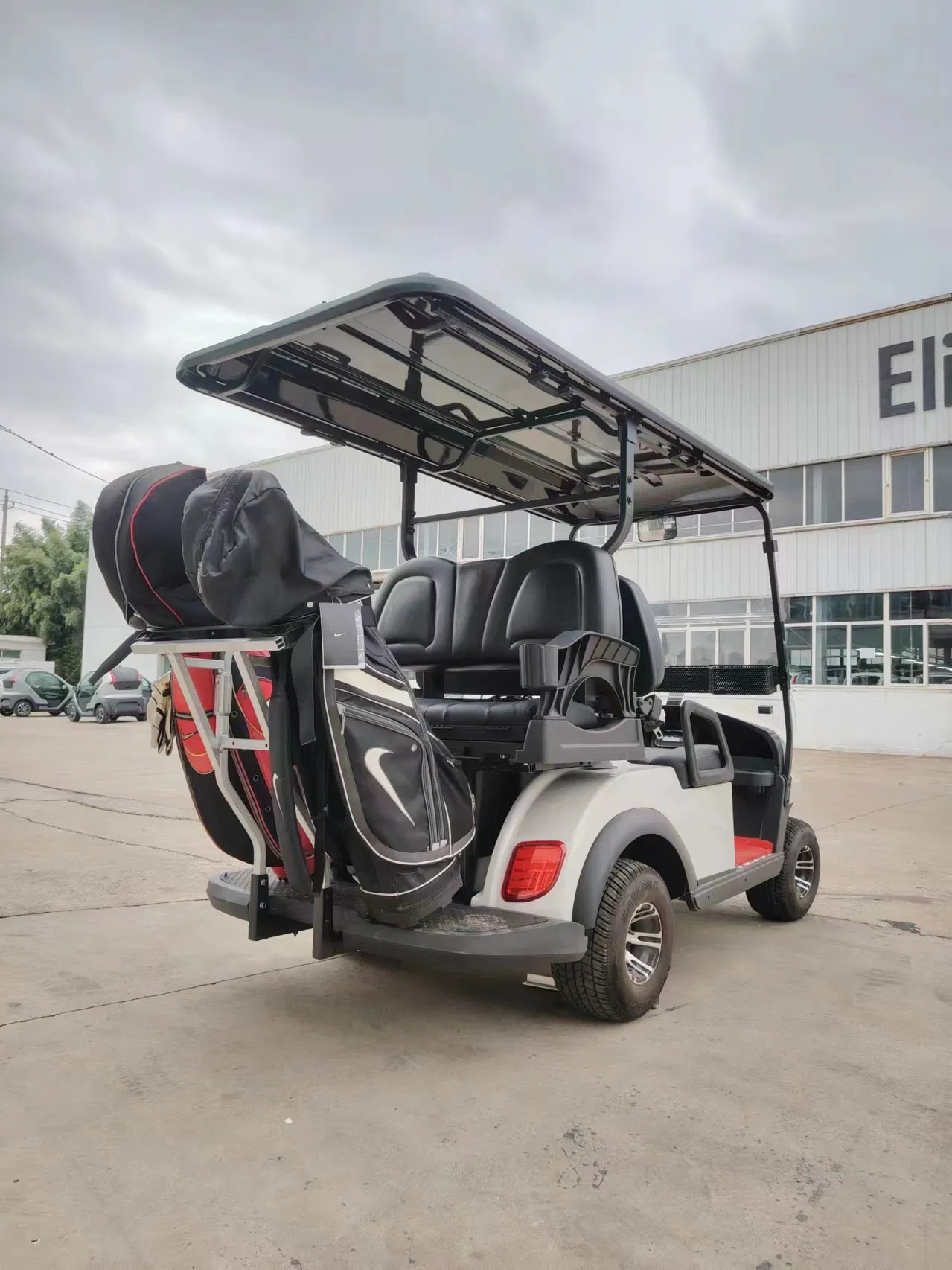

4 Passengers Electric Golf Car

2 Years Warranty

Luxury U.S. Imported Electronics

Eco-friendly PP Injected Body

Lower Maintenance Cost

Antirust Aluminium Alloy Chassis

Chassis: Integral aluminium alloy chassis featuring one-time bending forming (not welded from multiple parts), ensuring a lifetime of more than 10 years.

Body: Built with high-strength, impact-resistant, and eco-friendly PP injected composite material with customized body colors available.

Parking: Equipped with a high-performance electronic parking brake system.

Technical Specifications

Specification Feature	Details & Parameters
Bodywork
Frame	Aluminium alloy chassis, super antirust (Guaranteed normal use for 10 years)
Body	High-strength and impact-resistant composite material injected
Body Color	White, green, red
Bodywork Parameters
Overall length	2900mm
Overall width	1245mm
Overall height (with suntop)	1850mm
Wheel base	1650mm
Front wheel tread	870mm
Rear wheel tread	950mm
Width of seat	50cm
Seating capacity	4
Dry Weight (with batteries)	450kgs
Carrying Capacity	360kgs
Turning radius (m)	2.8m
Maximum speed	30km/h
Power System
Driving system	Gear-driven, Stepless speed change, Electric rear drive
Motor	KDS (3.7 kw) DC Separately Excited (imported)
Battery	TROJAN or Maintenance free battery 8V × 6
Charger	48V 25A computer controlled charger
Speed controller	CURTIS Controller 1266-5201
Gear ratio	12.49
Maximum climbing ability	30%
Steering and Suspension
Steering system	Rack and pinion steering system, automatic rocker compensating function
Front suspension	Macpherson independent suspension
Rear suspension	Multileaf spring suspension + cylinder hydraulic shock absorber
Brake system	Rear drum brake + Electric parking system
Automatic speed control system	Controller + Induction motors
Autobrake System	Controller + Induction motors
Braking distance	≤ 4m
Wheel & Tyre	18X8.50-8, 4 layer superior tread tire

Design & Feature Details

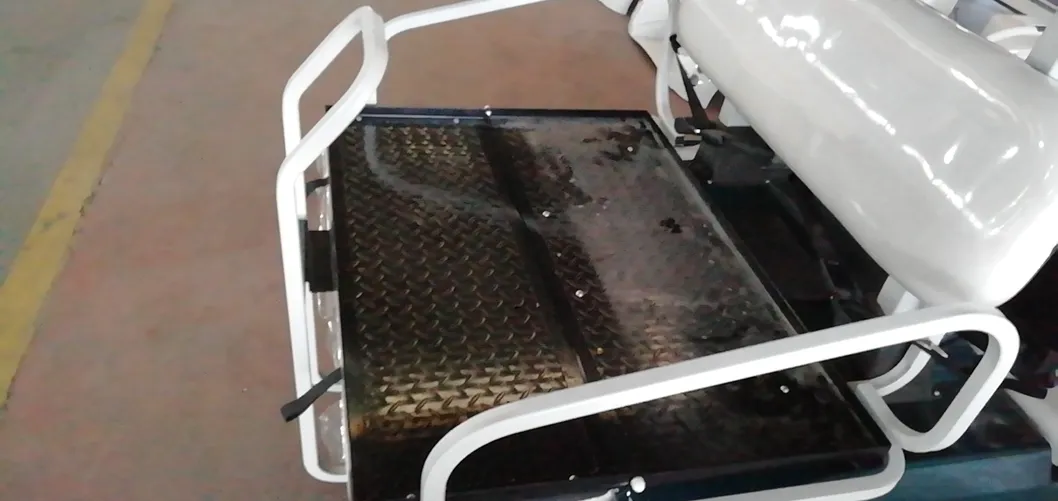

Rear seater can be flipped to be a cargo

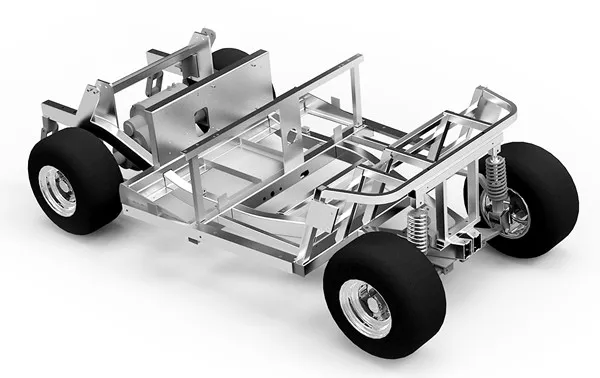

High Strength Aluminum Alloy Frame

To give you a comfortable and safe ride, our chassis use the best industry standard of aluminum alloy, which is significantly lighter than steel frame and a lot stronger in both tensile and yield strength.

Electrical Parking

The electrical parking is usually equipped for ATV, now installed in golf cars can avoid sliding and ensure the safety of vehicle parking on hilly path. The electrical parking combining the existing single-leading-shoe drum brake, assure maximum

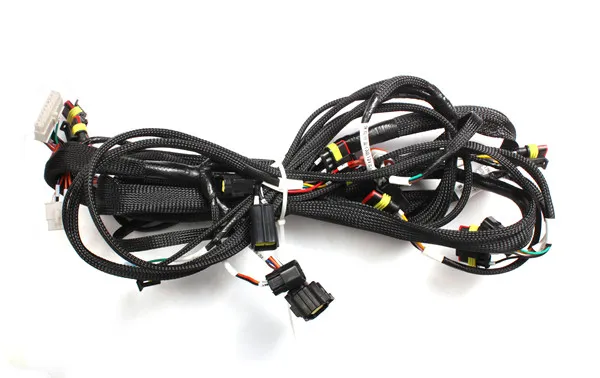

Wiring Harness

Vehicle wiring harness IP67 waterproof, amp connector, not easy water short circuit.

Color Registers Coating

Primer, color paint, varnish are coated layer by layer with color register process to highlight agility and elegance of our vehicle. UV proof ingredients are added in the coating process to enhance our vehicle stands to the test of sun light e

Frequently Asked Questions

What type of chassis is used on this electric golf car?

This electric golf car features an integral aluminum alloy chassis, designed using a one-time bending process (no sectional welding). This provides superior rust resistance and guarantees a normal service life of over 10 years.

What are the battery options and charging time?

The vehicle is powered by either high-quality TROJAN or maintenance-free 8V × 6 batteries. It comes equipped with a computer-controlled 48V 25A charger to ensure safe and efficient charging cycles.

How does the electrical parking brake system work?

The vehicle utilizes an advanced electrical parking system coupled with a rear drum brake. This setup ensures maximum safety and prevents the golf car from sliding when parked on steep or hilly terrain.

Can the rear passenger seats be utilized for carrying cargo?

Yes, the rear seats are versatile and can be flipped over to convert the passenger space into a functional flatbed cargo utility area.

What speed and climbing capabilities does the vehicle offer?

The golf car is powered by an imported KDS (3.7 kW) DC motor paired with a high-precision Curtis controller, enabling a top speed of 30 km/h and a maximum climbing capacity of 30% slope grades.

Are the electrical components protected against water damage?

Yes, the vehicle wiring harness is built to IP67 waterproof standards and features amp connectors, significantly reducing the risk of water-induced short circuits.
