| System | Configuration Item | Specification details |
|---|---|---|
| Electrical System | Controller | 48V |
| Battery | Lead-Acid & Lithium | |
| Motor | 5KW(AC) Mahler motor | |
| Charger | On board charger, 48V/25A | |
| Body And Chassis Configuration | Front Windshield | Injection Molding |
| Roof | Plastic suction art & injection molding | |
| Seat | Formed anti-skid floor leather | |
| Floor | Injection molding of PP for automobile | |
| Body | Injection molding | |
| Rearview Mirror | Manually adjustable, foldable rearview mirrors left and right | |

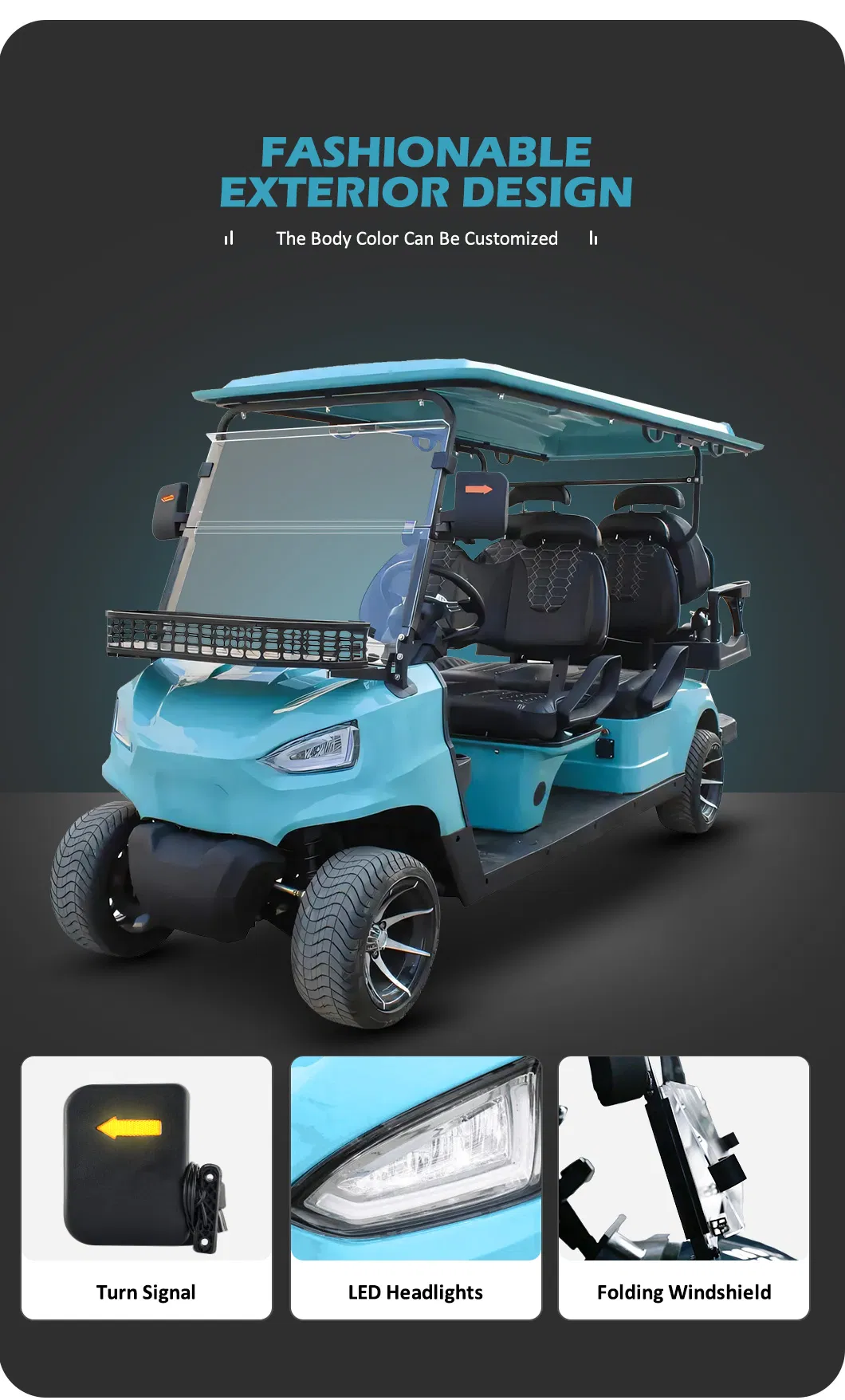

| Lighting and Signals | LED headlamp (low beam, high beam, steering light, clearance lamps), LED tail lamp (brake light, position light, steering light), snail horn, reversing buzzer | |

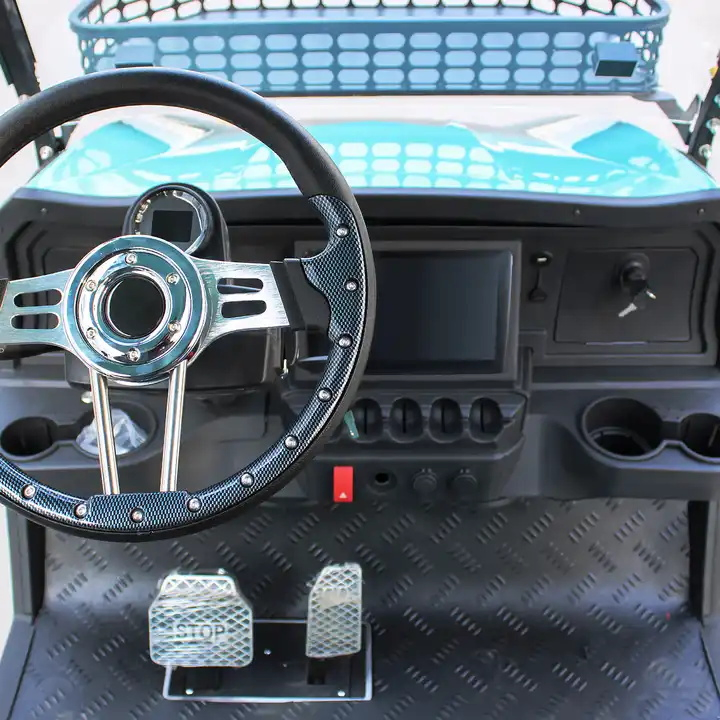

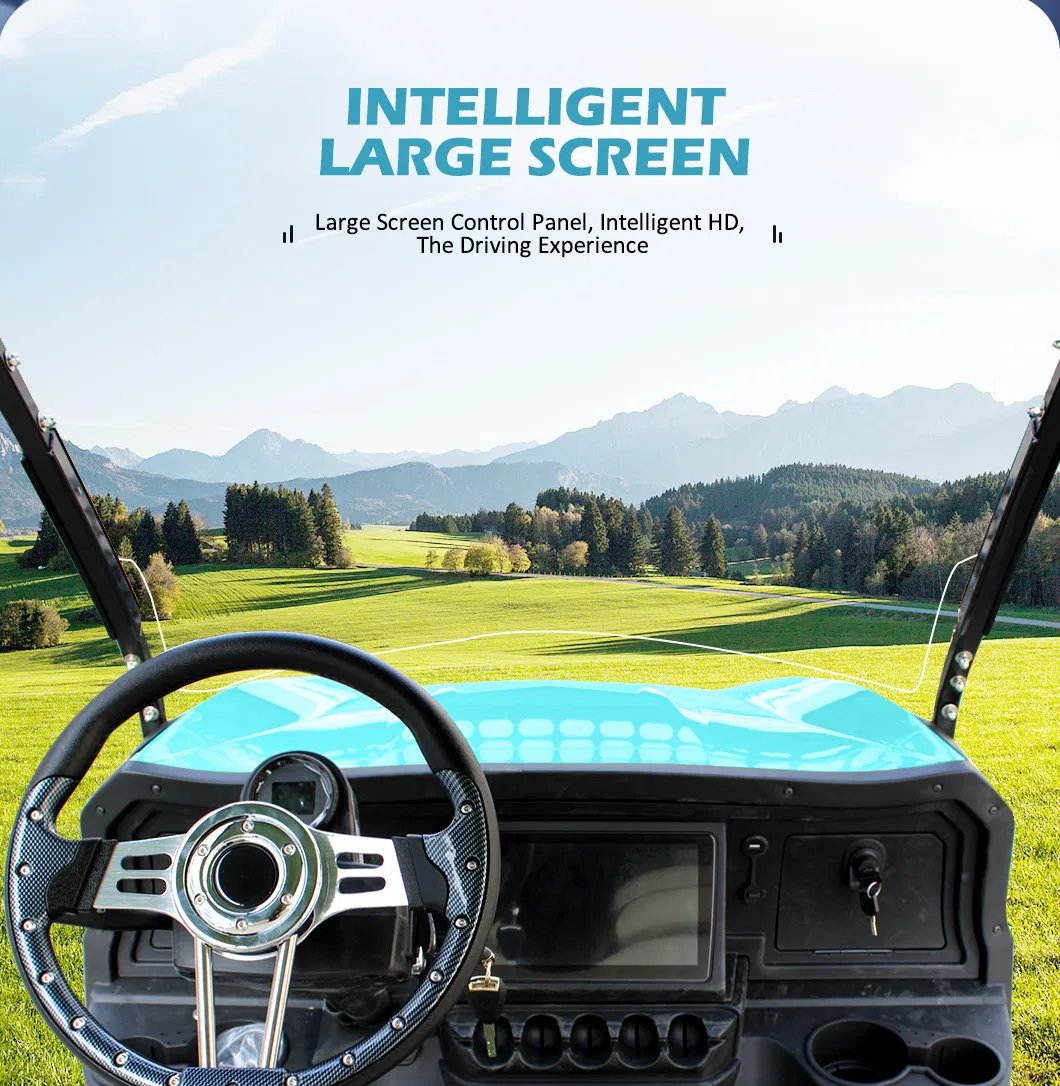

| Instrument Platform | Injection molding instrument, liquid crystal combination instrument, lock switch, single arm combination switch, gear switch, cup seat, 12V power supply | |
| Direction System | Bidirectional rack and pinion steering system | |
| Braking Systems | 4 wheel disc brake | |
| Parking | Electromagnetic parking | |

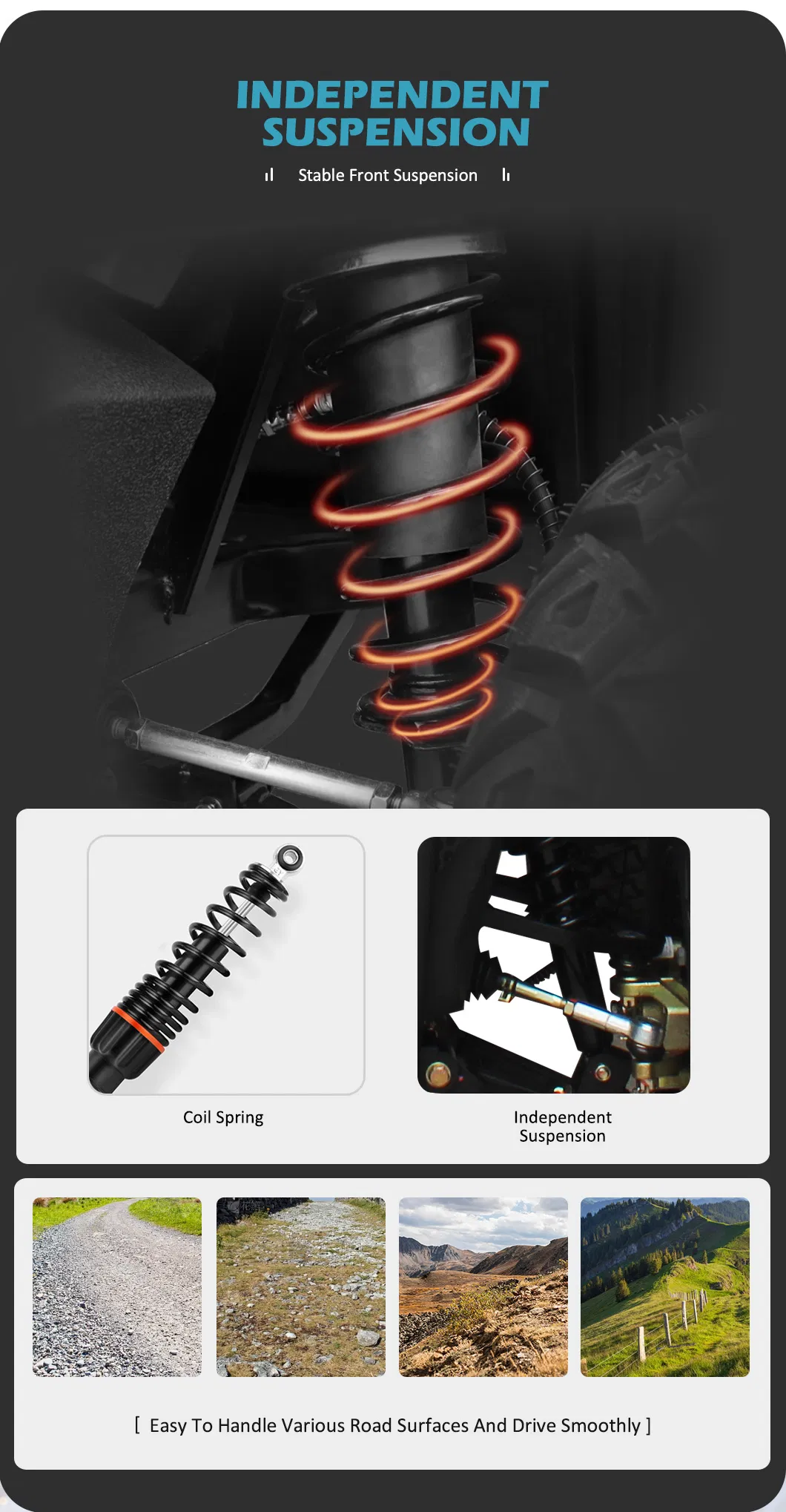

| Front Suspension System | Double-arm independent suspension | |
| Rear Suspension System | Trailing arm | |
| Tire Size | 12/14 inch | |

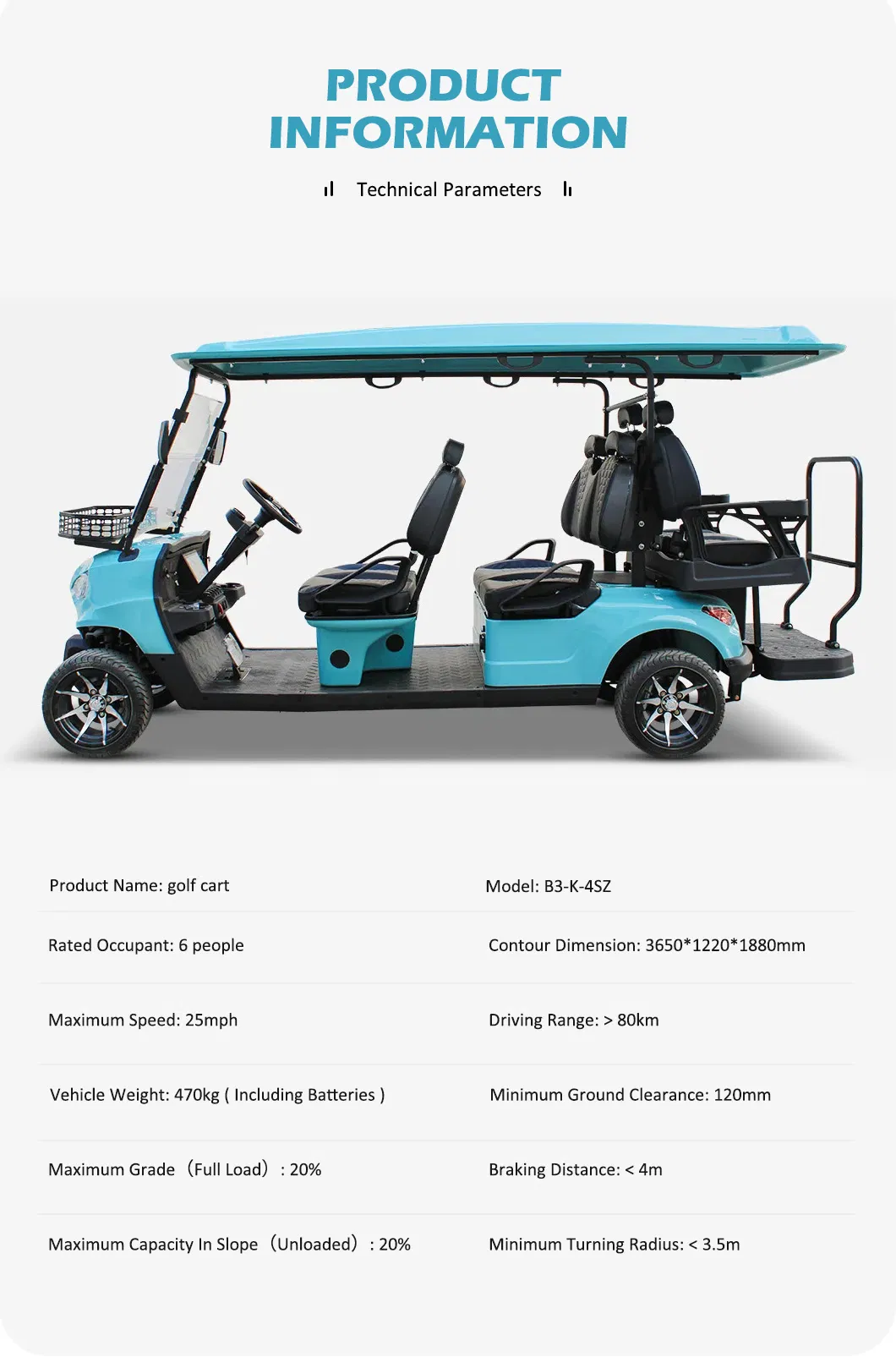

| Technical Parameters | Contour Dimension (mm) | 3650*1220*1880 |
| Vehicle Weight (kg) | 470 (including batteries) | |
| Passenger Capacity | 6 | |
| Maximum Capacity In Slope (unloaded) | 20% | |
| Maximum Speed (mph) | 25 | |
| Minimum Turning Radius (M) | <3.5 | |
| Driving Range (km) | >80 | |
| Minimum Ground Clearance (mm) | 120 | |
| Maximum Grade (full load) | 20% | |
| Braking Distance (M) | <4 |
