| Model Specifications | Model | TC2 | TC22 | TC4 | TC42 | TC6 | TC62 | TC8 | TC82 |
|---|---|---|---|---|---|---|---|---|---|
| Technical Parameters | Overall Dimension (L*W*H) | 2500*1300*2000 | 2900*1300*2000 | 3200*1300*2000 | 3600*1300*2000 | 4000*1300*2000 | 4400*1300*2000 | 4800*1300*2000 | 5200*1300*2000 |

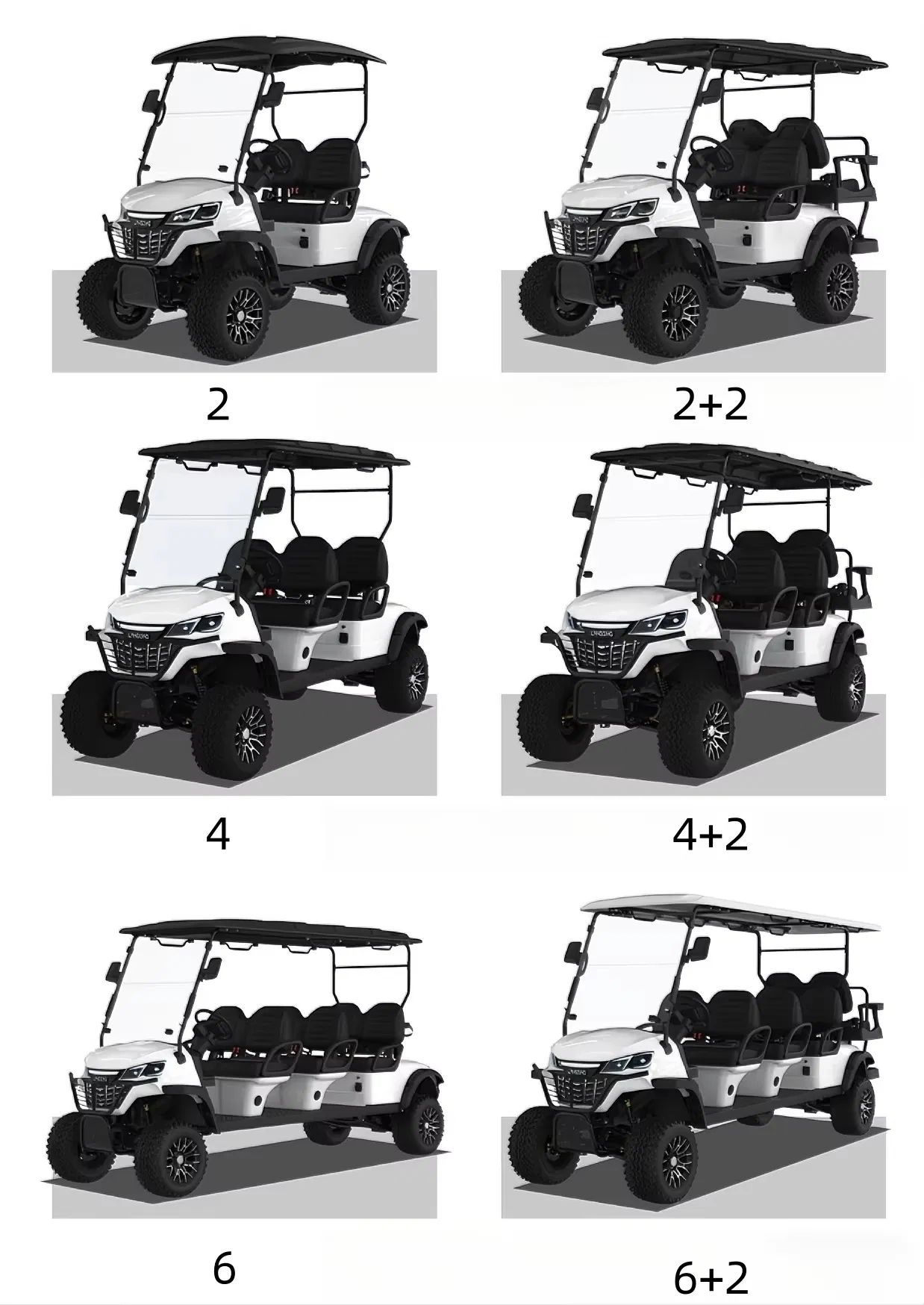

| Passengers Capacity | 2 | 4 | 4 | 6 | 6 | 8 | 8 | 10 | |
| Max.Speed(km/h) | 30 or Negotiable | ||||||||
| Max.Travelling Range(km) | 80~100 | ||||||||
| Slope Climbing Capacity | 30% | ||||||||
| Turning Radius(m) | 3.5 | 3.5 | 4.6 | 4.6 | 5.7 | 5.7 | 6.7 | 6.7 | |
| Min. Ground Clearance (mm) | 150 | ||||||||
| Brake Distance (m) | ≤5m | ||||||||
| Wheelbase(mm) | 1700 | 1700 | 2400 | 2400 | 3100 | 3100 | 3850 | 3850 | |
| Front/Rear Tread(mm) | Front 900mm / Rear 1000mm | ||||||||
| Weight(kg) | 530 | 560 | 600 | 620 | 680 | 710 | 800 | 830 | |
| Electric System | Motor power (kw) | 3.5/4/5kw or customized | |||||||
| Electric Controller | Enpower Fully Intelligent Controller | ||||||||
| Battery type | 6V 200AH /8V 150AH / 12V 100AH optional | ||||||||
| Charger | Intelligent high-frequency car charger | ||||||||
| Charging time(h) | 8~10 | ||||||||
| Charging input voltage | 220V/110V | ||||||||
| Chassis System | Suspension | Front Torsion Beam Suspension + Integral rear axle high strength steel plate spring cartridge | |||||||
| Brake system | Drum hydraulic brake, double-circuit hydraulic brake and parking brake device | ||||||||
| Steering | "Rack & Pinion" Steering | ||||||||
| Motion transfer system | Continuously variable transmission | ||||||||
| Drive mode | Rear drive | ||||||||

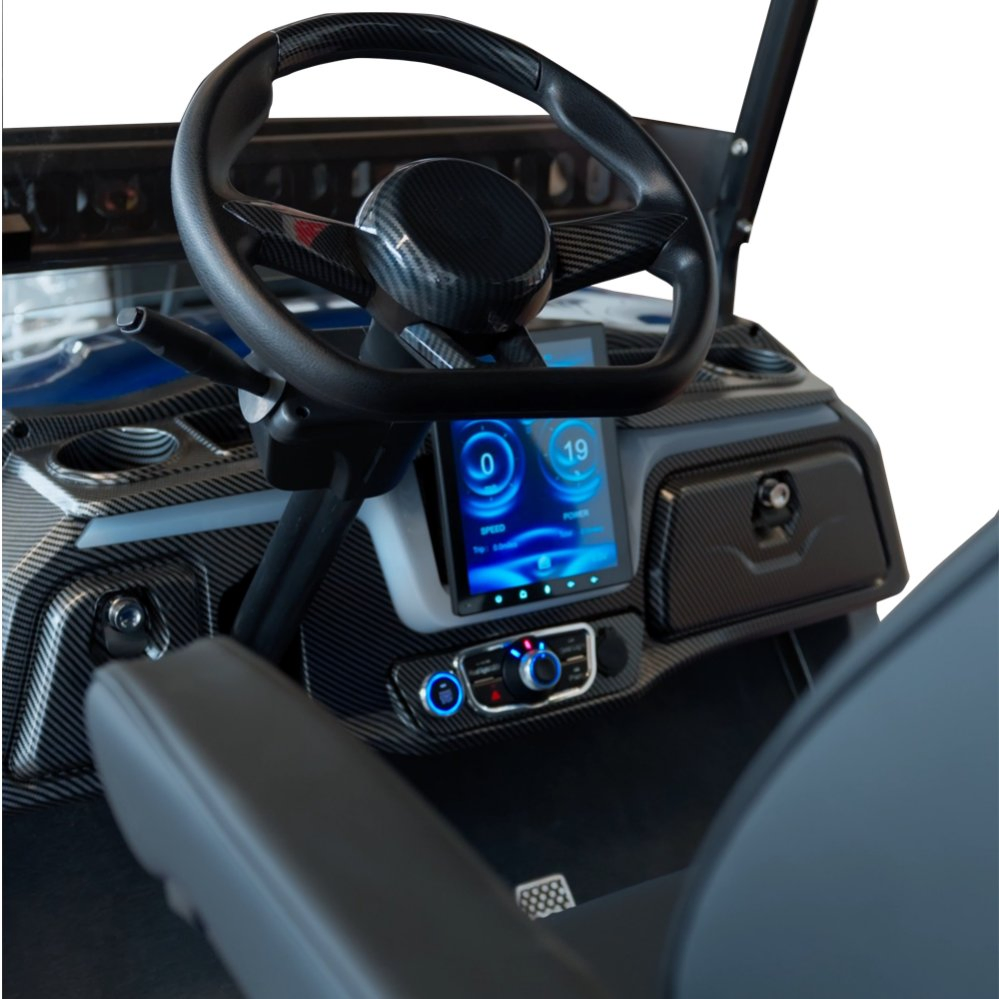

| Exterior | Dashboard | Multi-function smart display (Bluetooth, radio, movie, etc.) | |||||||
| Light | LED combined headlights, turn signals, rear taillights, brake lights | ||||||||

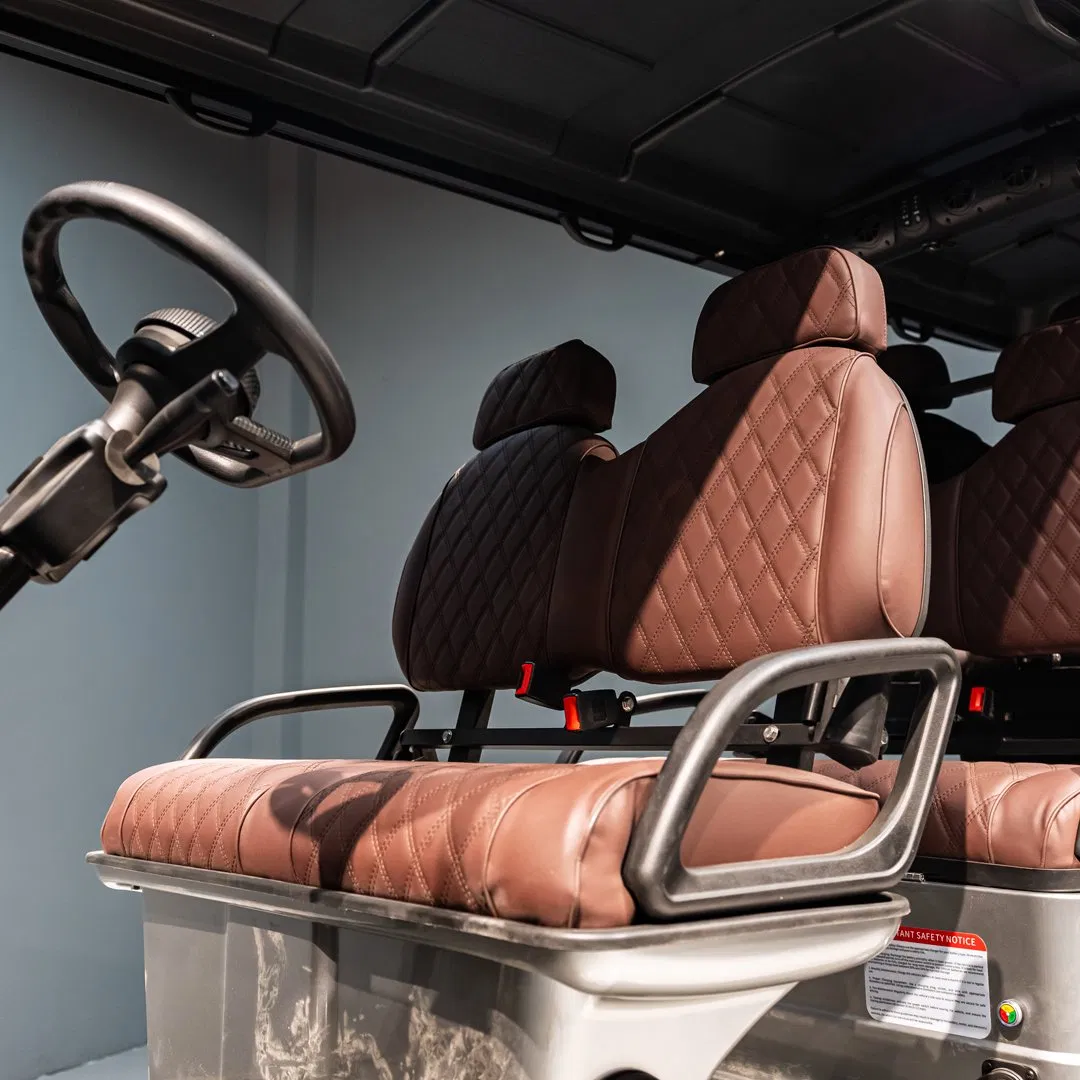

| Seat | Joint row seats (leather fabric + high resilience PU seats) | ||||||||
| Body material | Steel frame + injection shell / ABS engineering plastic molded parts | ||||||||
| Wheel | 10/12/14 inch iron/aluminum wheels options | ||||||||
| Tire | Road and off-road tire options | ||||||||
