| Electrical System | |
| Controller | Special AC Controller |
| Battery | Special Maintenance-Free Battery 8V/unit, 6 units |
| Motor | Special AC Synchronous Motor 48V/5KW |
| Charger | Intelligent Display Charger, Charging Time < 10 Hours (80% Discharge) |
| DC to DC Converter | High-efficiency power DC-DC 48V/12V-300W |
| Body Configuration | |
| Front Wiper | Motor Front Windshield Wiper, with Glass Water Sprinkler + Rain Wiper |
| Roof | ABS Integrated Molded Roof |

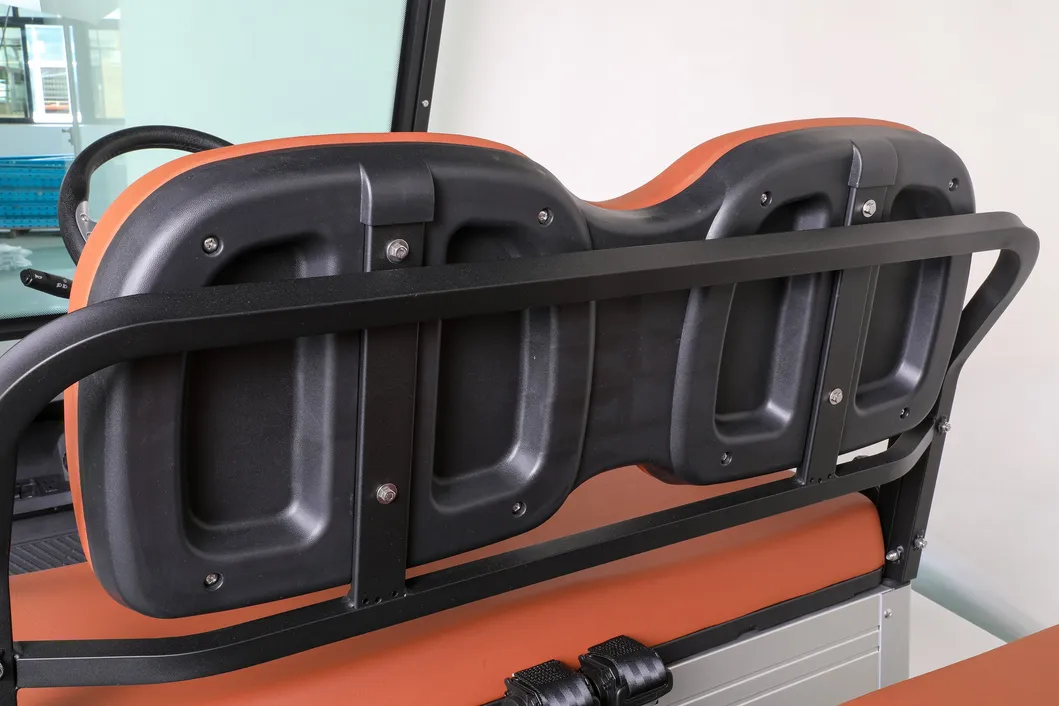

| Seats | Ergonomically Designed Seats, Faux Leather Material |

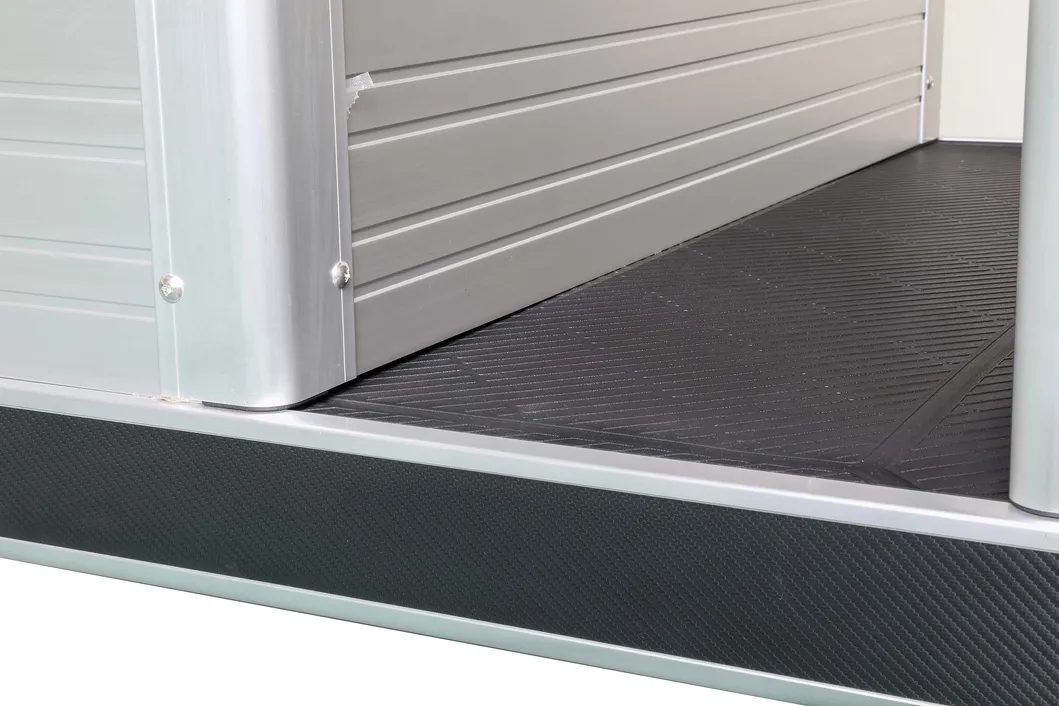

| Flooring | Injection Molded Anti-Slip Floor |
| Body | Front uses Special PP Plastic, Rear uses High Strength Aluminum, Oxidized Aluminum Roof Support Frame |
| Rearview Mirrors | One on each side, foldable rearview mirrors |

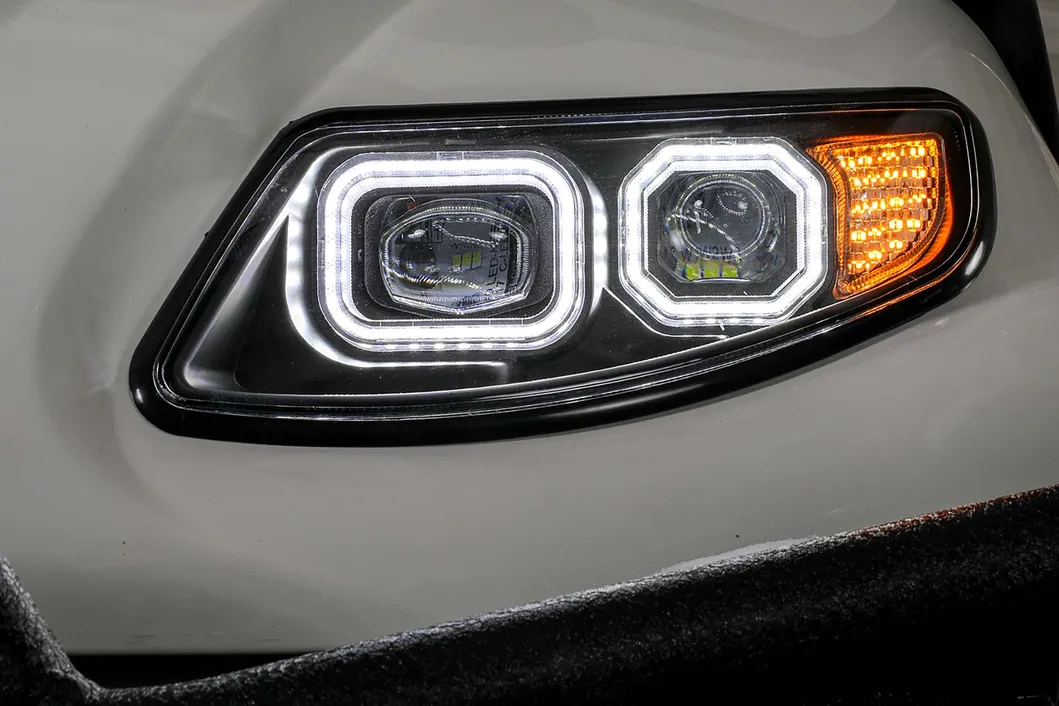

| Lighting Warning System | LED Front Lights (high beam, low beam, turn lights, sky lights, position lights), LED Rear Lights (brake lights, position lights, turn lights, horn, reverse buzzer) |

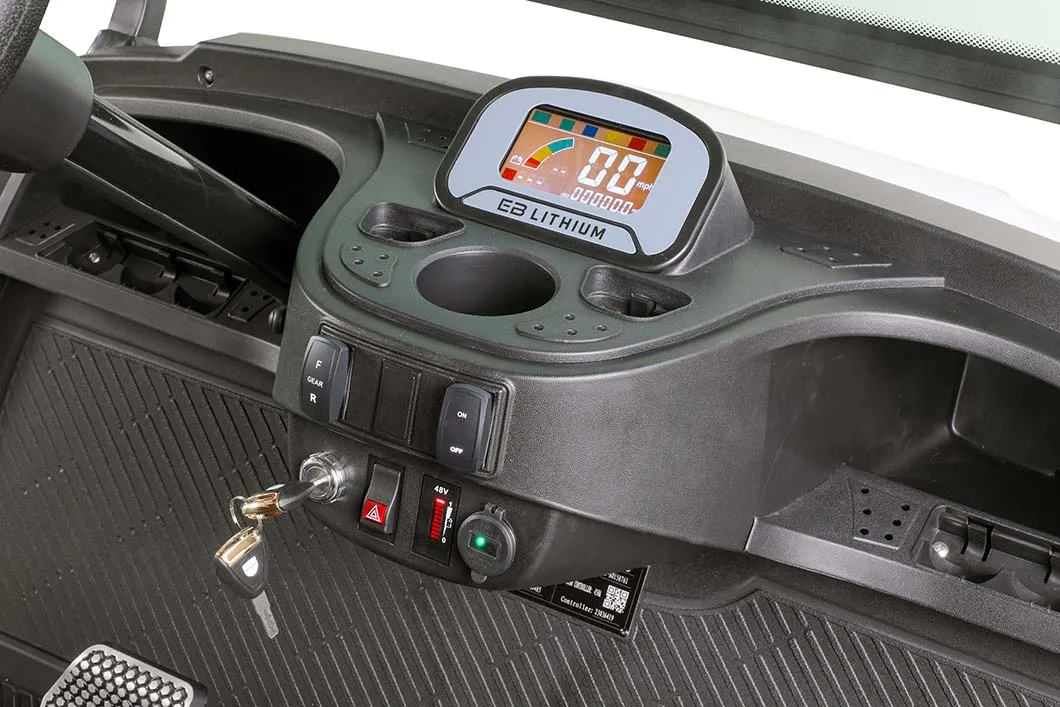

| Dashboard | Plastic Injection Molded Dashboard, with Energy Display, Anti-Theft Lock, Key Switch, Gear Shift Switch, Water Meter Display; Optional Crystal Electric Combination Dashboard, with Dual USB Charging Port |
| Steering System | Double Gear Rack Steering System, with Automatic Reset Function |
| Brake System | Four-wheel hydraulic disc brakes |
| Front Suspension System | McPherson Independent Suspension, Coil Spring and Hydraulic Shock Absorbers |
| Rear Suspension System | Integral Axle Suspension, speed ratio: 12.31:1, Coil Spring and Hydraulic Dampening + Rear Stability Bar |
| Tire Size | 18-inch wheels (205/50-10), Tire diameter: 457mm |
| Technical Parameters | |
| Dimensions (L x W x H) | 2750 x 1210 x 1950 mm |
| Vehicle Weight (including battery) | 590kg |
| Rated Passenger Capacity | 2 persons |
| Cargo Bed Size | 907*1168*265mm |
| Max Speed | 25 km/h |
| Cargo Load Capacity | 120kg |
| Driving Range | 80-100 km (on flat ground) |
| Max Climbing Ability | 30% |
| Parking Braking Ability | 30% |
| Min Turning Radius | 3.3m |
| Braking distance | <6 m |
| Wheelbase | 1605mm |
| Front/Rear Track Width | Front: 930mm, Rear: 1005mm |
| Max Power Consumption per 100km | 8 kwh |
| Minimum Ground Clearance | 88mm |
Delight in the fashion-forward design that boasts a minimalist appearance and elegant, flowing lines. This accessory elevates the aesthetic of any golf cart effortlessly.
Choose between the dependable Trojan battery or our remarkably maintenance-free alternative, tailored to suit your needs.
Experience unrivaled stability and quality, as this product is crafted to minimize noise, reduce fatigue, and offer extended durability.
Equipped with a high-temperature resistant oil seal, this accessory efficiently prevents oil leaks from the transaxle, ensuring smooth and reliable operation.

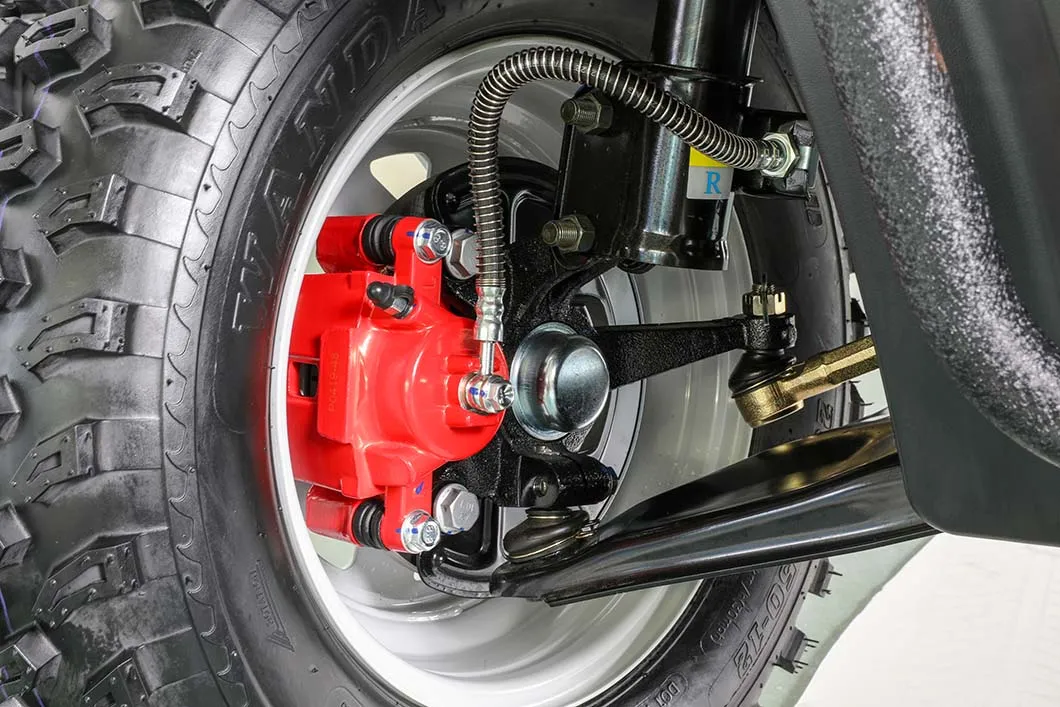

Expertly engineered with an advanced rear hub braking system, this product guarantees top-tier braking performance, delivering a silky smooth and unfaltering parking experience across diverse terrains. The innovative composite pedal parking design simplifies operations, making it exceptionally user-friendly and convenient.

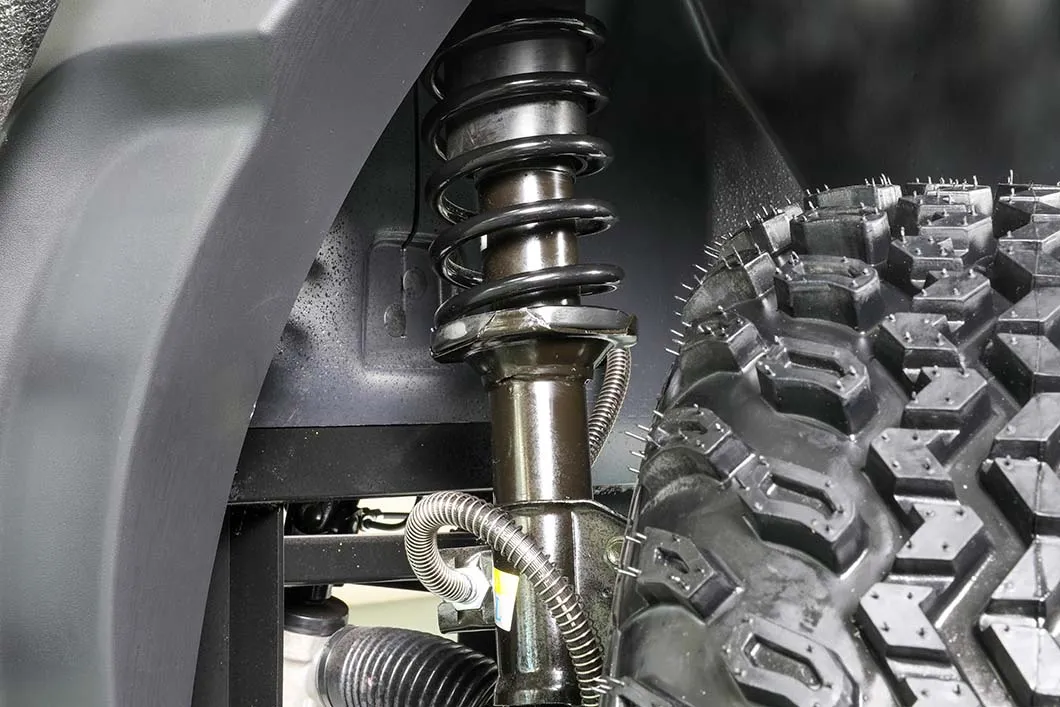

Our state-of-the-art MacPherson independent suspension system is designed to significantly minimize road vibrations and enhance vehicle stability. The robust coil spring offers superior elastic support, while the precision-engineered tubular hydraulic shock absorber further mitigates impacts, ensuring an unrivaled level of comfort and dexterity during your drive.

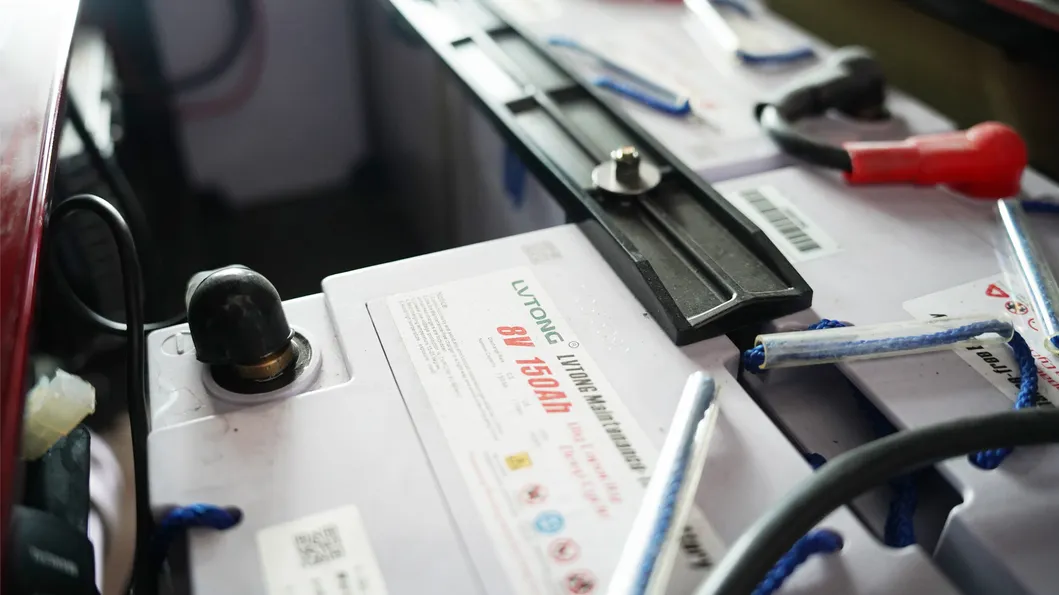

Featuring a high-capacity 6-battery pack with 150AH (3-hour rate), this sophisticated system embraces cutting-edge maintenance-free technology. Say goodbye to the burdens of frequent upkeep associated with conventional batteries, and enjoy seamless, uninterrupted vehicle performance for an efficient and hassle-free driving experience.
It was a vibrant spring day in 2004 when rays of sunlight pierced through the fluffy clouds to illuminate a quaint town. It was here that a remarkable journey in the world of golf carts began to unfold.
The inception of our enterprise was inspired by a visionary group of entrepreneurs who possessed deep insights into the golf cart industry and harbored boundless dreams for its future. They identified both the limitations and the immense possibilities within the market. Driven by an unwavering commitment to excellence and innovation, this dynamic group came together to forge a new path for golf cart manufacturing. They held a steadfast conviction that by pouring their passion and dedication into their work, they could craft an extraordinary golf cart that would elevate every golfer's experience to new heights of enjoyment.
In the humble beginnings of their entrepreneurial journey, the dedicated team toiled tirelessly in a modest workshop, relentlessly refining and enhancing their product designs. Despite facing numerous challenges, these obstacles only served to strengthen their resolve to create superior products. Their unwavering efforts soon bore fruit, as our golf carts quickly garnered widespread acclaim for their exceptional performance and exquisite aesthetics, with orders pouring in from all corners like a blizzard of success.

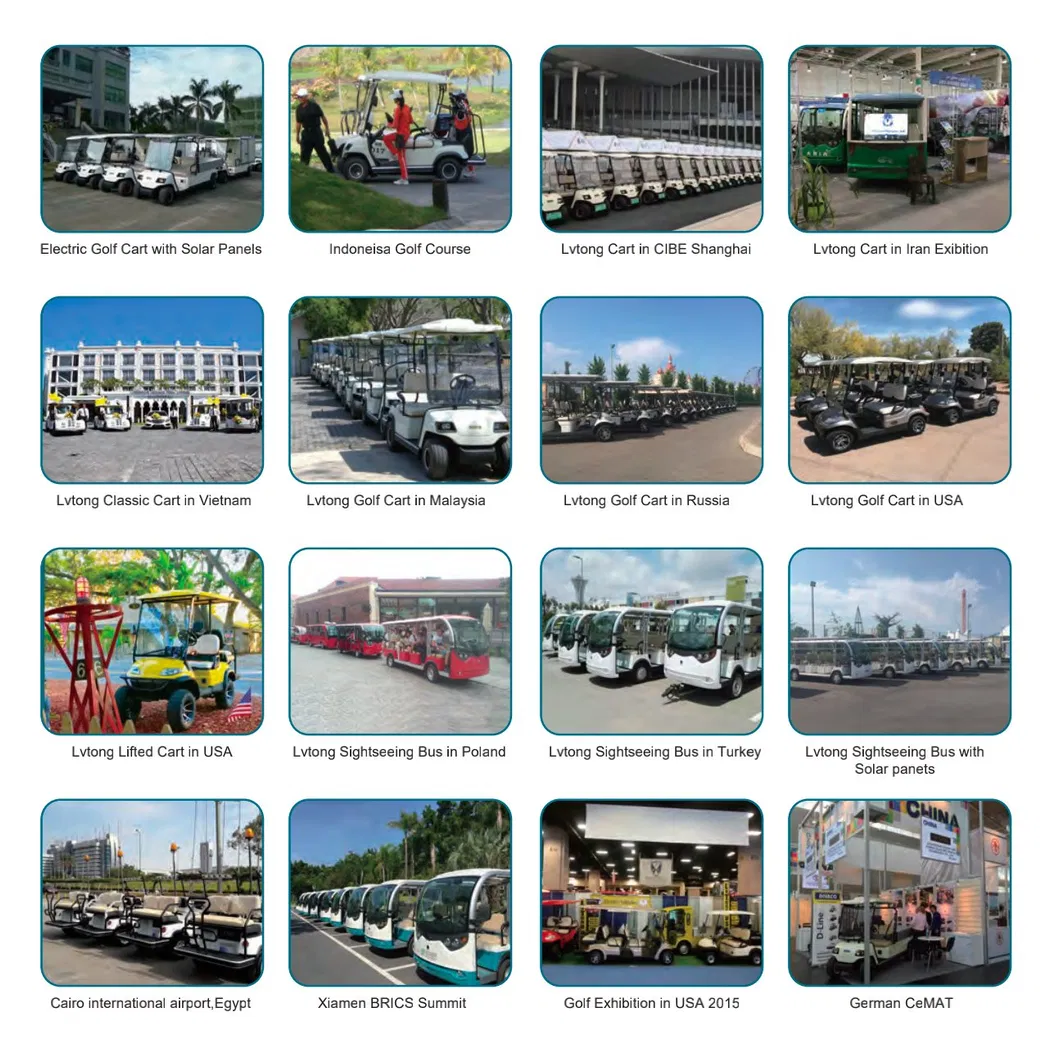

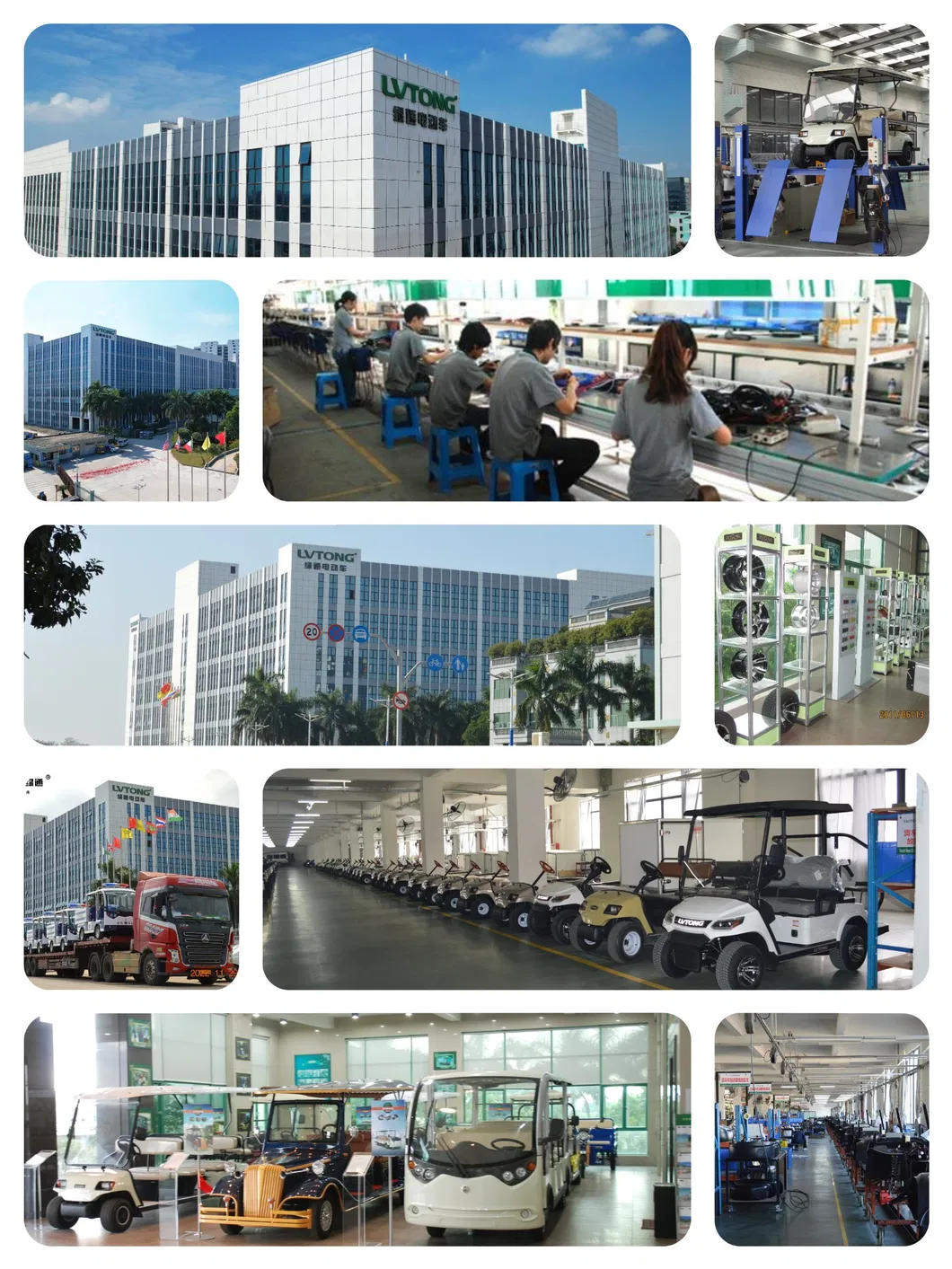

Today, our enterprise stands tall after 20 industrious years of overcoming challenges, evolving from a fledgling startup to a pioneering leader in the market. Spanning over 150,000 square meters, we craft tens of thousands of vehicles annually, including golf carts, sightseeing vehicles, patrol cars, vintage automobiles, and electric trucks. Our products reach across the globe, finding homes in various countries and regions such as the European Union, the United States, Canada, Russia, Japan, and South Korea.
Our dedication to quality is reflected in the certification under the prestigious ISO9001 and ISO14001 standards. Furthermore, we have been recognized as a model unit in the credit enterprise certification system, boasting over 100 innovative high-tech products and a multitude of national patents. In 2012, our offerings were honored as Famous Brand Products, and provided specialized vehicles for pivotal energy infrastructure development projects. Armed with advanced technological research and development capabilities and vast productivity, we have cemented a formidable reputation and influence within the industry.
For two decades, we have consistently earned the respect and trust of customers and the admiration of the industry through relentless innovation and unparalleled service quality. In 2023, a significant milestone was achieved by going public, unveiling a bold new corporate vision: to champion environmentally friendly and sustainable development, and to ascend as a leader in the electric vehicle sector.
We are passionately dedicated to delivering extraordinary service to our esteemed partners, fostering an environment ripe for mutually rewarding collaborations. With a foundation built on meticulous market research combined with relentless technological innovation, we strive to present bespoke solutions tailored to the distinctive requirements of each collaborator. Our focus is on nurturing enduring and robust partnerships, where resources are harmoniously shared, goods seamlessly exchanged, and markets explored hand in hand, paving the way for mutual growth and shared success. Join us in this exciting journey, as we eagerly anticipate crafting a brighter tomorrow together.
We are a dedicated manufacturing factory specializing in electric utility and golf vehicles.
We are fully certified under ISO9001 and ISO14001 quality systems, holding CE certifications, manufacturing licenses for specialized equipment, and utilizing advanced ERP management workflows.
Yes, we support comprehensive customization. We can engineer and produce customized vehicles based on your detailed technical drawings, specifications, and layout requirements.
Generally, the lead time is between 7 to 15 business days upon receiving the initial deposit.
Our trading and payment terms are flexible and can be discussed individually to meet the specifics of each order transaction.
We provide a 1-year product warranty. Under EXW shipping terms, we offer free replacement parts for components that qualify under warranty guidelines.
