| Parameter Name | Details & Specifications | ||
|---|---|---|---|

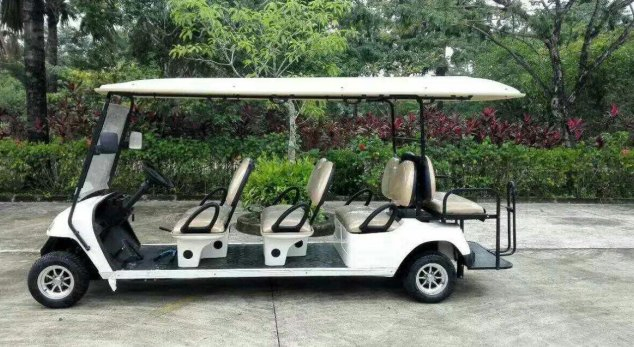

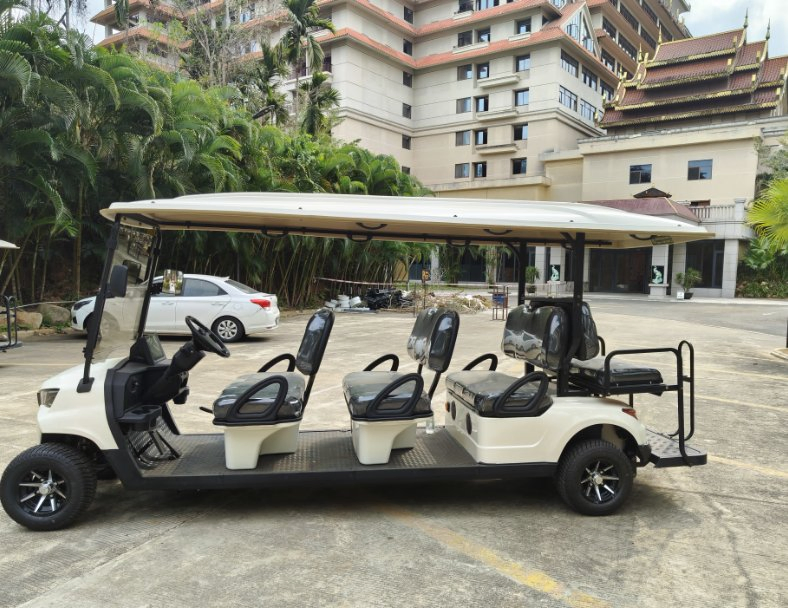

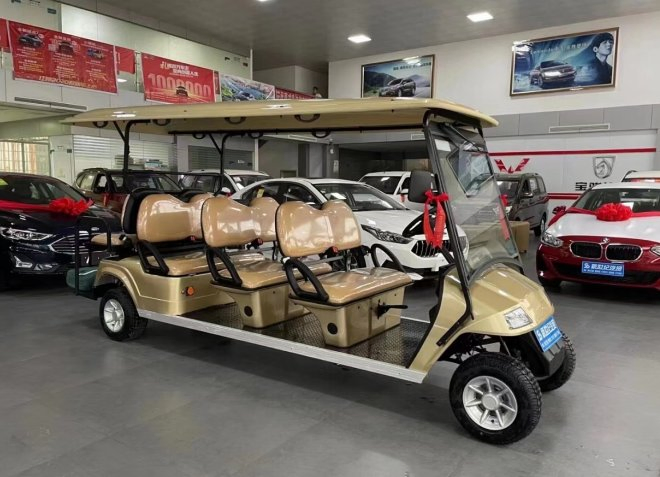

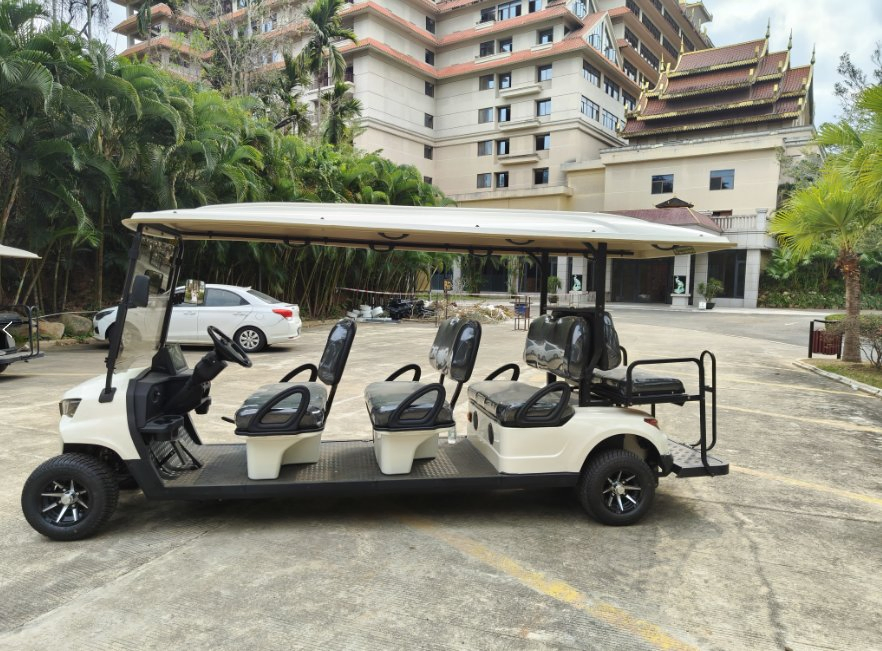

| Product Name | Electric Golf Cart | ||
| Model Code | EG2068KSZ | ||
| Performance Parameters | |||
| Main Parameters | Rated passenger capacity | seat | 8 |
| Dimensions (Length*Width*Height) | mm | 4460*1190*2010 | |
| Maximum driving speed | Km/h | 30 | |
| Braking distance | m | 4 | |
| Driving range (full load) | km | 70 | |
| Minimum turning radius | m | 5 | |
| Climbing grade (full load) | % | 20 | |
| Electrical Configuration | |||
| Electrical Device | Electronic Control |
Zapi AC2 (400 A)
The high-performance control system adopts advanced control circuit design. The computer chip processing system inside the controller intelligently controls the operation status of the electric vehicle and adjusts the output of battery voltage and current at any time. It has all-round protection for the overall system, protection and control of battery power, detects battery power accurately, and protects it during control to make the battery life longer. The motor control is more precise, safer, and smooth. It detects and controls the external signals, pedals, and motors of the entire vehicle.
|
|
| Battery |
48V, capacity 230 A / 8 pcs 3 - DG - 230
Large capacity power battery, good high rate charge and discharge performance, long deep cycle life, stable quality and high reliability, excellent high and low temperature performance, and simple maintenance.
|
||
| Motor |
5KW AC direct drive traction motor
Superior performance, low failure rate, long life, high efficiency, large torsion, low loss, low noise, small vibration and high temperature resistance.
|
||
| Charger | Intelligent autonomous control, lightweight and fast on-board charger | ||
| Charging time | 6-8 hours | ||
| Lights and Signals | 12V, DC/DC converter, headlights, taillights and turn signals | ||
| Instruments and switches | Electricity meter, ignition lock, forward and reverse switch | ||
| Electric Horn | Common | ||
| Reversing buzzer | Common | ||
| Other Electronics | Battery protector, DC/DC converter | ||
| Body & Exterior Specifications | |||
| Car Body | Body Material |
The use of lightweight composite plastic material reduces the weight of the vehicle. The body support bracket is made of high-strength carbon steel, continuing the concept of lightweight modular design of automobiles. Combined with automobile-specific electrophoretic spraying, it has good fullness, high gloss and hardness, and strong adhesion. It has excellent gloss retention, acid resistance, alkali resistance, weather resistance, wear resistance, rust resistance, and corrosion resistance.
|
|
| Windshield | Integral plexiglass (transparent) | ||
| Ceiling and bracket | Blister parts, ceiling handles, carbon steel, electrophoretic spraying | ||
| Rear view mirror | Symmetrical manual exterior rear view mirror | ||
| Instrument panel | Carbon fiber instrument panel | ||
| Seats | Seat cushion: recycled sponge + leather; seat cushion bottom plate + foam armrest, backrest: recycled sponge + leather, backrest cover: injection molding, last row of reverse seats. | ||
| Floor | Rubber anti-slip, integrated, aluminum alloy side guard | ||
| Bumper | Front and rear blow molded bumpers | ||
| Other Body Parts | Nylon bag strap, belt clip: injection molding, clothes basket: carbon steel electrophoresis spraying; battery box injection molding; rear compartment protection pad; injection molding | ||
| Chassis & Mechanical Systems | |||
| Chassis | Chassis Frame |
The integral automobile chassis is optimized with high-quality carbon structural steel welded structure, pickled and phosphated, sprayed with anti-rust paint and high-temperature baked. It is thicker than the main beam of the general electric vehicle frame, with stronger torsion resistance, tensile resistance and impact resistance, and has the characteristics of strong load-bearing capacity and high safety performance.
|
|
| Steering system | Rack and pinion steering gear + carbon fiber steering wheel | ||
| Braking system | Four-wheel drum service brake + parking brake | ||
| Suspension system | Leaf spring non-independent suspension + cylinder type hydraulic shock absorber | ||
| Powertrain | The rear axle has two-stage reduction gearbox, directly driven by the motor, and is an integral domestically made iron rear axle. Speed ratio: 12.49 | ||
| Tires | 205/50-10 6PR, 6J-10 rims, wheel covers | ||
