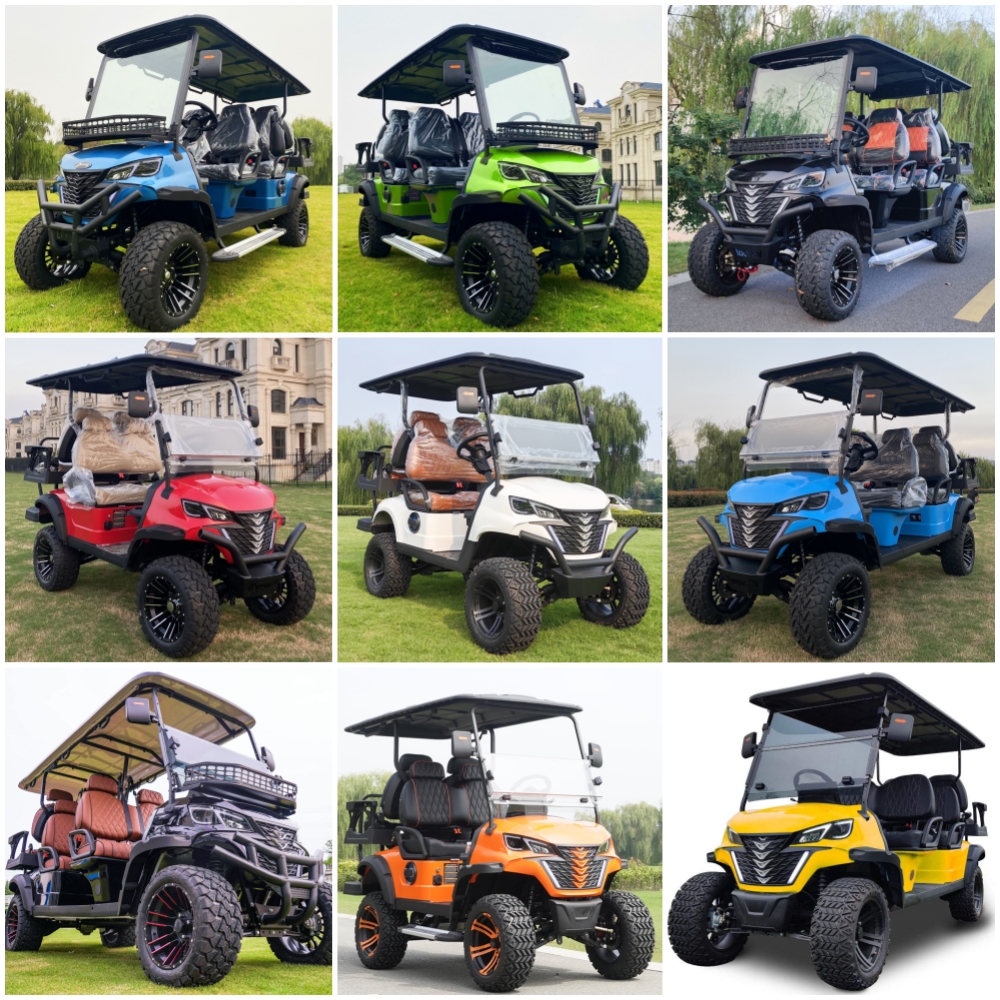

To make your cart unique, we can paint any colors if you provide Pantone code or RAL code to us.

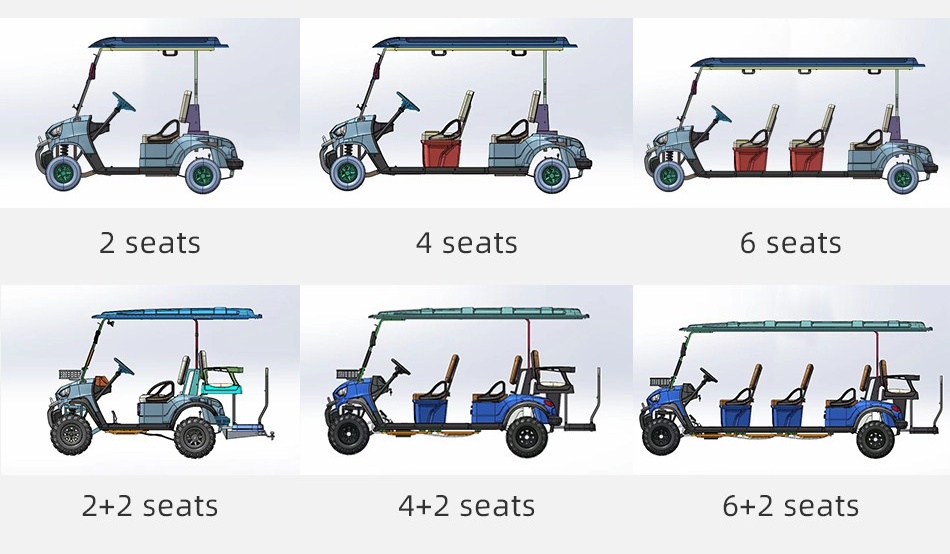

We supply variants of golf cart, which with different seats and different style.

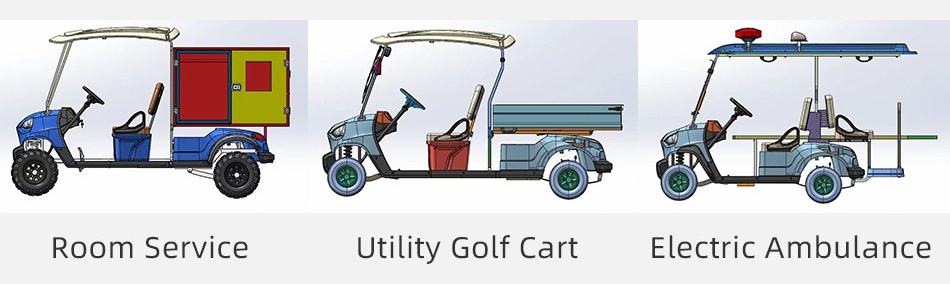

If you want to buy a cart which used for business with utility functions, please let us know, we can do design for you.

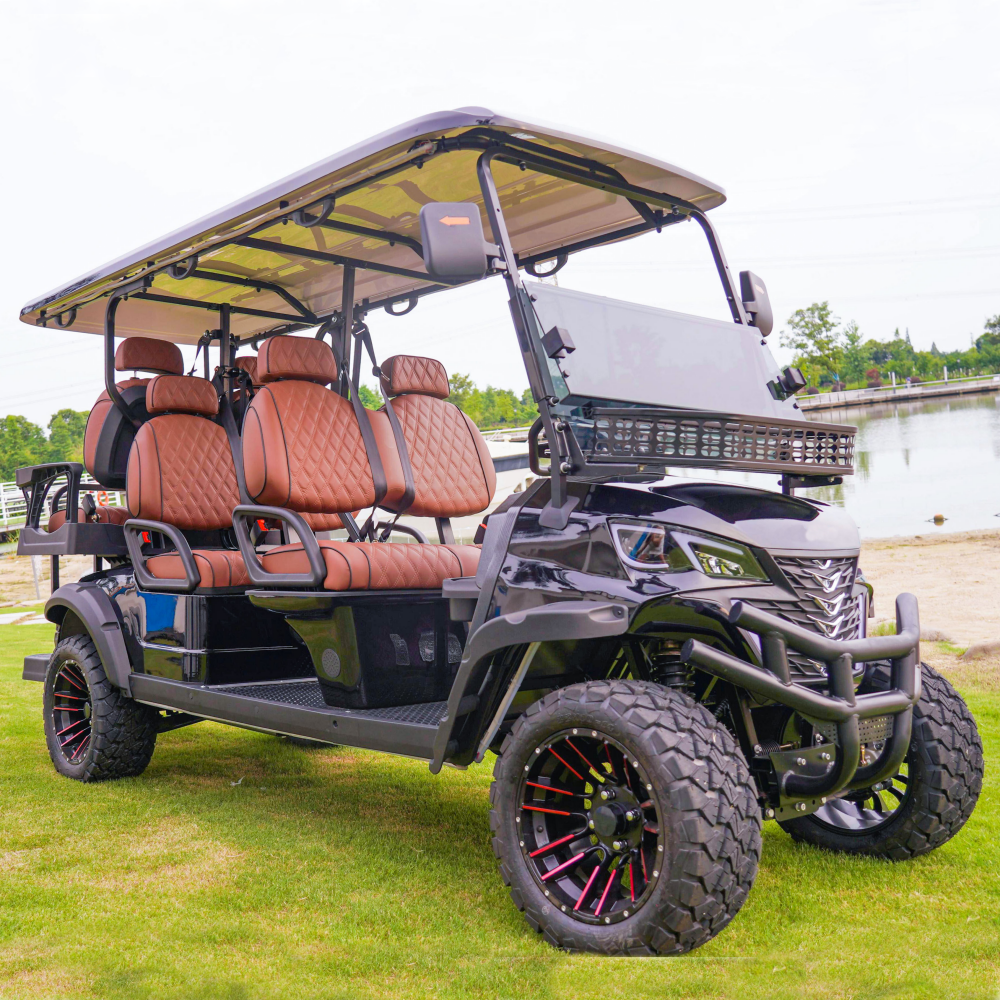

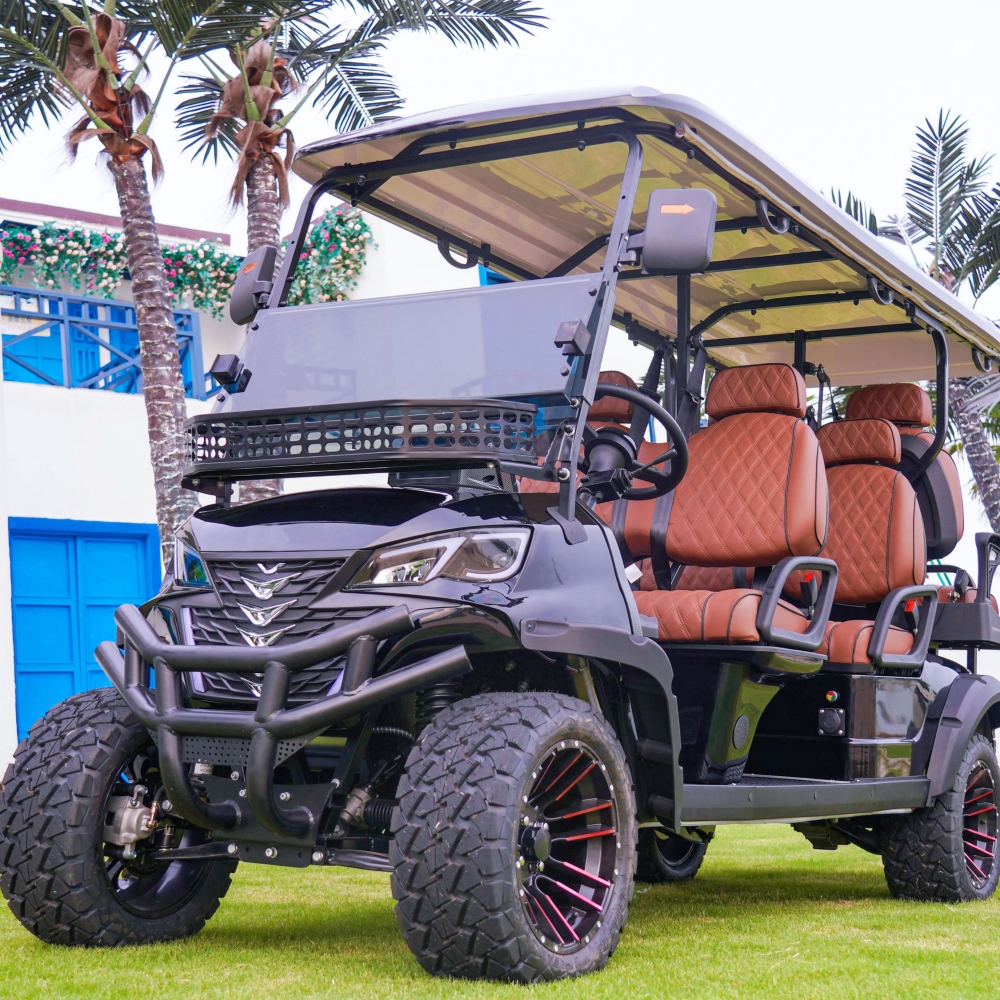

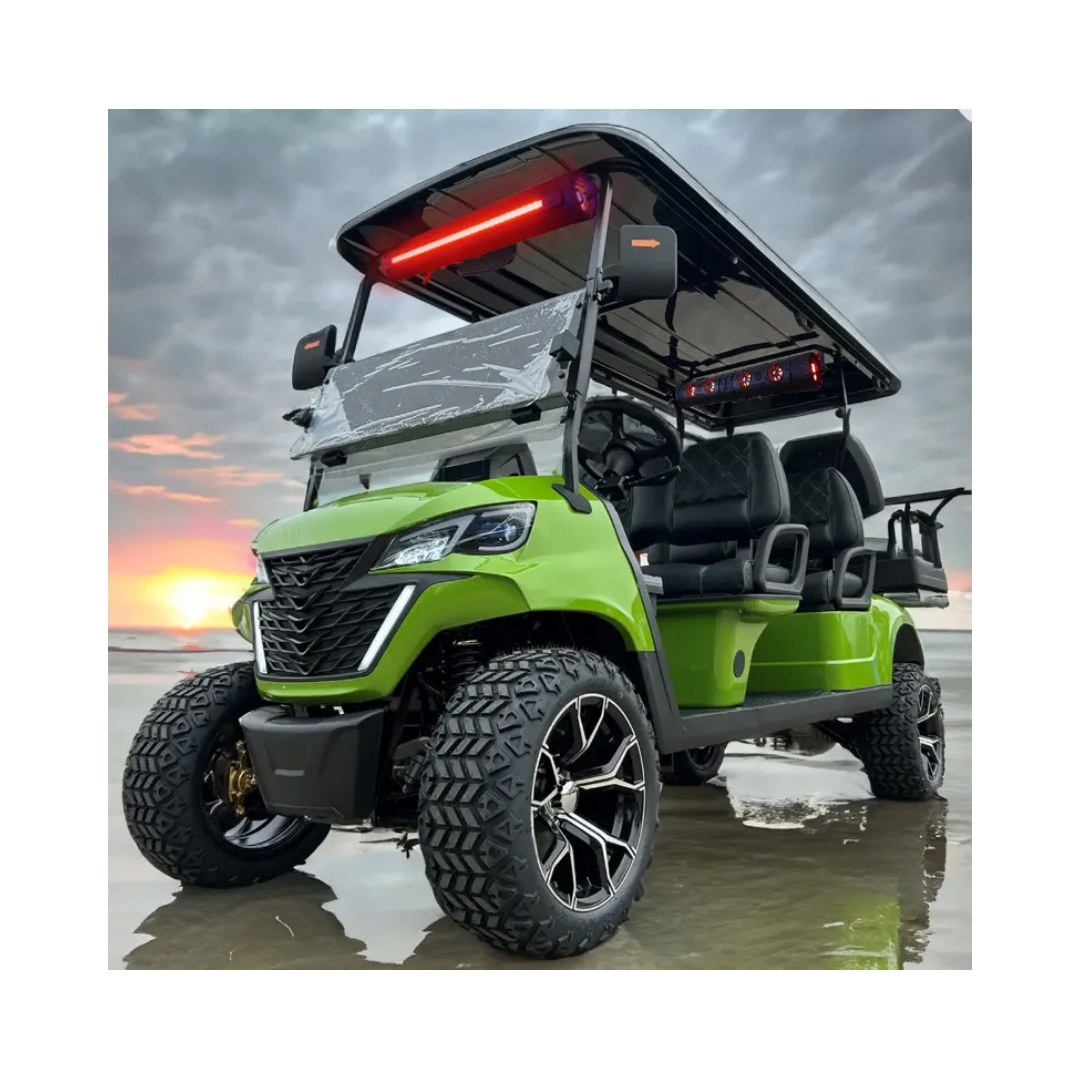

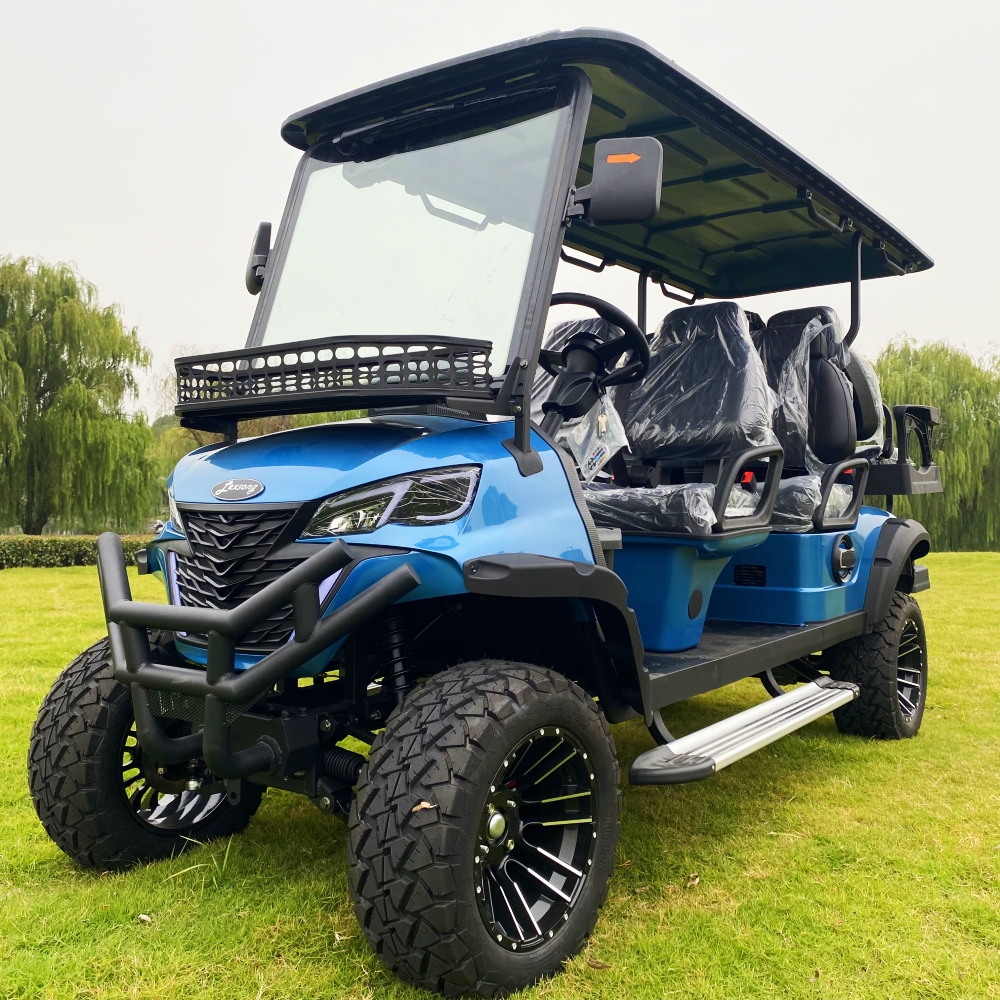

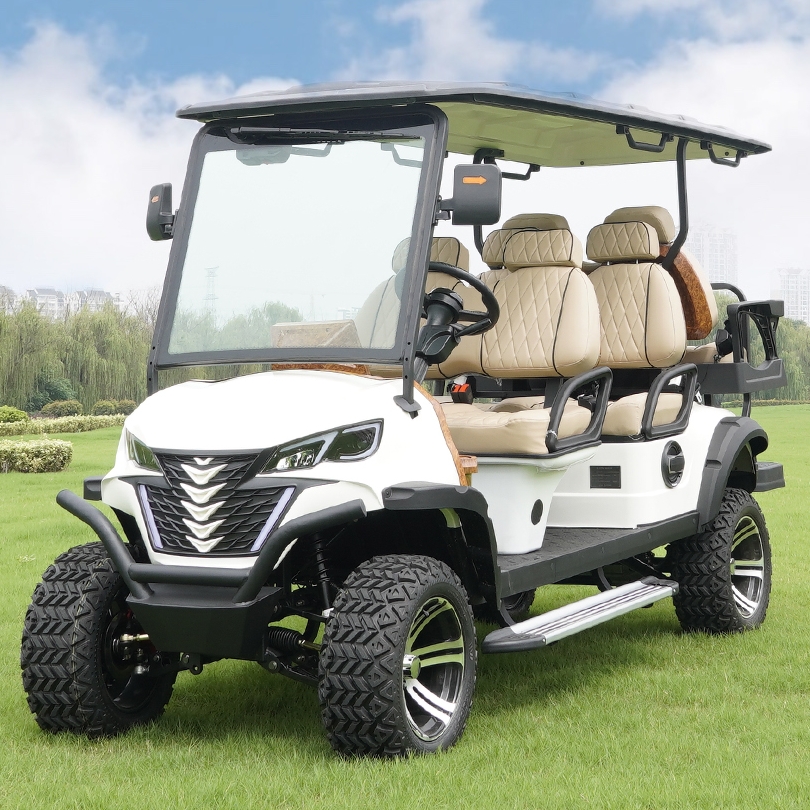

| SPECIFICATIONS OF Solar 6 Seaters Off Road Electric Street Legal Golf Cart Buggy LS2041ASZ | ||
|---|---|---|
| Key Components | ||
| Controller | China local brand AC controller or Curtis Controller | |
| Motor | 4KW/5KW/7.5KW AC motor | |
| Battery | 72V115AH Lithium Battery | |
| Performance and Dimensions | ||
| Passenger Capacity | 6 (4+2) | |
| Range (Loaded) * | 100kms | |
| Max. Speed | 32-40km/h | |
| Min. Turning Radius | 4.7m | |
| Max. Gradeability | 25% | |
| Max. Loading Weight | 480kgs | |
| Net Weight | 550kgs | |

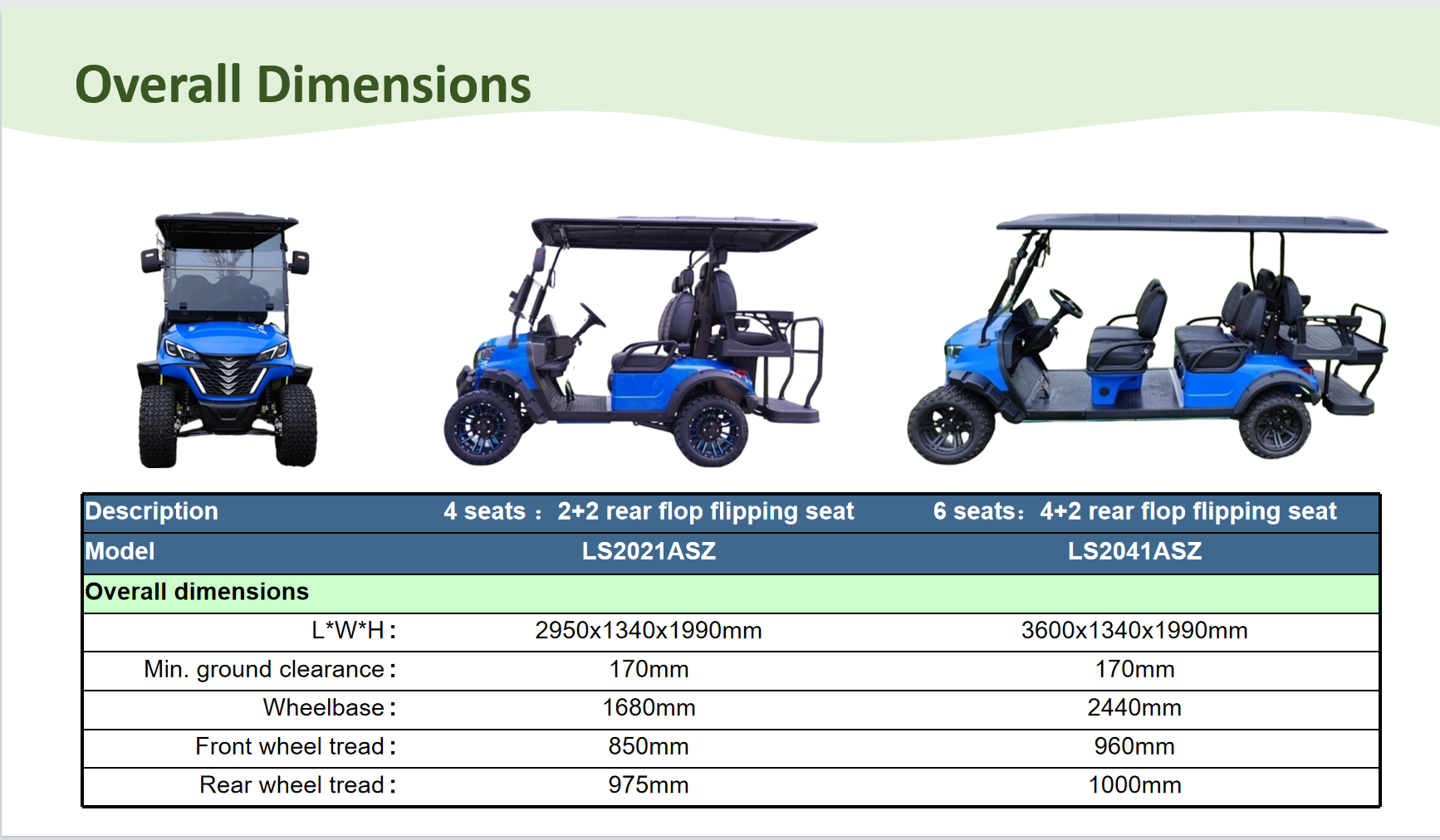

| Overall Dimensions | 3650X1350X2100mm | |
| Body and Frame | ||
| Frame (Chassis) | Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating | |
| Body and Roof | PP plastic front body and rear body; FRP roof | |
| Windshield | Organic plastic windshield, one-piece | |
| Roof supports | Carbon Steel, powder coated | |
| Backrest and Seat | Reborn Sponge, artificial leather + plastic armrest | |
| Floor | Galvanized Steel plate and anti-slip rubber floor mat | |

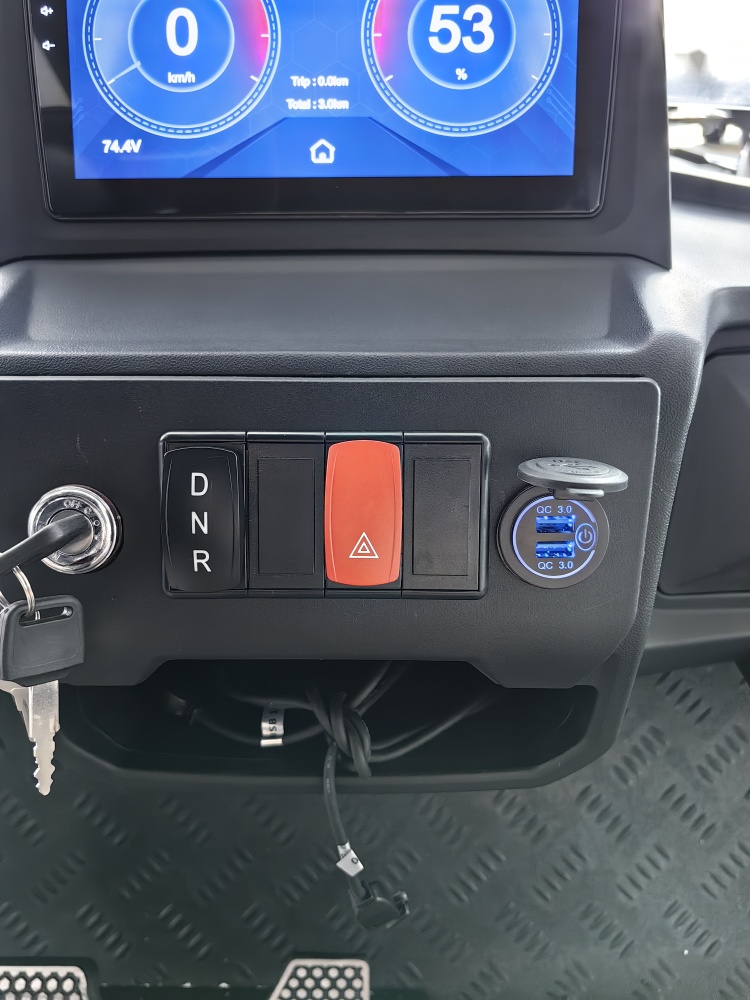

| Dashboard | Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key | |
| Side trim | Aluminum alloy | |
| Side mirror | 2pcs, foldable | |
| Electric System | ||
| Lighting System & Horn | All LED lights, 2 headlights, 2 front turn signals, 2 taillights (each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn. | |
| Backup Buzzer | 12V | |
| Digital Meter | Battery power meter, speedometer, odometer and various indicators | |
| Charger | Smart onboard charger, input 110V-240V~50Hz-60Hz, output 72V, 18A | |
| Steering, Brake, Transmission and Suspension | ||
| Steering System | Single-stage rack and pinion steering system, automatic rocker compensating function | |

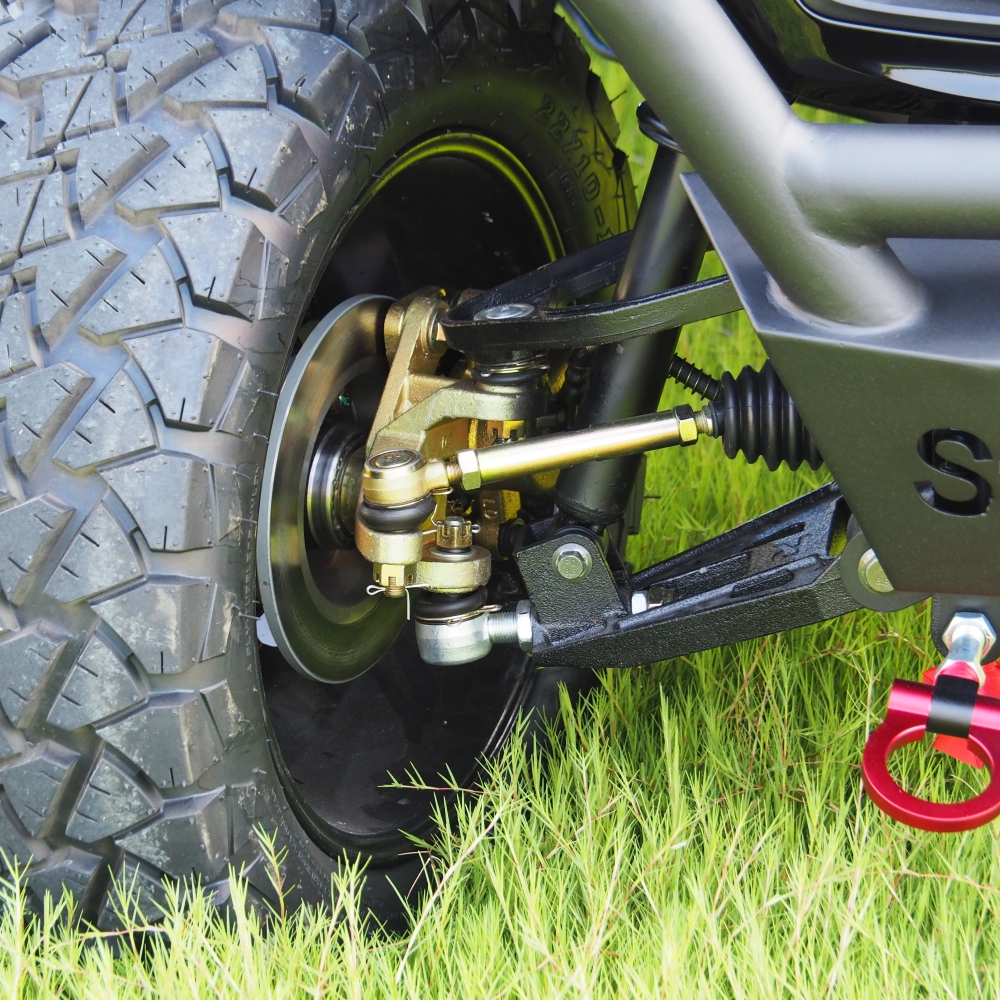

| Brake system | 4-wheel hydraulic front disc rear drum brake, with park brake | |
| Accelerator | Stepless speed change | |
| Driving mode | Rear axle two stage deceleration, motor direct driving | |
| Rear axle | Integrated, Gear ratio 12.49:1 | |

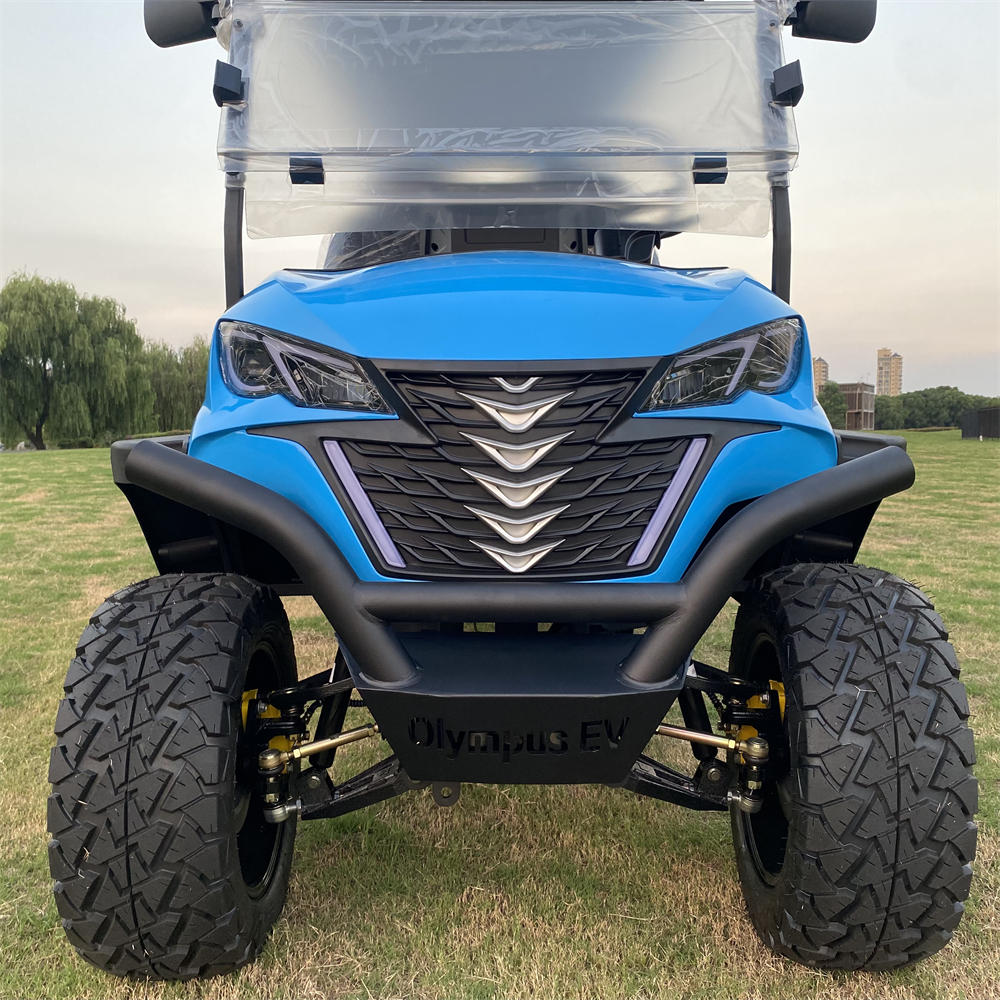

| Suspension system | Front Macpherson Independent suspension and rear plate leaf spring + cylinder hydraulic shock absorber | |

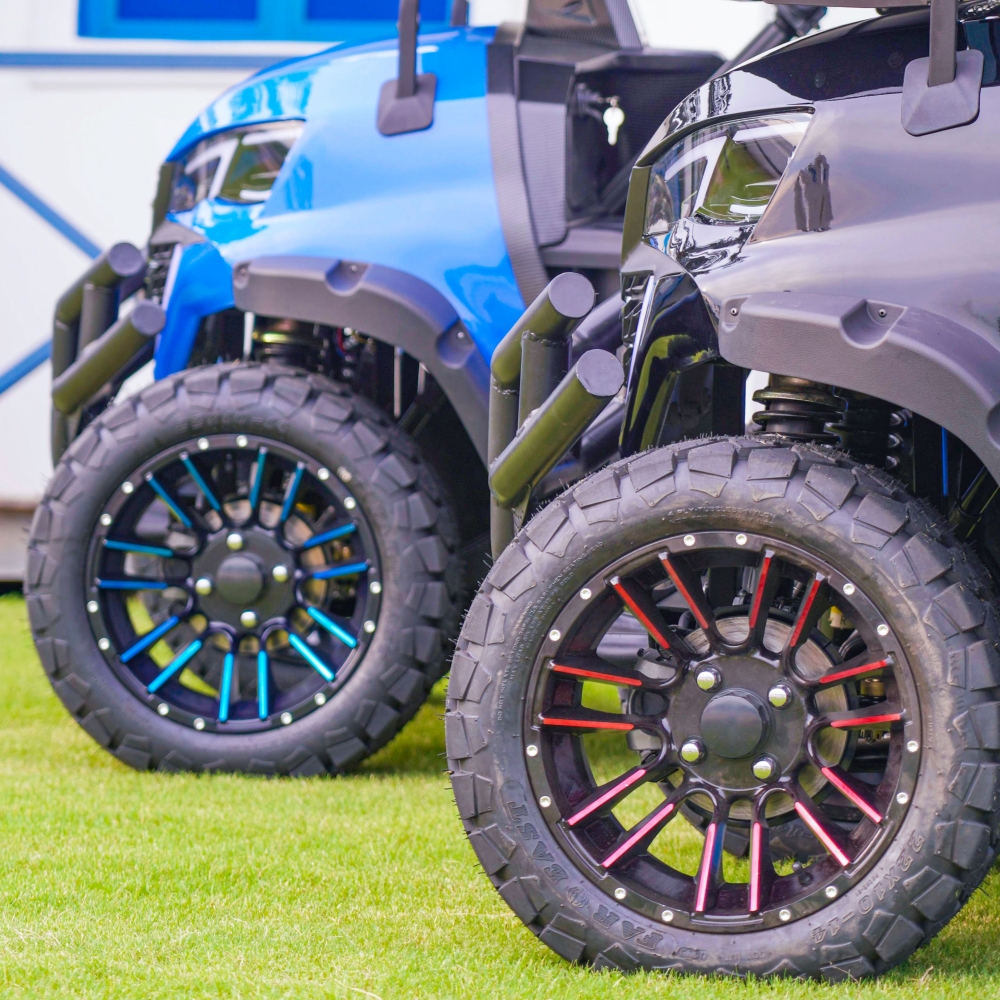

| Wheel & Tyre | 12x7 black aluminum rim & 23*10.5-12 Tire | |

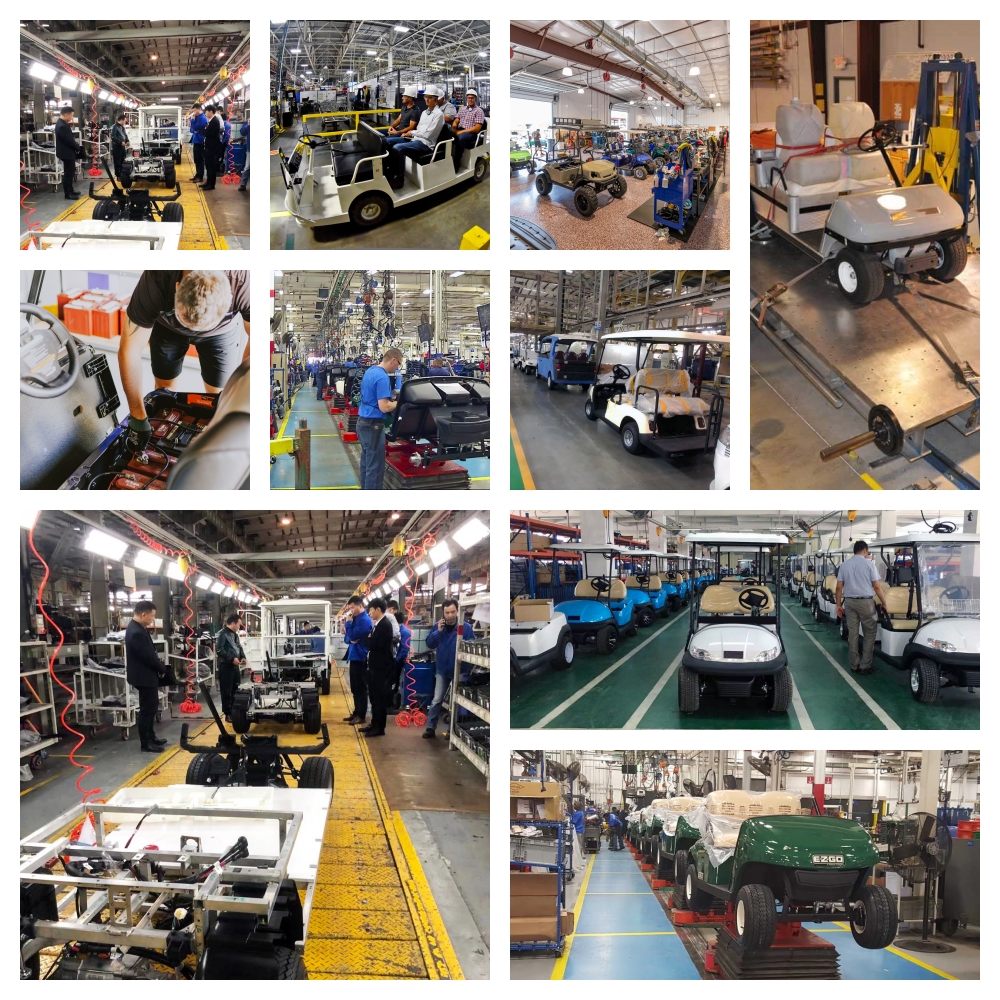

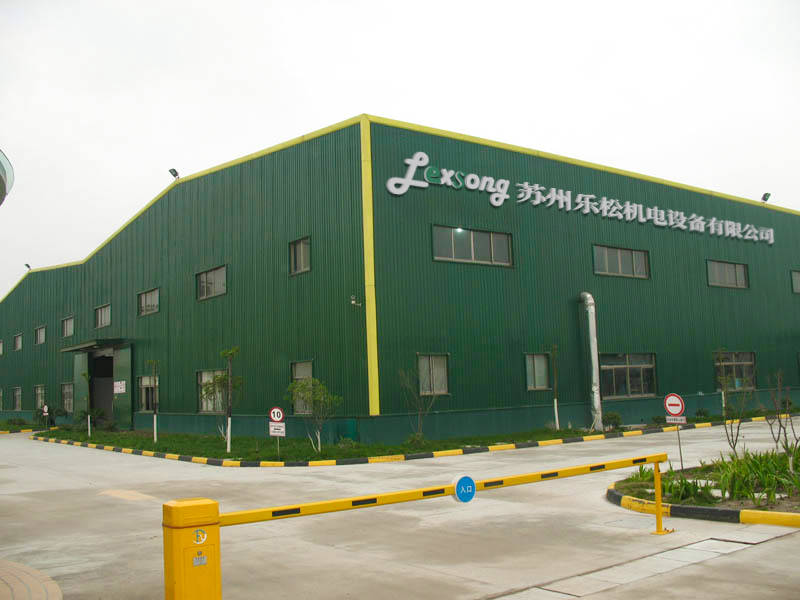

Over 12 years of experience in the electric vehicle business. 3 production lines with an annual production capacity of 15,000 units. We have exported our electric vehicles to over 40 countries worldwide. Our vehicles are widely used in golf courses, hotels, resorts, parks and gardens, campuses, stations, airports, residential communities, shopping centres, etc. 100 models in 10 categories for different applications: Golf carts, utility vehicles, personal transporters, sightseeing vehicles, electric trucks, rubbish trucks, fire trucks, etc. In addition, we customise your exclusive electric vehicle with short delivery times and high quality.
We can be your reliable partner for electric golf carts in China.
