| Technical Parameters | |
|---|---|
| Overall Dimension | 2945*1295*2000 mm |
| Range | 70-100km |
| Capacity | 4 persons |
| Turning Radius | 5m |
| Voltage | 48V/72V |
| Tread F/R | 945/1030 mm |
| Curb weight | ≤680kg |
| Wheelbase | 2175 mm |
| Climbing Ability | ≤25% |
| Max speed | ≤24km/h |
| Brake distance | 4.5m |
| Gross weight | 1020KG |
| Ground clearance | 186mm |
| Power System | |
| Controller | 48V/72V 400A |
| Motor | 48V 5kW / 72V 7.5KW |
| Battery | 6 PCS* 8V 150Ah lead-acid batteries or 48V 150Ah lithium battery or 72V 100Ah lithium battery |
| Charger | Smart on-board charger, import: AC220V, output: DC48V/20A. |
| Charging time | 8 hours |
| Vehicle Configuration Parameters | |
| Roof | Injection molding, black color |
| Body | High strength composite body (PT+PBT alloy injection molded front cover), with super anti-impact function. |
| Chassis | Steel frame, electrophoretic + spray anti-rust treatment. |
| Seater | High density polyanil foam with wear-resistant waterproof leather fabric. |
| Dashboard | Injection molding dashboard, with electric lock switch, forward/backward switch, alarm light switch, light signal switch, 10.1 inch multi-function LCD display (including voltage, electricity, speed mileage, and entertainment playback system), equipped with USB/Type-C interface. |
| Light | Front combination headlamp (with far/low light, running light, passing light), turn signal lamp, rear combination lamp, horn, reversing buzzer. |
| Steering system | Steering mechanical |
| Brake system | Four wheel hydraulic disk brake/EMB |
| Front suspension | Double A-arm Independent suspension |
| Rear suspension | Trailing Arm Suspension |
| Tires | 12inch/ 14 inch off-road tires |
A: Sure, based on more than 15 years of industry experience, our company has strong R&D and manufacturing capabilities and can provide OEM/ODM services.

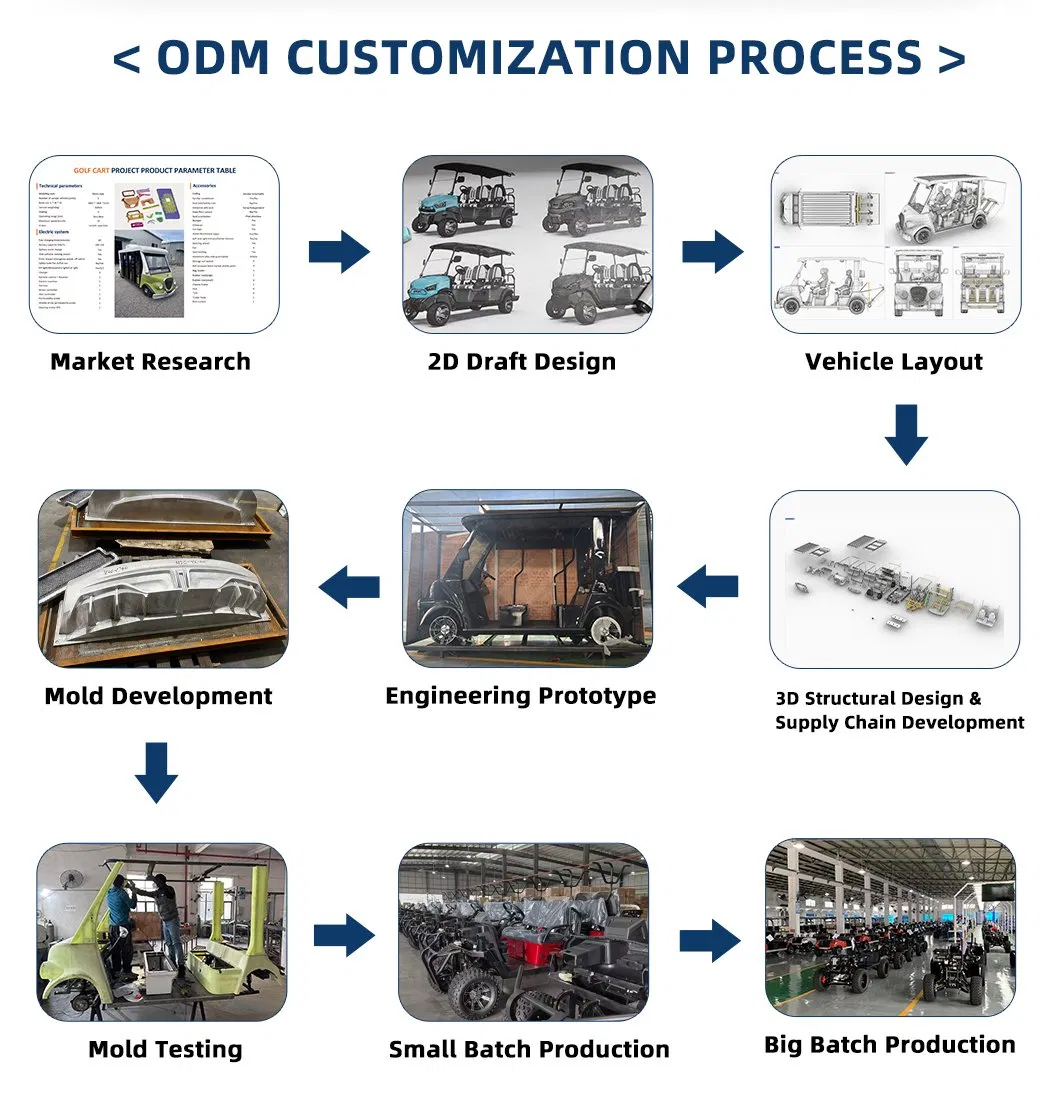

A: Using our unique 3D printing and polymer composite material technology, we have successfully shortened the development cycle of new products to as short as 1 month.

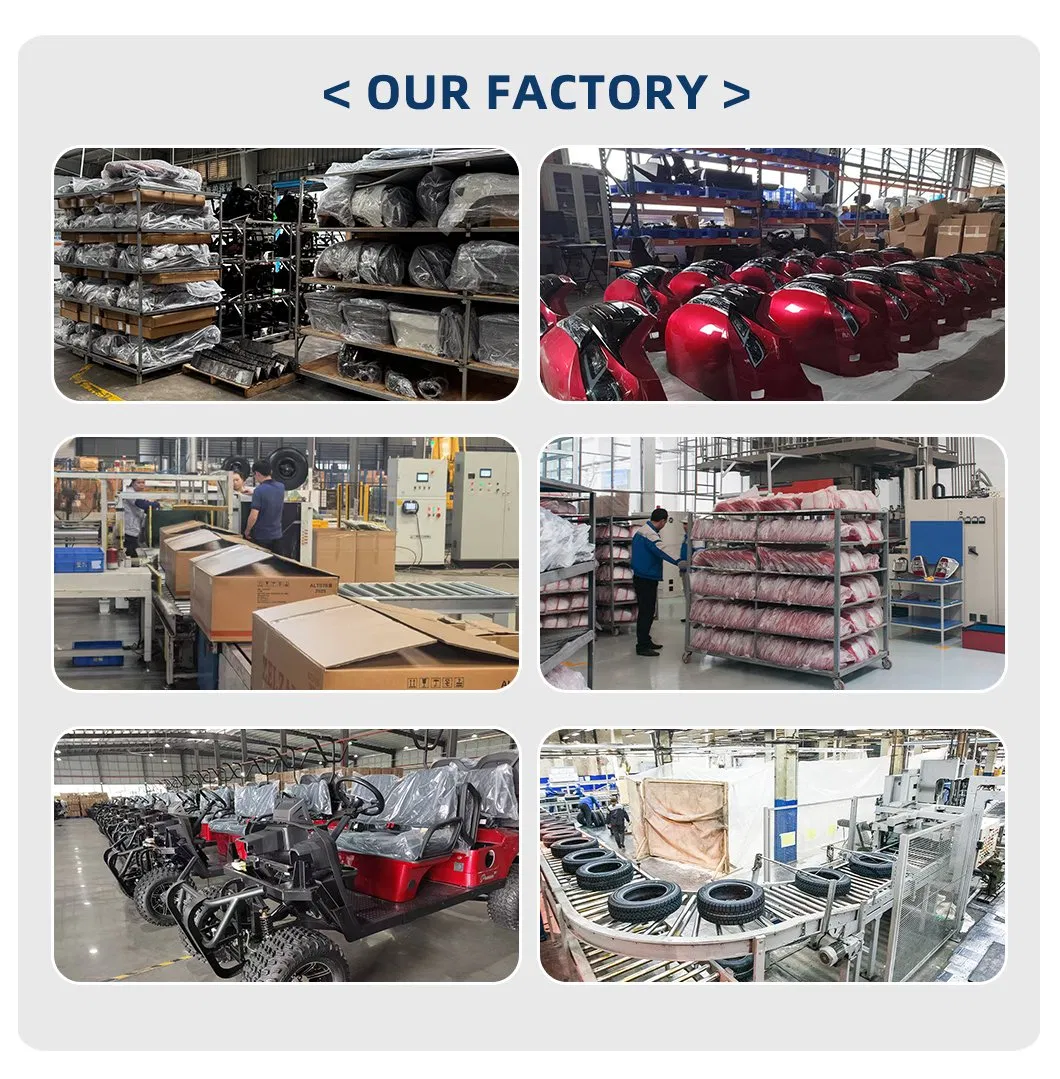

A: Generally 25-35 days after getting the deposit. Our facility has four complete processes of body manufacturing, painting, welding, and assembly. The specific delivery time depends on the items and the quantity of your order.
A: T/T 30% as deposit, and 70% before delivery. Other payment terms can be discussed on a case-by-case basis.
A: 1 year warranty for the whole vehicle, and 5 years warranty for the lithium battery. We can extend the warranty period according to your needs.
A: Yes, we perform 100% testing before delivery. In terms of product quality control, we use core components from automotive-grade parts suppliers, and a life cycle quality management system is adopted to ensure excellent performance and durability.
