Product Description
| Electrical System |
| Controller |
Special AC Controller |

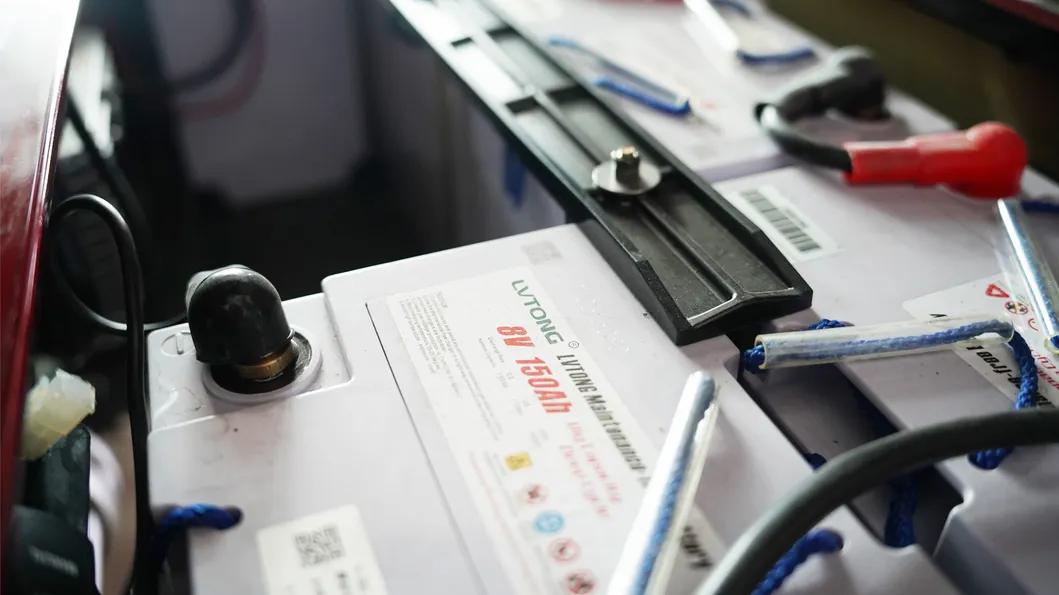

| Battery |
Special Maintenance-Free Battery 8V/unit, 6 units |
| Motor |
Special AC Synchronous Motor 48V/5KW |
| Charger |
Intelligent Display Charger, Charging Time < 10 Hours (80% Discharge) |
| DC to DC Converter |
High-efficiency power DC-DC 48V/12V-300W |
| Body Configuration |

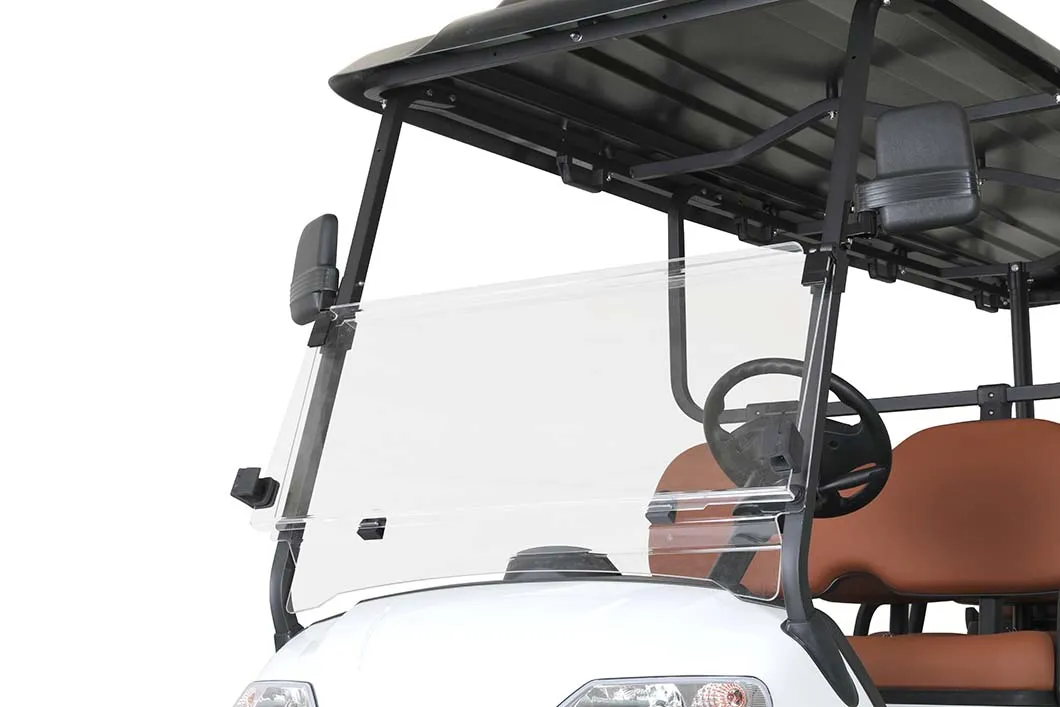

| Front Wiper |
Front Windshield Wiper, with Glass Water Sprinkler + Rain Wiper |
| Roof |
ABS Integrated Molded Roof |

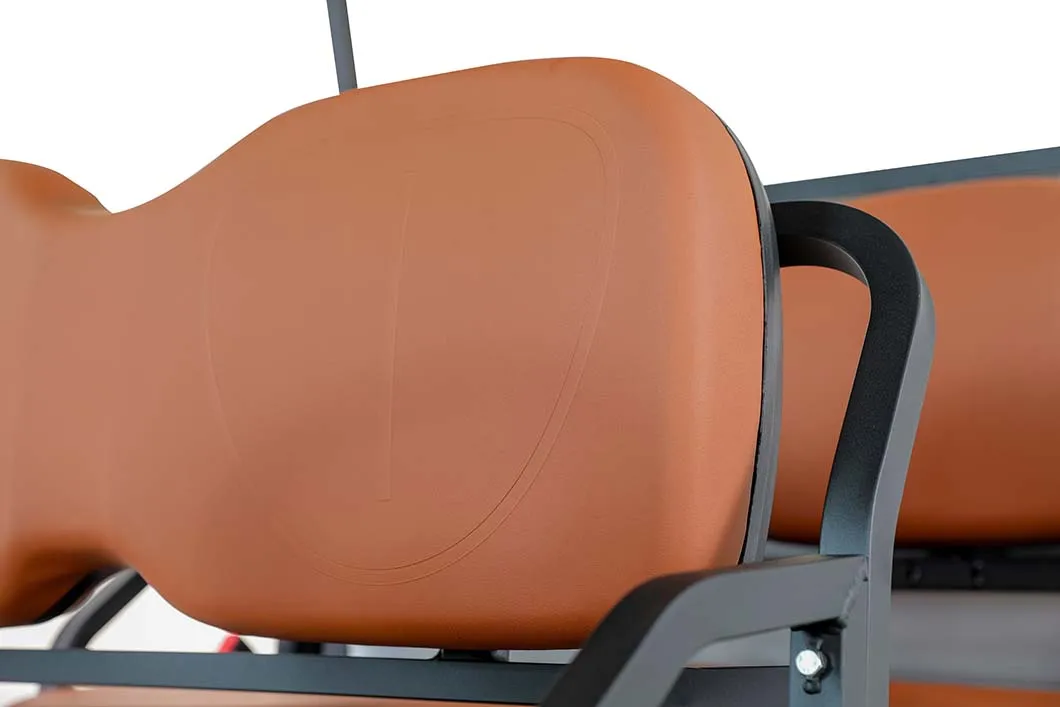

| Seats |

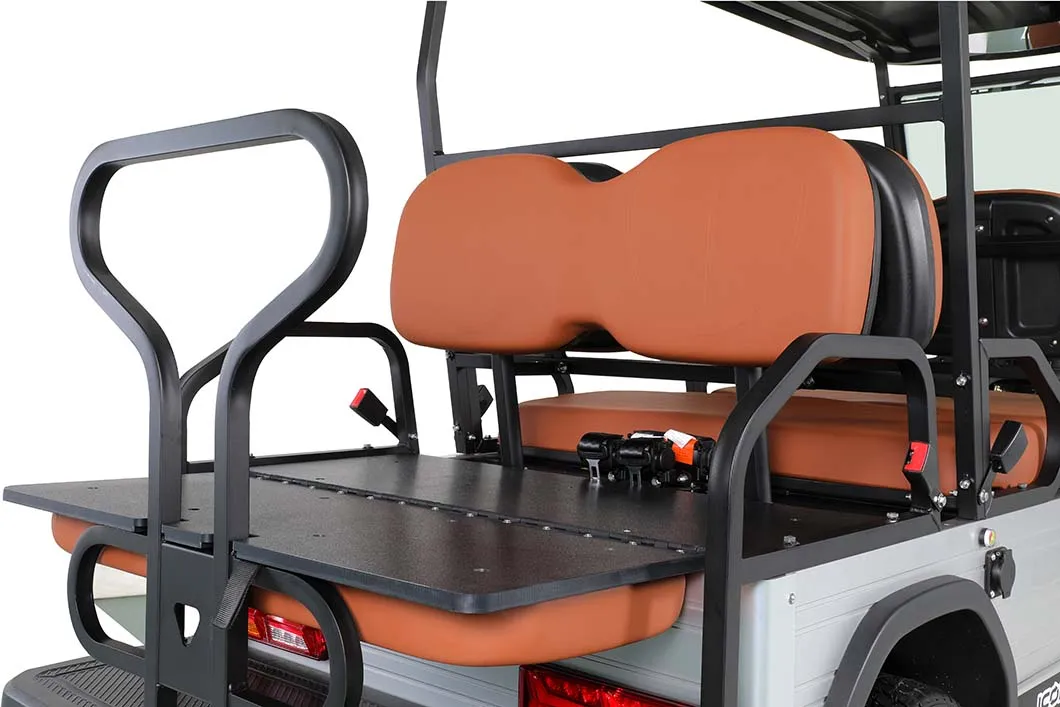

Ergonomically Designed Seats, Faux Leather Material |
| Flooring |

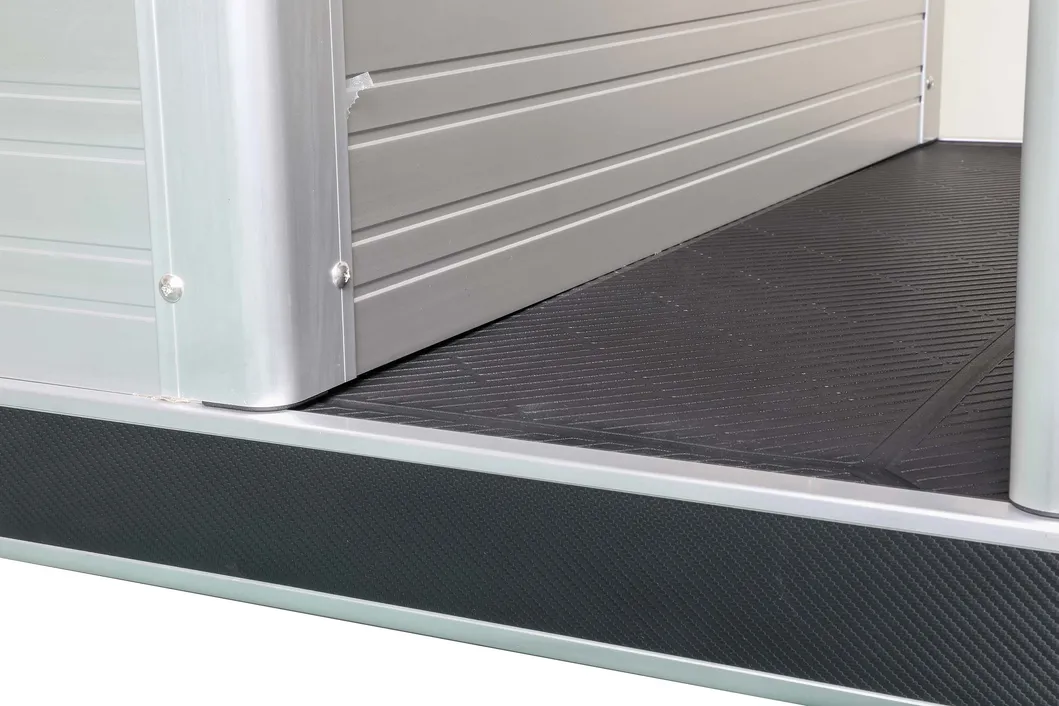

Injection Molded Anti-Slip Floor |
| Body |
Front uses Special PP Plastic, Rear uses High Strength Aluminum, Oxidized Aluminum Roof Support Frame |
| Rearview Mirrors |
One on each side, foldable rearview mirrors |
| Lighting Warning System |

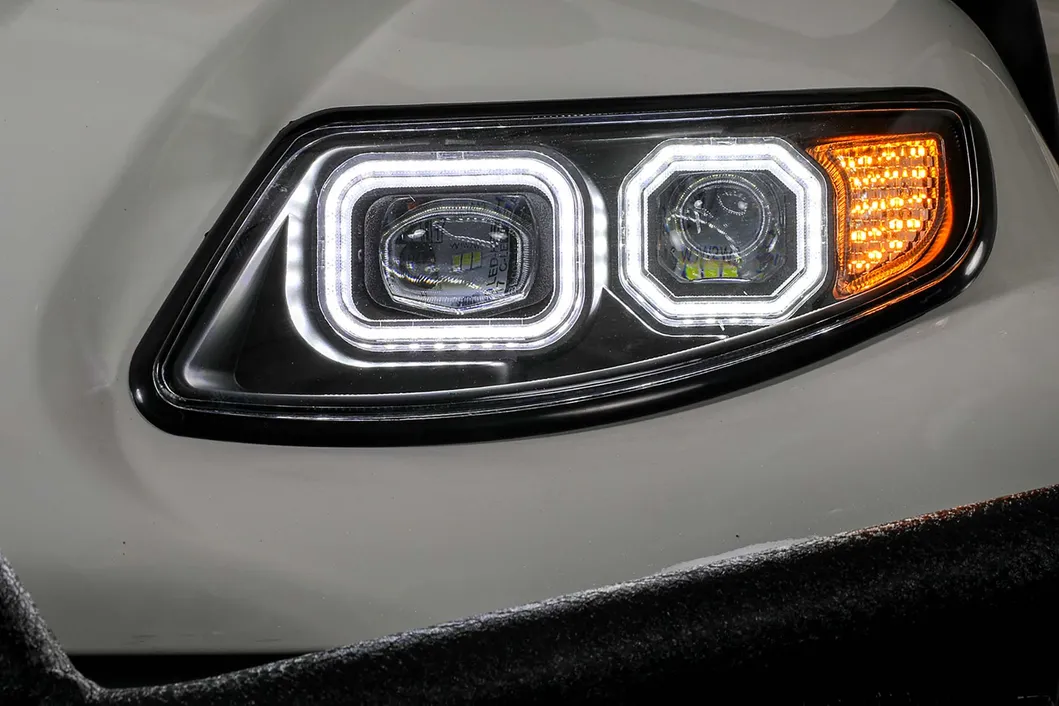

LED Front Lights (high beam, low beam, turn lights, sky lights, position lights), LED Rear Lights (brake lights, position lights, turn lights, horn, reverse buzzer) |

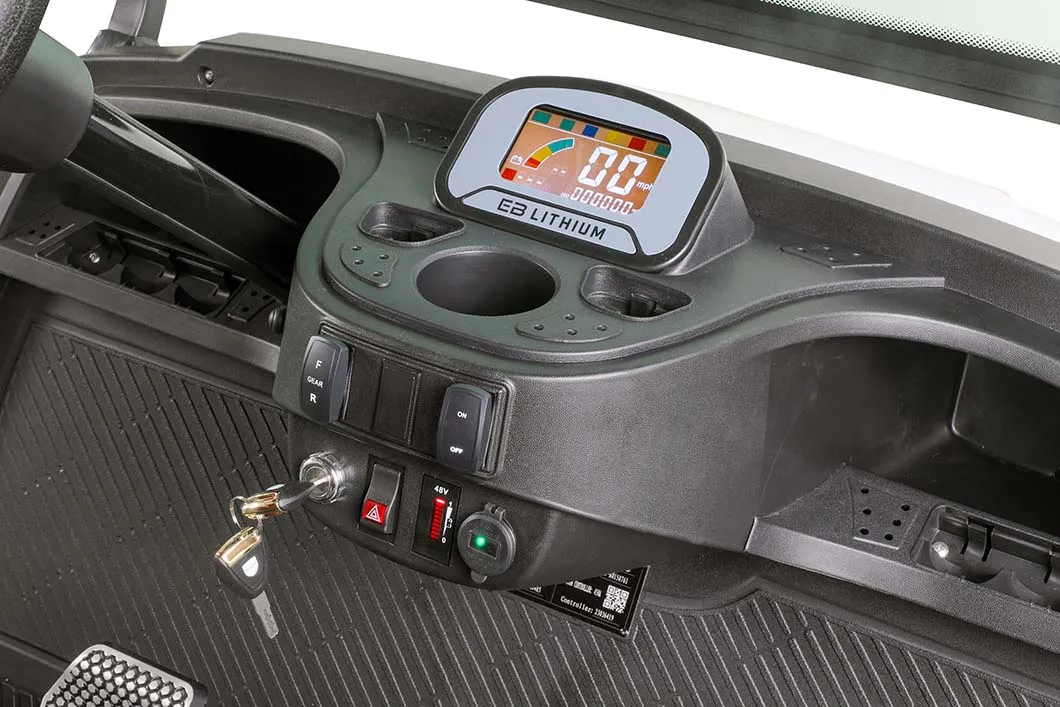

| Dashboard |
Plastic Injection Molded Dashboard, with Energy Display, Anti-Theft Lock, Key Switch, Gear Shift Switch, Water Meter Display; Optional Crystal Electric Combination Dashboard, with Dual USB Charging Port |
| Steering System |
Double Gear Rack Steering System, with Automatic Reset Function |
| Brake System |

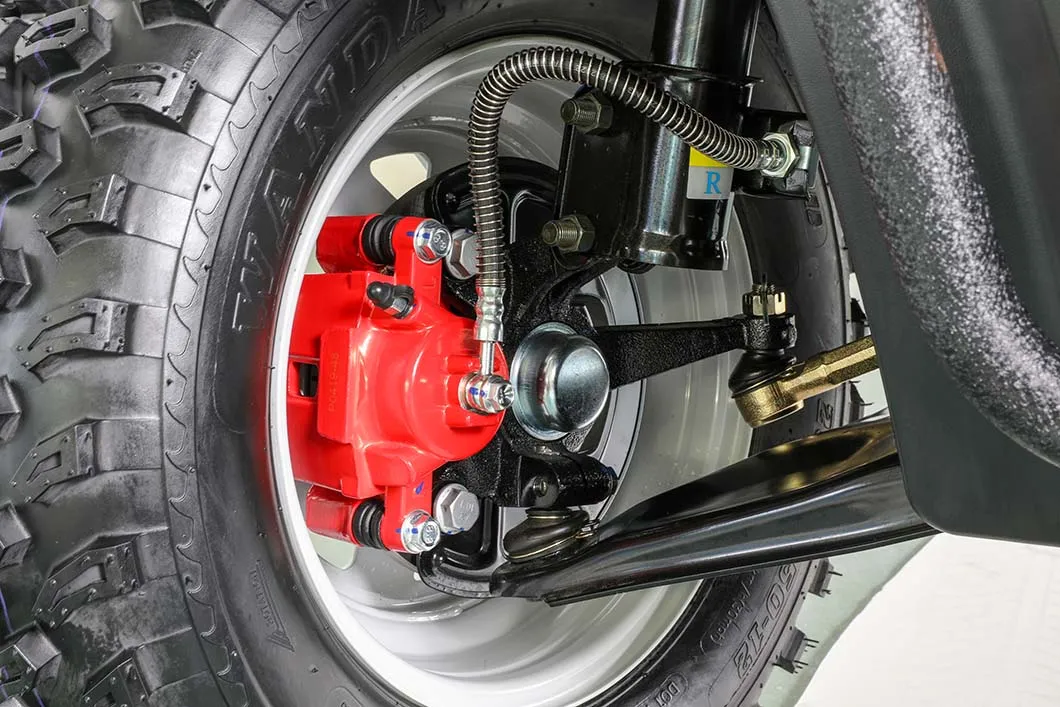

Four-wheel hydraulic disc brakes |

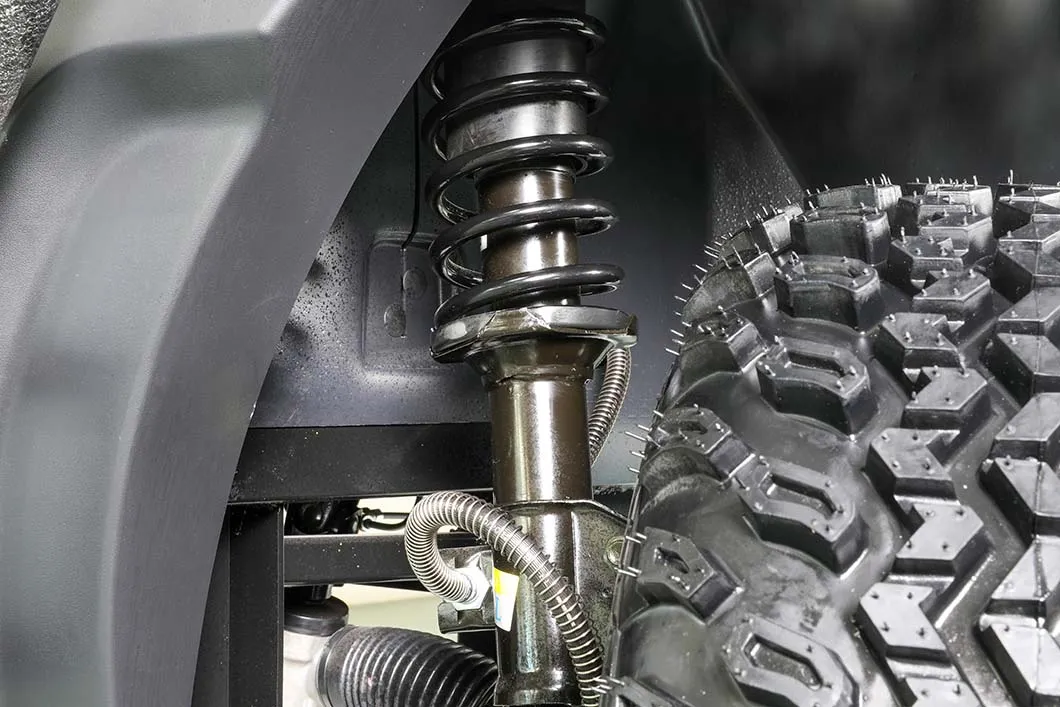

| Front Suspension System |
McPherson Independent Suspension, Coil Spring and Hydraulic Shock Absorbers |
| Rear Suspension System |
Integral Axle Suspension, speed ratio: 12.31:1, Coil Spring and Hydraulic Dampening + Rear Stability Bar |
| Tire Size |
18-inch wheels (205/50-10), Tire diameter: 457mm |
| Technical Parameters |
| Dimensions (L x W x H) |
2775 x 1210 x 1950 mm |
| Vehicle Weight (including battery) |
590kg |
| Rated Passenger Capacity |
4 persons |
| Cargo Bed Size |
None |
| Max Speed |
25 km/h |
| Cargo Load Capacity |
None |
| Driving Range |
80-100 km (on flat ground) |
| Max Climbing Ability |
25% |
| Parking Braking Ability |
25% |
| Min Turning Radius |
3.6m |
| Chassis Ground Clearance |
88mm |
| Wheelbase |
1650mm |
| Front/Rear Track Width |
Front: 930mm, Rear: 1005mm |
| Max Power Consumption per 100km |
8 kwh |
| Minimum Ground Clearance |
160mm |
Product Features
⚡
Experience the pinnacle of modern style with a fashion-forward shape design that boasts a simple yet sophisticated appearance and elegant lines, making this golf cart a true masterpiece of aesthetic design.
⚡
Choose between the renowned high performance battery or opt for the convenience of a maintenance-free battery, offering versatility and peace of mind to suit your needs.
⚡
Enjoy the assurance of stable quality that ensures reliability, complemented by minimal noise for a serene ride. Engineered for anti-fatigue performance, this golf cart promises long-lasting durability and dependable service.
⚡
Equipped with a high-temperature resistant oil seal, this feature ensures the transaxle is safeguarded against oil leakage, providing superior protection and enhanced longevity for the vehicle's core components.
Company Profile
On a spring day in 2004, an extraordinary story about golf carts began.
The establishment of our enterprise originated from a group of visionary entrepreneurs with deep insights into the golf cart industry and boundless dreams for its future. They identified gaps and endless opportunities within the market. Driven by a relentless passion for quality and innovation, they united to create a groundbreaking golf cart enterprise. With unwavering conviction, they embarked on a mission to craft a unique golf cart, ensuring every golfer enjoys an unparalleled sporting adventure.
In the early days of entrepreneurship, the team toiled tirelessly in a humble workshop, continually experimenting and refining their product designs. Facing innumerable challenges, their resolve was only strengthened to manufacture exceptional products. Their perseverance bore fruit as the golf carts rapidly achieved market acclaim for their superb performance and exquisite design, with orders pouring in abundantly.
Nowadays, we have journeyed through 20 years of dynamic evolution, transforming from a nascent startup into an industry frontrunner. The manufacturing facility spans over 150,000 square meters. We boast an impressive annual production volume, crafting golf carts, sightseeing cars, patrol cars, vintage cars, and electric trucks that are exported to numerous countries and regions, including the European Union, USA, Canada, Russia, Japan, and South Korea.
We have not only achieved comprehensive management system certifications from ISO9001 and ISO14001, but have also been recognized as a model unit within the credit enterprise certification system, boasting over 100 high-tech offerings and multiple national patents. In 2012, our products were honored as prominent brand products and were chosen as dedicated vehicles for major industrial energy development projects. With cutting-edge R&D prowess and substantial production capabilities, we command a strong influence and standing in the industry.
For two decades, we have earned the trust and admiration of customers and industry peers alike through persistent innovation and quality service. In 2023, we achieved a significant milestone by going public, unveiling a groundbreaking vision: to champion green, eco-friendly, and sustainable development, aspiring to lead the electric vehicle sector.

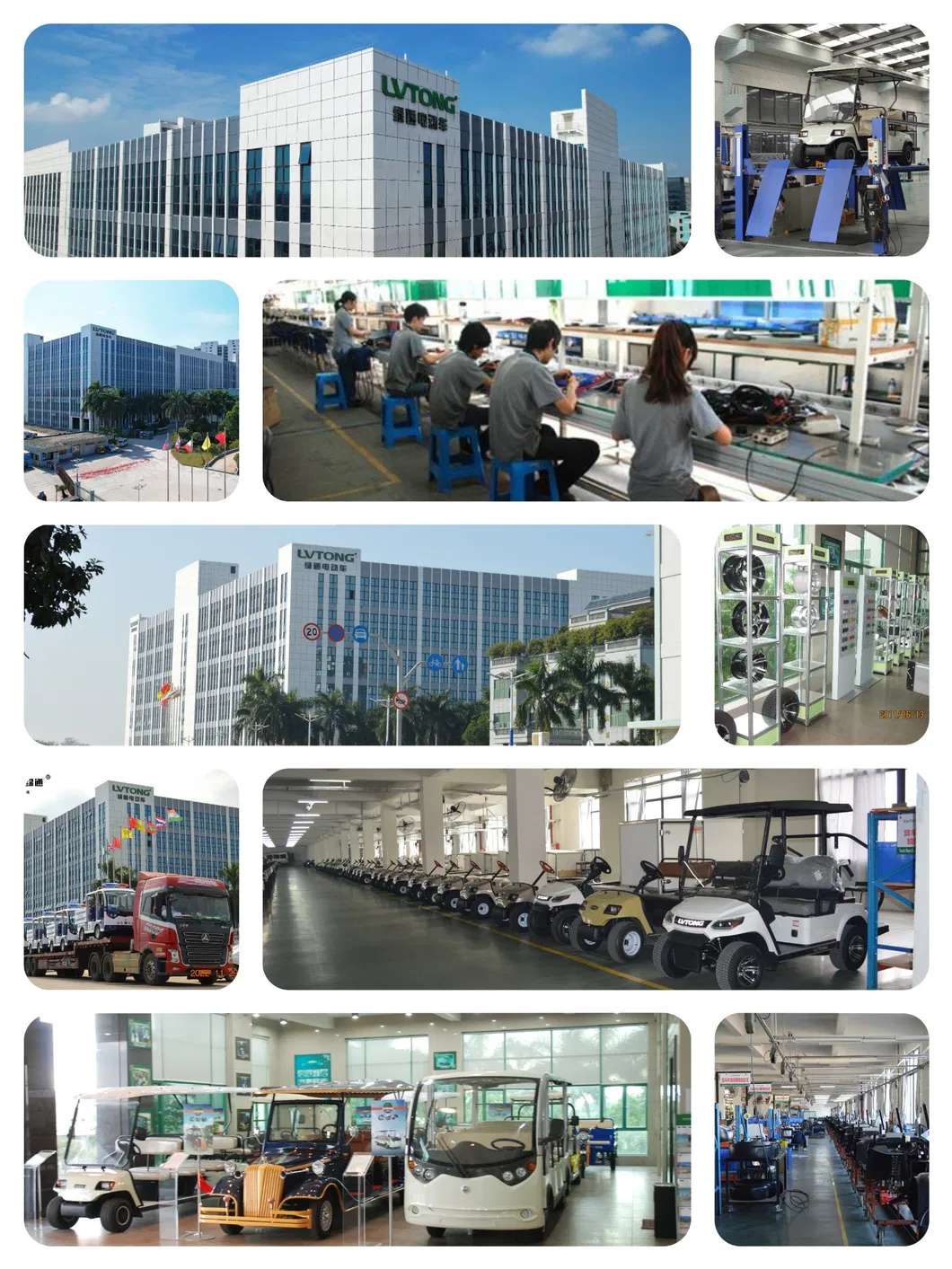

Factory & Workshop Photo
Company Certificate
Cooperation
We are dedicated to forging exceptional partnerships that promise mutually rewarding outcomes. Our commitment to excellence drives us to deliver unparalleled service to our partners, ensuring a win-win cooperation experience every time. By engaging in comprehensive market research and embracing continuous technological advancements, we are poised to offer bespoke solutions tailored to each partner's distinct requirements. Our focus is on building enduring, stable relationships where resources are shared, goods are exchanged, and markets are jointly conquered, leading to shared success and prosperity. We eagerly anticipate the opportunity to collaborate with you as we craft a brighter and more prosperous future together.
Advantages of Joining

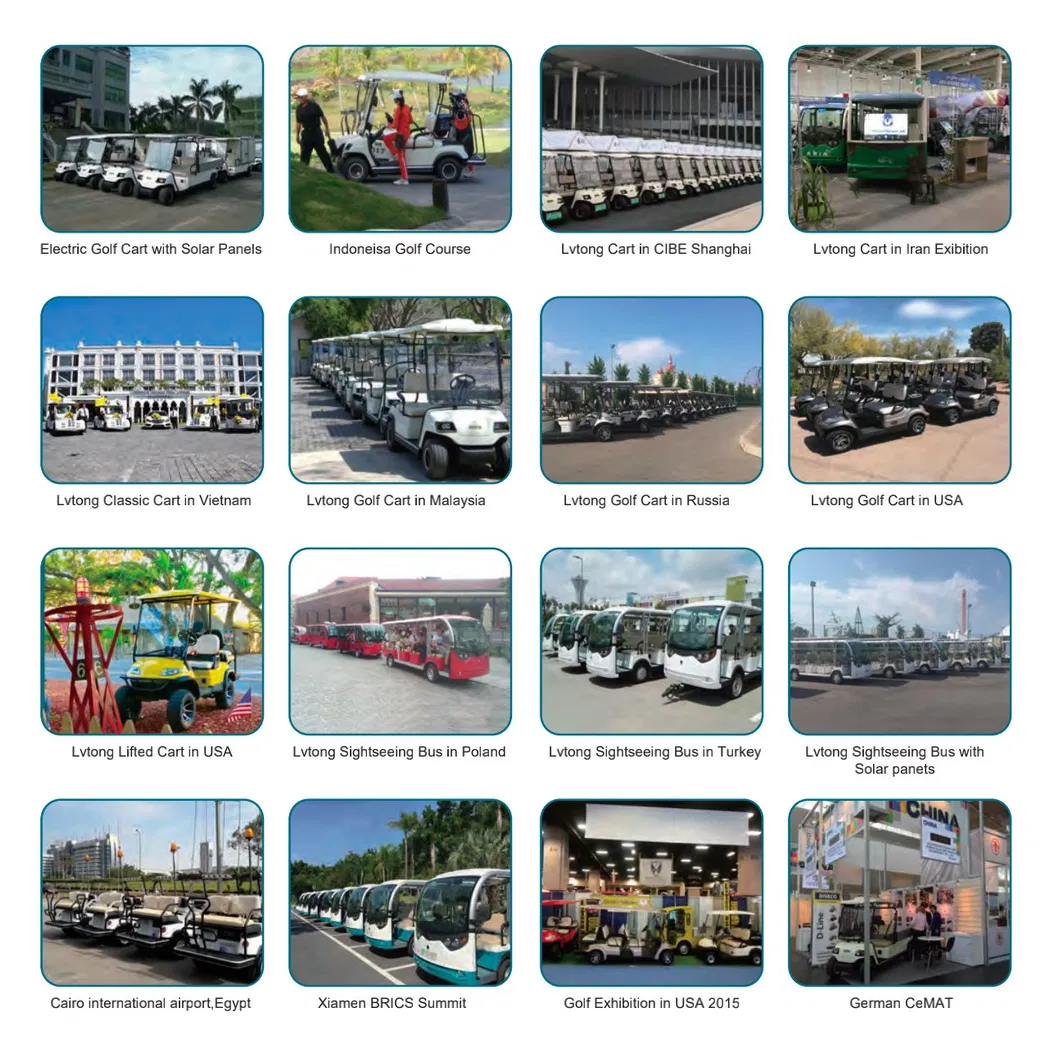

Cooperation Case
Frequently Asked Questions (FAQ)
Are you a factory or a trading company?
We are a professional manufacturer of electric golf carts and sightseeing vehicles, operating our own advanced manufacturing facility in China.
What certifications do you have for your products?
We hold both ISO9001 and ISO14001 management certifications, as well as CE Certifications for our golf carts to ensure high-quality standards.
Do you support customized products (OEM)?
Yes, we provide full support for customized products. We can design and manufacture electric vehicles based on your drawings, technical requirements, and branding preferences.
What is the typical lead time for an order?
Generally, the lead time is between 7-15 days after we receive your deposit payment.
What are your trading and payment terms?
Our trading and payment terms are flexible and can be customized depending on the order requirements. Please contact us directly to discuss options.
What is your warranty policy?
We offer a 1-year comprehensive warranty on our products and provide free replacement components under EXW shipping terms.
