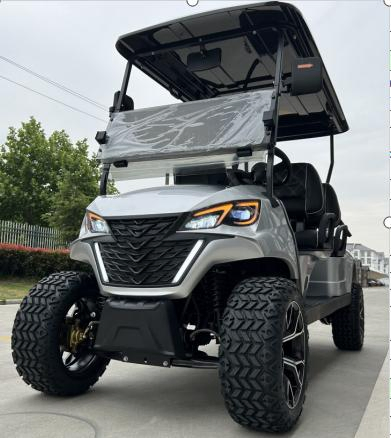

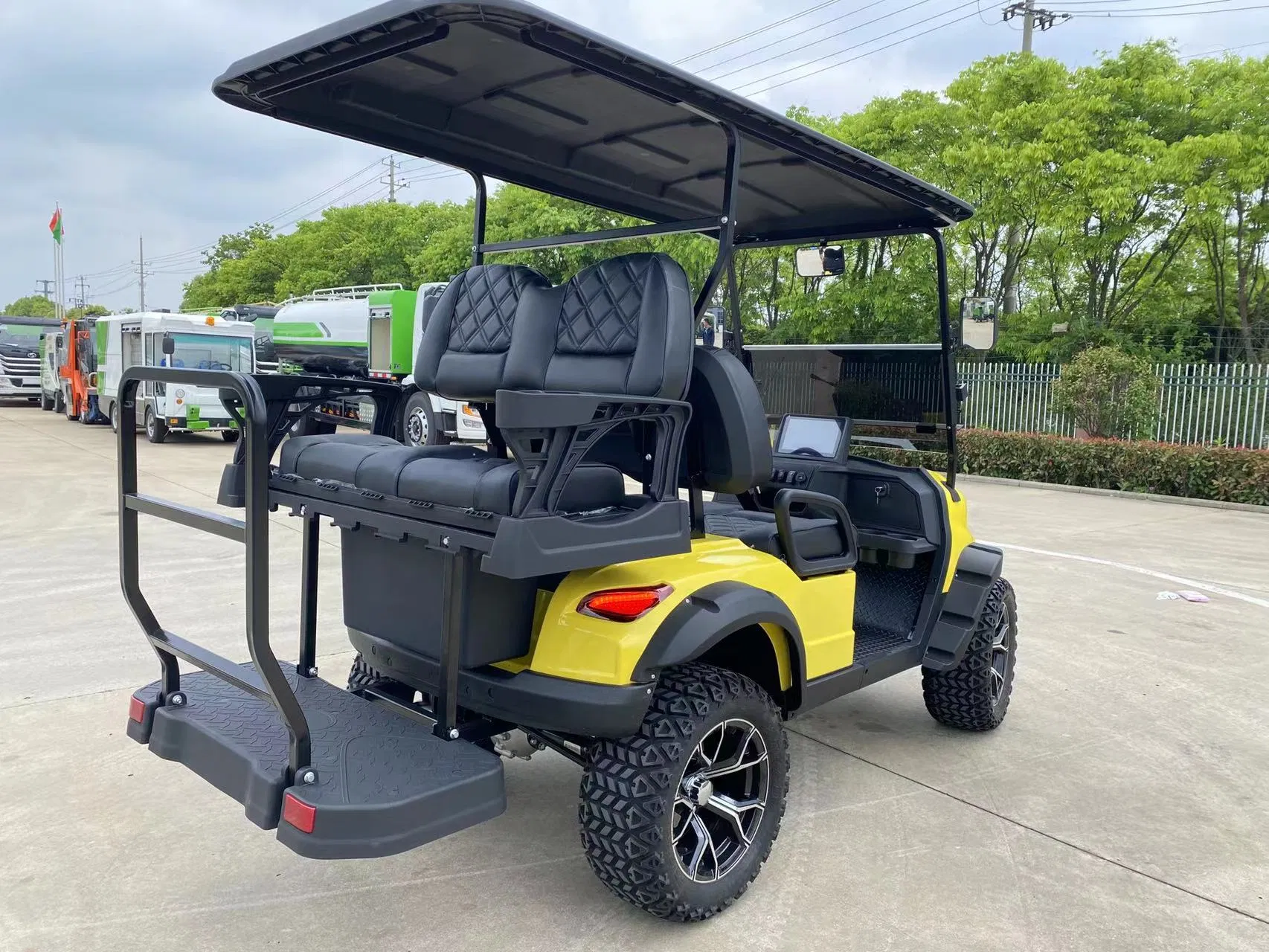

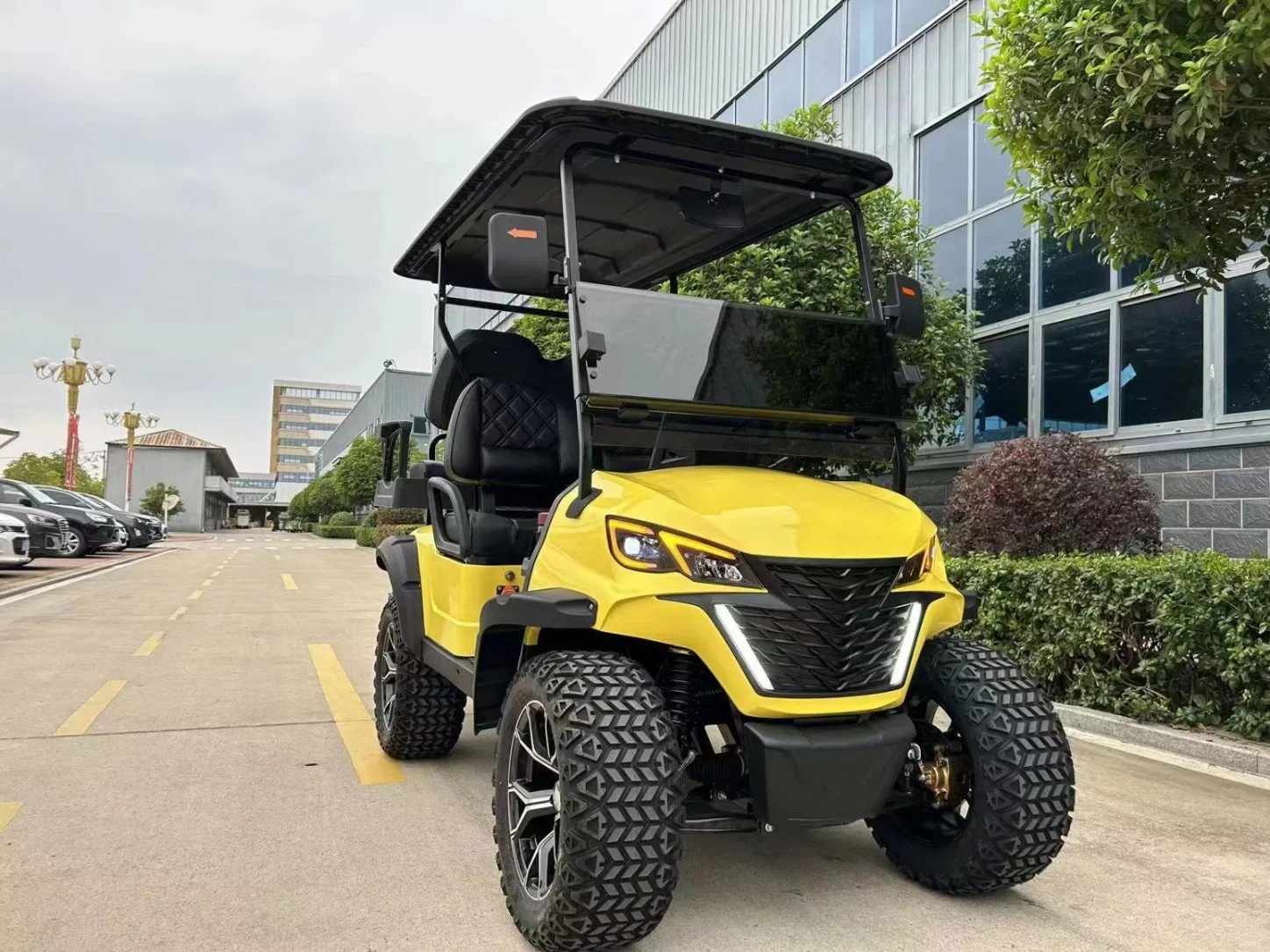

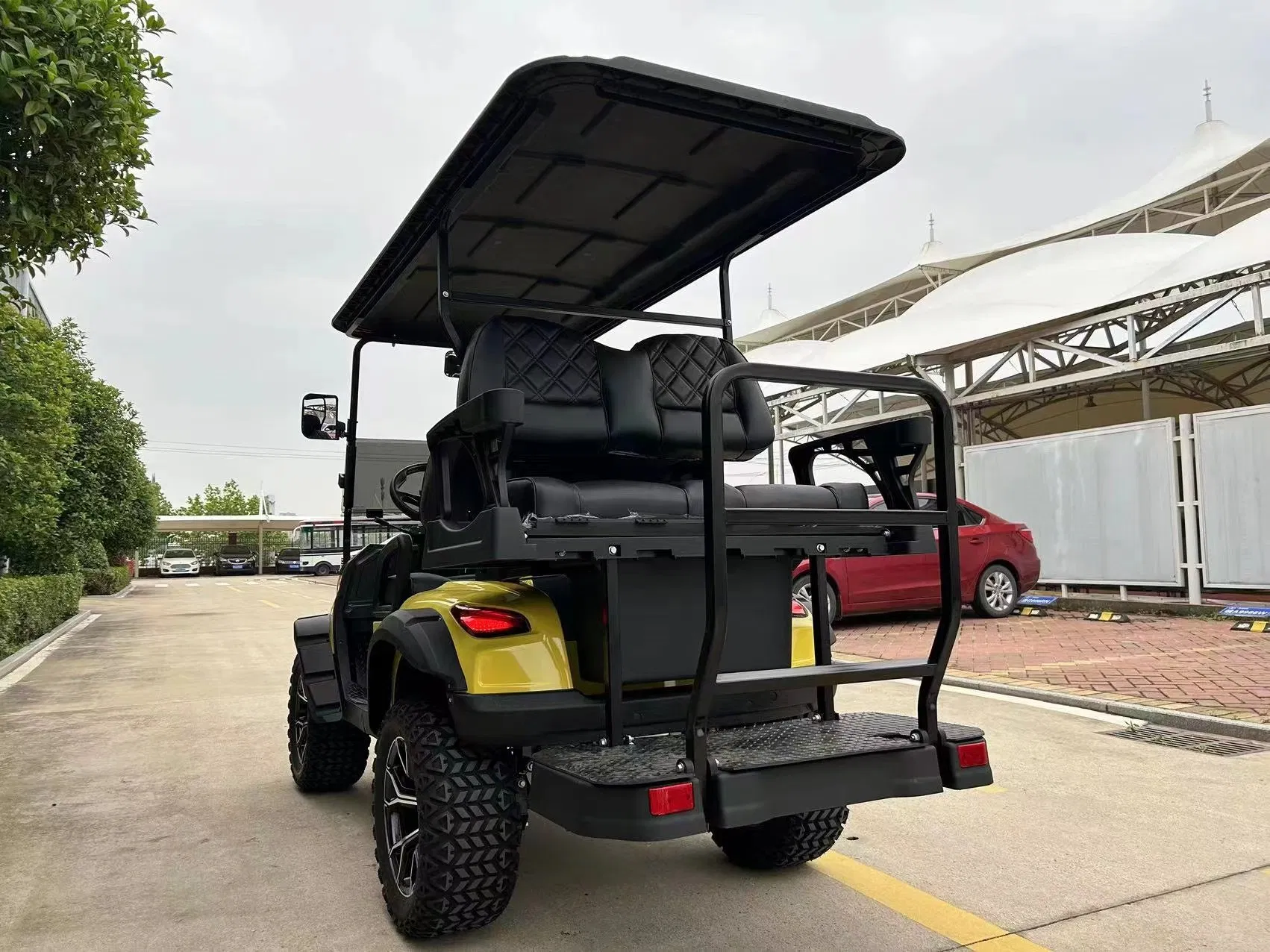

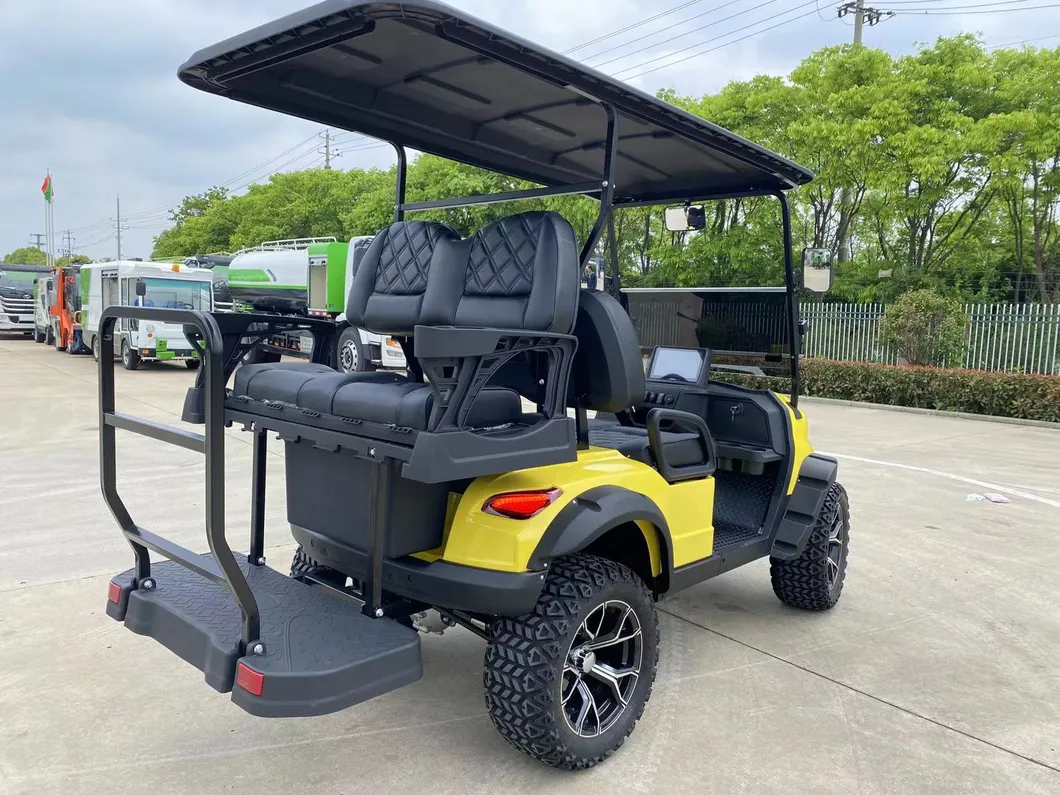

This model is the hot sale new model popular in the US and EU market! Featuring robust configuration and options tailored for comfort, durability, and high performance.
| Model | S322 | S322(01) | S322(02) |
|---|---|---|---|
| System | 48V/4KW AC System | 48V/5KW AC System | 72V/5KW AC System |
| Key Components | |||
| Battery (3 years warranty for lithium battery) | 48V 150Ah lead acid battery including charger | 48V 134AH Lithium Battery including charger | 72V 120AH Lithium Battery including charger |
| Motor | 5KW AC Motor | 5KW AC Motor | 5KW AC Motor |
| Controller | Programmable controller | Programmable controller | Programmable controller |
| Performance | |||
| Passenger capacity | 4 | 4 | 4 |
| Range (loaded) based on flat road at 20km/h (km)* | >80 | >90 | >100 |
| Max. speed @12.49:1 gear ratio | 30 | 35 | 35 |
| Minimum turning radius (m) | 3 | 3 | 3 |
| Max. climbing ability (loaded) | 25% | 25% | 30% |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m | ≤4m |
| Max. loading weight | 320kgs | 320kgs | 320kgs |
| Net weight | 510kgs | 510kgs | 520kgs |
| Dimensions | |||
| Overall dimensions (mm) | 2950x1340x1990 | - | |
| Min. ground clearance (mm) | 170 | - | |
| Wheelbase (mm) | 1680 | - | |
| Front wheel tread (mm) | 850 | - | |
| Rear wheel tread (mm) | 975 | - | |
| Body and Frame ("S" for Standard / "O" for Optional) | |||
| Frame | Welded steel framework with phosphate + electro-coating treatment | ||
| Body | PP plastic front body + PP plastic rear body | ||
| Roof | Fibreglass | ||
| Large Seats (front seat) | 1) Rebond seat + artificial leather 2) Formed armrest |
||
| Floor | Rubber | ||

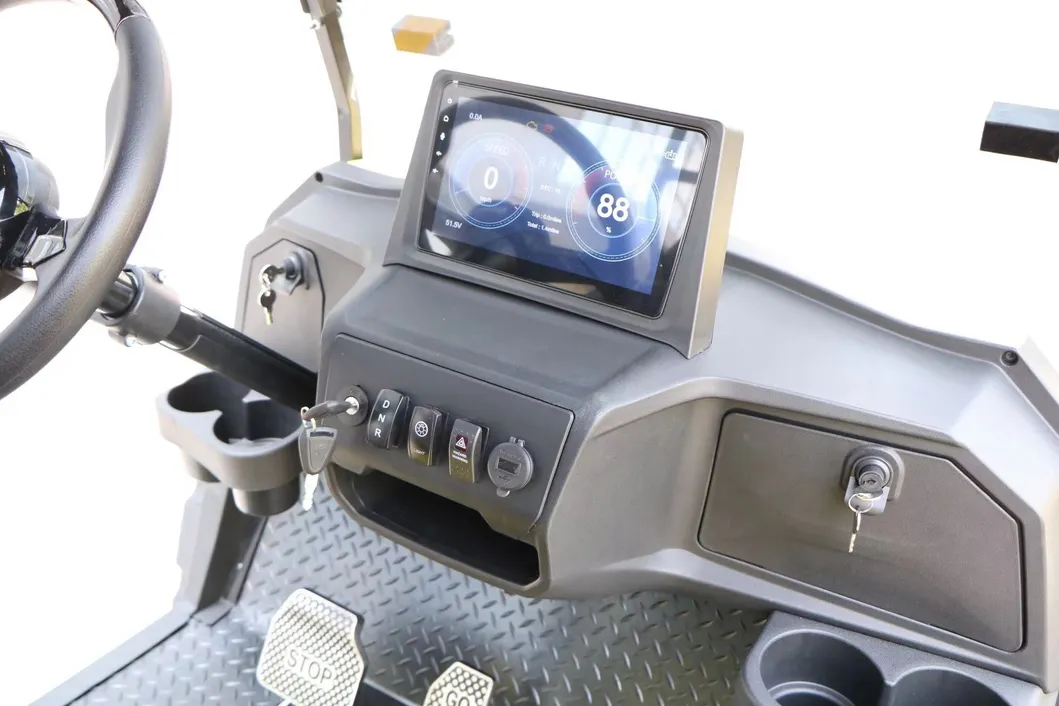

| Dashboard in black plastic | Forward/reverse switch, battery capacity indicator, ignition key | ||
| Beverage holders | 4 cups drink holders | ||
| Side trim | Plastic | ||
| Score card holder | On steering wheel | ||

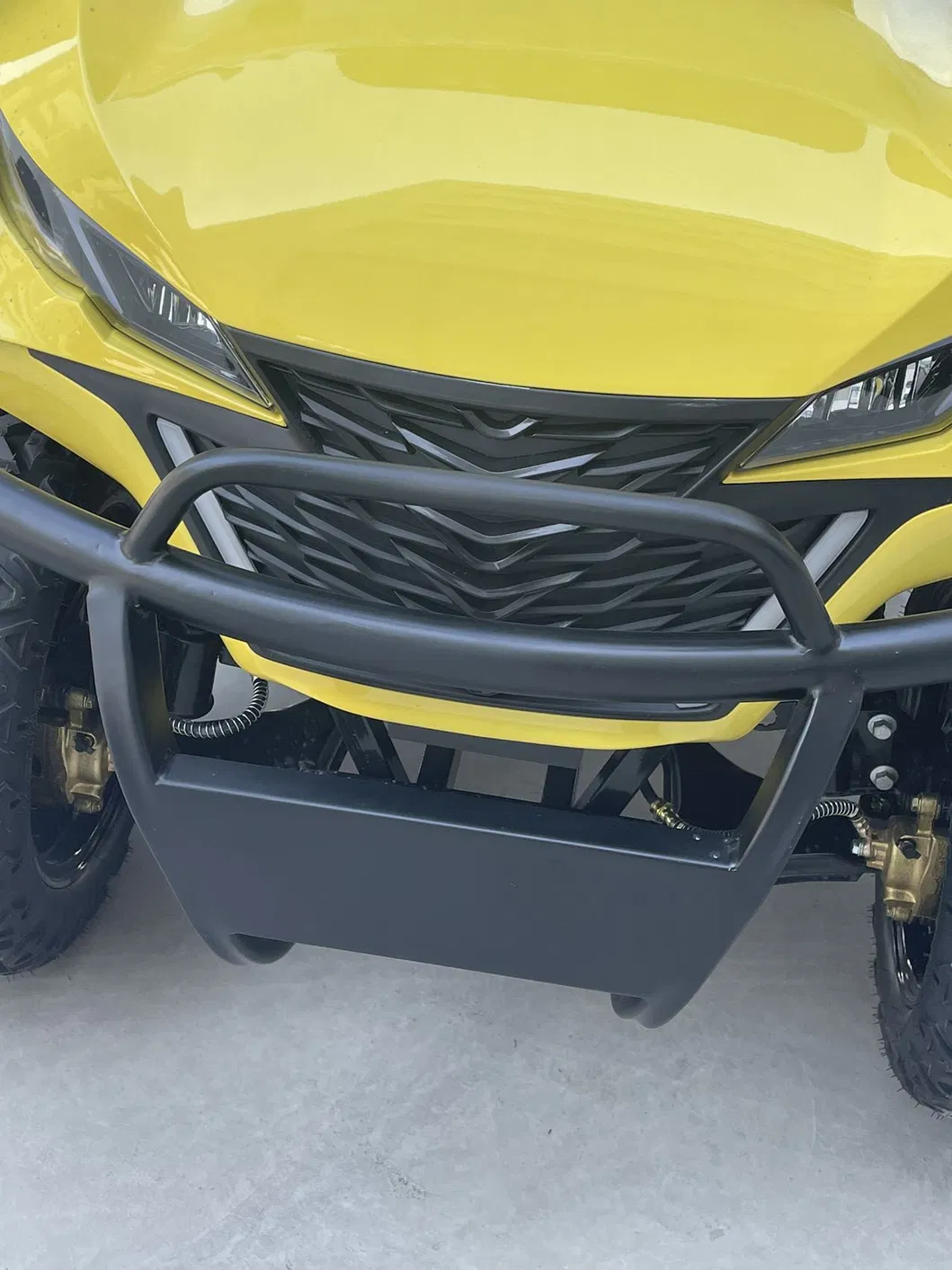

| Towing bracket | On front of golf car | ||
| Side rear view mirror | Two pieces per cart | ||
| Electric system | |||
| Lighting system and horn | All LED lights: 2 headlights, 2 front turn signals, 2 taillights (each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 72V to 12V), horn. | ||
| Digital Meter | Speed, mileage, headlight indicator, emergency light indicator, turn signal indicator, reverse indicator | ||
| Charger | Input 110V-240V~50Hz-60Hz, output 72V, 15A/20A onboard | ||
| Steering and Suspension | |||
| Steering system | Single-stage rack and pinion steering system | ||
| Brake system | 4-wheel hydraulic brake front disc rear drum + electromagnetic parking | ||
| Accelerator | Stepless speed change | ||
| Suspension system | Front MacPherson independent and rear coil spring absorber | ||
| Driving mode | Rear axle two stage deceleration, motor direct driving | ||
| Rear axle | Integrated, Gear ratio 12.4:1 | ||
| Wheel & Tyre | 14x7 Aluminum wheel, 23*10-14 tire | ||
Packaging: High quality steel frame packing is utilized for the first step. The frame features wheels at the bottom, making loading and unloading convenient for your operations.
