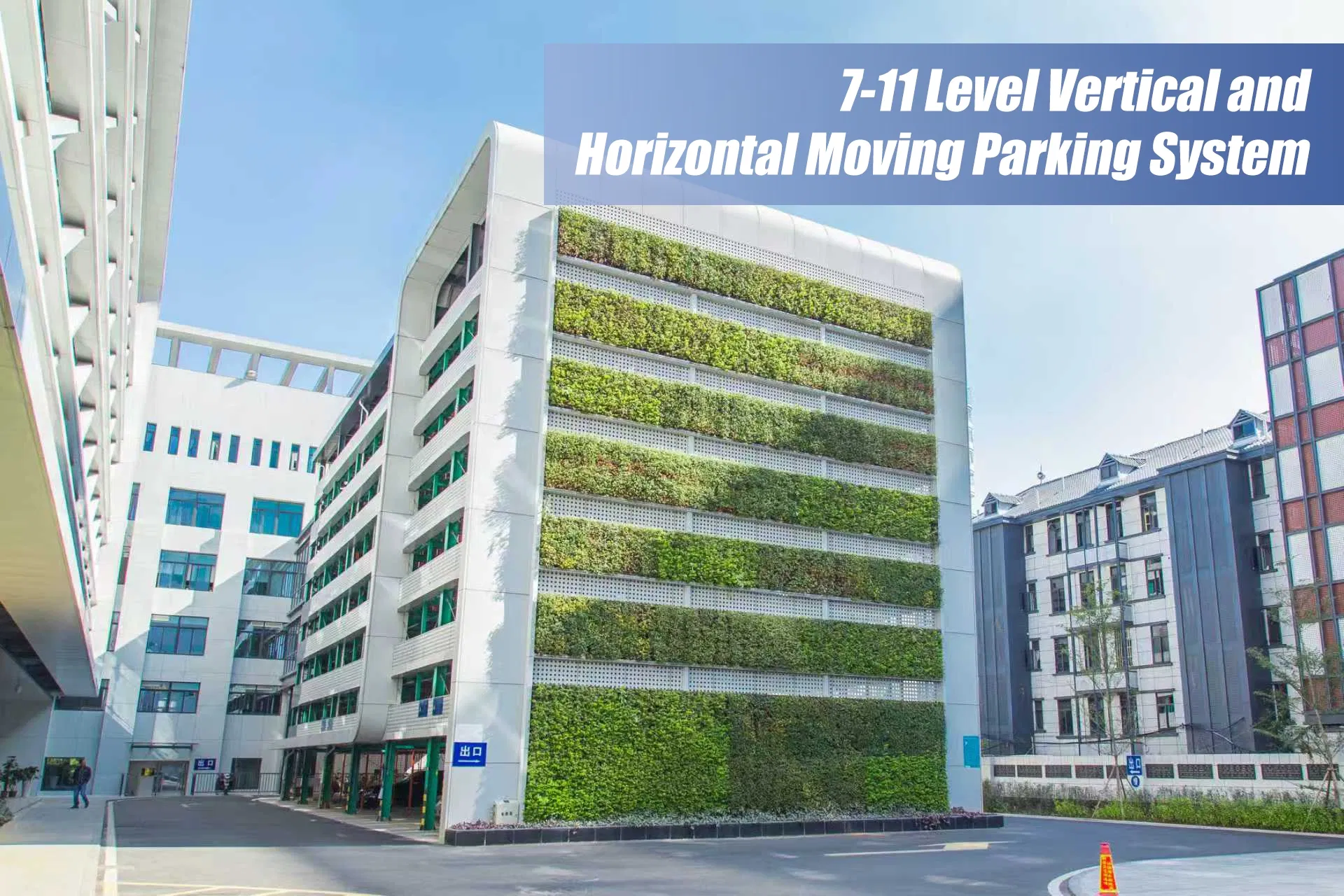

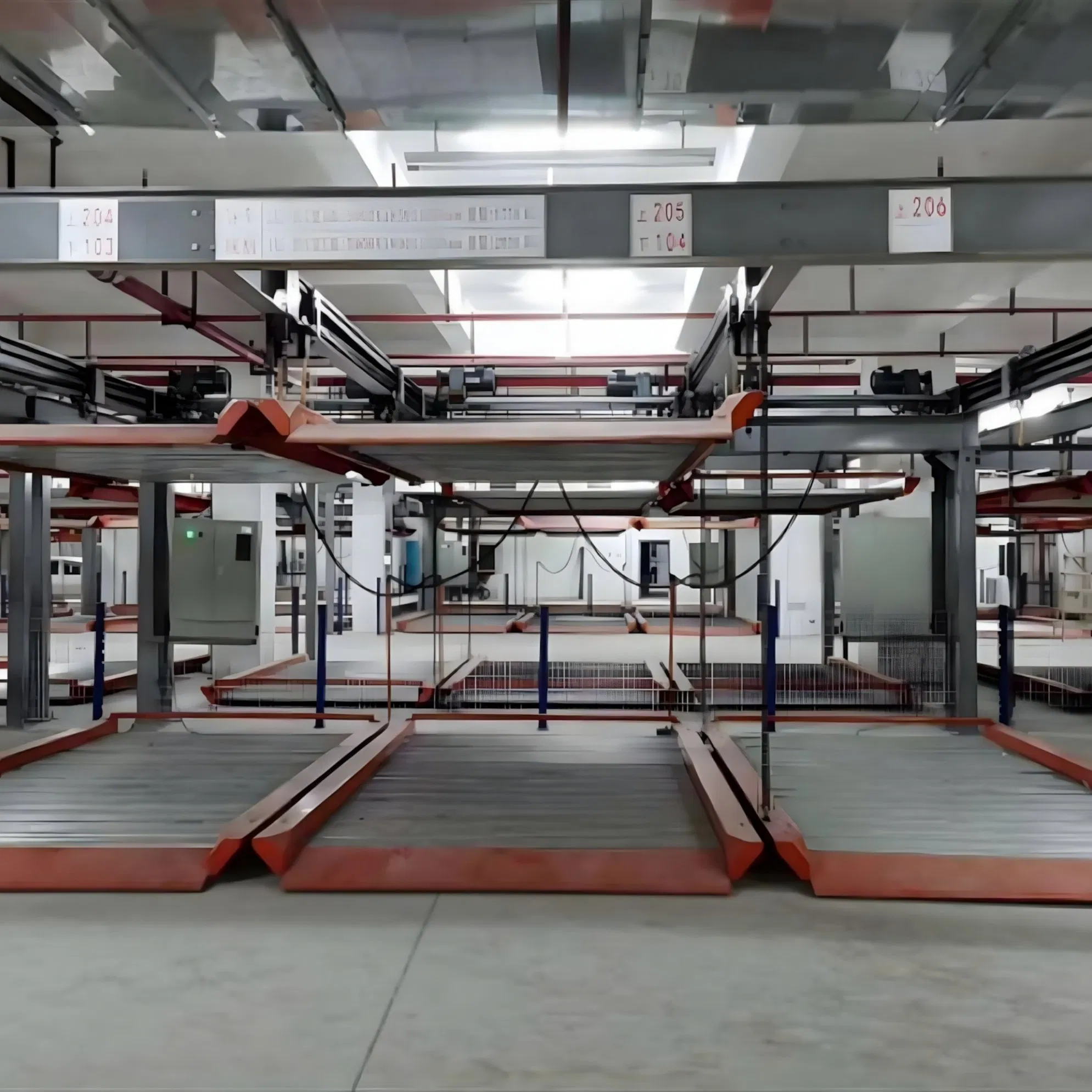

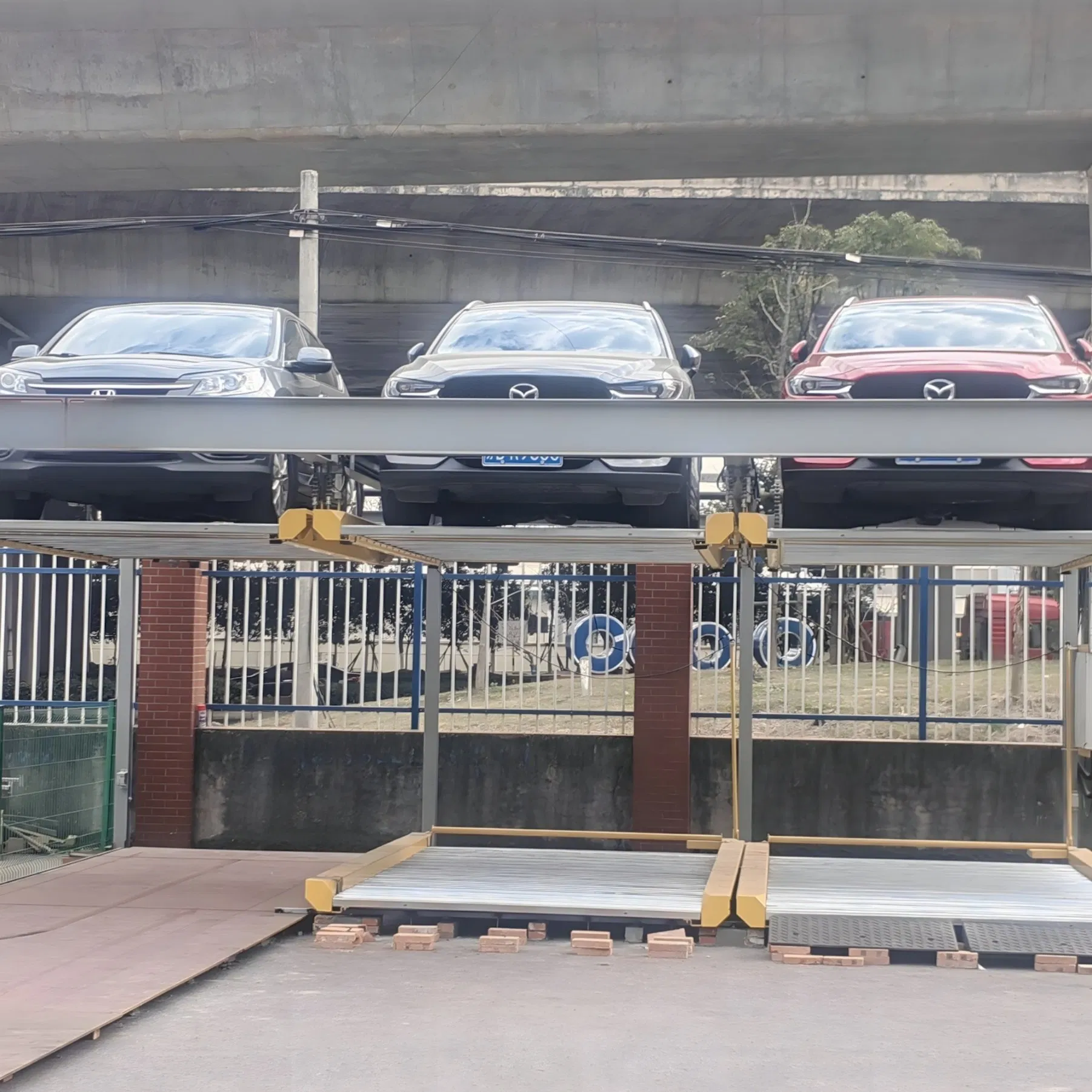

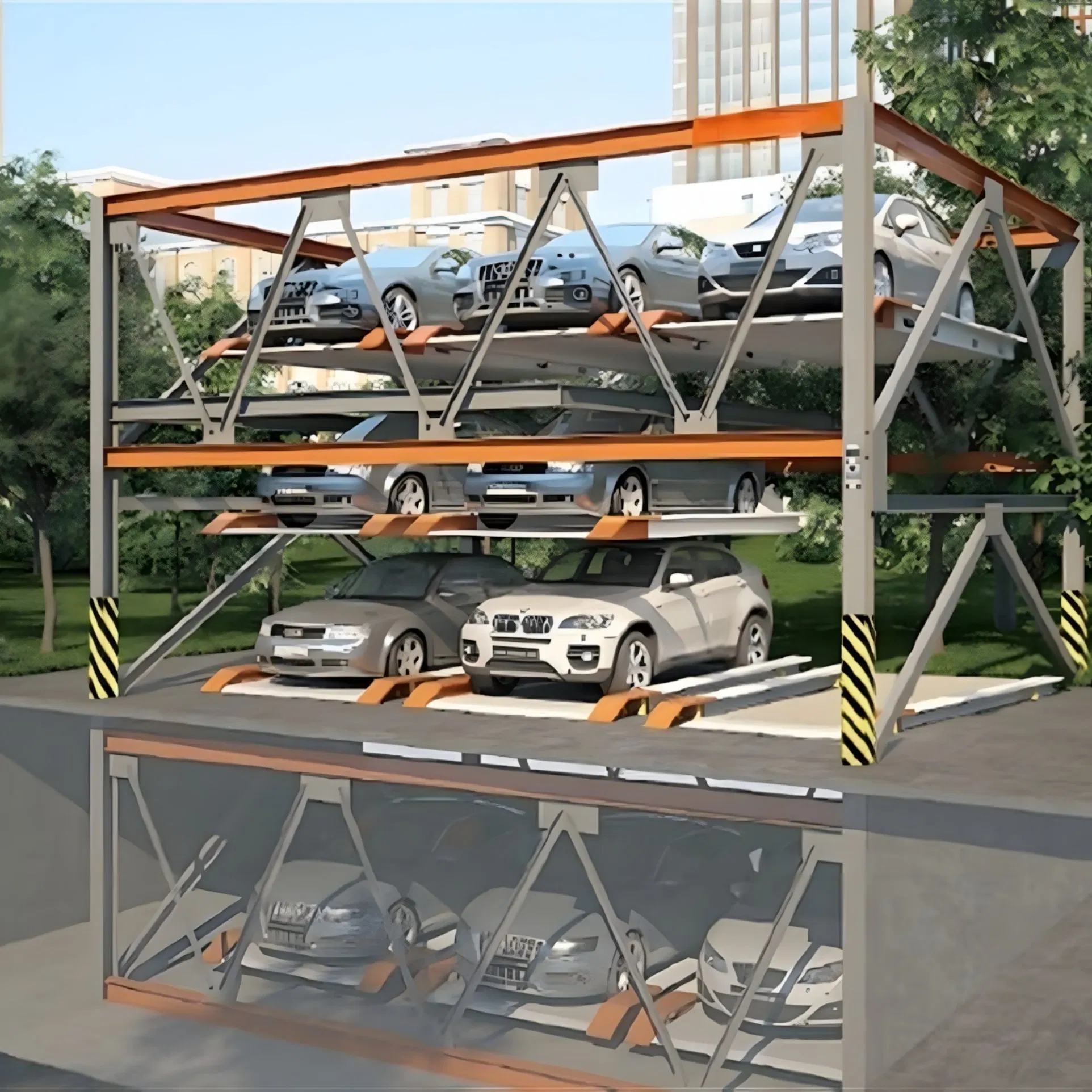

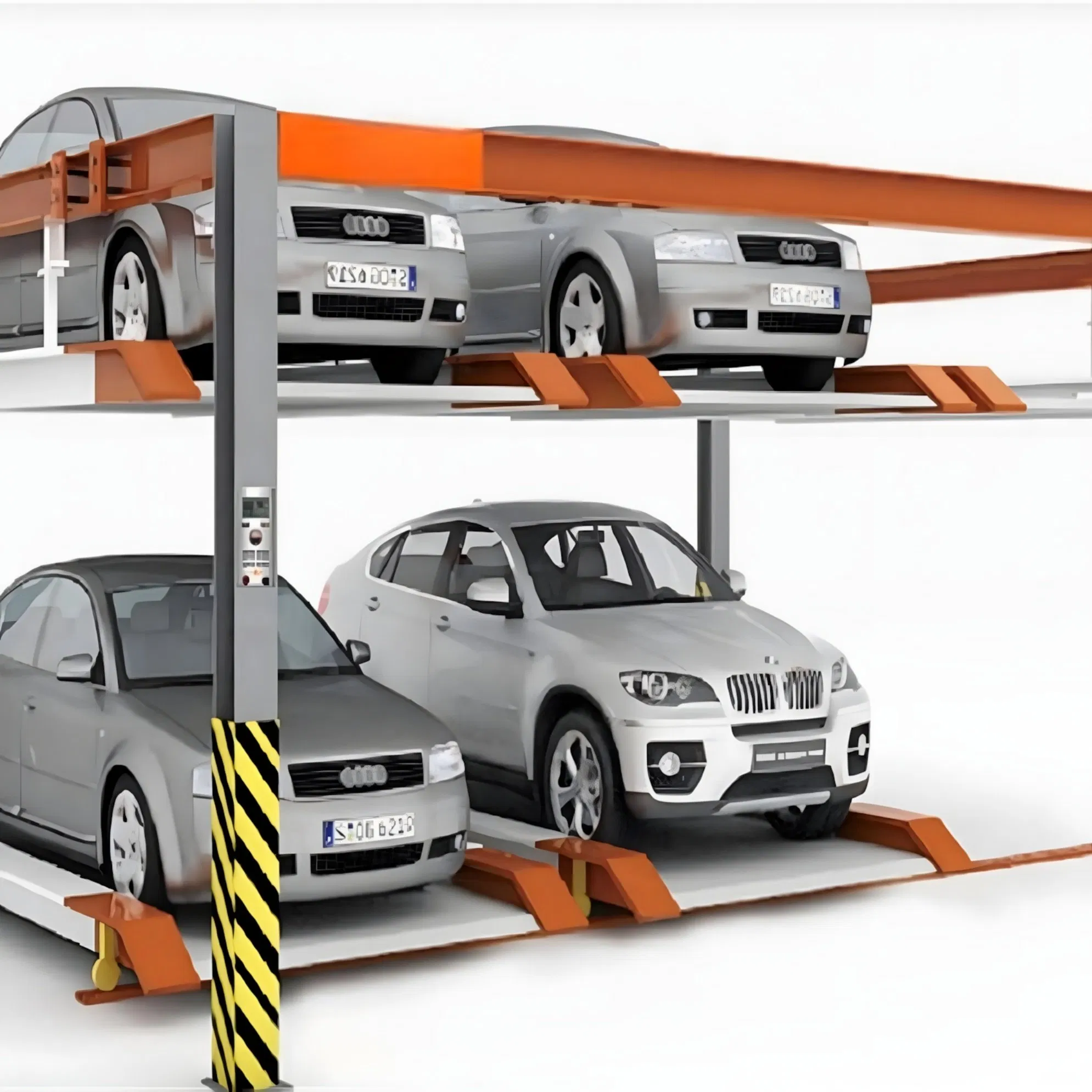

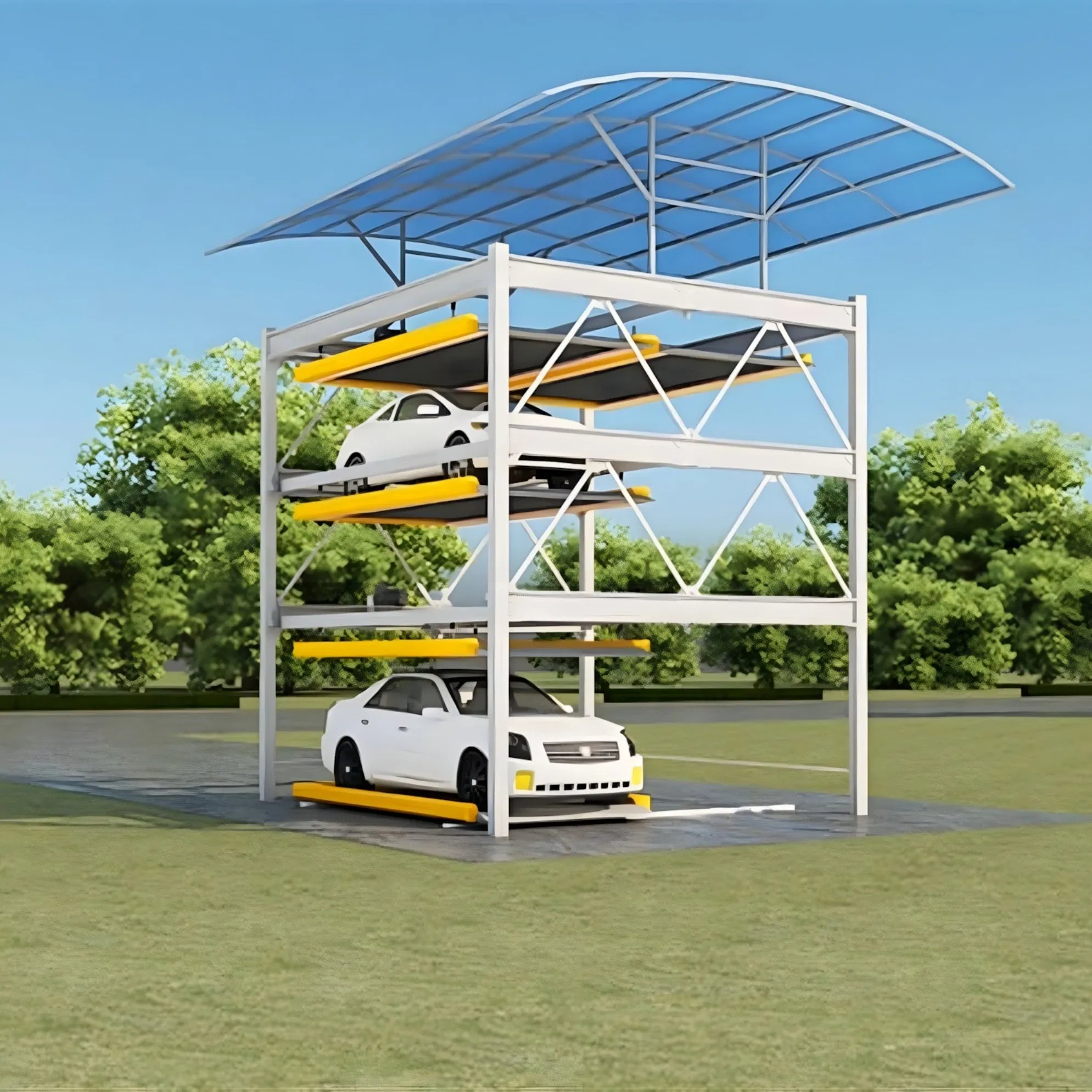

Compact Puzzle Parking System Designed with Modular Steel Frames to Double Parking Capacity in Limited Areas

Customization: Available
Level: 7-11levels
Parking Post: 25-99 Posts

Product Description

Basic Specifications
Color White
Installation Type Multi-Level, Surface Mount, Underground
Material Steel
Operation Mode Automatic
Power Source Electric, Solar
Suitable for Commercial Use, Public Parking, Residential Use
Warranty 2 Years
Vehicle Dimensions Sedan 5300*1900*1550 | SUV 5300*1900*2050 mm
Lifting Speed 8-12 M/Min
Lateral Speed 7.5 M/Min
Access Time 90s
Special Spec Customer Designed Support
Fall Prevention Anti-Fall Frame / Hook
Certification CE / ISO9001 / SGS
Drive System Motor / Hydraulic
Single Space Dim. 6.2m * 2.5m / 2.55m / 2.6m
Motor Power 0.2kw to 15kw Options
Drive Mode Motor Wire Rope, Hydraulic Wire Rope

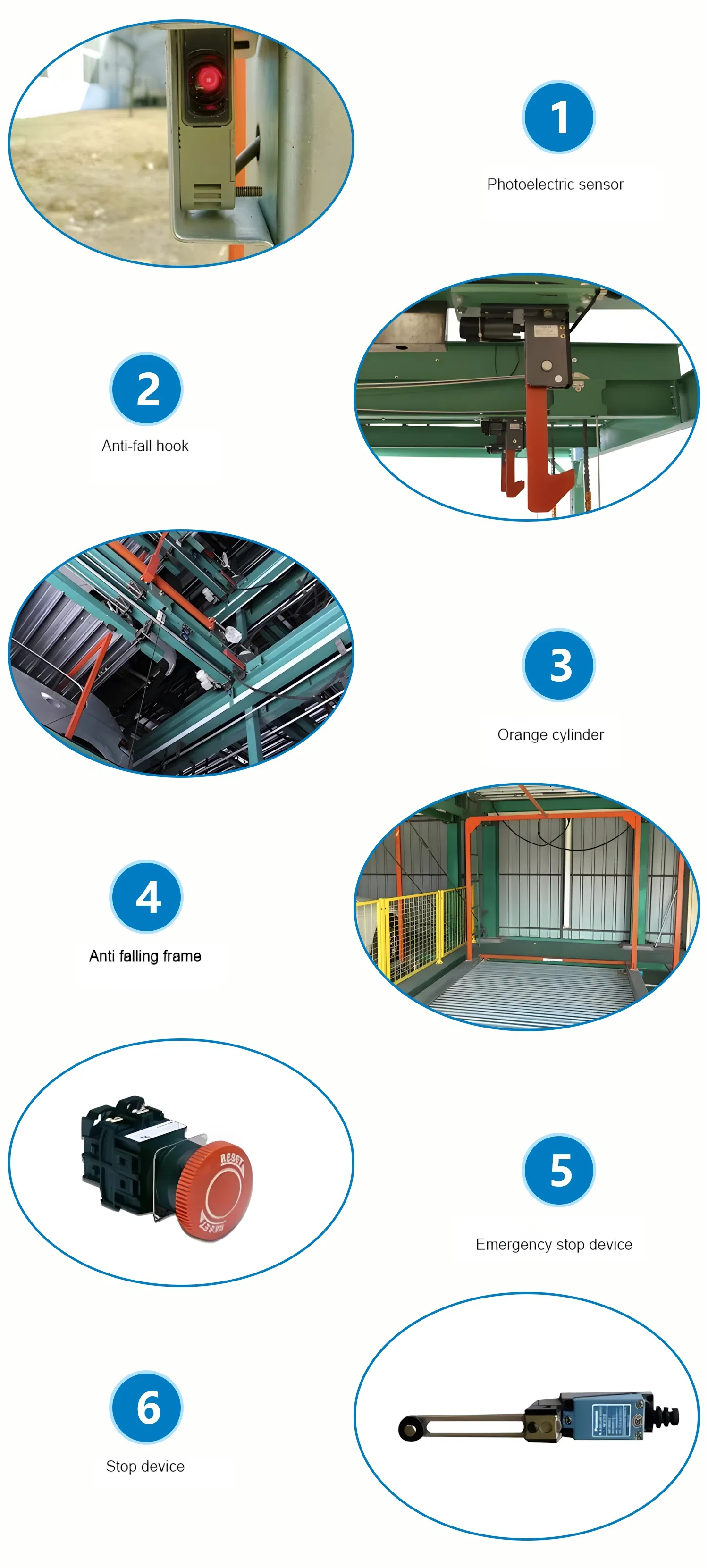

🛡️ Safety Features Included
Anti-slip Surface Emergency Stop Button Overload Protection Safety Railings Safety Sensors
Packaging & Delivery Information
Package Size 620.00cm * 260.00cm * 80.00cm
Gross Weight 800.000kg
Transport Package Wooden Crate, Steel Straps
Production Capacity 200,000 PCS/Year
Product Overview
Compact Puzzle Parking System Designed with Modular Steel Frames to Double Parking Capacity in Limited Areas
Product Name Puzzle Parking System Number of Layers Customizable
Car Model SUV, Sedan Vehicle Dimensions Sedan: 5300*1900*1550 | SUV: 5300*1900*2050
Load Capacity < 2350kg (Customizable up to 2500-3000kg+) Framework Material Carbon Steel / Specialty Steel
Surface Treatment Spray painting, zinc spraying, electroplating, electrophoresis Lifting Speed 6-21 m/min
Compact Puzzle Parking System Showcase

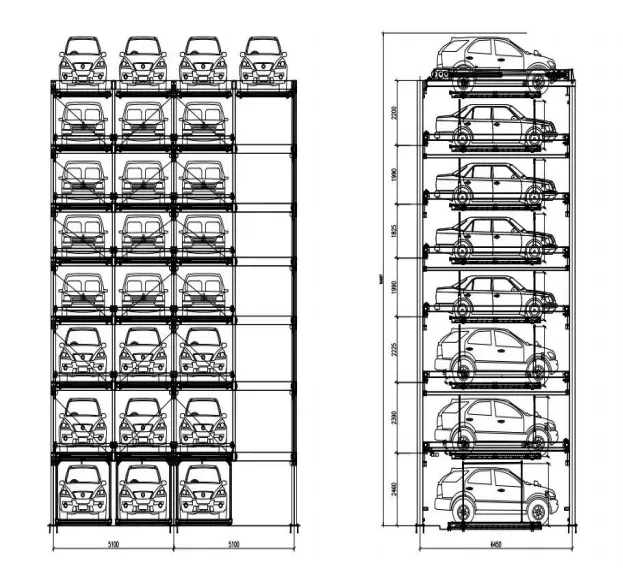

Structure Dimensions and Parameters Diagram
Maximizing Land Utilization Efficiency

This is the core advantage of the lifting and translating system. Traditional self-parking lots require reserved driveways, turning spaces, and pedestrian walkways, taking up substantial space. By using a mechanical structure of "upper-layer lifting and lower-layer translating", vehicles can be stacked vertically or arranged compactly, reducing the required area per car to only 10-15 square meters and increasing overall utilization efficiency by 2-3 times.

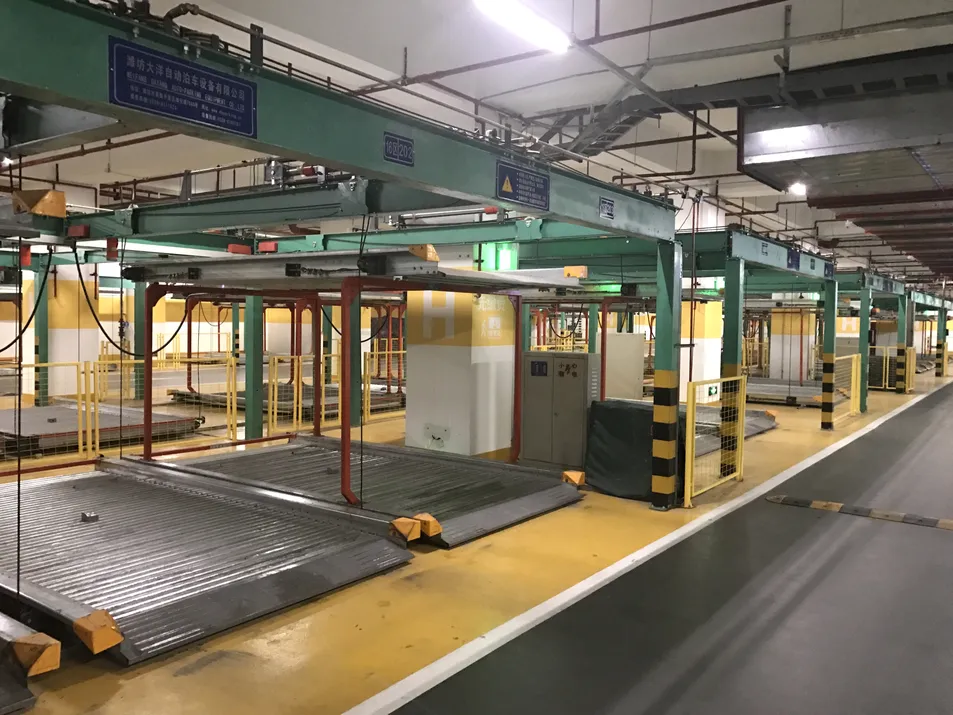

Land Utilization Comparison

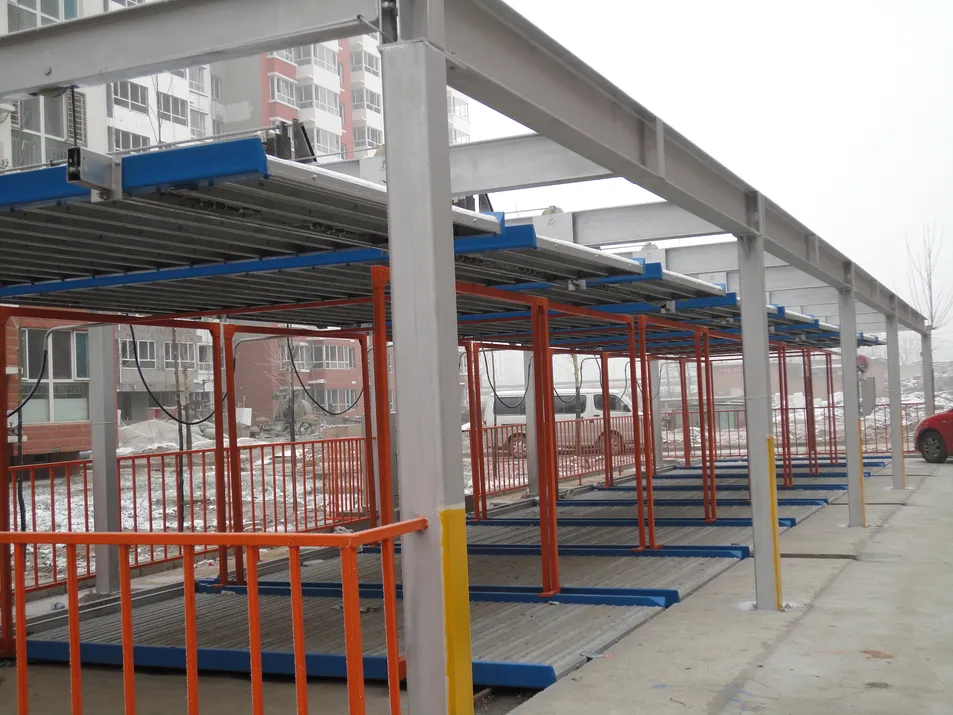

Reliable Structural Mechanics
🔧 Simple, Reliable Structure & Low Maintenance

1. Low Failure Rate: No complex aisles or rotating mechanisms are involved. The simple movement trajectory (lifting + translating) keeps maintenance concerns limited to basic wear-and-tear components like sensors and limit switches.

2. Controllable Costs: Core components have a long service life (designed service life of motors and chains is 8-10 years). Routine maintenance is minimal, requiring basic track lubrication and periodic tension inspections.

3. Flexible Adaptation: Layout configuration can easily be tailored into single-row, double-row, or multi-row designs matching the exact footprint of irregular sites.

Technical Layout Profile Plan
Design Blueprints Banner
Engineering Projects Showcase

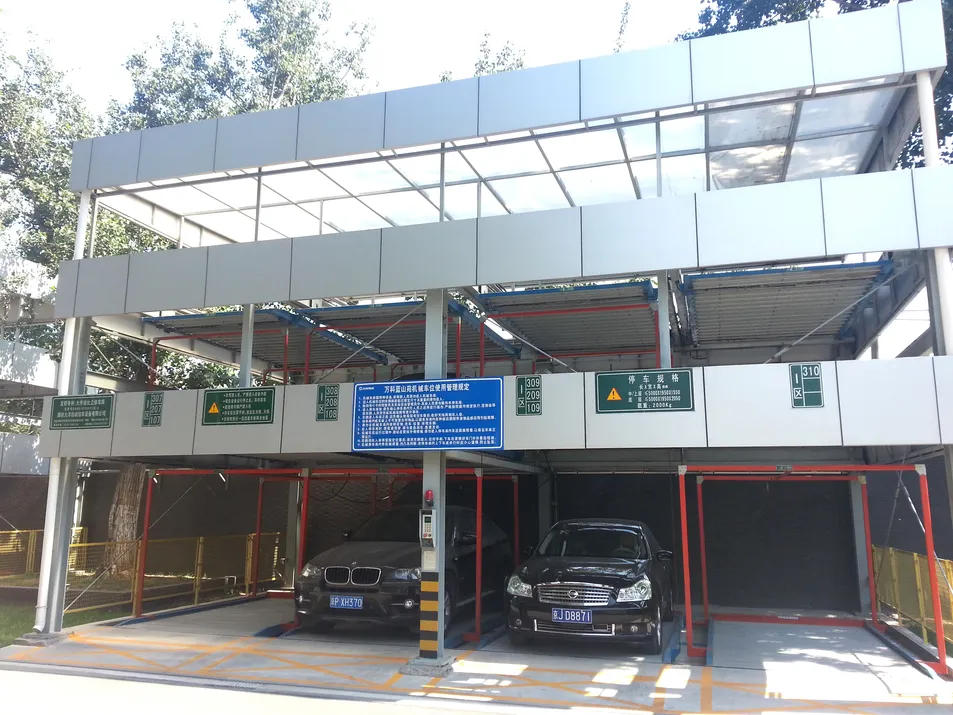

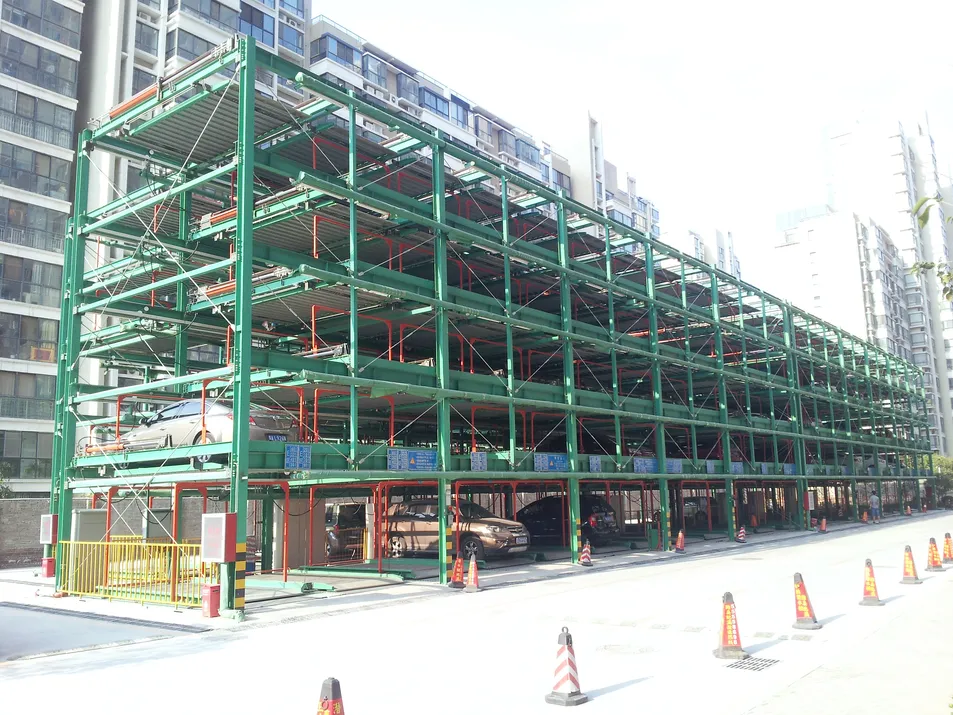

Multi-level Parking Installation Steel Framing Construction Site

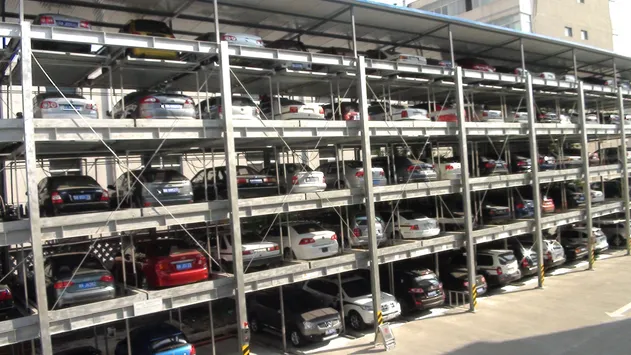

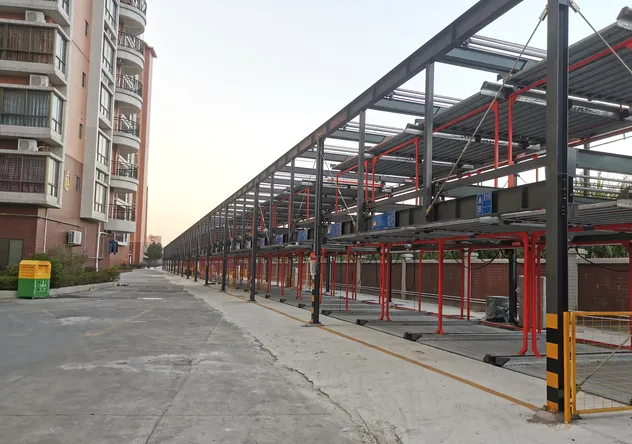

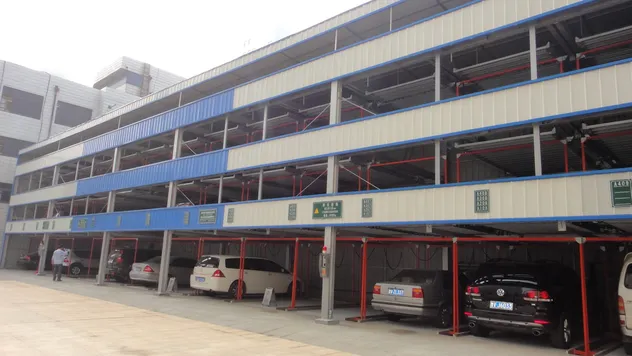

Completed Parking Project View 1 Completed Parking Project View 2 Completed Parking Project View 3
Global Operations Banner

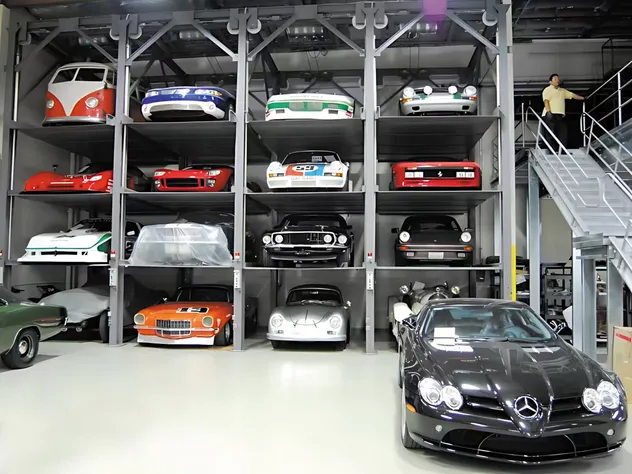

United States Parking Project
United States Parking Project
Type: Vertical Horizontal Parking System
Floor Count: 5 (1 Underground, 4 Onground)
Total Capacity: 38 Spaces

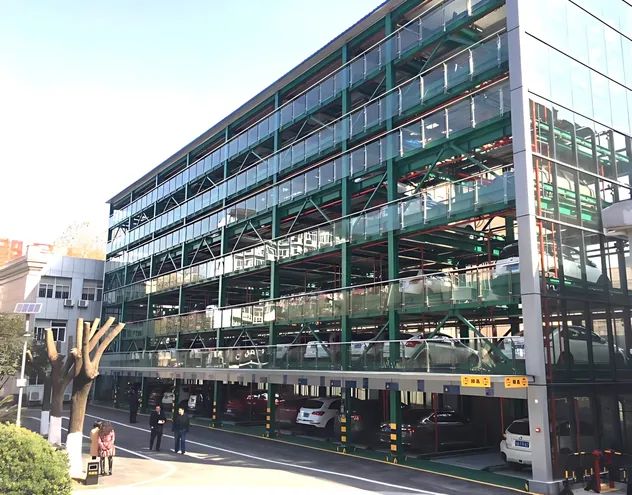

Saudi Arabia Parking Project
Saudi Arabia Parking Project
Type: Vertical Horizontal Parking System
Floor Count: 2 Floors
Total Capacity: 926 Spaces

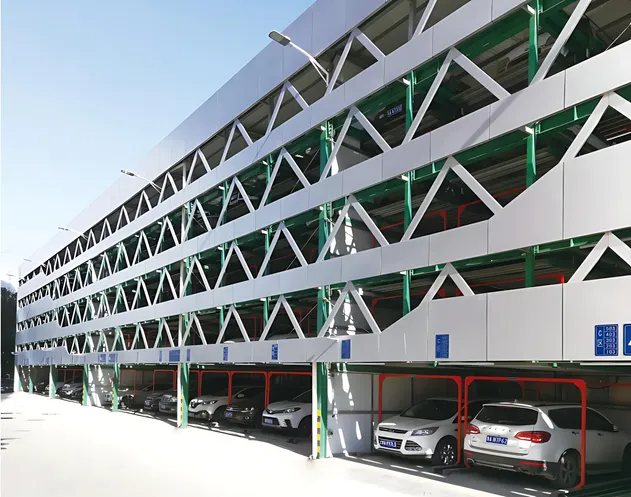

Municipal Development Project
Municipal Parking Project
Type: Smart Vertical Horizontal Parking
Floor Count: 5 Floors
Total Capacity: 1,338 Spaces
Custom Design, Fire & Earthquake Resistant
Site Engineering Drawing Layout 1 Site Engineering Drawing Layout 2
Product Spec Assembly 1 Product Spec Assembly 2 Product Spec Assembly 3
Company Overview
Corporate Profile and Factory Office

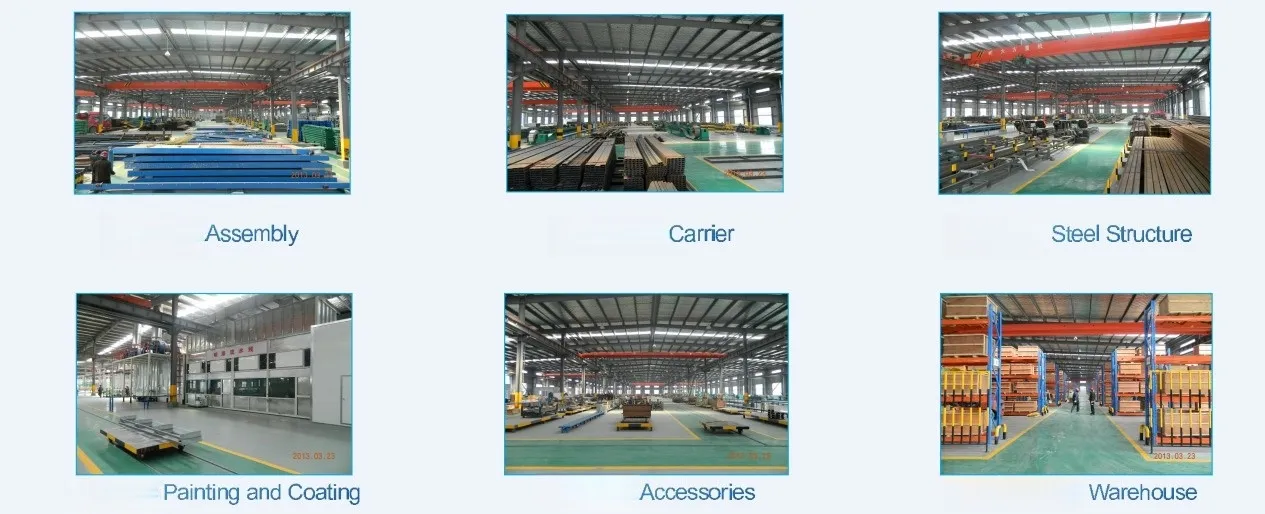

Manufacturing Facility
Facility Assembly Banner

The workshop covers an area of 50,000 square meters. Leveraging years of industrial production experience, the layout from initial blanking, machining, painting, and assembly to final logistics and dispatch is fully optimized. The facility holds an annual manufacturing capacity of 200,000 vehicle spaces.

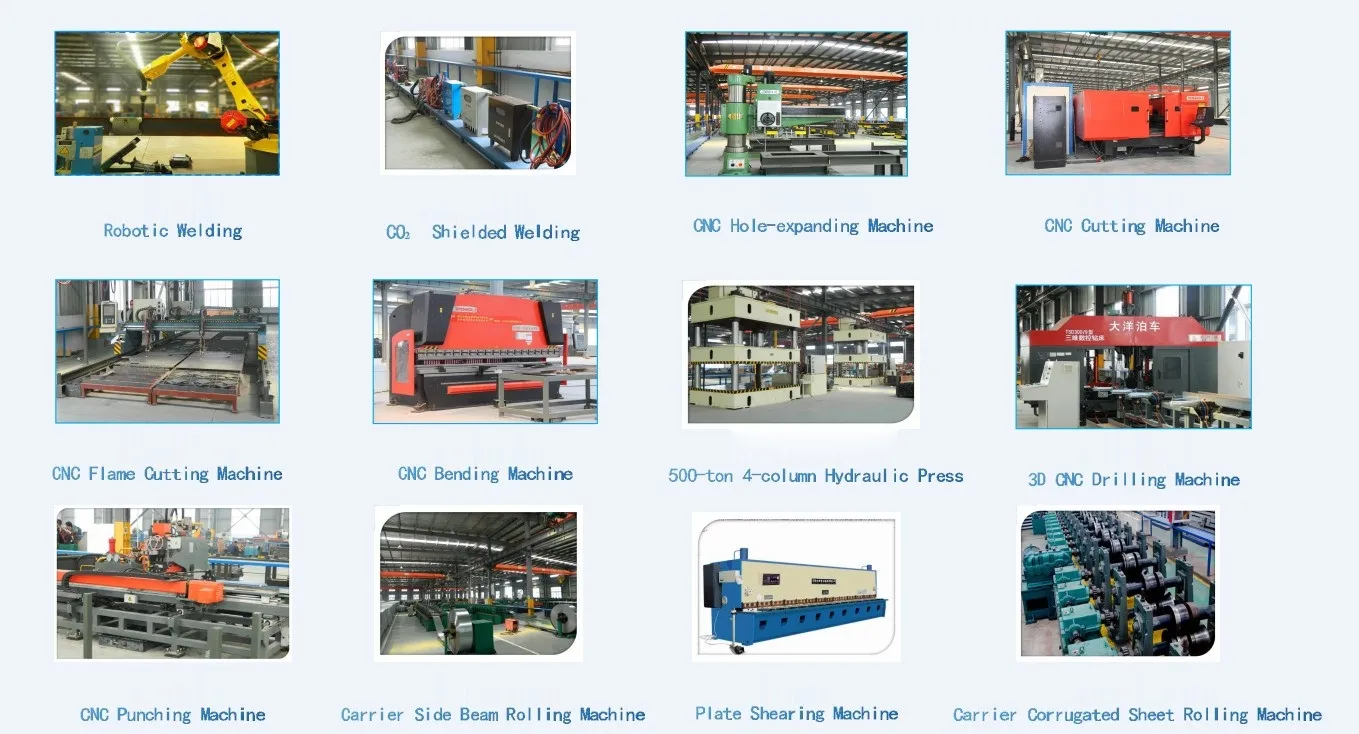

Machining Workshop View Precision Cutting and Assembly
Packing, Delivery & Quality Certifications
Package Handling and Loading
Quality Standard Certifications ISO CE
Frequently Asked Questions
1. How to prevent equipment corrosion in high-humidity areas?
Hot-dip galvanized steel and fluorocarbon spraying technology are used, with a salt spray test reaching 1000 hours. A dehumidification system can be optionally equipped to control humidity below 60%.
2. How to deal with icing in cold regions?
Heated car carriers (adjustable from -30ºC to 50ºC) are equipped, and the guide rails use anti-slip coatings. The low-temperature start-up technology can operate reliably in environments as low as -40 °C.
3. Can unmanned management be realized?
It supports AGV robots to transport vehicles; car owners only need to park at the entrance and leave. The built-in IoT system monitors equipment status in real-time and automatically alerts to abnormalities.
4. What is the construction cost of a multi-story parking garage?
Lifting and traversing types cost about 15,000-30,000 yuan per parking space, and vertical lifting types cost about 60,000-100,000 yuan per parking space. Comprehensive full-cycle cost optimization solutions are provided from design to operation, which can reduce energy consumption by up to 20%.
5. Are there government subsidy policies?
Some municipalities provide subsidies of up to 20,000 yuan per parking space for public multi-story parking garages. Support is provided to assist customers in applying for special funds, along with policy interpretation and declaration services.
6. What is the typical installation time for a puzzle parking system?
The installation timeline depends on the site structure, foundation prep, and the number of layers. A standard 20-30 space multi-level unit typically takes 10 to 15 days for setup and full safety commissioning by certified technicians.
