| System & Components | Specifications & Details | ||
|---|---|---|---|
| Electrical System | |||
| Controller | 48V | ||
| Battery | Lead-Acid & Lithium | ||
| Motor | 5KW(AC) Mahler motor | ||
| Charger | On board charger, 48V/25A | ||
| Body and Chassis Configuration | |||
| Front Windshield | Injection Molding | ||
| Roof | Plastic suction art & injection molding | ||
| Seat | Formed anti-skid floor leather | ||
| Floor | Injection molding of PP for automobile | ||
| Body | Injection molding | ||
| Rearview Mirror | Manually adjustable, foldable rearview mirrors left and right | ||

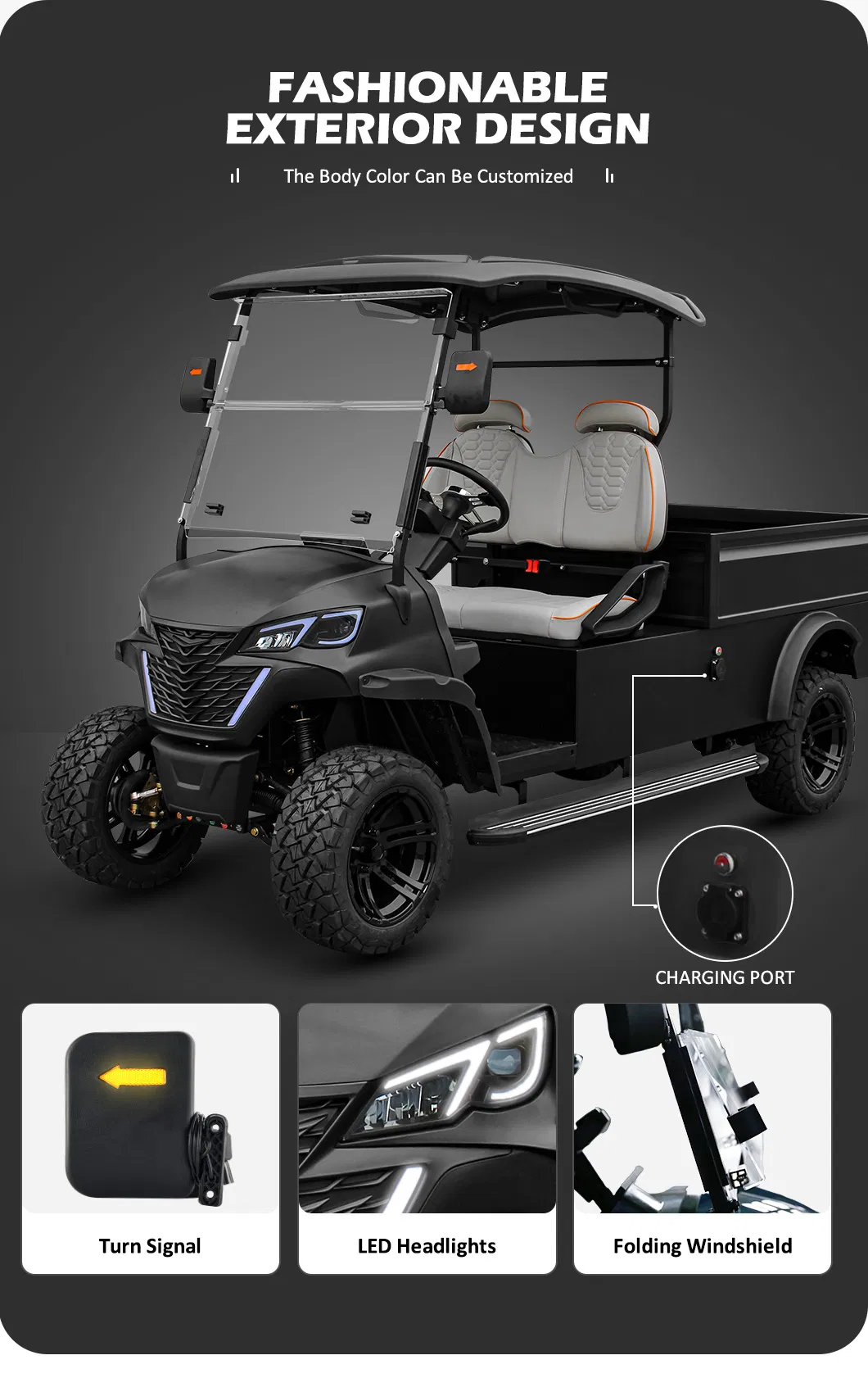

| Lighting and Signals | LED headlamp (low beam, high beam, steering light, clearance lamps), LED tail lamp (brake light, position light, steering light), snail horn, reversing buzzer | ||

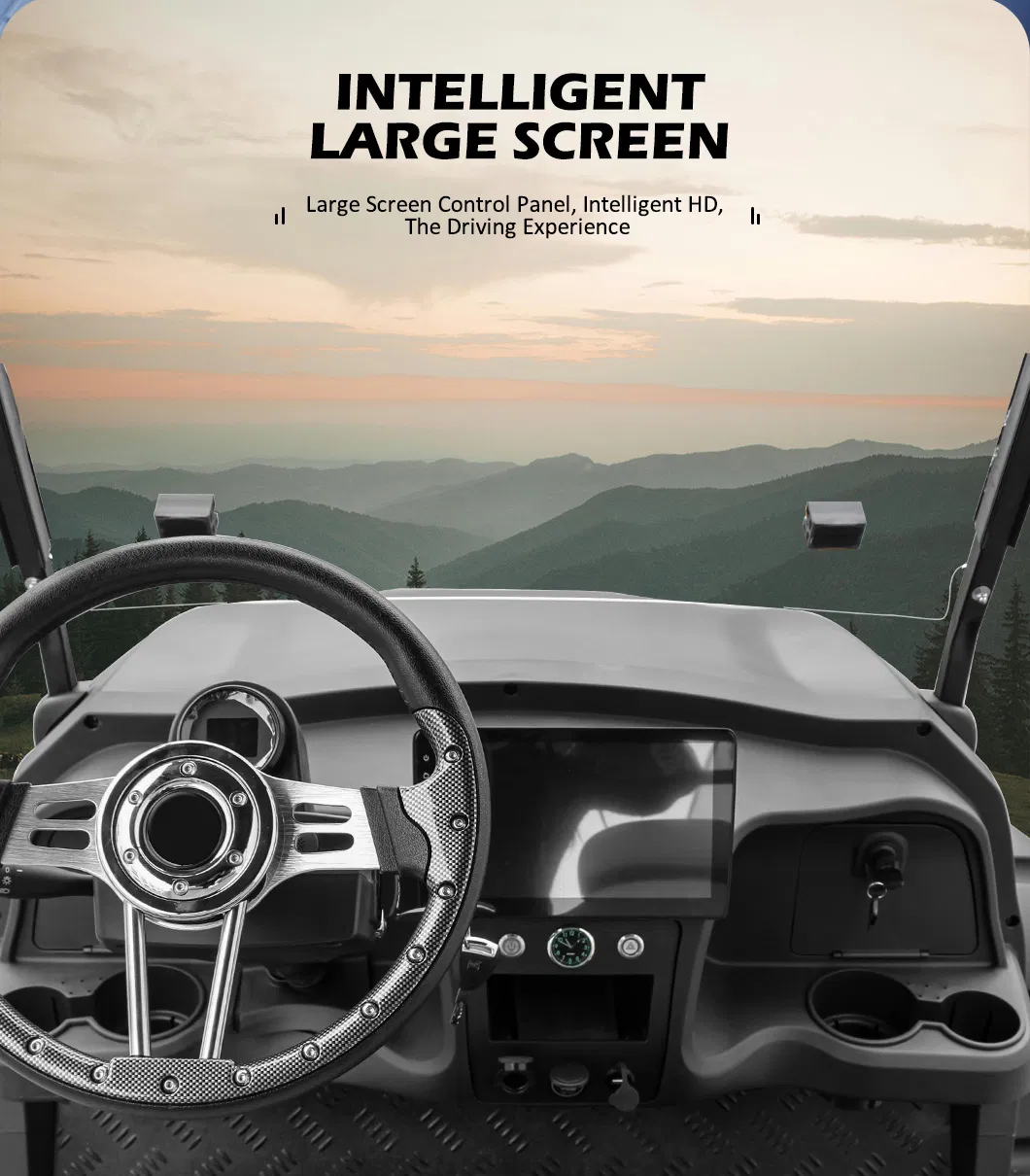

| Instrument Platform | Injection molding instrument, liquid crystal combination instrument, lock switch, single arm combination switch, gear switch, cup seat, 12V power supply | ||
| Direction System | Bidirectional rack and pinion steering system | ||
| Braking Systems | 4 wheel disc brake | ||
| Parking | Electromagnetic parking | ||

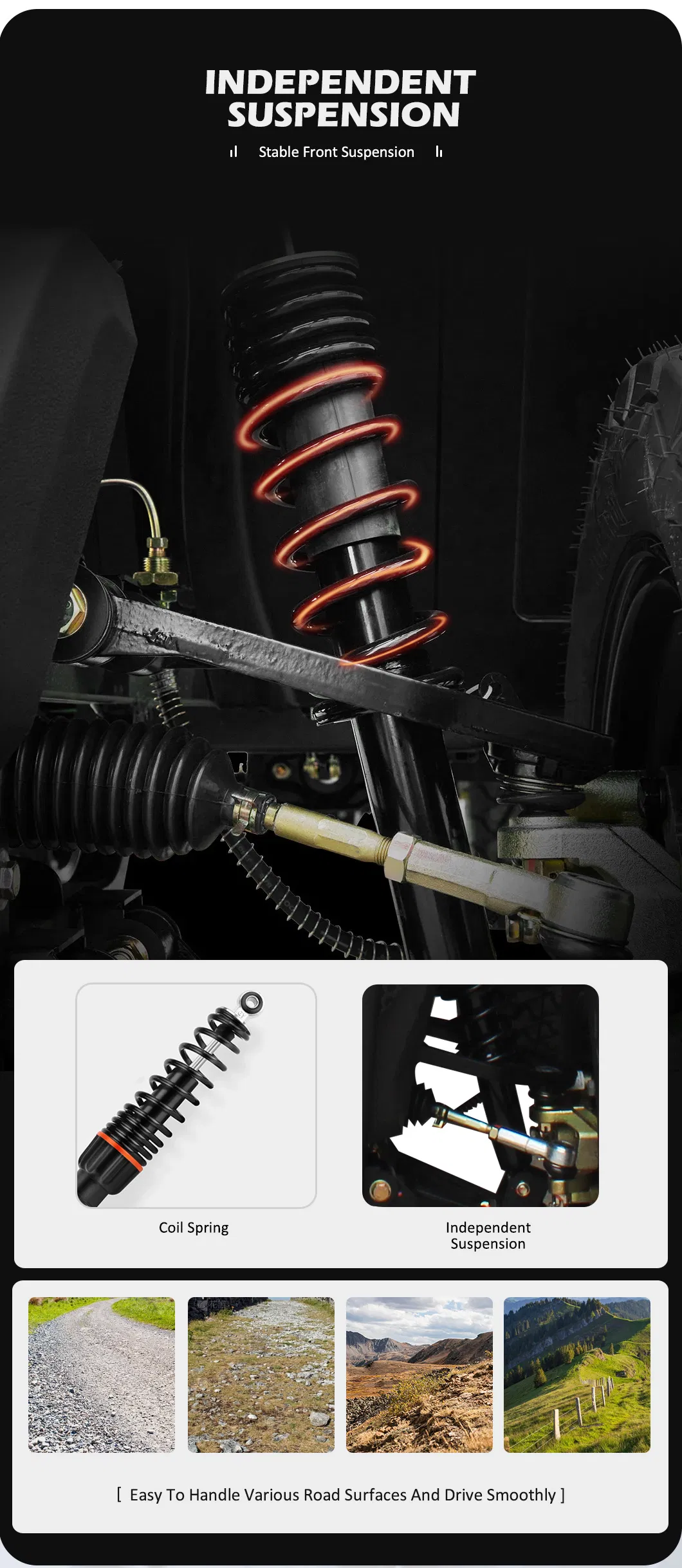

| Front Suspension System | Double-arm independent suspension | ||
| Rear Suspension System | Trailing arm | ||
| Tire Size | 12/14 inch | ||

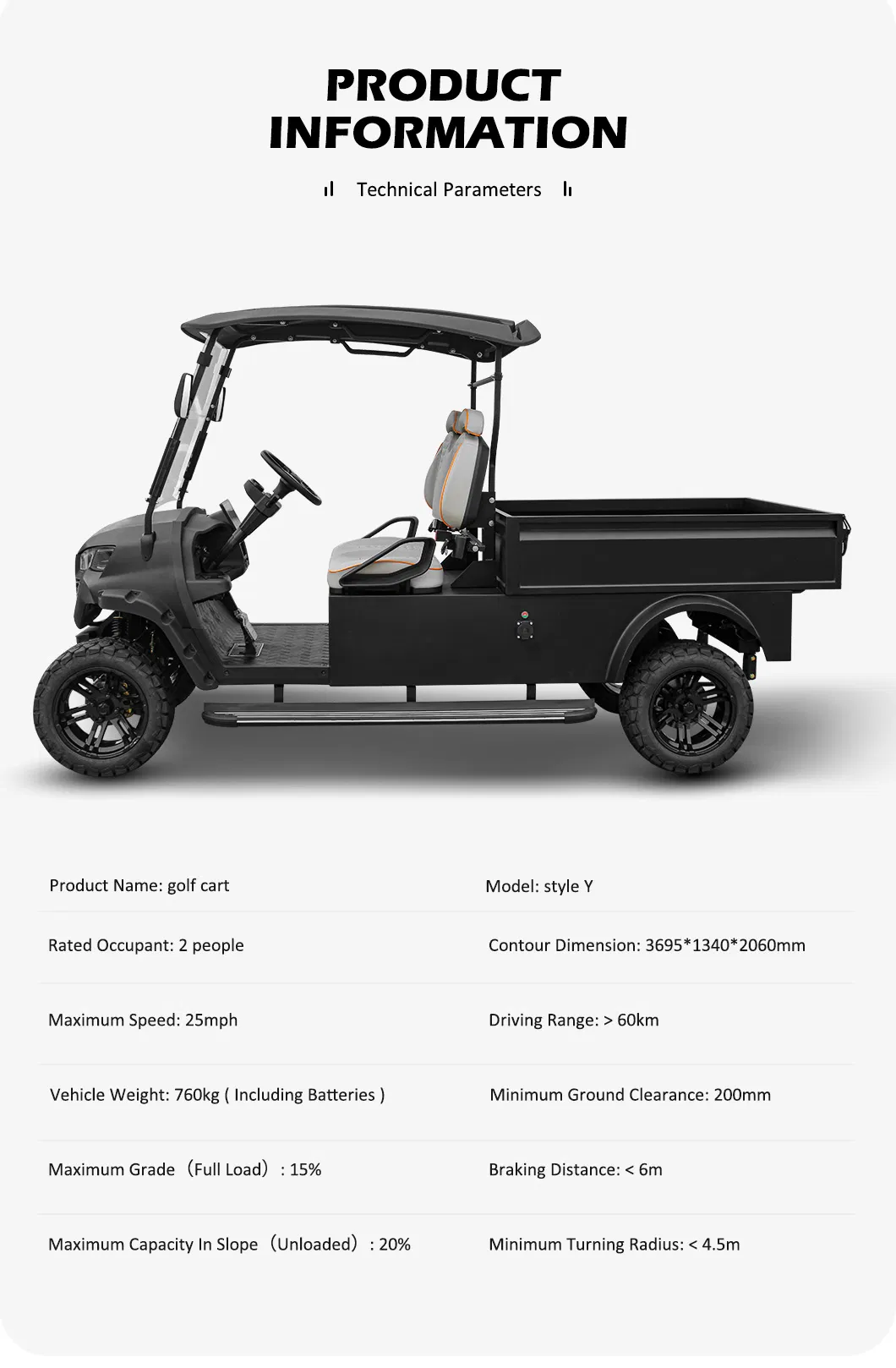

| Technical Performance Metrics | |||
| Contour Dimension (mm) | 3695*1340*2060 | Vehicle Weight (kg) | 760 (including batteries) |
| Passenger Capacity | 2 | Maximum Capacity In Slope (unloaded) | 20% |
| Maximum Speed (mph) | 25 | Minimum Turning Radius (M) | <4.5 |
| Driving Range (km) | >60 | Minimum Ground Clearance (mm) | 200 |
| Maximum Grade (full load) | 15% | Braking Distance (M) | <6 |
