Smart Modular Parking System with Puzzle Configuration and Easy Maintenance

Customization: Available
Level: 7-11levels
Parking Post: 25-99 Posts

Product Description

Overview

Smart Modular Parking System with Puzzle Configuration and Easy Maintenance
Color White Installation Type Multi-Level, Surface Mount, Underground
Material Steel Operation Mode Automatic

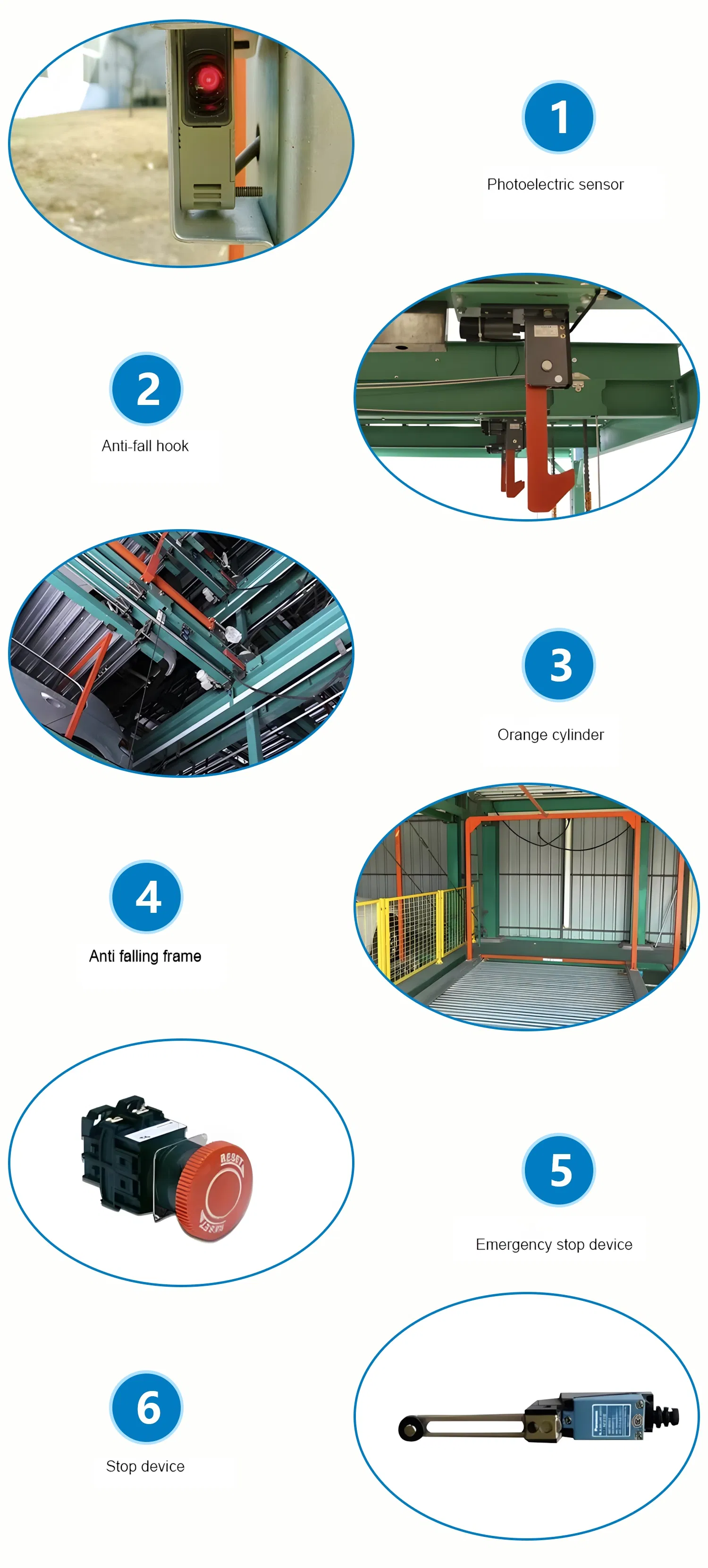

Power Source Electric, Solar Safety Features Anti-slip Surface, Emergency Stop Button, Overload Protection, Safety Railings, Safety Sensors
Suitable for Commercial Use, Public Parking, Residential Use Warranty 2 year
Vehicle Dimensions Sedan 5300*1900*1550 SUV 5300*1900*2050 Lifting Speed 8-12 M/Min
Lateral Speed 7.5 M/Min Access Time 90s
Special Specification Customer Designed Falling Prevention Device Anti-Fall Frame / Hook
Certification CE/ISO9001/SGS Drive Motor/Hydraulic
Single Parking Space 6.2m*2.5m/2.55m/2.6m Motor Power 0.2kw,2.2kw,3.7kw, 4kw,5.5kw,11kw,15kw
Drive Mode Motor Wire Rope, Hydraulic Wire Rope Transport Package Wooden Crate, Steel Straps
Specification 6200× 1900× 2050 mm Origin China
Production Capacity 200000PCS/Year

Packaging & Delivery Details

Package Size 620.00cm * 260.00cm * 80.00cm
Package Gross Weight 800.000kg

Product Description

Product Name Puzzle Parking System Number of layers Customizable
Car Model SUV, Sedan Vehicle dimensions Sedan 5300*1900*1550
SUV 5300*1900*2050
Load capacity Less than 2350kg, can be customized to 2500-3000kg or even heavier Framework Material Carbon Steel/Specialty Steel
Surface treatment Spray painting, zinc spraying, electroplating, electrophoresis Lifting speed 6-21 m/min
Access Time 90s Lateral speed 7.5 m/min
Motor power 0.2-15KW Color Customizable
Certification CE/ISO9001/SGS Drive type Motor/Hydraulic
Smart Modular Parking System with Puzzle Configuration and Easy Maintenance
Smart Modular Parking System with Puzzle Configuration and Easy Maintenance
📐 Maximizing Land Utilization Efficiency to Address the Core Pain Point of "Parking Difficulty"

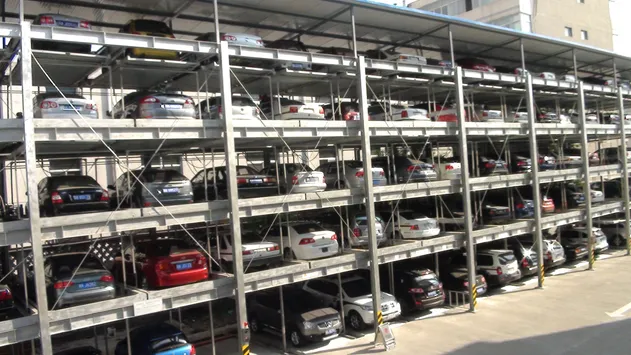

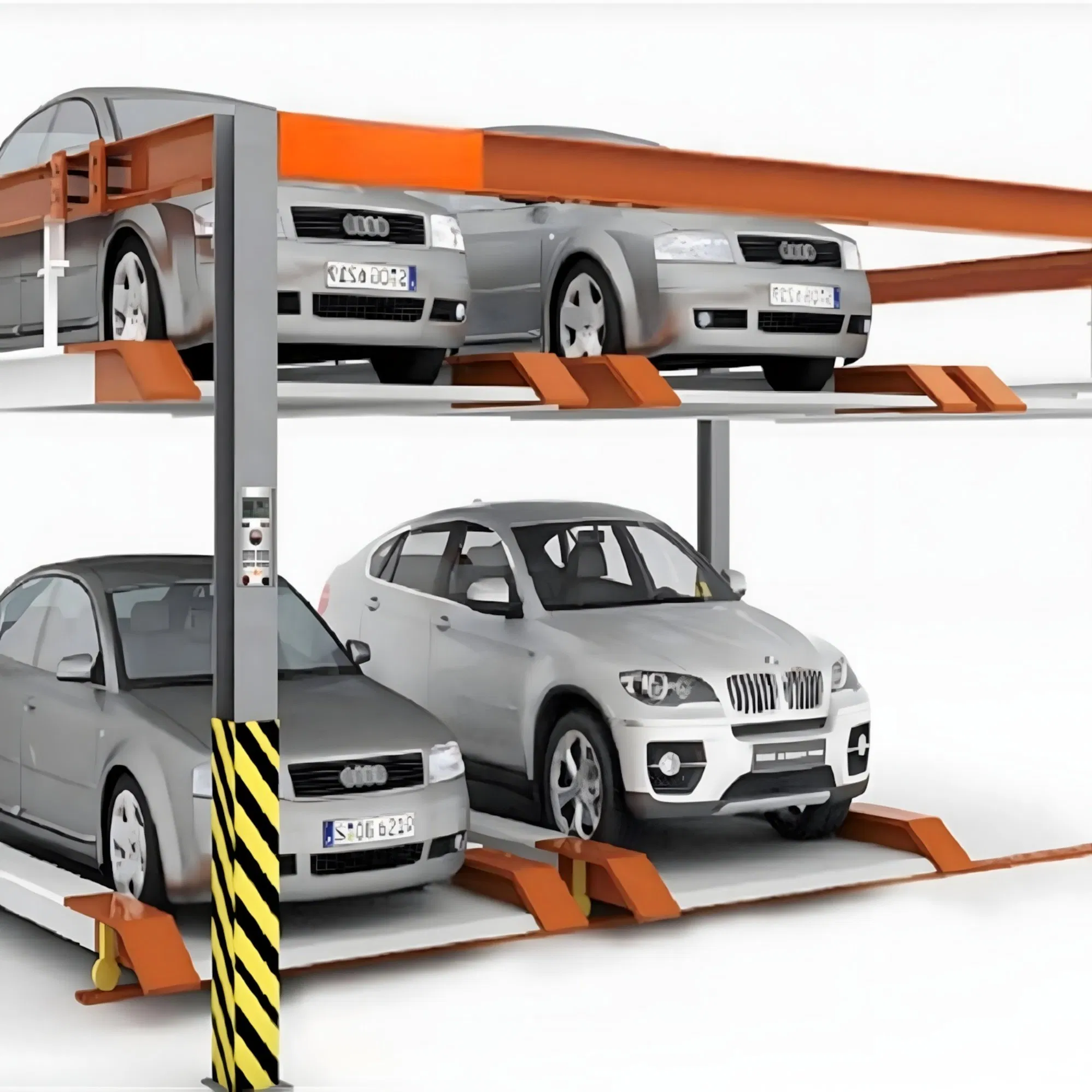

This is the most core advantage of the lifting and translating system. Traditional self-parking lots require reserved driveways, turning spaces, and pedestrian walkways, with a typical area of 30-40 square meters per car (including access roads). In contrast, the lifting and translating system uses a mechanical structure of "upper-layer lifting and lower-layer translating" to "stack vehicles vertically" or "arrange them compactly". As a result, the area per car is only 10-15 square meters (excluding equipment foundations), increasing land utilization efficiency by 2-3 times.
Smart Modular Parking System with Puzzle Configuration and Easy Maintenance
Smart Modular Parking System with Puzzle Configuration and Easy Maintenance
⚙️ Simple and Reliable Structure, Low Maintenance Costs, and High Practicality
1. Low failure rate: There are no complex aisles or rotating mechanisms, and the movement trajectory is simple (only lifting + translating). Daily failures are mostly concentrated on vulnerable parts such as sensors and limit switches, which are easy to repair.
2. Controllable maintenance costs: Core components have a long service life (the designed service life of motors and chains is 8-10 years). Daily maintenance only requires regular track lubrication and inspection of wire rope/chain tension. The annual maintenance cost is approximately 2%-3% of the total equipment price (much lower than the 5%-8% of tower parking systems).
3. Adaptability to various sites: It can be flexibly designed into "single-row, double-row, or multi-row" layouts according to the site shape (rectangular, irregular). Moreover, it has low requirements for ground bearing capacity (usually 3-5 kN/m²), so no large-scale ground reinforcement is needed for the renovation of old residential communities.
Smart Modular Parking System with Puzzle Configuration and Easy Maintenance
Smart Modular Parking System with Puzzle Configuration and Easy Maintenance
Smart Modular Parking System with Puzzle Configuration and Easy Maintenance Smart Modular Parking System with Puzzle Configuration and Easy Maintenance
Smart Modular Parking System with Puzzle Configuration and Easy Maintenance Smart Modular Parking System with Puzzle Configuration and Easy Maintenance Smart Modular Parking System with Puzzle Configuration and Easy Maintenance
Smart Modular Parking System with Puzzle Configuration and Easy Maintenance

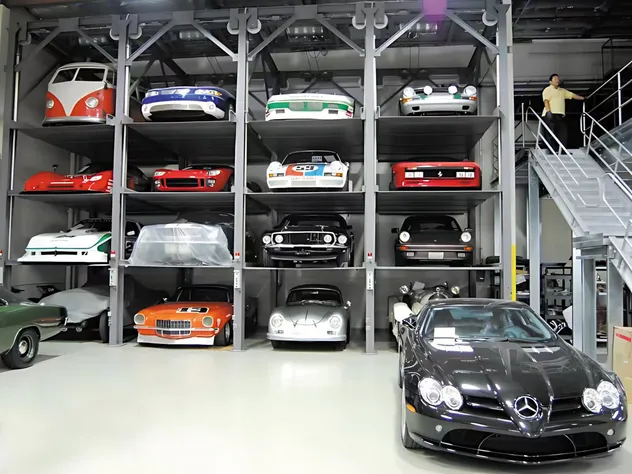

United States Parking Project
United States Parking Project
Type: Vertical Horizontal Parking System
Floor: 5 (1-floor underground and 4 onground)
Quantity of Parking Spaces: 38
Saudi Arabia Parking Project
Saudi Arabia Parking Project
Type: Vertical Horizontal Parking System
Floor: 2
Quantity of Parking Spaces: 926

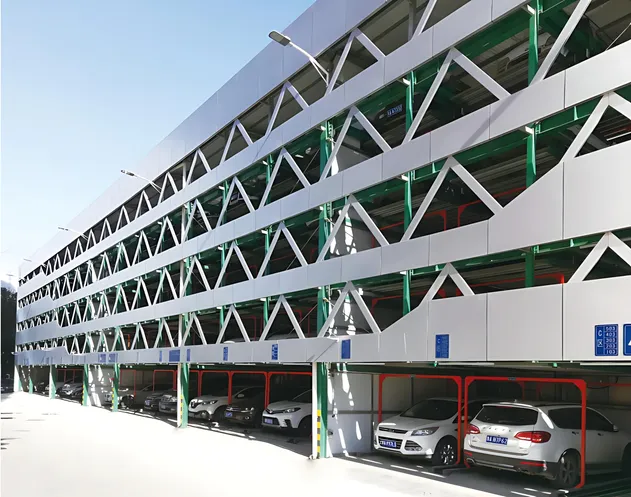

Zhengzhou Construction Committee Parking Project
Zhengzhou Construction Committee Parking Project
Type: Smart Vertical Horizontal Parking System
Floor: 5
Quantity of Parking Spaces: 1,338
Advantage: Customized Design with Comprehensive Facilities, High Safety Standards, Fire & Earthquake Resistant
Smart Modular Parking System with Puzzle Configuration and Easy Maintenance
Smart Modular Parking System with Puzzle Configuration and Easy Maintenance
Smart Modular Parking System with Puzzle Configuration and Easy Maintenance Smart Modular Parking System with Puzzle Configuration and Easy Maintenance Smart Modular Parking System with Puzzle Configuration and Easy Maintenance

Company Profile

Company Profile Details

Our Facility

Our Facility Banner

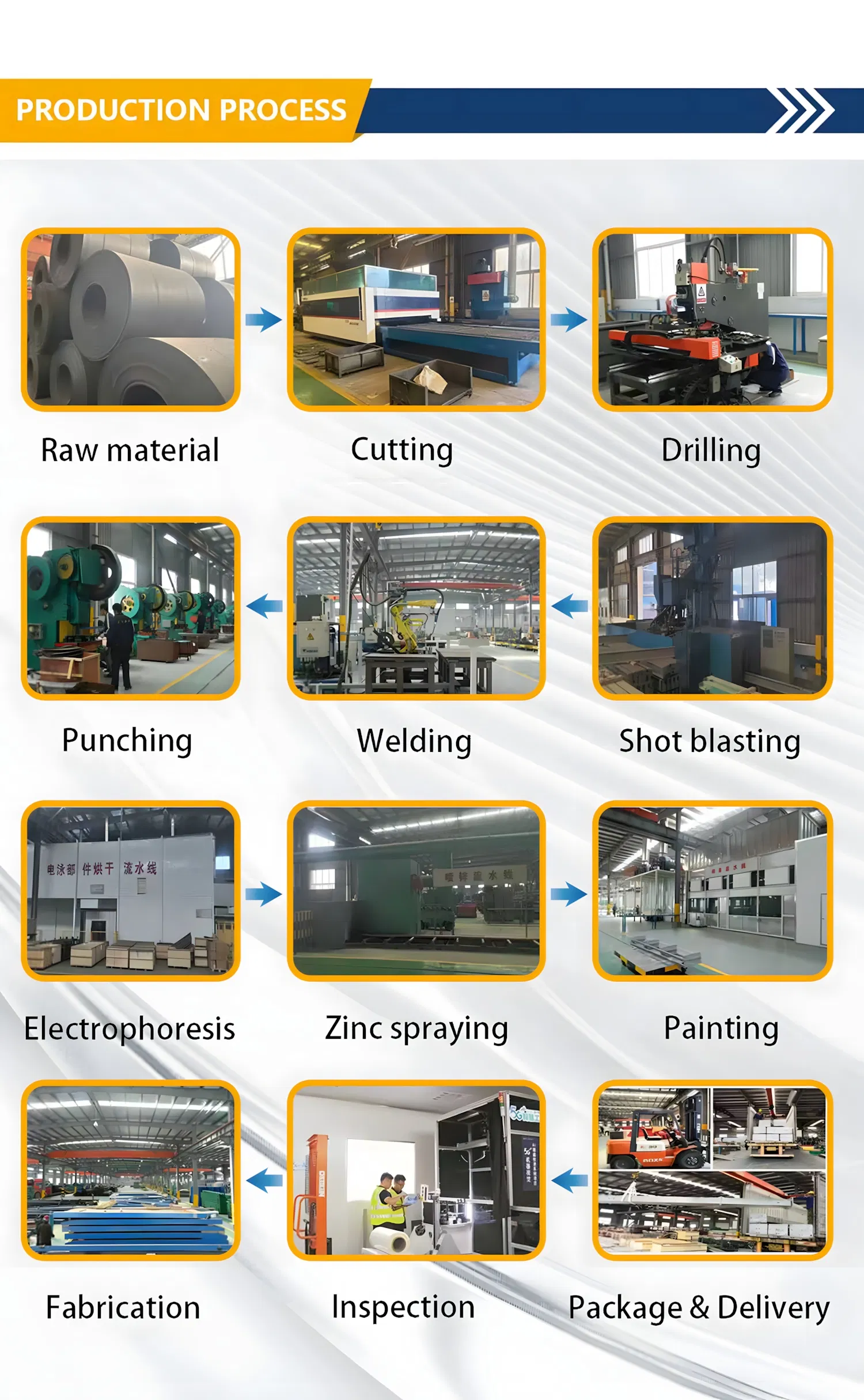

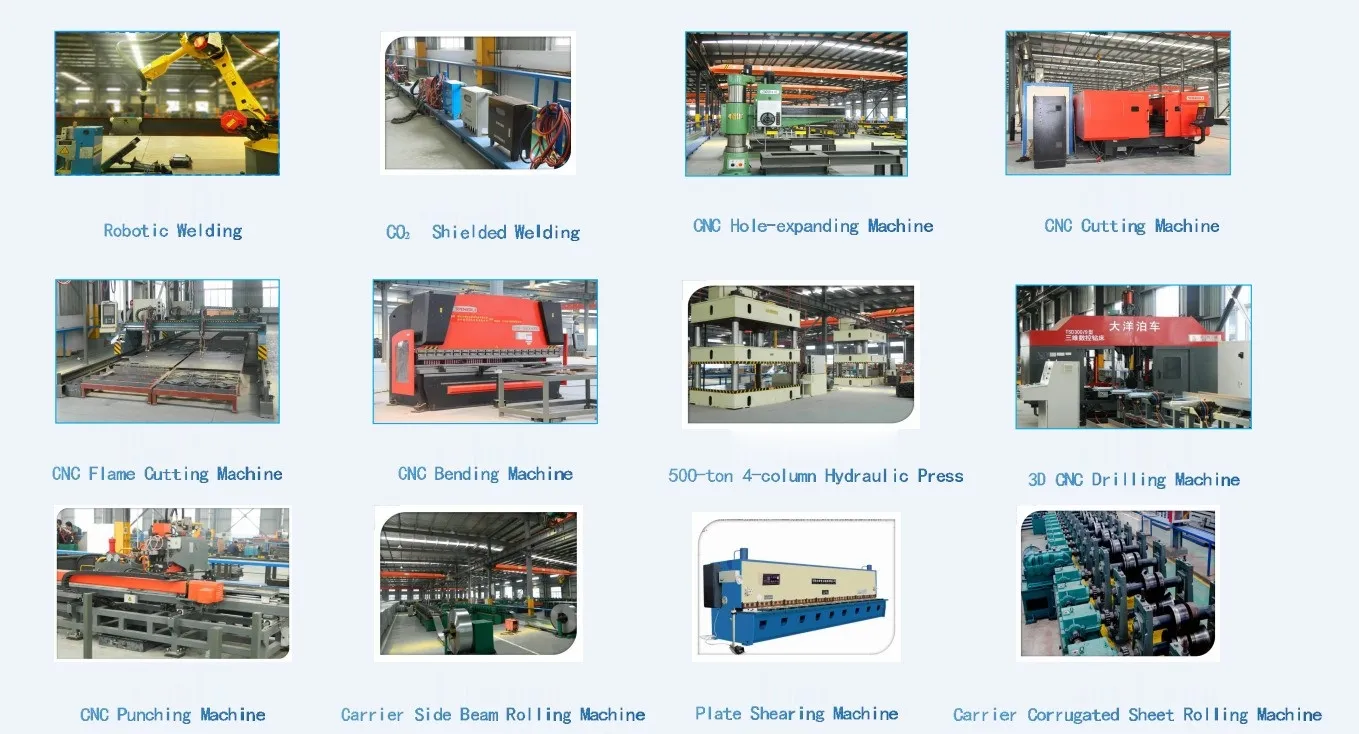

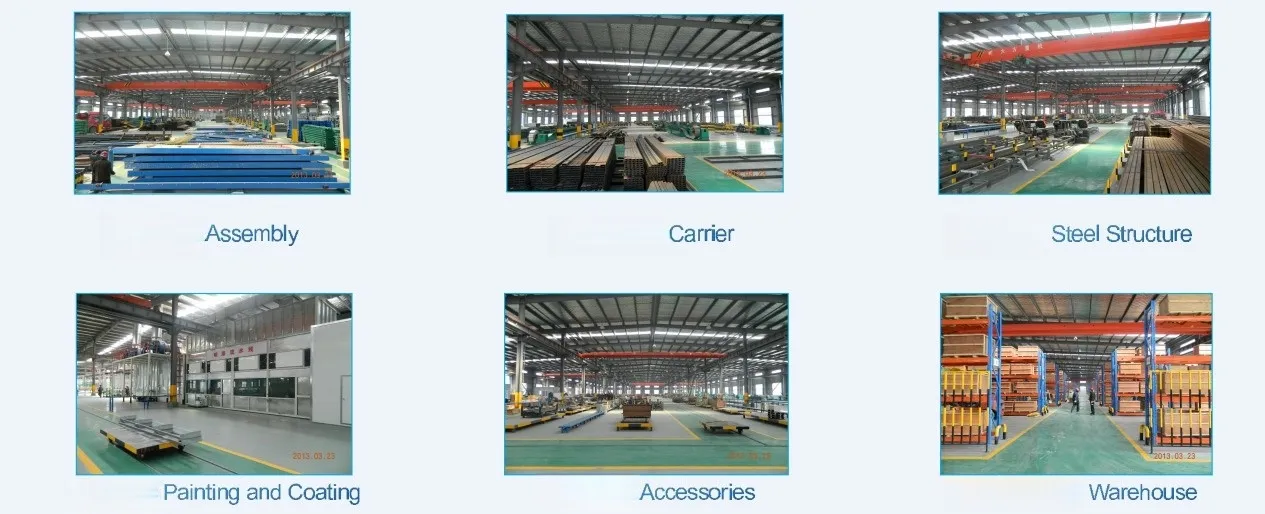

The workshop at Weicheng Plant covers an area of 50,000 square meters. With years of production experience, the entire process from blanking, machining, painting, assembly to logistics and delivery has achieved a scientific and rational layout. Currently, it has an annual production capacity of 200,000 vehicle units.
Facility Image 1 Facility Image 2

Packing & Delivery

Packing and Delivery Overview

Certifications

Certifications Proof

Frequently Asked Questions

Q1: How to prevent equipment corrosion in high-humidity areas?
A: Hot-dip galvanized steel and fluorocarbon spraying technology are used, with a salt spray test reaching 1000 hours. A dehumidification system can be optionally equipped to control humidity below 60%.
Q2: How to deal with icing in cold regions?
A: Heated car carriers (adjustable from -30ºC to 50ºC) are equipped, and the guide rails use anti-slip coatings. Our low-temperature start-up technology can operate reliably in environments as low as -40 °C.
Q3: Can unmanned management be realized?
A: It supports AGV robots to transport vehicles; car owners only need to park at the entrance and leave. Our IoT system can monitor equipment status in real-time and automatically alert to abnormalities.
Q4: What is the construction cost of a multi-story parking garage?
A: Lifting and traversing types cost about 15,000-30,000 yuan per parking space, and vertical lifting types cost about 60,000-100,000 yuan per parking space. We provide full-cycle cost optimization solutions from design to operation, which can reduce energy consumption by 20%.
Q5: Are there government subsidy policies?
A: Places like Shenyang provide a maximum subsidy of 20,000 yuan per parking space for public multi-story parking garages. We can assist customers in applying for special funds and provide policy interpretation and declaration services.
