12V High Quality Gel Battery Control System Emergency Medical Systems

1 / 5

12V High Quality Gel Battery Control System Emergency Medical Systems

Customization:	Available
Type:	Gel
Usage:	Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat

Send Inquiry

Product Description

Constant Safe Power For You!

Durable GEL VRLA Battery CG Series

Basic Info

Model NO.

CG12-70

Nominal Voltage

12V

Discharge Rate

Low Discharge Rate

Shape

Square Battery

Electrolyte

Gel

Installation

Fixed

Rechargeable

Chargeable

Color

Orange/Black/ Gray

Warranty

3 Years

Bolt

Size

350*167*178*178mm

Capacity

75ah

Weight

22kg

Floating Service Life

12~15 Years

50% Dod

1100~1250cycles

Temperature Use

-20 to 60 Degrees Celsius

Certificates

CE, IEC, ISO

Transport Package

Carton and Pallet

Trademark

OEM

Production Capacity

1000000PCS/Month

Product Description

CG 12V Series Sealed Free Maintenance VRLA GEL battery, owning a 12-15 years long design life, is your best partner for the solar market and hot climate areas.

The CG series batteries are recognized as one of the most reliable and high-quality battery systems in the industry. Designed with advanced patented GEL technology, they offer 1200 cycles at 50% DOD and comply with popular international standards including IEC60896-21/22, BS6290-4, and Eurobat Guide.

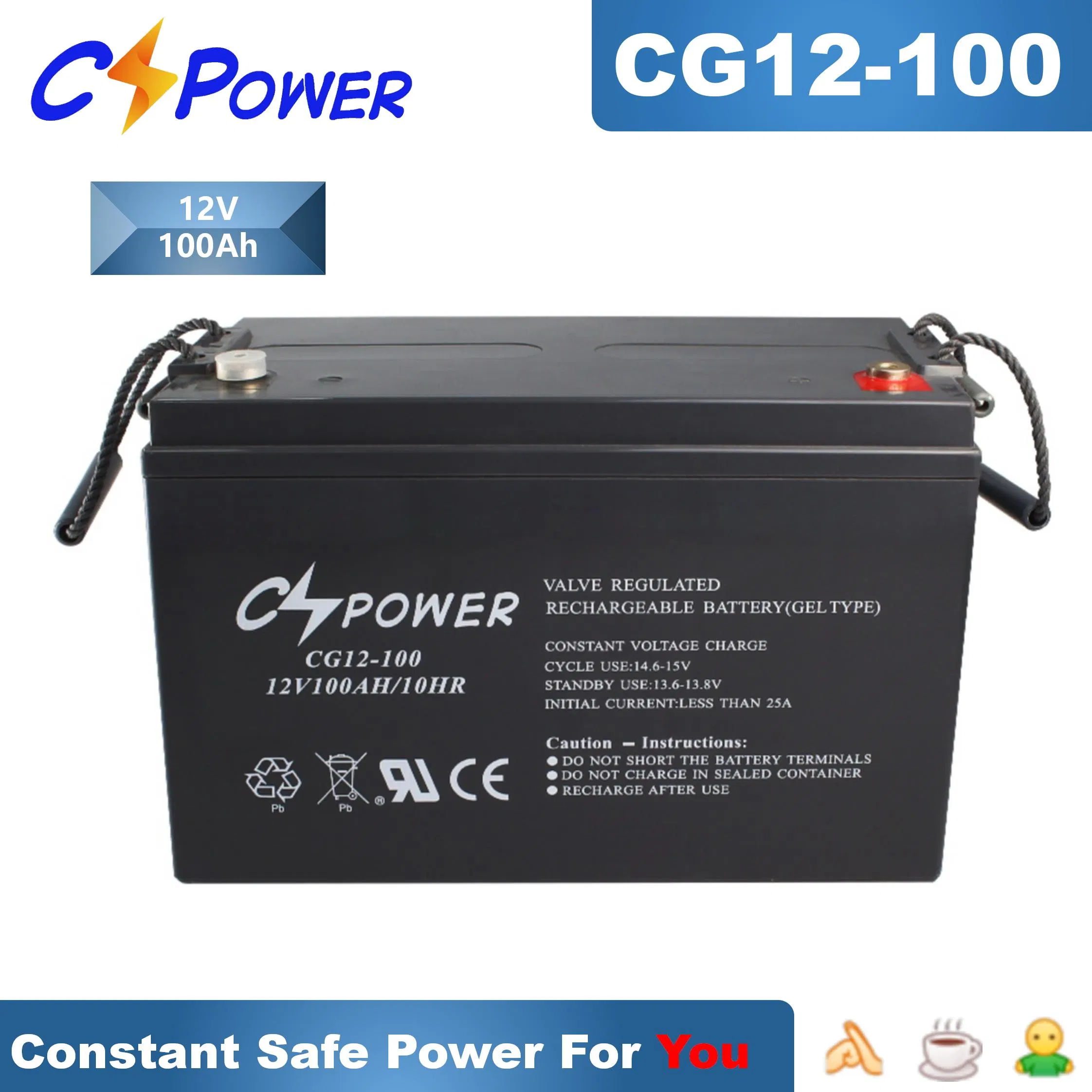

Advanced Features (12V100Ah, 150Ah, 200Ah models)

◆Environmentally friendly
◆Completely Maintenance-Free
◆Non-Spillable construction design
◆Wide Operating Temperature Range (-20°C to +60°C)
◆Longer Life (15 years design life)
◆Explosion Proof design
◆Valve Regulated & High Discharge Rate Capability
◆Low Self Discharge rate
◆Position independent installation
◆Ease of Shipment
◆No balanced charge or boost required
◆No Memory effect

VRLA SMF Battery Applications

◆Communication and Telecommunication control equipment
◆Emergency lighting & Fire security systems
◆Electric power systems & Power stations
◆Solar and wind-powered generation plants
◆UPS & stand-by power for computers
◆Marine and medical equipment

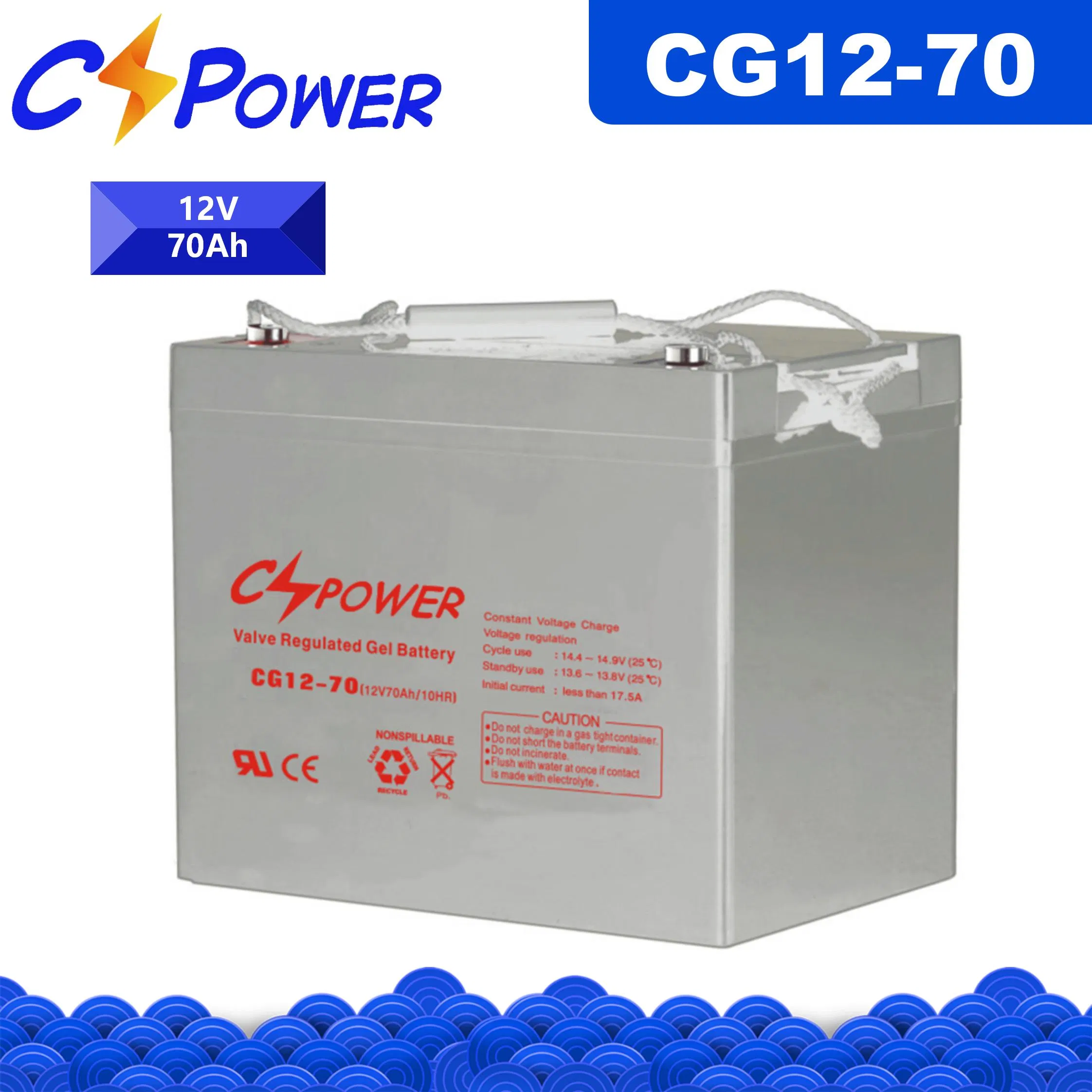

Deep Cycle GEL Battery CG12-70 Parameters

CG12-70 specifications
Nominal Voltage			12V (6 cells per unit)
Design Floating Life @ 25ºC			12 Years
Nominal Capacity @ 25ºC		10 hour rate, 10.8V	70Ah
Capacity @ 25ºC		20 hour rate (3.89A, 10.8V)	77.8Ah
		5 hour rate (12.8A, 10.5V)	64Ah
		1 hour rate (46.6A, 9.6V)	46.6Ah
Internal Resistance		Full Charged Battery @ 25ºC	≤7.0mΩ
Ambient Temperature		Discharge	-20ºC~60ºC
		Charge	-10ºC~60ºC
		Storage	-20ºC~60ºC
Max. Discharge Current			420A (5s) @ 25ºC
Capacity affected by Temp. (10 Hr)		40ºC	105%
		25ºC	100%
		0ºC	85%
		-15ºC	65%
Self-Discharge @ 25ºC per Month			3%
Charge @ 25ºC	Standby Use	Initial Current Less than 17.5A, Voltage 13.6-13.8V
Charge @ 25ºC	Cycle Use	Initial Current Less than 17.5A, Voltage 14.4-14.9V
Dimension (mm)	350±1 (L) * 167±1 (W) * 178±1 (H) (Total Height 178±1)
Weight (kg)	22.0 ±3%

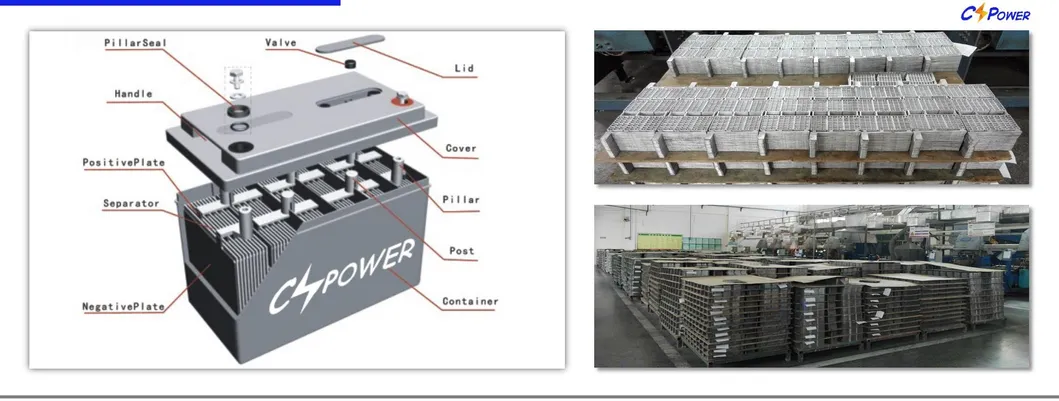

Product Structure

Component	Positive plate	Negative plate	Container & Cover	Safety valve	Terminal	Separator	Electrolyte	Pillar seal
Features	Sn low Ca grid with Special paste	Balanced Pb-Ca grid for improved recombination efficiency	Fire resistance ABS (UL94-V0 optional)	Flame Si-Rubber and aging resistance	Female Copper Insert	Advanced PVC / AGM separator for high pressure cell design	Silicon Gel	Two layers epoxy resin seal

◆Positive plate: Thick high Sn low Ca 3D flat pasted plate
◆Negative plate: Balanced Pb-Ca grid and AM with Super-C additives
◆Separator: Imported Amer-sil PVC separator for Gel battery
◆Electrolyte: Nano GEL electrolyte
◆Battery container and cover: ABS for higher temperature tolerance
◆Pillar seal: 100% factory tested, proven two layers epoxy resin seal
◆Relief valve: Complete with integrated flame arrestor

Production & Quality Control

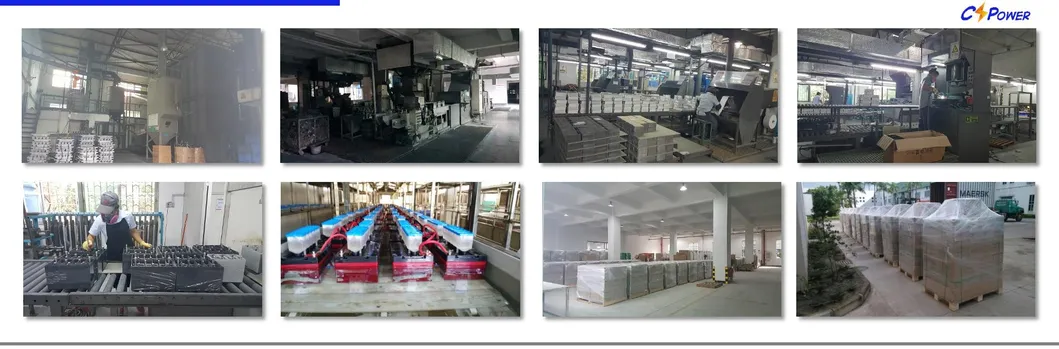

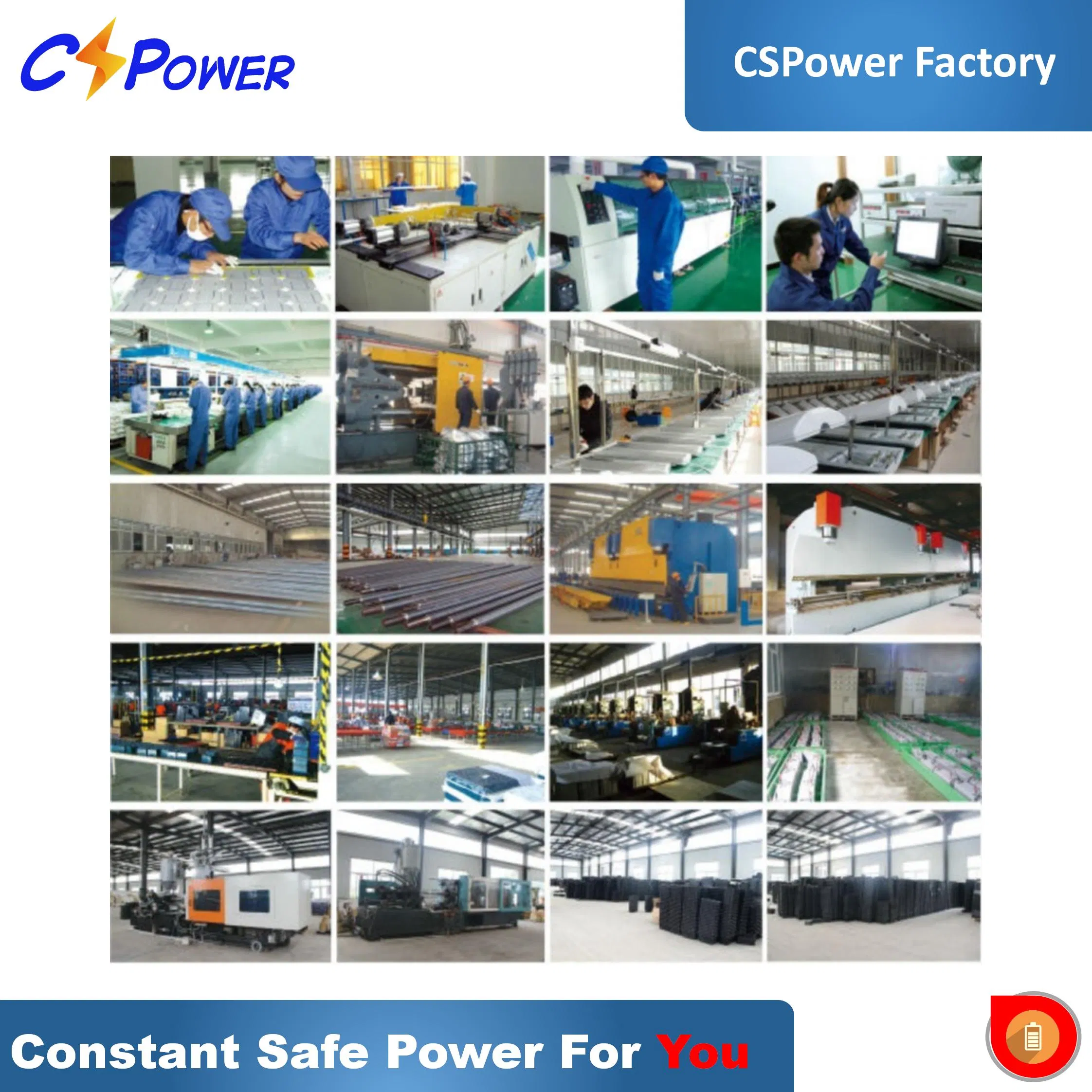

Assembling Process

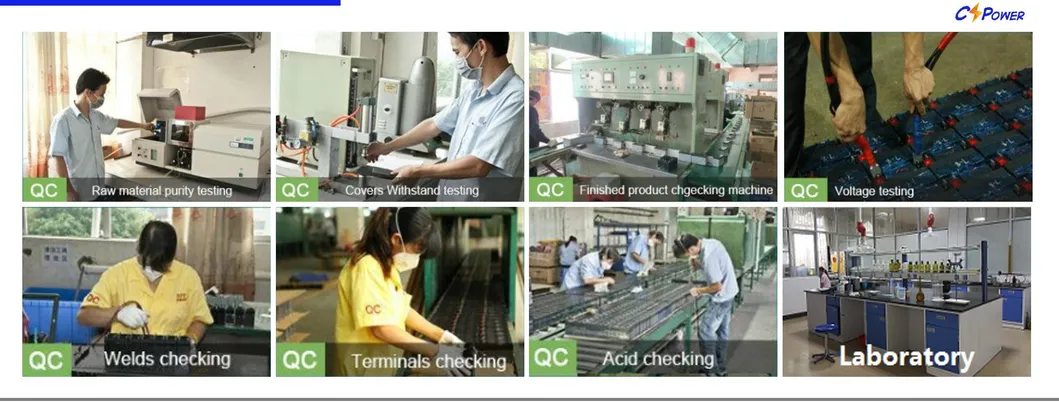

Quality Control System

Projects & Certifications

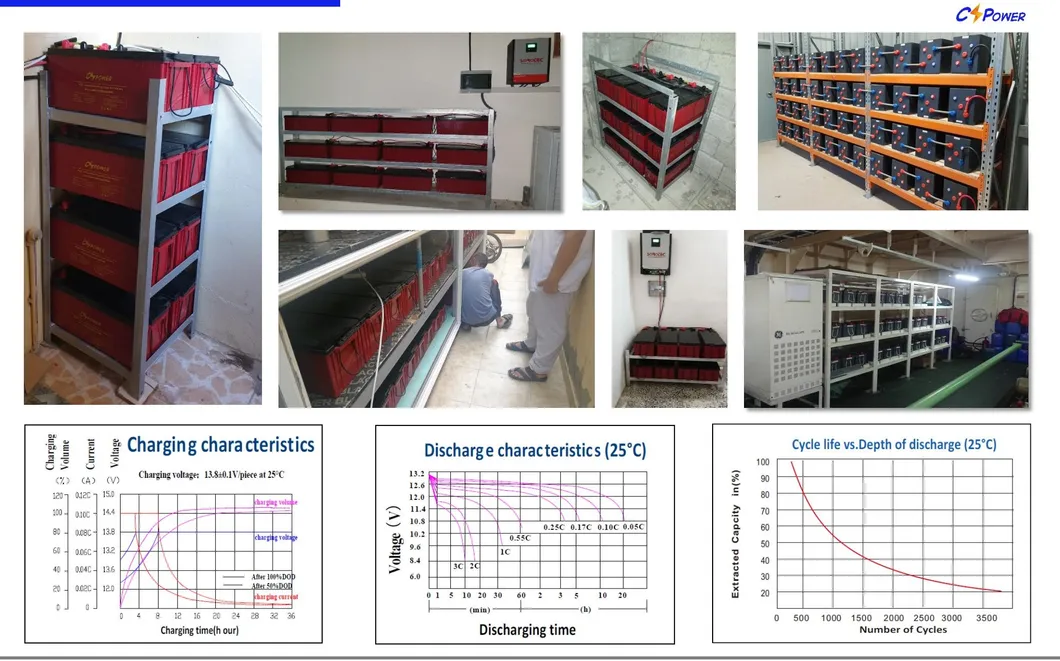

Applications Projects

Certifications Overview

✓IEC 60896-21/22 & IEC 61427
✓ISO9001 / ISO14001 / ISO45001
✓Eurobat guide long life compliance
✓BS6290 part 4 & GB/T 22473
✓CE & UL (MH63727) Certifications

Key Application Fields

◆Electric Powered Vehicles & Wheelchairs
◆BTS Telecom Stations & Control Systems
◆Solar & Wind Power Systems
◆Medical Equipment & Emergency Systems
◆Golf Cars, Buggies & Utility Vehicles
◆Power Tools & UPS Backup

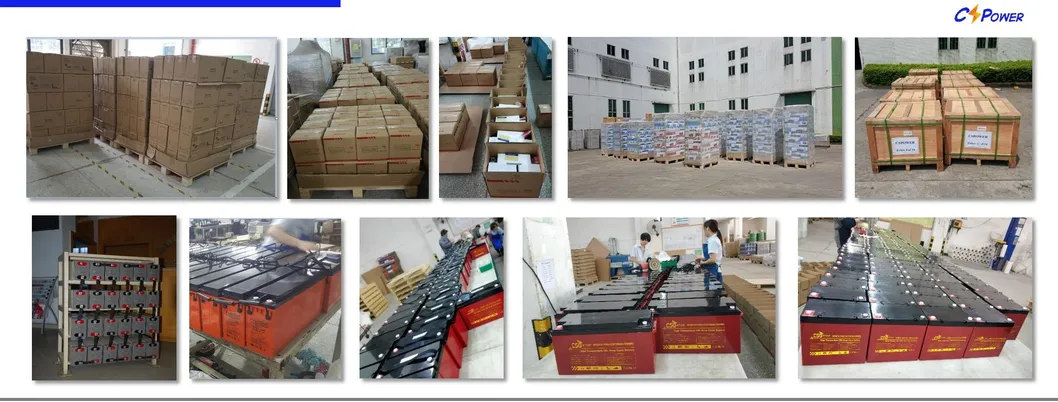

Packing & Customization

Capable of supporting high-level OEM/ODM orders according to real-time custom specifications and requests.

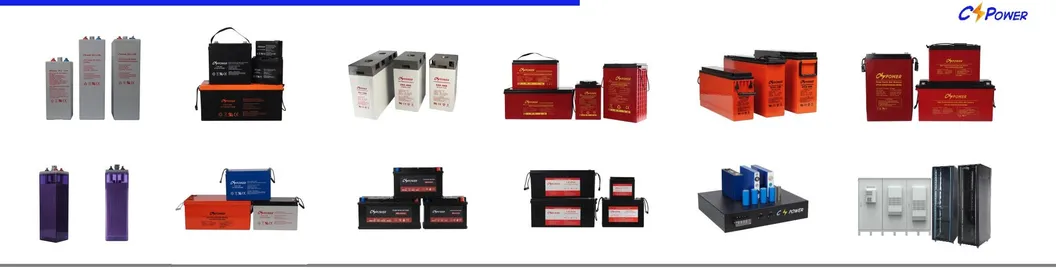

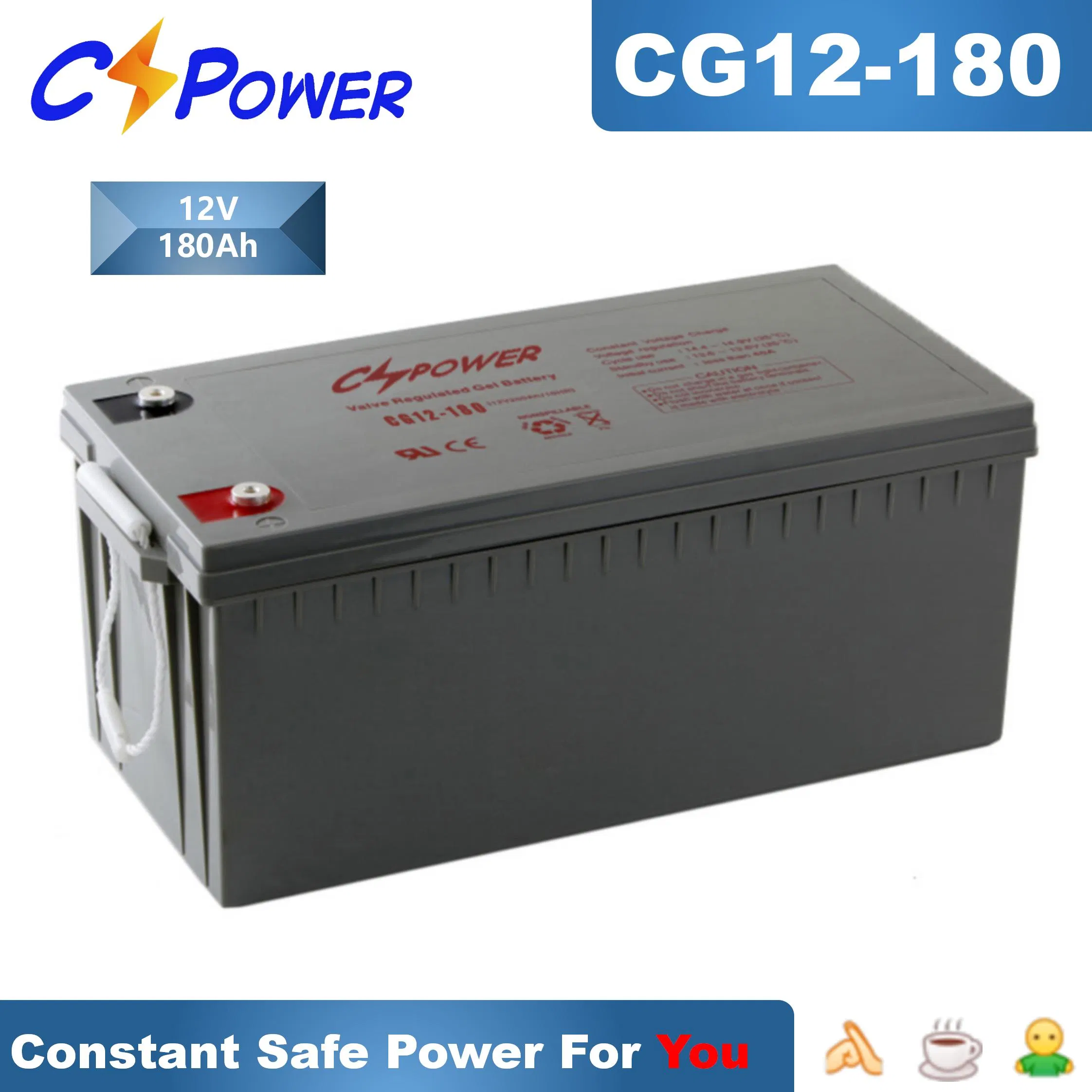

Sealed Free Maintenance GEL Battery Models

Model	Nominal Voltage (V)	Capacity (Ah)	Dimension (mm)				Weight (kgs)		Terminal
Model	Nominal Voltage (V)	Capacity (Ah)	Length	Width	Height	Total Height	Net	Gross	Terminal
CG12-24	12	24/10HR	165	126	174	174	7.7	7.9	M6
CG12-26	12	26/10HR	166	175	126	126	8.3	8.6	M6
CG12-33	12	33/10HR	196	130	155	167	10.0	10.3	M6
CG12-38	12	38/10HR	198	166	174	174	12.3	12.6	M6
CG12-45	12	45/10HR	198	166	174	174	12.9	13.2	M6
CG12-50	12	50/10HR	229	138	208	212	15.8	16.3	M6
CG12-55	12	55/10HR	229	138	208	212	16.3	16.8	M6
CG12-65	12	65/10HR	350	167	178	178	20.5	21.0	M6
CG12-70	12	70/10HR	350	167	178	178	21.5	21.7	M6
CG12-75	12	75/10HR	260	169	211	215	22.0	22.2	M6
CG12-80	12	80/10HR	260	169	211	215	23.5	23.7	M6
CG12-85/90	12	85/90/10HR	331	174	214	219	25.0	25.3	M6
CG12-100C	12	100/20HR	307	169	211	215	27.0	27.3	M6
CG12-100B	12	100/20HR	331	174	214	219	28.0	28.3	M8
CG12-100A	12	100/10HR	331	174	214	219	29.0	29.3	M8
CG12-120	12	120/10HR	407	174	210	233	33.0	33.5	M8
CG12-150B	12	150/20HR	484	171	241	241	41.0	41.5	M8
CG12-150A	12	150/10HR	484	171	241	241	43.5	43.7	M8
CG12-200B	12	200/20HR	522	240	219	224	56.0	56.3	M8
CG12-200A	12	200/10HR	522	240	219	224	58.2	58.5	M8
CG12-250	12	250/10HR	520	268	220	225	70.0	70.5	M8

Frequently Asked Questions

Can the batteries be delivered by sea and air?

Yes, our batteries can be delivered both by sea and by air. We have MSDS and safe transport test reports verifying they travel as non-dangerous products.

Can I fast charge my battery?

Fast charging is not recommended as it can be harmful to the long-term cycle life of the battery.

Can I perform a partial replacement of my battery bank?

Partial battery replacement of lead-acid battery banks is not recommended, as older batteries will degrade new ones quickly when connected in series or parallel.

Why does a battery show different capacities at different hour rates?

The capacity of a battery (in Ah) is a dynamic value dependent on the discharge current. A lower discharge current (like a 20-hour rate) allows the battery to deliver more overall capacity than a higher discharge current (like a 2-hour rate).

What is the shelf life of VRLA batteries and how should they be maintained?

VRLA batteries lose less than 3% capacity per month at 25°C (77°F) due to self-discharge. They should not be stored longer than 6 months at 25°C without recharging. In warmer environments, recharge them every 3 months.

What is the typical lead time for orders?

Normally, it takes about 7 days for stock items, around 20 days for half-container orders, and 30 days for 20ft full-container products.
