| System / Feature | Detailed Configuration Parameters | ||||
| Electrical System | Controller | 96V permanent magnet synchronous system | |||
| Battery | Special maintenance-free battery for traction 96V (6V*12pieces 200AH) | ||||
| Motor | Special AC asynchronous motor 96V/15KW | ||||
| Charger | Computerized intelligent car charger 96V/25A, charging time <8 hours | ||||
| DC Converter | High power isolated DC converter 96V/12V-500W | ||||
| Body Configuration | Front Shield & Wiper | Automotive laminated glass, wiper blades | |||
| Roof | Aluminum profile frame plus GFRP fiberglass roof lightweight design | ||||
| Cushion | Ergonomic design, luxurious PU fabric seats made of cold hair sponge (retains shape) | ||||
| Floor | Aluminum alloy anti-slip floor | ||||
| Body Material | Lightweight design with sheet metal, GFRP fiberglass, and aluminum profiles | ||||
| Chassis | National standard steel main beam with patented tailor welding, pickling, phosphating, and cathodic electrophoresis anti-rust treatment | ||||
| Rearview Mirror | Adjustable and foldable exterior rearview mirrors | ||||
| LED Light Signals | Headlights, turn signals, reversing lights, brake lights, fog lights | ||||
| Dashboard | Molded dashboard, combination meter, electric lock switch, double-position wiper switch, emergency double flash | ||||
| Steering System | Turbine steering gear + EPS electric power assist | ||||
| Brake System | Front & rear drum brakes + hydraulic dual-pipeline braking system, vacuum electronic assist + handbrake | ||||
| Suspension System | Front: Integrated front axle leaf spring + damper | Rear: Integrated rear axle leaf spring + damper | ||||
| Audio / Speaker | USB playback host with dual speakers, Whistler, reversing reminder buzzer | ||||
| Wheels | 185/70R14C tires with stylish wheel covers | ||||
| Technical Parameters | Length * Width * Height | 6180*1840*2150 (mm) | Curb Weight | 1840 kg | |
| Passenger Capacity | 23 People | Trunk Size / Load | --- | ||
| Max Driving Speed | ≤30 km/h | Min Ground Clearance | 330 mm | ||
| Driving Range | ≥100 km | Wheelbase | 3700 ± 10 (mm) | ||
| Maximum Grade | ≤10% | Track Width (F/R) | 1575 / 1565 (mm) | ||
| Slope Holding | 20% | Braking Distance | ≤5 m | ||
| Min Turning Radius | ≤7.5 m | ||||

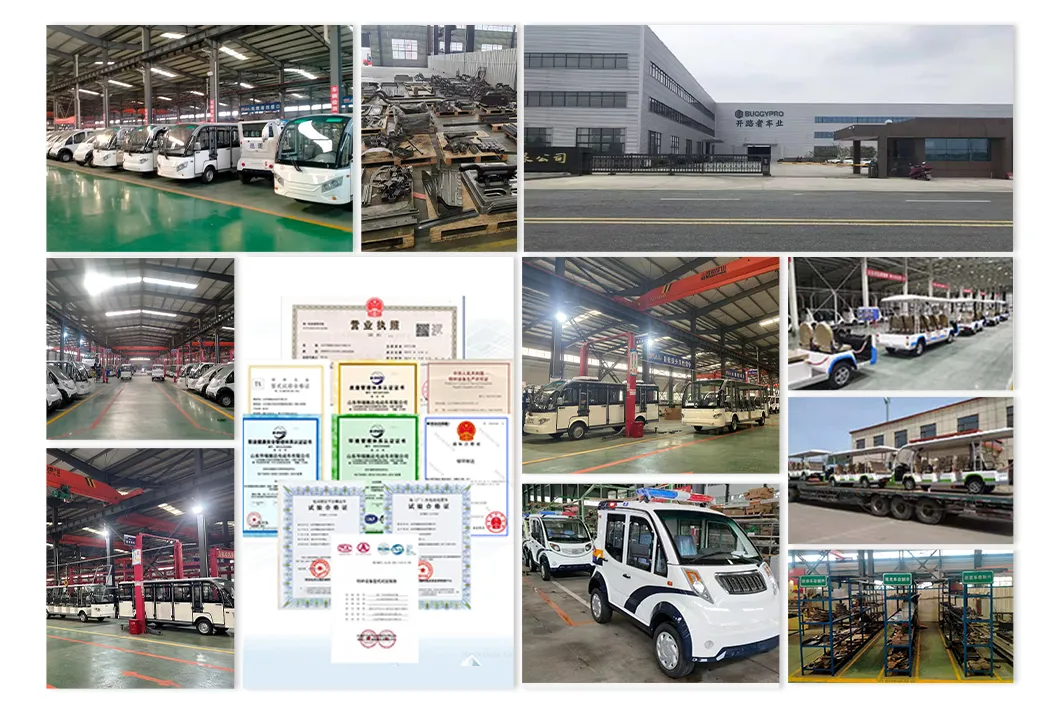

Our team features leading development capabilities with a dedicated R&D department of more than 20 expert engineers. The entire product development process is strictly executed in accordance with modern new energy vehicle industry standards, ensuring top-tier safety, efficiency, and long-term durability.
