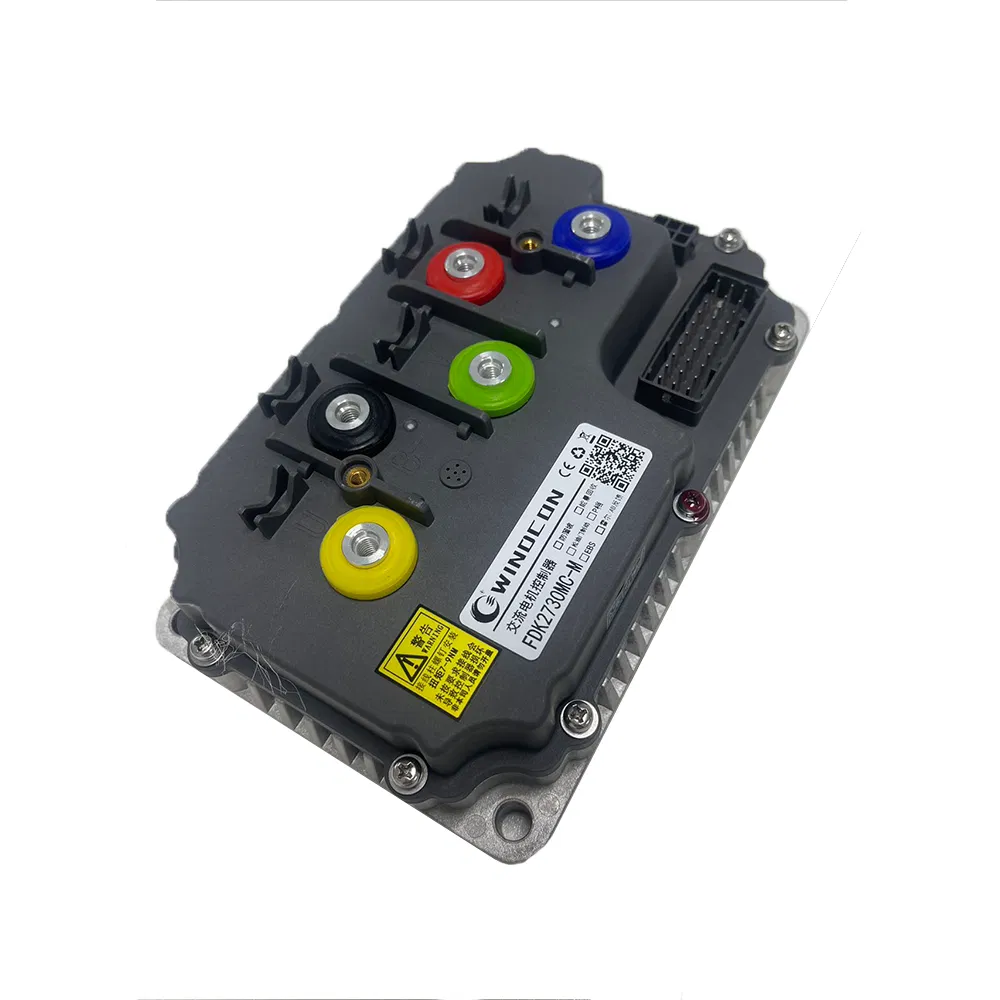

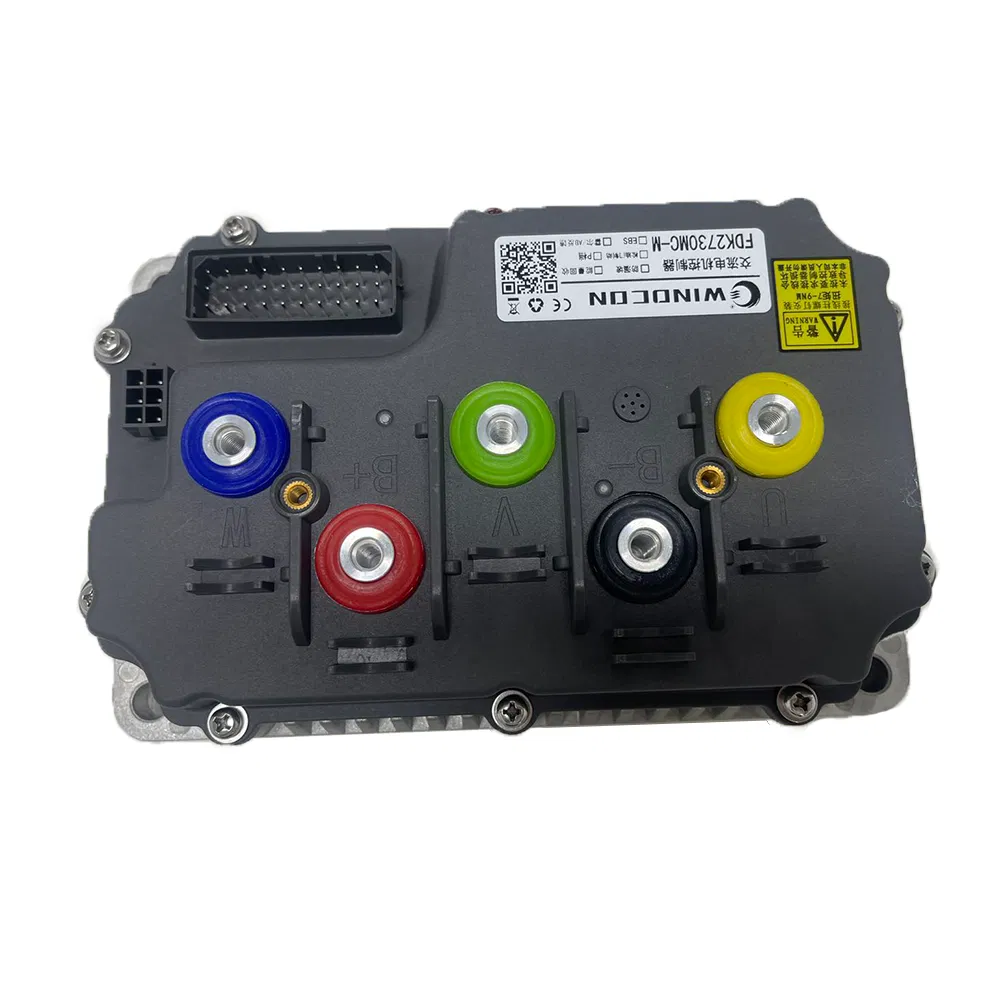

The FDK-M series is an AC asynchronous controller specifically designed for new energy electric vehicles, integrating both control and drive functions. It employs world-class AC motor control algorithms to achieve precise torque control across a wide speed range. Compared to DC motor drive systems, AC drive systems enable broader motor speed regulation, thereby increasing vehicle travel speeds. With brushless, fully enclosed, and maintenance-free AC motors, system reliability is significantly enhanced. It enables flexible energy regeneration control, effectively extending driving range. Widely applied in low-speed electric vehicles, patrol vehicles, sightseeing vehicles, sanitation vehicles, golf carts, electric ATVs, and various specialty vehicles.
| 30 Series AC induction Motor Controller Product Selection Table | ||
|---|---|---|

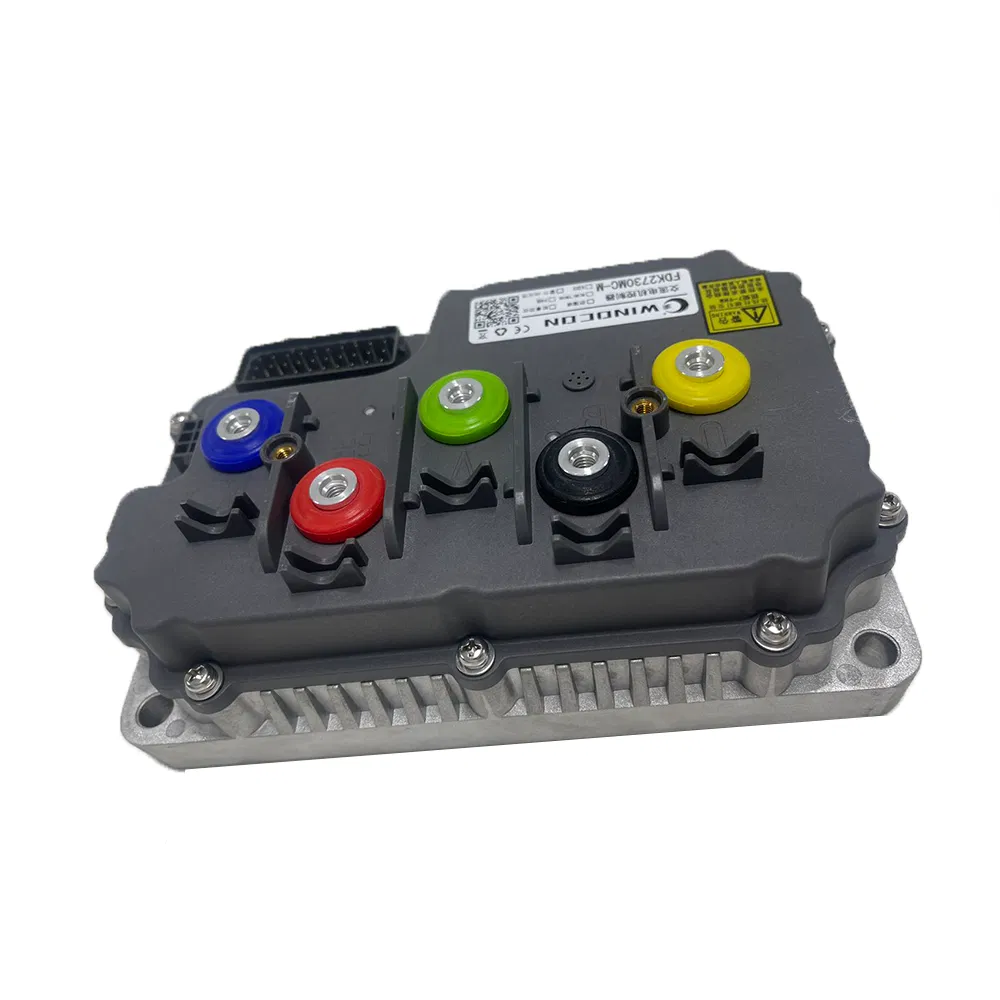

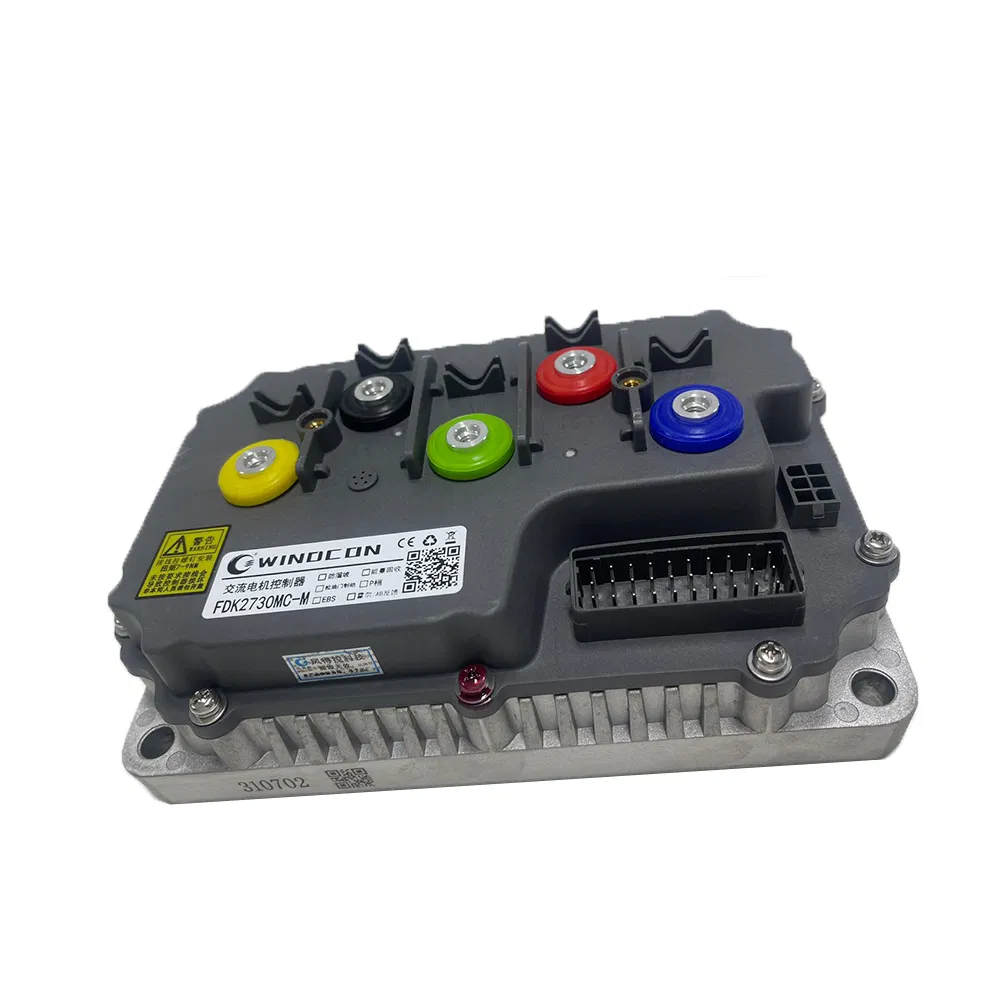

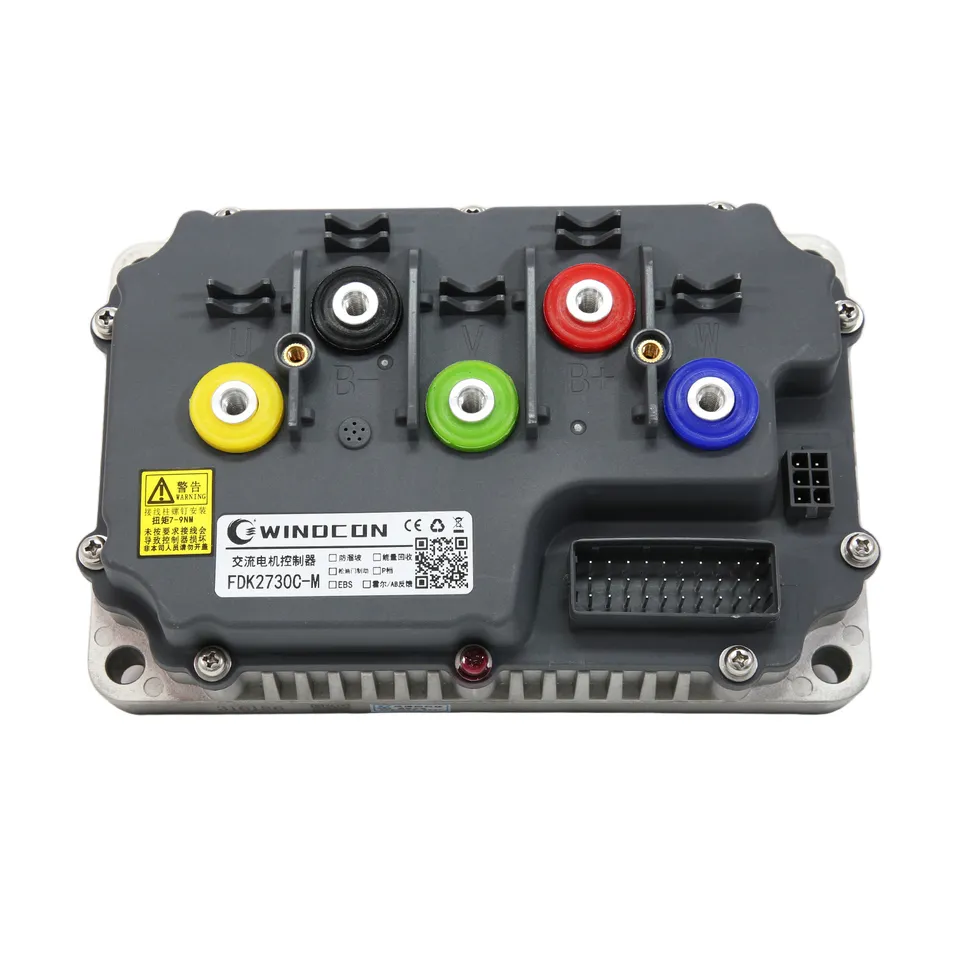

| Specifications | FDK2730C-M | FDK2730MC-M |
| Nominal voltage | 48V/60V/72V | 96V |
| Current output | 275A | 275A |
| Working Temperature | -25°C - 55°C | -25°C - 55°C |

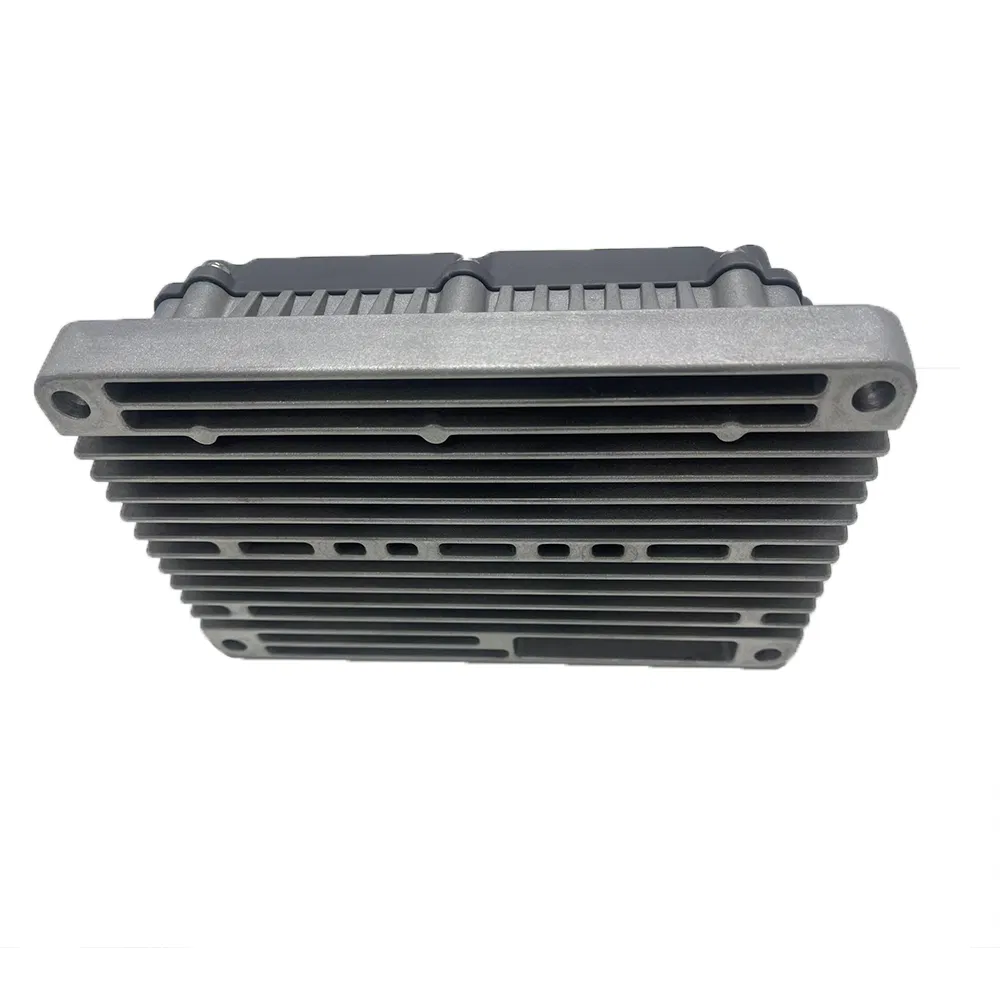

| Cooling mode | Free cooling | Free cooling |
| Size | 193X125X64(mm) | 193X125X64(mm) |
| Weight | ≤1.5KG | ≤1.5KG |
| IP Grade | IP65 | IP65 |
60-72V batteries are universal, and different battery combinations can be switched freely through voltage selection lines.
The default P gear function can be added by selecting whether to add this function to the line.
Equipped with a hill stop function, it does not slide back when parked, and stays for 5 seconds to gradually descend on steep slopes, making it safer and more reliable.
Downward long slope can limit the maximum speed to ensure that the speed does not lose control, while downhill slope can limit the maximum speed to ensure that the rear slip does not lose control.
Strictly monitor the temperature rise curve of the motor control, dynamically adjust the power during high temperatures, ensure power output while preventing thermal runaway of the motor control and burning out the motor control.
Adopting high-precision and high reliability speed sensors, it can accurately control speed, achieve higher energy recovery efficiency, and have a longer range. Electronic brakes can assist mechanical brakes to prevent the vehicle from losing control of braking.

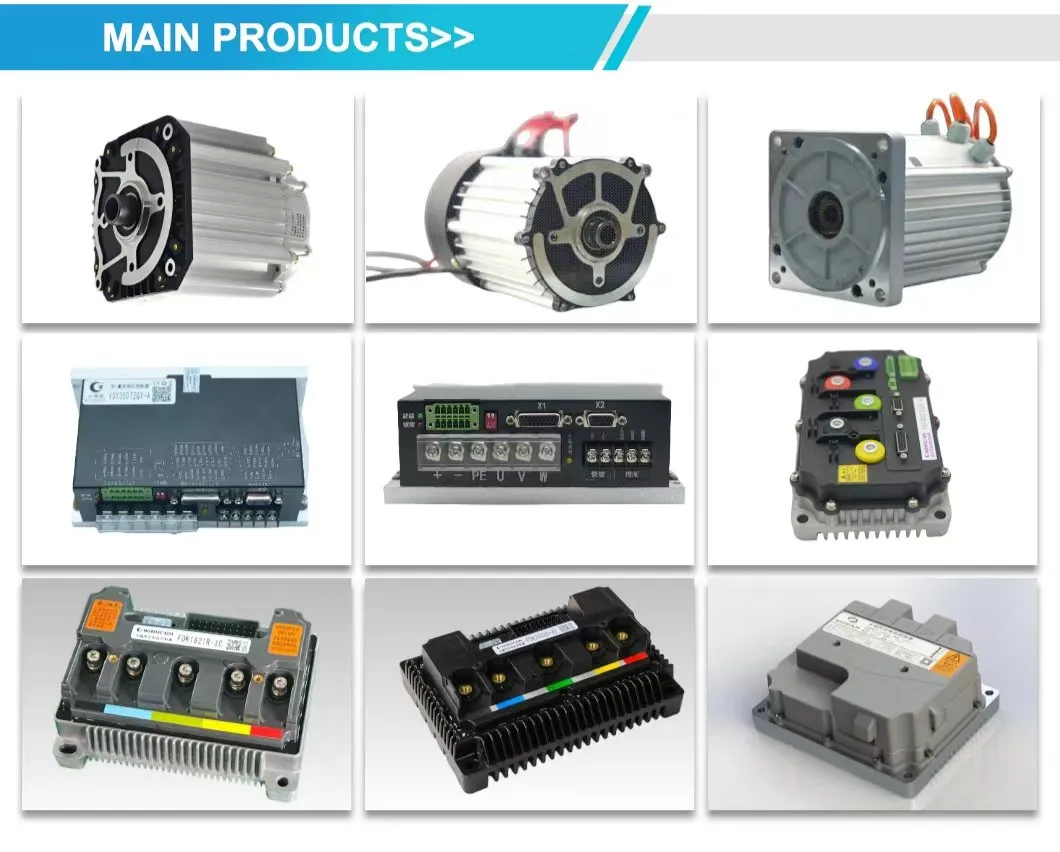

Our core products encompass three major categories:
We specialize in electric drive and intelligent control, providing highly reliable and precise motor control solutions for various electric equipment.
Core Competitive Advantages:
Driven by technological innovation, we strive to become the intelligent "control hub" for motors and equipment, empowering the industry's efficient intelligent upgrade.
A: We are a factory.
A: Our main products include permanent magnet synchronous motor controllers, AC induction motor controllers, and servo motor controllers.
A: Yes, most of our standard products are kept in stock and ready for shipping.
A: The minimum order quantity for standard parts is 1 piece. Custom products require evaluation case by case.
A: We have 16 years of manufacturing experience, a large stock of most standard products, and rapid production and delivery capacity.
A: Small batch orders are sent via DHL/FedEx/UPS/TNT couriers, while large batch orders are shipped by air or sea. We accept wire transfer, PayPal, Western Union, and L/C, with a standard process of 30% deposit upfront.
